EverFocus SG Series Manual de usuario

Value IP Series Network Camera

SG and NV Series

Quick Installation Guide

NV Series

SG Series

Release Date: May, 2022

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained in

this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Full Model List

Series


Model Name

EZN1250-SG / EZN1550-SG / EZN2250-SG /

EZN2550-SG / EZN2850-SG

EHN1250-SG / EHN1550-SG / EHN2250-SG /

EHN2550-SG / EHN2850-SG

EMN2560-SG

EZN1240-SG / EZN1540-SG / EZN2240-SG /

EZN2540-SG / EZN2840-SG

EBN1240-SG / EBN1540-SG / EBN2240-SG /

EBN2540-SG / EBN2840-SG

EZN3540-NV / EZN3840-NV

EBN3540-NV / EBN3840-NV

EZN3550-NV / EZN3850-NV

2. Physical Description

134

SG - EZN Series

SG - EHN Series

SG - EMN Series

No.

Item Name

Descriptions

Reset Button /

Micro SD Card Slot /

CVBS Lan /

Zoom in & out

Use the supplied Hexagon Wrench to loosen the

screws to access the Reset Button, Micro SD slot,

CVBS Lan (this function is currently reserved),

and Zoom In & Out.

Sunshield

Protect the camera from the direct sun rays.

Tilt Screw

Use the supplied Hexagon Wrench to loosen the

Tilt Screw.

Pan Screw

Use the supplied Hexagon Wrench to loosen the

Pan Screw.

Light Sensor

Detects lights.

Lens

Camera lens.

Reset Button /

Micro SD Card Slot /

CVBS Lan /

Zoom in & out

To access the Reset Button, Micro SD slot, CVBS

Lan (this function is currently reserved), and

Zoom In & Out.

IR LED

IR LED.

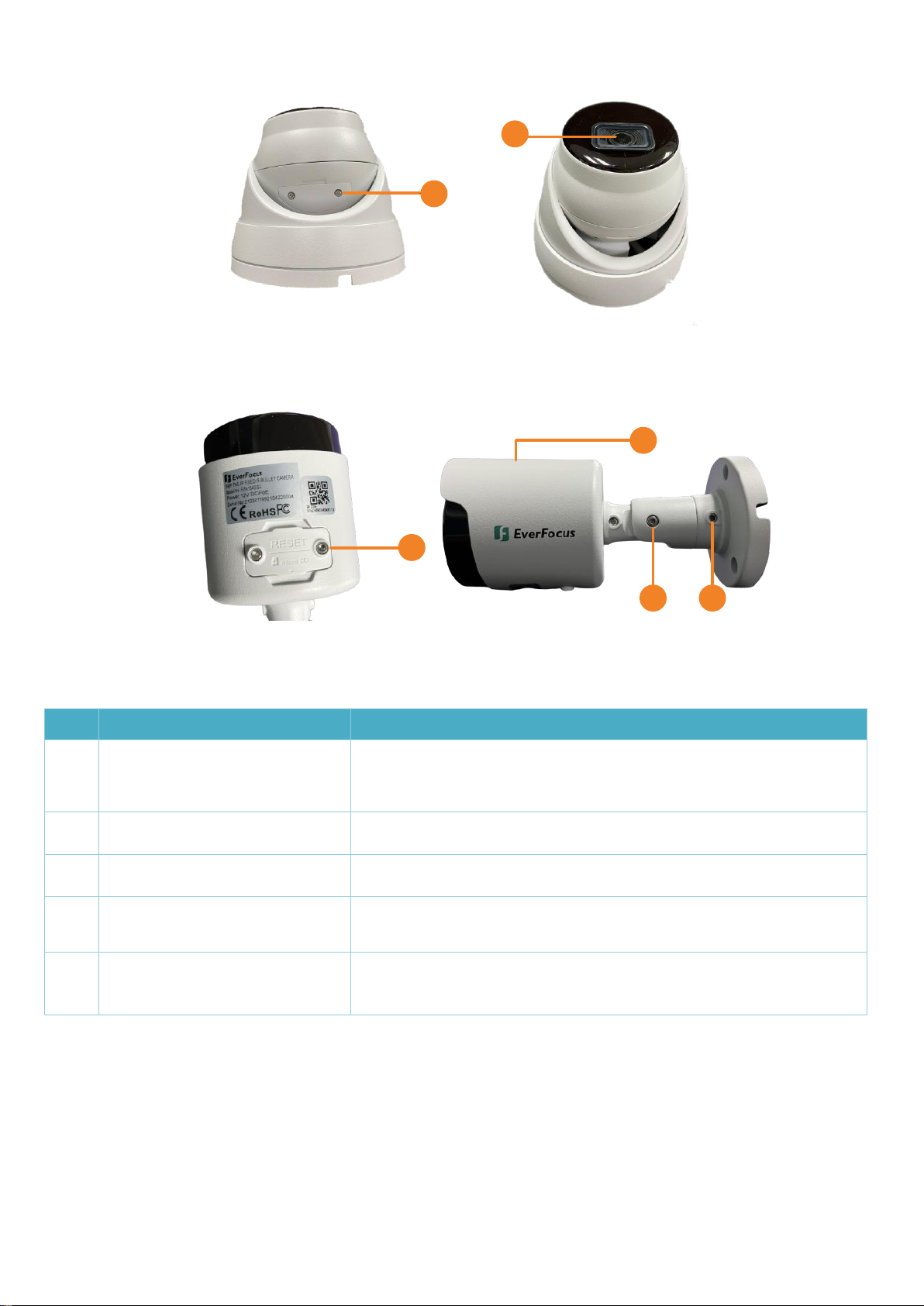

SG mini - EBN Series

SG mini - EZN Series

No.

Item Name

Descriptions

Reset Button /

Micro SD Card Slot

Loosen the screws to access the Reset Button

and Micro SD slot.

Lens

Camera Lens

Sunshield

Protect the camera from the direct fun rays.

Tilt Screw

Use the supplied Hexagon Wrench to loosen the

Tilt Screws.

Pan Screw

Use the supplied Hexagon Wrench to loosen the

Pan Screws.

NV - EBN Series

NV mini - EZN Series

No.

Item Name

Descriptions

Reset Button /

Micro SD Card Slot

Loosen the screws to access the Reset Button

and Micro SD slot.

Lens

Camera Lens

Warm Supplemental

Light

Warm lights to enhance visibility.

Tilt Screw

Use the supplied Hexagon Wrench to loosen the

Tilt Screws.

Pan Screw

Use the supplied Hexagon Wrench to loosen the

Pan Screws.

NV - EZN Series

No.

Item Name

Descriptions

Reset Button /

Micro SD Card Slot

Loosen the screws to access the Reset Button

and Micro SD slot.

Tilt Screw

Use the supplied Hexagon Wrench to loosen the

Tilt Screws.

Pan Screw

Use the supplied Hexagon Wrench to loosen the

Pan Screws.

3. Dimensions

SG - EZN Series

SG - EHN Series

SG mini - EMN Series

SG mini - EBN Series SG mini - EZN Series

NV - EBN Series

NV mini - EZN Series

NV - EZN Series

4. Packing List

Please check if all the items listed below are within the package.

SG - EZN Series

SG - EHN Series

1. Camera x 1

2. Cable Gland Kit x 1

3. Screw x 3

4. Screw Anchor x 3

5. Hexagon Wrench x 2

6. Quick Installation Guide x 1

7. Installation Sticker x 1

1. Camera x 1

2. Cable Gland Kit x 1

3. Screw x 4

4. Screw Anchor x 4

5. Torx Wrench x 1

6. Quick Installation Guide x 1

7. Installation Sticker x 1

SG - EMN Series

1. Camera x 1

2. Quick Installation Guide x 1

3. Screw & Screw Anchor x 3

4. Network Cable Accessory

5. Quick Installation Guide x 1

SG mini - EBN Series

SG mini - EZN Series

1. Camera x 1

2. MAC Address Sticker x 2

3. Cable Gland Kit x 1

4. Screw & Screw Anchor x 3

5. Quick Installation Guide x 1

6. Mounting Sticker x 1

1. Camera x 1

2. MAC Address Sticker x 2

3. Cable Gland Kit x 1

4. Screw & Screw Anchor x 3

5. Hexagon Wrench x 2

6. Quick Installation Guide x 1

7. Installation Sticker x 1

NV - EBN Series

NV - EZN Series

1. Camera x 1

2. MAC Address Sticker x 1

3. Cable Gland Kit x 1

4. Screw & Screw Anchor x 3

5. Quick Installation Guide x 1

6. Mounting Sticker x 1

1. Camera x 1

2. MAC Address Sticker x 1

3. Cable Gland Kit x 1

4. Screw & Screw Anchor x 3

5. Hexagon Wrench x 2

6. Quick Installation Guide x 1

7. Installation Sticker x 1

5. Cables

The cables provide connections for network, power, audio input / output, and

alarm input / output.

Alarm Input / Output

LAN / PoE Cable

12VDC Power Input

Audio Output

Audio Input

LAN / PoE Cable

Power Cable (12VDC)

Connect the camera to the network using the supplied Cable Gland Kit.

a. Insert a RJ-45 network cable (without the RJ-45 connector on the one end)

through the supplied Waterproof Ring, Cable Gland, Stopper and Screw

Cap accordingly.

Waterproof Ring Cable Gland Stopper Screw Cap

b. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.

RJ-45 Cable

LAN/PoE Cable

c. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45

Connector Cable.

Screw Cap

Cable Gland
