ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Analog High Definition

Outdoor Dome Camera

DWC-V6763WTIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Surface Mount Installatrion instructions

Connecting to Monitors 13

Corner Mount Installation Instructions 12

Pendant Mount Installation Instructions 11

Wall Mount Installation Instructions 10

Junction Box Installation Instructions

Control Board

Adjusting the Camera Axis

17-29

31-32

33-34

Adjusting the Camera Angle

FEATURES*

Analog High Definition (AHD) HD over Coax Technology

STAR-LIGHT™ Super Low Light Technology

Panasonic 1/3" CMOS Sensor

1080P Resolution at 30fps

Digital Wide Dynamic Range (DWDR)

Varifocal P-Iris Lens 2.8~12mm

CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease

Smart IR™ with Intelligent Camera Sync. 100ft Range

Smart DNR™ 3D Digital Noise Reduction

Highlight Masking Exposure (HME)

True Day/Night Mechanical IR Cut Filter

Secondary Video-BNC Output (While UTP in use)

Easy Icon Driven OSD Menu with Built-in Joystick

Programmable Privacy Zones

Auto Gain Control (AGC)

Back Light Compensation (BLC)

Dynamic Range Compressor (DRC) Reveals Low Light Detail

Auto White Balance (AWB)

IP66 Certified (Weather Resistant)

PARTS & DESCRIPTION*

BNC Cable

DC12V Cable

UTP Cable

RS485 Cable

Alarm Output Cable

Bottom Case

Camera Gimbal

Upper Case

Dome Cover

5Cover Screws (x4)

Side Port for Cabling

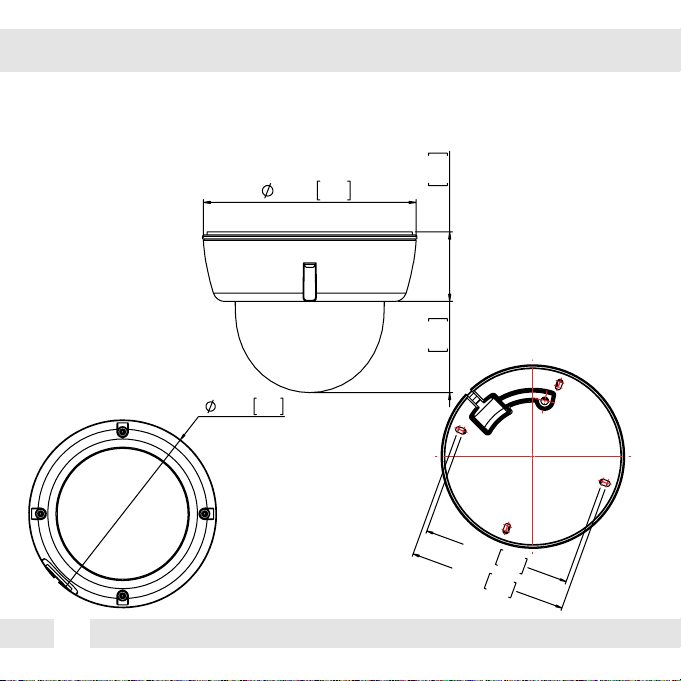

DIMENSIONS IN MILLIMETERS (IN)*

47.0 1.9

144.0 5.7

61.8 2.4

145.0 5.7

117.0 4.6

125.0 4.9

INSIDE THE BOX*

Included with Camera:

User Manual

Mounting Template

4 Machine Screws and 4 Dry Wall Anchors

Secondary Video-BNC Cable

L-Key

DC Plug Power Cable

05/2015

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Analoh High Definition

Outdoor Dome Camera

DWC-V6763WTIR

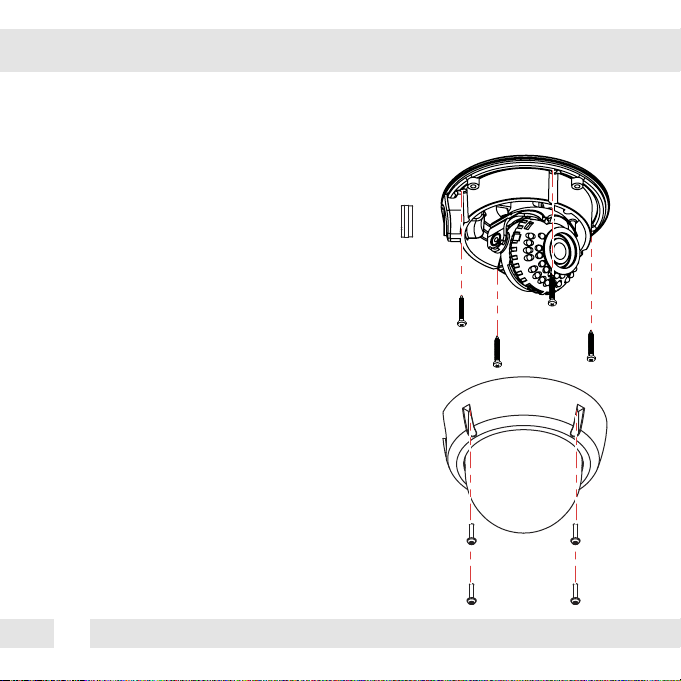

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

1. Use the camera or mounting template to

mark and drill the necessary holes in the

wall or ceiling.

2. Pull wires through and make

connections.

3. Using the four (4) included screws,

mount and secure the camera to the wall

or ceiling.

4. Adjust the camera’s Pan and Tilt and

Lens. See pages 15-16 for more

information.

5. Use the joystick to adjust the OSD

menu. See pages 17-28 for more

information.

6. Attach the camera housing to the

camera base using the assembly screws.

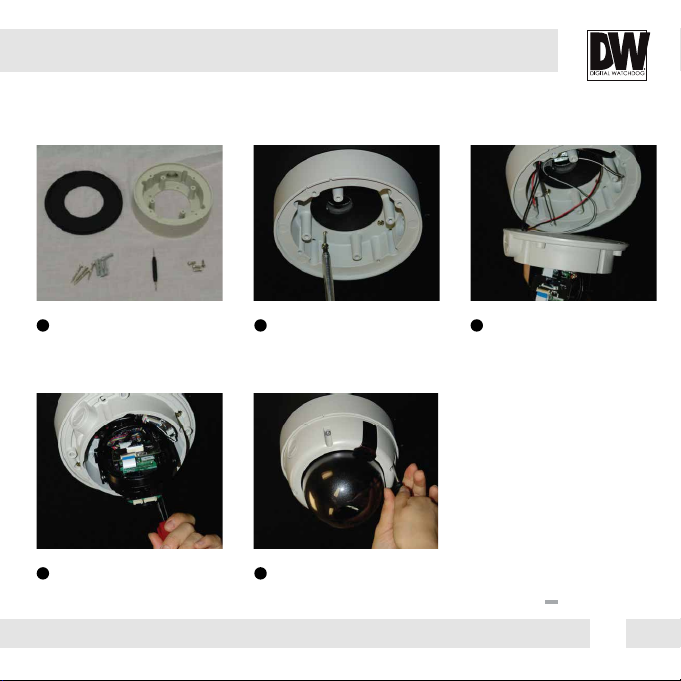

JUNCTION BOX INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Use the dry wall anchors and

machine screws to mount the

junction box and rubber

gasket to the wall.

Insert wires through the

wall and make the

appropriate connections.

Attach the camera to the

junction box using the

machine screws.

Attach the camera housing

to the junction box using the

assembly screws.

1 2 3

4 5

WALL MOUNT INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Insert the wires from the

camera through the wall

mount housing.

Attach the camera to

the wall mount housing.

Use the mounting template to

make pilot holes. Use the dry

wall anchors and machine screws

to attach the assembly to the wall.

Attach the camera housing

to the fixture.

1 2 3

4 5
