Digital Watchdog Star-Light DWC-MC253WT-28 Manual de usuario

User’s ManualVer. 05/18

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Star-LightTM 8QLYHUVDO+'RYHU

&RD[TMmLFURdRPH camera

':&0&:7,5,5

'W&-MC253WT-28

Index

INTRODUCTION

Safety Information

'FBUVSFT

Part Name

Dimension

1SPEVDU"DDFTTPSJFT



INSTALLTION

Installation

Connecting to Monitors

$POUSPM#PBSE

"EKVTUJOH$BNFSB"OHMF









OSD MENU

Menu Tree

OSD Menu - &YQPTVSF

OSD Menu - $PMPS

OSD Menu - %BZ/JHIU

04% Menu - 'VODUJPO

OSD Menu - .PUJPO

OSD Menu - 1SJWBDZ

OSD Menu - 4FUVQ

OSD Menu - Exit













2

2

2

APPENDIX

Troubleshooting



SpecJGJDBUJPOT

-JNJUT&YDMVTJPOT

8BSSBOUZ









Safety Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

This symbol indicates that dangerous voltage

consisting a risk of electric shock is present within

this unit.

This exclamation point symbol is intended to alert the

user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this appliance to

rain or moisture.

1. Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet.

Using any other adapter could cause ﬁre, electrical shock, or damage to the product

2. Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric

shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter.

Exceeding the capacity may cause abnormal heat generation or ﬁre.

4. Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁre.

5. When installing the camera, fasten it securely and ﬁrmly.

A falling camera may cause personal injury.

6. Do not place conductive objects (e.g. screw drivers, coins, metal things, etc.) or containers ﬁlled

with water on top of the camera. Doing so may cause personal injury due to ﬁre, electric shock,

or falling objects.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

WARNING



Safety Information

7. Do not install the unit in humid, dusty, or sooty locations.

Doing so may cause ﬁre or electric shock.

8. If any unusual smells or smoke come from the unit, stop using the product.

In such case, immediately disconnect the power source and contact the service center.

Continued use in such a condition may cause ﬁre or electric shock.

9. If this product fails to operate normally, contact the nearest service center.

Never disassemble or modify this product in any way.

10. When cleaning, do not spray water directly onto parts of the product.

Doing so may cause ﬁre or electric shock.

Operating

. Before using, make sure power supply and all other parts are properly connected.

. While operating, if any abnormal condition or malfunction is observed, stop using the camera

immediately and contact your dealer.

Handling

. Do not disassemble or tamper with parts inside the camera.

. Do not drop the camera or subject it to shock or vibration as this can damage the camera.

. Clean the lens with extra care. Scratches and dust can ruin the quality of the camera image.

Installation and Storage

. Do not install the camera in areas of extreme temperature, exceeding the allowed range.

. Avoid installing in humid or dusty environments.

. Avoid installing in places where radiation is present.

. Avoid installing in places where there are strong magnetic elds and electric signals.

. Avoid installing in places where the camera would be subject to strong vibrations.

. Never expose the camera to rain or water.

PRECAUTION



Important Safety Instructions

1. Read these instructions.

- All these safety and operating instructions should be read before the product is installed or operated.

2. Keep these instructions.

- The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings.

- All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions.

- All operating and use instructions should be followed.

5. Do not use this device near water.

- For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.

6. Clean only with dry cloth.

- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

- Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and

to protect it from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or

other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless

proper ventilation is provided and the manufacturer’s unstructions have been adhere to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus

(including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.



Important Safety Instructions

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specied

by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has

been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

Disposal of Old Appliances

 When this crossed-out wheel bin symbol is attached to a product it meansthe

product is covered by the European Directive 2002/96/EC.

 All electrical and electronic products should be disposed of separately formthe

municipal waste stream stream in accordance to laws designated by the

government or the local authorities.

 The correct disposal of your old appliance will help prevent potential negativeconsequences for

the environment and human health.

 For more detailed information about disposal of your old appliance, pleasecontact your city

office, waste disposal service or the shop where you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user

will be required to correct the interferenece at his own expense.



Features

Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all

analog to 960H signal support

Star-Light™ super low light technology

2.1MP/1080p 1/3" image sensor at real-time 30fps

2.8mm fixed lens (DWC-MC253WT-28)

3.6mm fixed lens (DWC-MC253WTIR)

True wide dynamic range (WDR)

OSD control via Coaxial (UTC)

50' Smart IR™ with intelligent camera sync. (DWC-MC253WTIR only)

Smart DNR™ 3D digital noise reduction

True day/night mechanical IR cut filter

De-Fog™ extreme weather image compensation

Highlight masking exposure (HME)

Easy icon driven OSD menu with built-in joystick

Programmable Privacy Zones

Auto gain control (AGC)

Backlight compensation (BLC)

Dynamic range compressor (DRC) reveals low light detail

Auto white balance (AWB)

IP66 certified weather and tamper resistant

IK-10 impact rated

5 year warranty



Part name

Security Screw

Upper Case

Ambient Light Sensor

IR Switch

(DWC-MC253WTIR only)

Lens

Power Input Connector

Video BNC

Output Connector

Tilt Stopper Screw

IR LED (DWC-MC253WTIR only)

Test Video Output

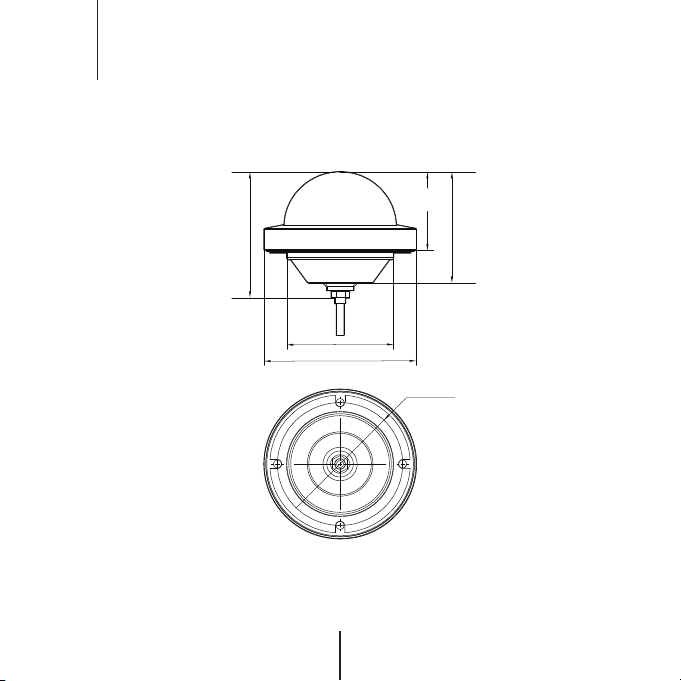

Dimension

Unit : *ODIFTmm

56NN



42.5NN



67.5NN

59.5NN

66NN

80NN



Product & Accessories

Please check if all the camera and accessories are included in the package.

Camera

Manual

Screw &

Plastic Anchor-4pcs

Torx Wrench

Template Sheet



&YUFSOBM04%BOE

4JHOBM$POUSPMMFS
