Digital Watchdog Infinity OMNI-Plus V1382TIR Manual de usuario

Infinity OMNI-Plus V1382TIR

11192010

User Manual Version #2:

Camera with ICON Menu

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high levels.

Cleaning

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface

The material of the mounting surface must be strong enough to support the camera.

TROUBSHOOTING

Before sending your camera for repair, check the following or contact our technical specialist.

No VIDEO

Check the coaxial cable and make sure it is connected securely.

Check the lens’ iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Out-of-Focus VIDEO

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to Provide reasonable protection against harmful interference .when the equipment is operated in a residential environment. This equipment

generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance

with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacture.

FEATURES

1/3”Sony Super HAD II CCD

High Resolution 560TV Lines

OMNI-Focus 2.9~8.5mm 3X Motorized Zoom, Auto Iris

70ft Range IR with Intelligent Camera Sync

True Day & Night / TDN5 (Electro Magnetic Mechanism)

Max-DR (Electronic Wide Dynamic Range)

Enables the camera to capture perfect images in both bright and dark environments simultaneously.

3D-DNR (3D Digital Noise Reduction)

Produces less noise and more color during low-light application.

HME (Highlight Mask Exposure)

Masks overly exposed light to produce a true video image of any environment.

SLC (Side Light Compensation)

DIS (Digital Image Stabilizer)

Programmable Privacy Zone (6) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

No Fog or Condensation under Any Weather Condition

RS485 (Black+ & White -)

Power Wire Maximum Distance

Wire Gauge 12VDC 24VAC

24 AWG 80ft 323ft

22 AWG 128ft 513ft

20 AWG 203ft 815ft

18 AWG 323ft 1295ft

16 AWG 514ft 2056ft

14 AWG 816ft 3264ft

12 AWG 1295ft 5183ft

10 AWG 2057ft 8228ft

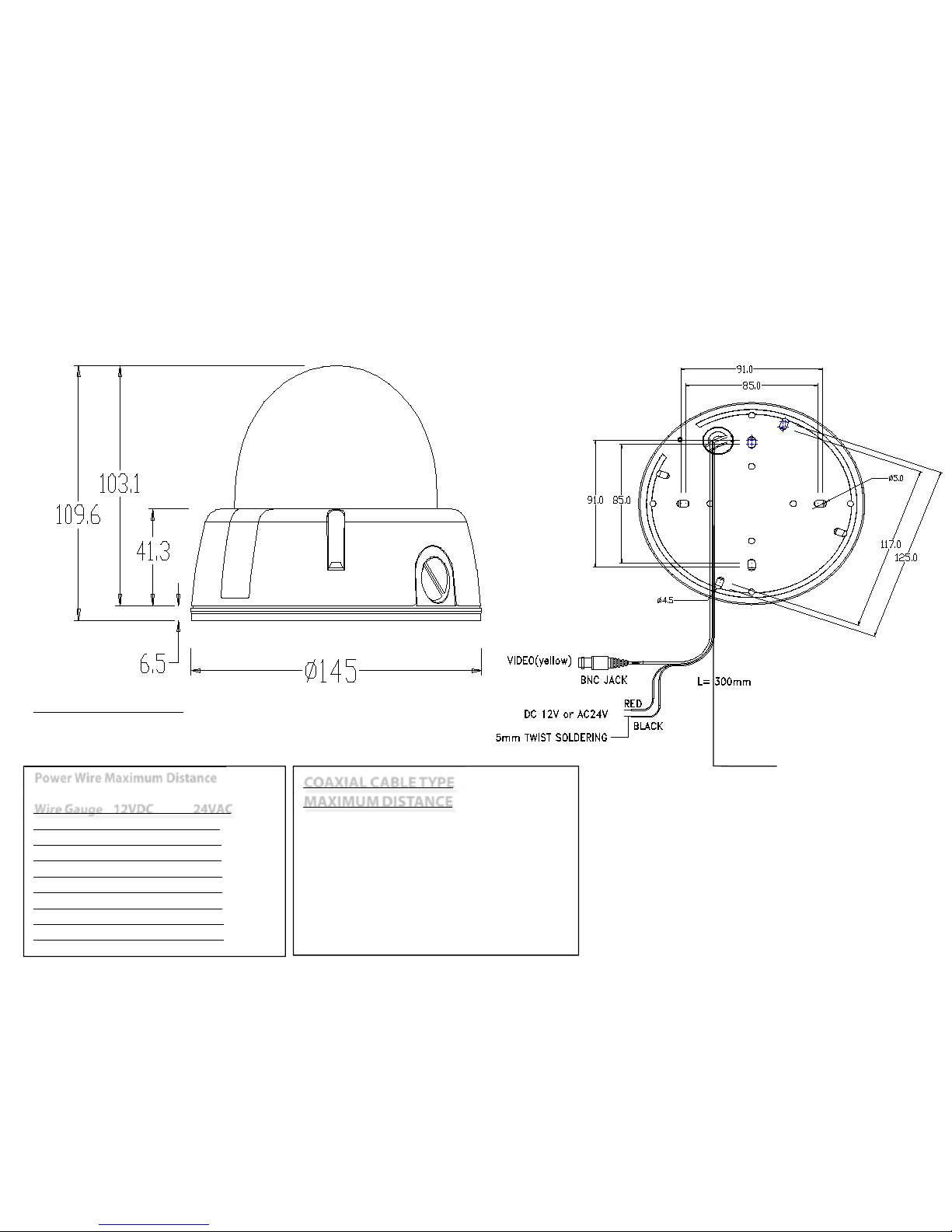

DIMENSION (mm) & POWER REQUIREMENT

POWER REQUIREMENT:

12VDC @1A

24VAC @ .500mA

COAXIAL CABLE TYPE

MAXIMUM DISTANCE

RG59/ U 750feet

RG6/U 1,000feet

RG11/U 1,500feet

Included with DW Vandal Camera:

1. Mounting Template

2. User Manual

3. One Security L-Key

4. One Single Sided Hex Key

5. One Double Sided Hex key

6. Secondary BNC Cable for a Field Monitor

7. Four (4) Screws and Four (4) Dry Wall

Anchors

8. 3 Axis Gimbal Guide

9. IR Remote Controller

INSTALLATION AND ADJUSTMENT

Camera Installation

Use the mounting template to mount the camera.

Using the security L-key to loosen the four screws that secure the vandal proof

dome cover, Remove the vandal proof dome cover to access the screw holes

to mount the camera.

NOTE: Keep the lens and the vandal proof cover free from dust or fingerprint.

70.0°

3-Axis Gimbal Adjustment

3 4 5

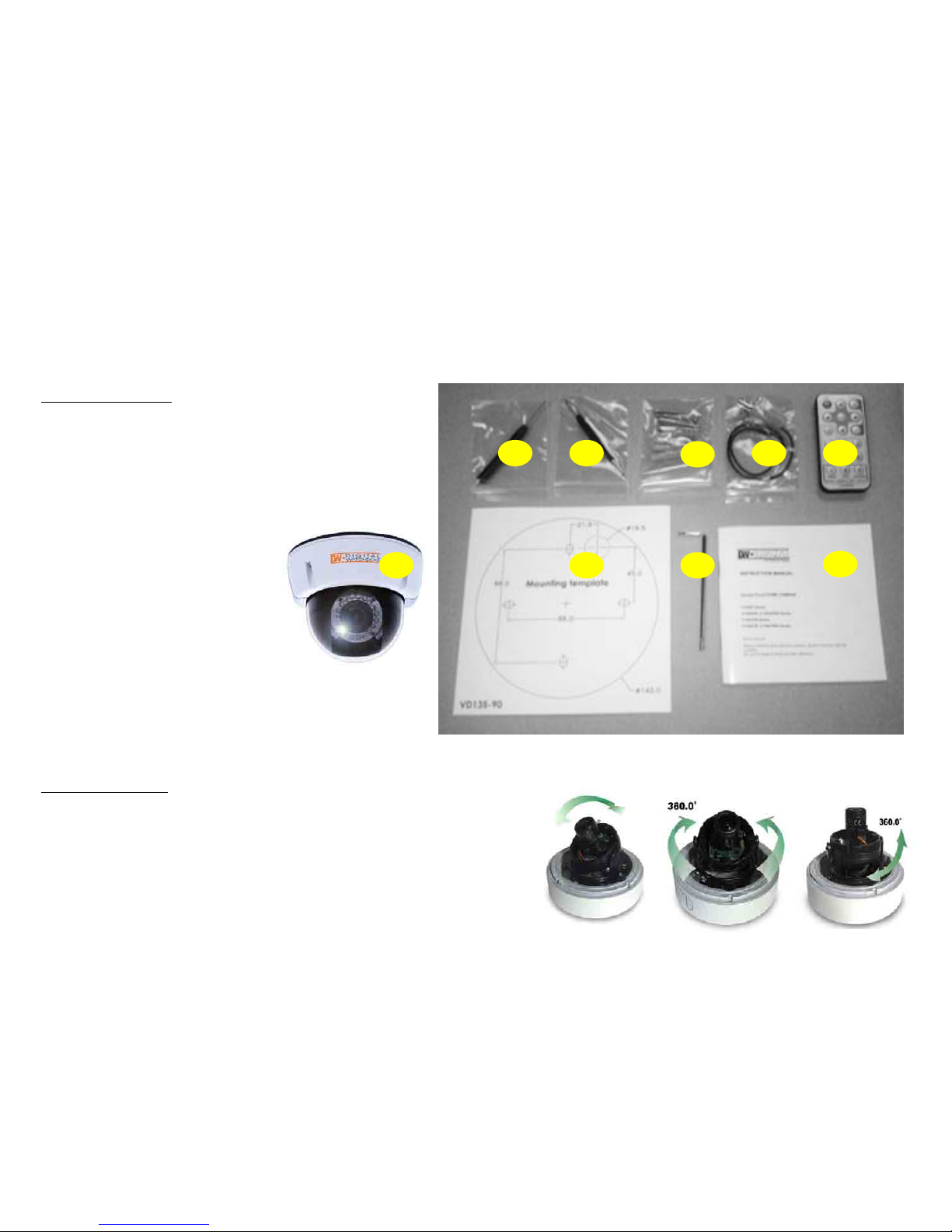

INSIDE THE BOX

1. Digital Watchdog Infinity Vandal Camera

2. Mounting template

3. Pack of four (4) wood screws and four (4)

dry wall anchors

4. One double sided hex key

5. One single sided hex key

6. One security L-key

7. User manual

8. IR Remote Controller

9. Secondary BNC cable for a field monitor

INSTALLATION AND ADJUSTMENT

39 84

Camera Installation

Use the mounting template to mount the camera.

Using the security L-key to loosen the four screws that secure the vandal proof

dome cover, Remove the vandal proof dome cover to access the screw holes

to mount the camera.

NOTE: Keep the lens and the vandal proof cover free from dust or fingerprint.

70.0°

3-Axis Gimbal Adjustment

DC12V / AC24V

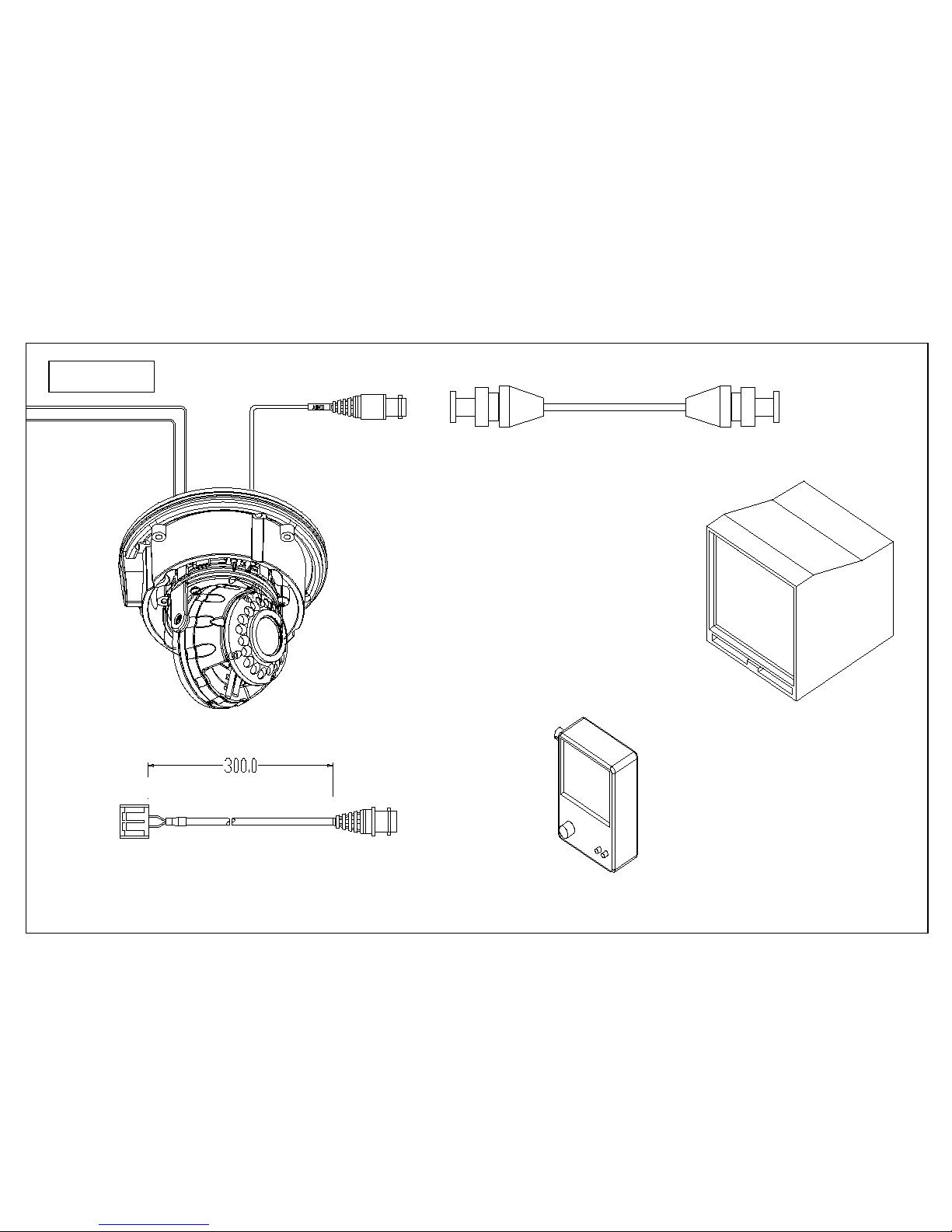

CONNECTION

Main Monitor

BNC Cable

Video Output

Spot Monitor Cable Field Test Monitor

Mini Joystick for the Menu Setup

UP DOWN

LEFT

RIGHT

Field Test Monitor Video Output

Dip Switch for the IR Remote Controller

RS485 Connector

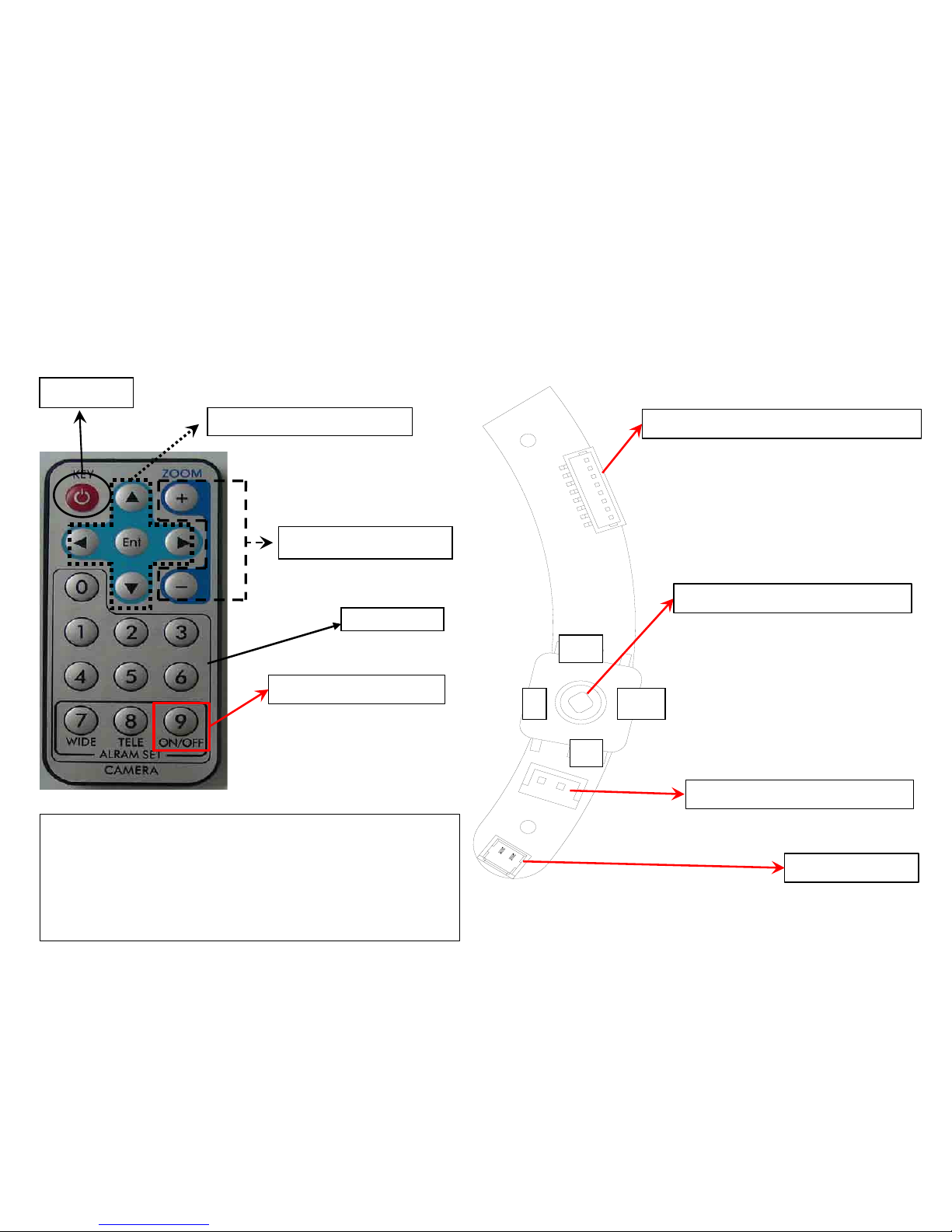

CAMERA OSD & IR REMOTE CONTROLLER

Key Button

Menu Access and Control

Zoom Function Control

ID Buttons

Motion Alarm On &OFF

NOTE:

Press [KEY] + [ID] (Default is “001” for ID=1)

Press [ENT] to access the Menu

Note: The camera ID is a 3-digit number.

COLOR

WB MODE AWC / ATW / MANUAL / PUSH LOCK

R-Y GAIN 0 ~ 100

B-Y GAIN 0 ~ 100

DAY & NIGHT

Day & Night Mode

AUTO / COLOR / BW / EX-CONT

COLOR ----



BW : Switching from color to BW; if the number is higher, the camera will only switch during a super low light condition.

BW ----



COLOR : Switching from BW to color; this number should always be lower than COLOR to BW

Read Time: Time interval to switch from Color to Black-and-White

COLOR

B&W: (BURST:OFF/ON) When the burst is OFF will make less noise

C-SUP Color Suppression :Color will be reduced at low illumination, if the C-SUP Level is higher.

0 ~ 100 (Not Available when DNR is On.)

A-SUP Aperture Suppression: The sharpness of the edges will be reduced at low illumination, if A-SUP Level is higher.

0 ~ 100 (Not Available when DNR is On.)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

EXPOSURE

LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.)

SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250

BLC OFF / ON

BLC (Back Light Compensation)

AGC HIGH / MIDDLE / LOW / OFF

AGC (Auto Gain Control)

MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range)

STAR-LIGHT AUTO (x2 ~ x250) / OFF (x32 is recommended.)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY RESET

FUNCTION

MIRROR OFF / MIRROR / V-FLIP / ROTATE

SHARPNESS 0 ~ 31

GAMMA 0.05 ~ 1.00 / USER

FREEZE OFF / ON

NEGATIVE OFF/ ON

3D-DNR OFF / LOW / MIDDLE / HIGH

3D-DNR (3D Digital Noise Reduction)

D-ZOOM OFF / ON (x1.0 ~ x32 PTZ)

SLC OFF / ON

SLC (Side Light Compensation)

HME OFF / ON

HME (Highlight Masking Exposure)

DIS OFF / ON

DIS (Digital Image Stabilizer)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

MOTION

MOTION OFF / ON

SET WINDOW

ALL SET (Set the Entire Screen)

ALL CLEAR (Clear the Entire Screen)

SENSITIVITY (1 ~ 120)

SHOW INDICATOR (OFF / ICON / TRACE)

DELAY OUT (1 ~ 15)

Motion Alarm Zoom-In Delay

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

Motion Alarm Setup

1. Go to Motion Menu

2. Set Motion to “ON”

3. Click [Set Windows] and set your area of the motion detection

4. Press the Left Arrow button, until you exit back to the Motion Menu

5. Zoom out to the farthest you want the camera to zoom out and press [7](Wide)

6. Zoom in to the farthest you want the camera to zoom in and press [8](Tele)

7. Click [Exit Jump] then click [Save & Exit]

8. Once you are out of the menu press [9](ON/OFF) to activate motion alarm
