Quick Start Guide Quick Start Guide

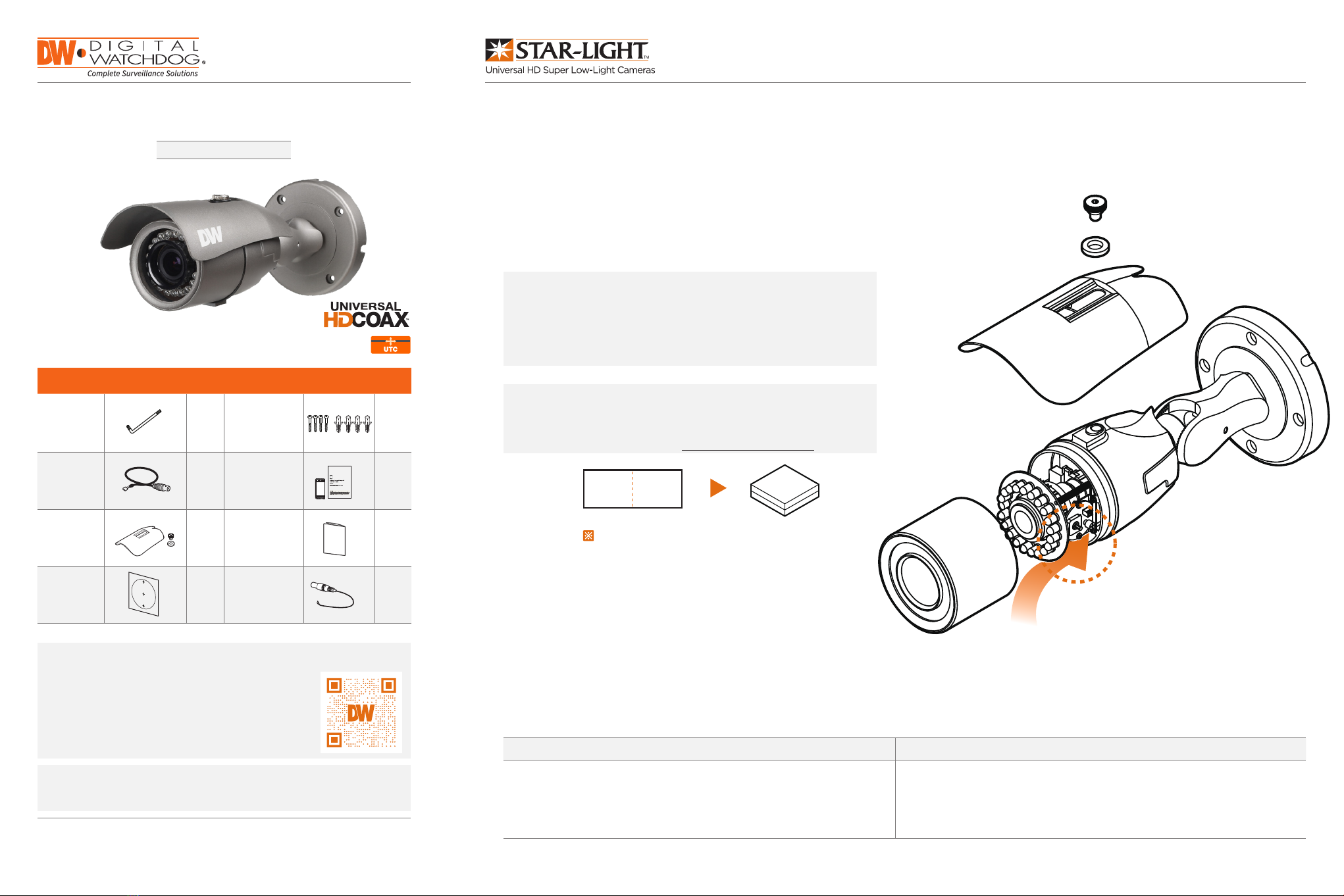

WHAT’S IN THE BOX

Star wrench 1

Screws and

plastic anchors

- 4pcs

1 set

Test video

cable 1

Moisture

absorber and

absorber guide

(recommended)

1

Sunshield

cover and

adjusting

screws

1 set Quick set up

guide 1

Mounting

template 1DC plug cable 1

Pass the wires through the mount bracket and make all necessary connections. Connect the BNC cable and power cables to the camera.

STEP 1 – PREPARING TO MOUNT THE CAMERA

STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES

Power Requirements Power Consumption

12VD C O NLY !

CAUTION! The camera supports DC power supply only

DC12V (LED o): 1.86W

DC12V (LED on) : 3.4W

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday through Friday

digital-watchdog.com

DWC-B6263TIR

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Attention: This document is intended to serve as a quick reference for initial

set up. It is recommended that the user read the entire instruction manual for

complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources.

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

DW® Universal HD over Coax® bullet cameras

Please cut the card type absorber along

a dotted line, overlap and attach them

according to the direction of the arrow.

Please cut the card type absorber along

a dotted line, overlap and attach them

according to the direction of the arrow.

1. The mounting surface must withstand ﬁve times the camera weight.

2. Do not let the cables get caught in improper places or the electric line cover can be damaged. This may cause a short or ﬁre.

3. Install the moisture packet in the base of the camera’s lens.

a. Remove the moisture absorber from the packaging.

b. Cut the card and folder along the dotted line.

c. Place the moisture absorber behind the camera’s lens module. See drawing for more information.

4. Using the mounting template sheet or the camera itself, mark and drill

the necessary holes in the wall or ceiling.

WARNING: It is highly recommended that you install the moisture

absorber when mounting the camera. The moisture

absorber prevents moisture from being captured

inside the camera's housing, which may cause image

performance issues and damage the camera.

NOTE: The camera will generate enough heat to dry moisture

during operation. In most cases it will not need the

moisture absorber for more than the ﬁrst day. In cases

where the camera can experience a moisture issue,

users must keep the moisture absorber in the camera.

The moisture absorber has an approximately 6-month

life cycle, varying depending on the environment.

U

Enter R

L

D

Quick Start Guide

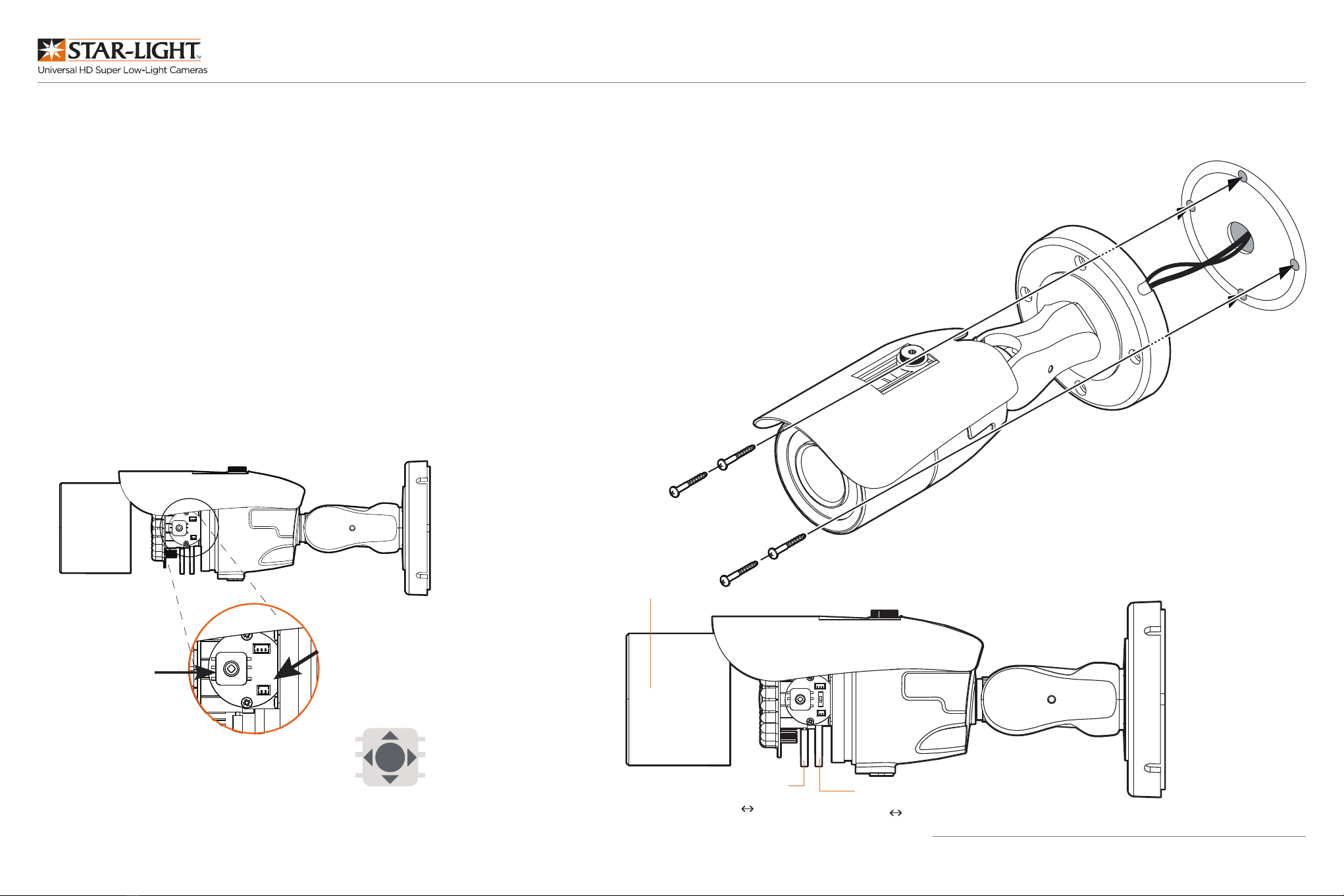

1. Once all cables have been connected, use the screws included with

the camera to properly mount and secure the camera to the mounting

surface.

2. To adjust the camera’s tilt, loosen the screws at the base of the

camera’s bracket. The camera’s max angles are:

Pan: 0°~ 360°

Tilt: 0°~ 90°

3. To adjust the camera’s focus and zoom:

a. Remove the sun-shield and front case from the camera.

b. Unlock the zoom or focus screws by rotating them

counterclockwise.

c. Adjust the zoom and focus screws at the base of

the camera module to achieve a clear image.

d. Tighten the screws and close the front case

by rotating it clockwise.

STEP 4 – INSTALLING THE CAMERA

Front Case

Focus Lever

Far ↔Near

Zoom Lever

Wide

↔

Tele

Rev Date: 04/21

Copyright © Digital Watchdog. All rights reserved.

Speciﬁcations and pricing are subject to change without notice.

Front case

Joystick for

OSD menu

control

Test video

connector for on-site

conﬁguration

CVBS(960H)

HD-CVI

HD-AHD-TVI

Zoom lever

Wide Tele

Focus lever

Far Near

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To

switch between the signals:

a. Remove the camera’s dome to access the joystick and OSD

control on the base of the camera.

b. Use the OSD Switch to switch the camera’s signal.

- To switch the camera to HD-TVI mode, press OSD joystick to the

left for 5 seconds.

- To switch the camera to HD-Analog mode, press OSD joystick to

the right for 5 seconds.

- To switch the camera to CVBS mode, press OSD joystick up

for 5 seconds.

- To switch the camera to HD- CVI mode, press OSD joystick

down for 5 seconds.

STEP 3 – CHANGING THE SIGNAL IN

THE CAMERA
