Digital Watchdog MEGApix DWC-MPB72Wi4T Manual de usuario

User’s Manual Ver. 12/20

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

MEGApix® 2.1MP/1080p bullet IP camera

DWC-MB72Wi4T / DWC-MPB72Wi4T

WARNING

To prevent damage which may result in fire or electric shock

hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is

specified in the specification sheet. Using any other

adapter could cause fire, electrical shock, or damage to

the product.

2. Incorrectly connecting the power supply or replacing

the battery may cause an explosion, fire, electric shock,

or damage to the product.

3. Do not connect multiple cameras to a single adapter.

Exceeding the capacity may cause excessive heat

generation or ﬁre.

4. Securely plug the power cord into the power

receptacle. An insecure connection may cause ﬁre.

5. When installing the camera, fasten it securely and

ﬁrmly. A falling camera may cause personal injury.

6. Do not place conductive objects (e.g. screwdrivers,

coins, metal items, etc.) or containers ﬁlled with water

on top of the camera. Doing so may cause personal

injury due to ﬁre, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or sooty

locations. Doing so may cause ﬁre or electric shock.

8. If any unusual smells or smoke come from the unit, stop

using the product. Immediately disconnect the power

source and contact the service center. Continued use in

such a condition may cause ﬁre or electric shock.

9. If this product fails to operate normally, contact the

nearest service center. Never disassemble or modify

this product in any way.

10. When cleaning, do not spray water directly onto parts

of the product. Doing so may cause ﬁre or electric

shock.

Precaution

Operating

• Before using, make sure the power supply and all other

parts are properly connected.

• While operating, if any abnormal condition or

malfunction is observed, stop using the camera

immediately and contact your dealer.

Handling

• Do not disassemble or tamper with parts inside the

camera.

• Do not drop the camera or subject it to shock or

vibration as this can damage the camera.

• Clean the clear dome cover with extra care. Scratches

and dust can ruin the quality of the camera image.

Installation and Storage

• Do not install the camera in areas of extreme

temperature, exceeding the allowed range.

• Avoid installing in humid or dusty environments.

• Avoid installing in places where radiation is present.

• Avoid installing in places where there are strong

magnetic fields and electric signals.

• Avoid installing in places where the camera would be

subject to strong vibrations.

• Never expose the camera to rain or water.

Warning

This symbol indicates that dangerous

voltage consisting of a risk of electric

shock is present within this unit.

Precaution

This exclamation point symbol is intended

to alert the user to the presence of

important operating and maintenance

(servicing) instructions in the literature

accompanying the appliance.

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION :

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these Instructions. - All these safety and operating instructions should be read before the product is installed

or operated.

2. Keep these Instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this device near water. - For example: near a bathtub, washbowl, kitchen sink, laundry tub, in a wet

basement; near a swimming pool; etc.

6. Clean only with a dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install following the manufacturer’s instructions. - Slots and openings

in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from over-

heating. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surfaces.

This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is

provided and the manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Disposal of Old Appliances

1. When this crossed-out wheel bin symbol is attached to a product it means the

product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the

municipal waste stream per laws designated by the government or the local

authorities.

3. The correct disposal of your old appliance will help prevent potential negative

consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact

your city office, waste disposal service or the shop where you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at his own expense.

Introduction

Product and Accessories......................................................................................................................................................................5

Parts Notifications......................................................................................................................................................................6

Installation

Disassemble the Camera..................................................................................................................................................................................7

Factory Reset....................................................................................................................................................................................................7

Installation..........................................................................................................................................................................................7

Cabling............................................................................................................................................................................................8

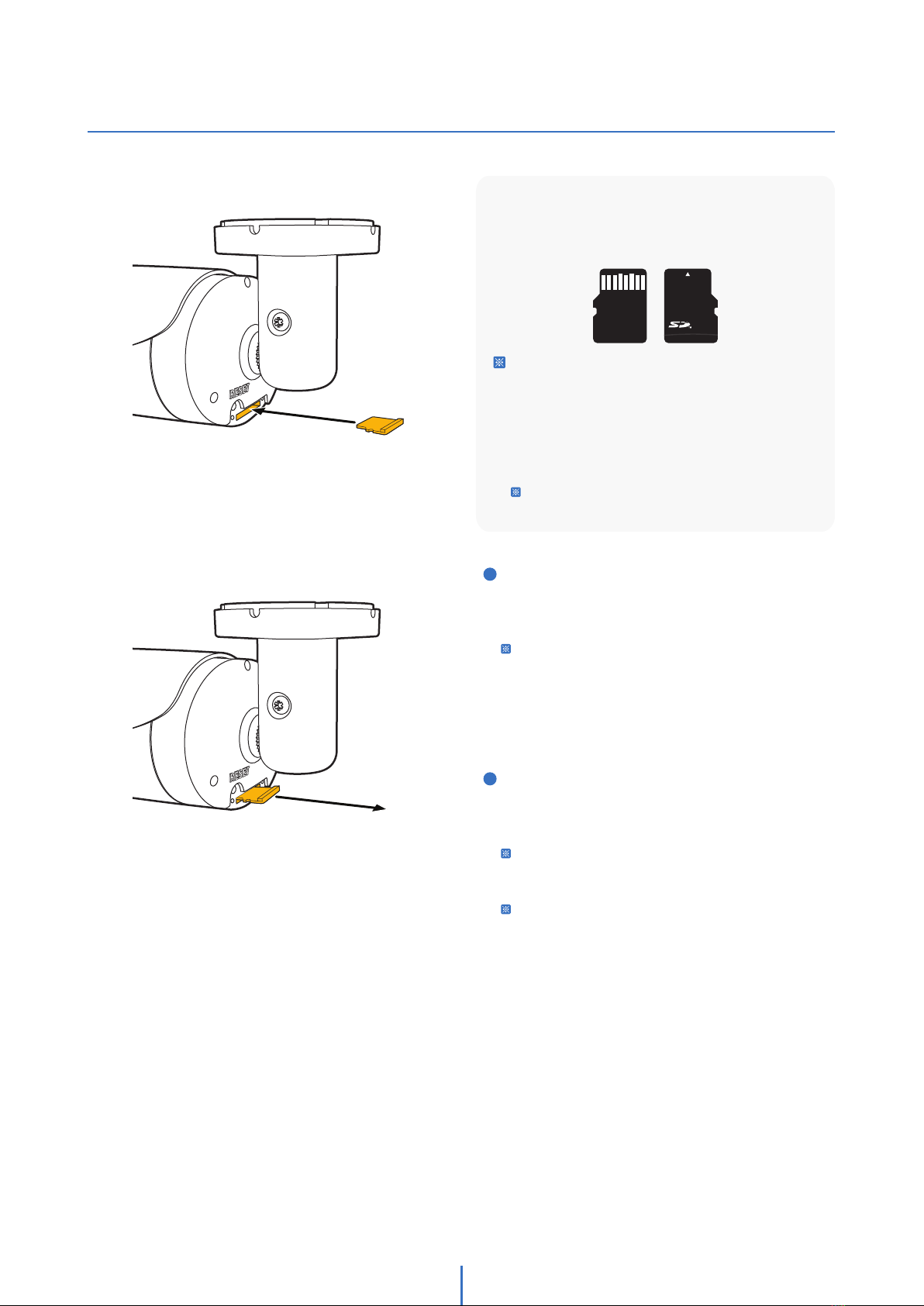

Managing the SD Card................................................................................................................................................................................9

Network Setup

DW IP Finder.................................................................................................................................................................................................................10

Web Viewer

Login to the Camera................................................................................................................................................................................................11

GUI Overview.......................................................................................................................................................................................................12

Camera Settings

Settings > Video and Audio Setup......................................................................................................................................................................13

Settings > Camera Setup > Image Enhancement........................................................................................................................................21

Settings > Camera Setup > Exposure Settings............................................................................................................................................22

Settings > Camera Setup > Day and Night Settings...................................................................................................................................23

Settings > Camera Setup > Backlight Settings............................................................................................................................................24

Settings > Camera Setup > White Balance Settings..................................................................................................................................25

Settings > Camera Setup > Image Enhancement Settings....................................................................................................................26

Settings > Network Setup.......................................................................................................................................................................................27

Settings > Trigger Action Setup..........................................................................................................................................................................37

Settings > Event Setup.............................................................................................................................................................................................41

Settings > Record Setup..........................................................................................................................................................................................46

Settings > Security Setup.......................................................................................................................................................................................52

Settings > System Setup > System Information..........................................................................................................................................59

Settings > System Setup > Firmware...............................................................................................................................................................61

Settings > System Setup > Date and Time.....................................................................................................................................................62

Settings > System Setup > DST............................................................................................................................................................................63

Settings > System Setup > Users.........................................................................................................................................................................64

Settings > System Setup > System Log..........................................................................................................................................................65

Settings > System Setup > Factory Reset......................................................................................................................................................66

Settings > System Setup > Restart....................................................................................................................................................................67

Settings > System Setup > System Open Source License......................................................................................................................68

Appendix......................................................................................................................................................................69

FAQs......................................................................................................................................................................76

Dimensions......................................................................................................................................................................77

Specifications......................................................................................................................................................................78

Warranty...............................................................................................................................................79

Limits and Exclusions................................................................................................................................................................80

Table of Contents

Introduction -

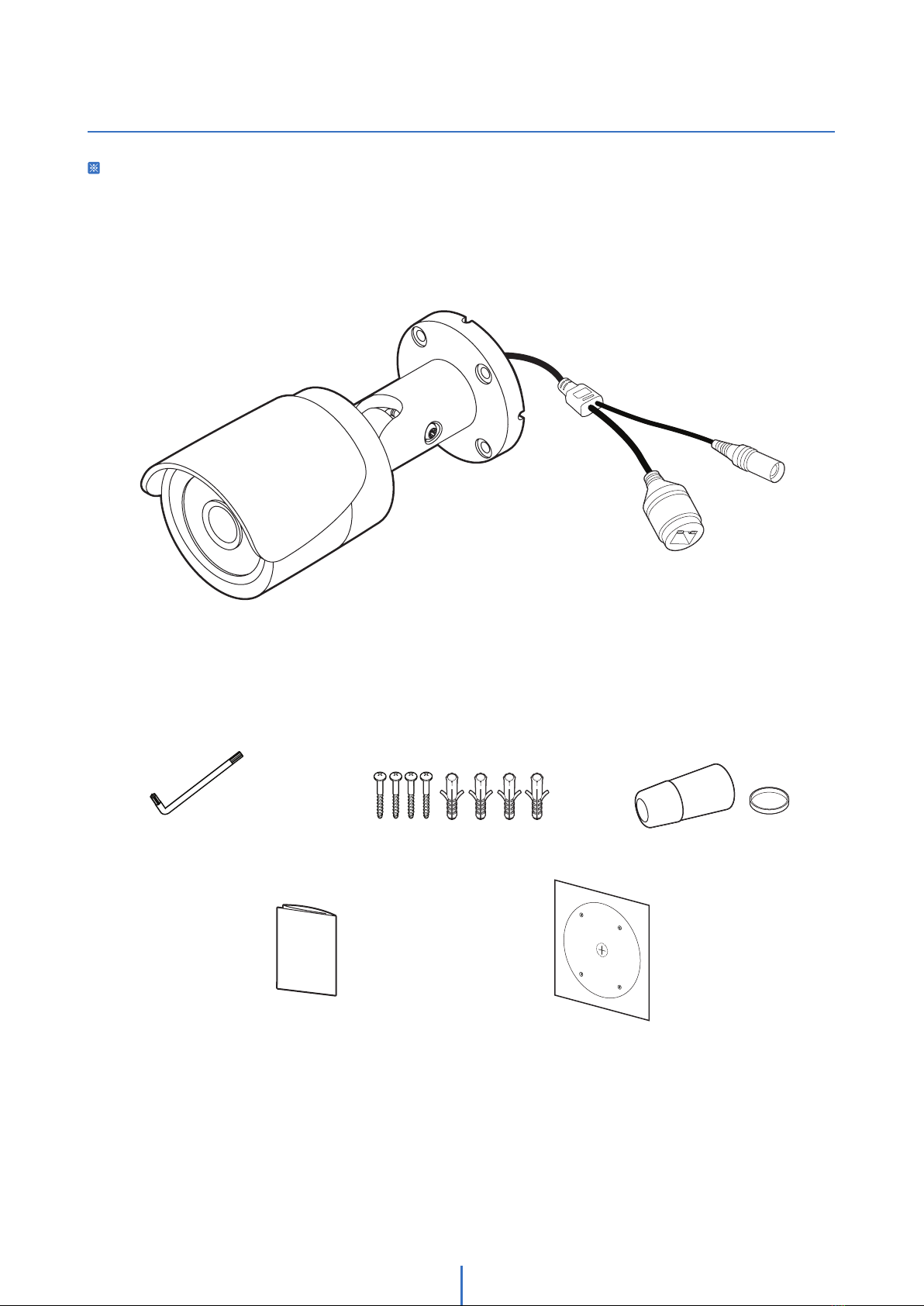

Product and Accessories

Star Wrench

Mounting

Template

Waterproof Cap and

Gasket

Screws and Plastic

Anchors - 4pcs

Camera

Cables

Please check that the camera and all accessories are included in the package.

Quick Setup

Manual

Introduction -

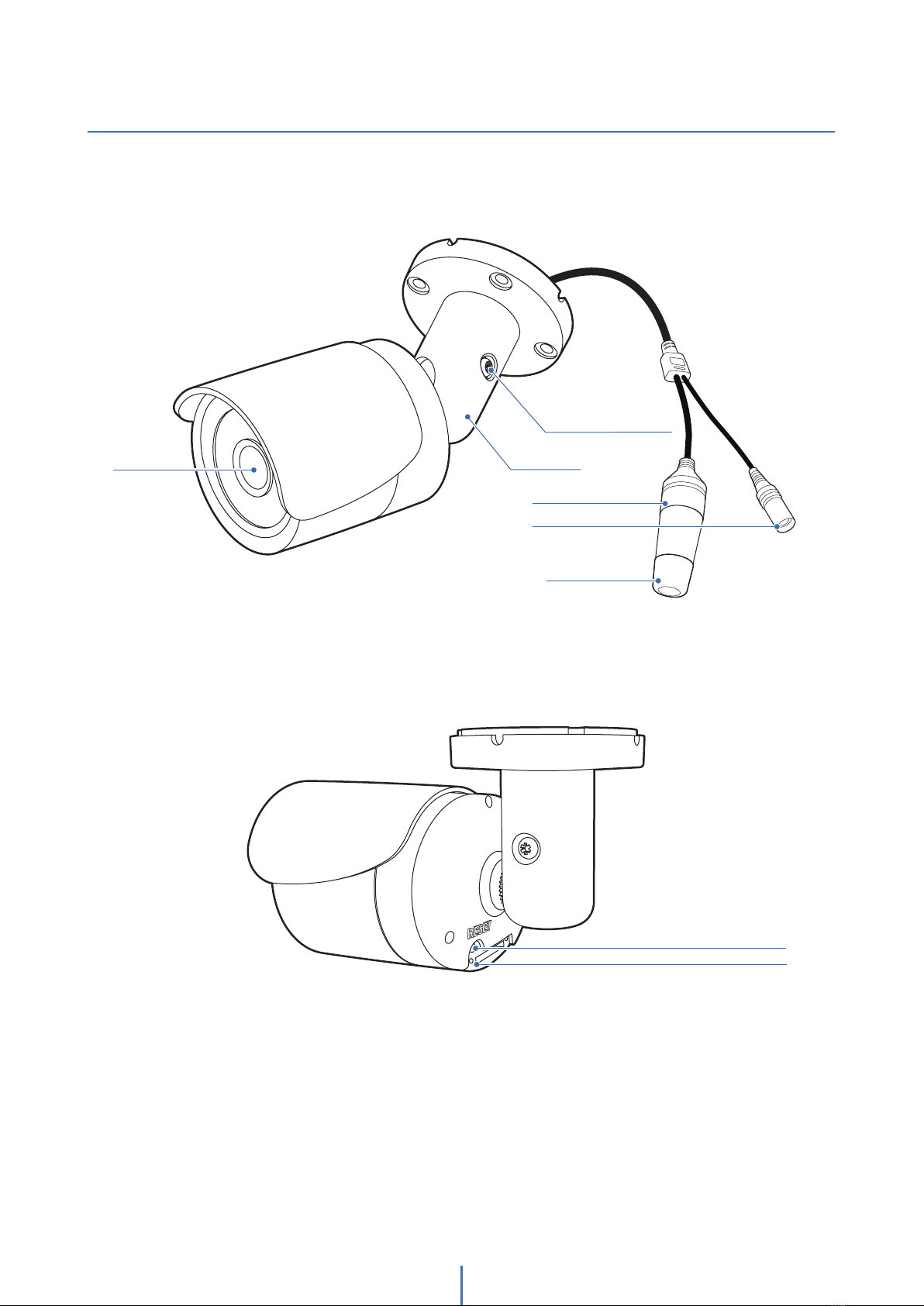

Part Name

Lens

Waterproof cap

RJ-45 Connector

DC Power Jack

Bracket

Pan/Tilt Stoper

Screw

Reset Button

SD Card Slot

Installation -

Installation

Mounting Template

Reset Button

Before installing your camera, you have to read the following cautions.

1. The mounting surface must withstand ﬁve times the camera weight.

2. Do not let the cables get caught in improper places or the electric line cover can be damaged. This may

cause a short or ﬁre.

1. Using the mounting template sheet or the

camera itself, mark and drill the necessary

holes in the wall or ceiling.

2. Pass the wires through the mount bracket and

make all necessary connections. See page 12

for more information.

3. To use the camera’s waterproof wiring:

a. Install the LAN cable into (a) .

b. (b) will be assembled to (a) with a 1/4 turn.

c. Thread (c) tightly to (b).

NOTE: to ensure a proper moisture seal,

make sure the o-ring is in place between (a)

and (b). In extreme environments, use an

outdoor-rated sealer.

NOTE: When using the waterproof cap,

crimp the RJ-45 connected after passing the

camera through the waterproof cap.

4. Fix the camera's bracket to the mounting

surface using the screws provided.

5. If needed, adjust the

camera's tilt by

loosening the pan/tilt

stopper screw.

6. Once the camera's

tilt and panning are

adjusted, secure the

stopper screw back.

Reset to the Factory Default

Press the reset button for 5 seconds to return the

setup to the factory default.

Warning:

If you press the ‘Reset’ button, you will lose all

setting data. If needed, please, make a note for

further installation.

Installation -

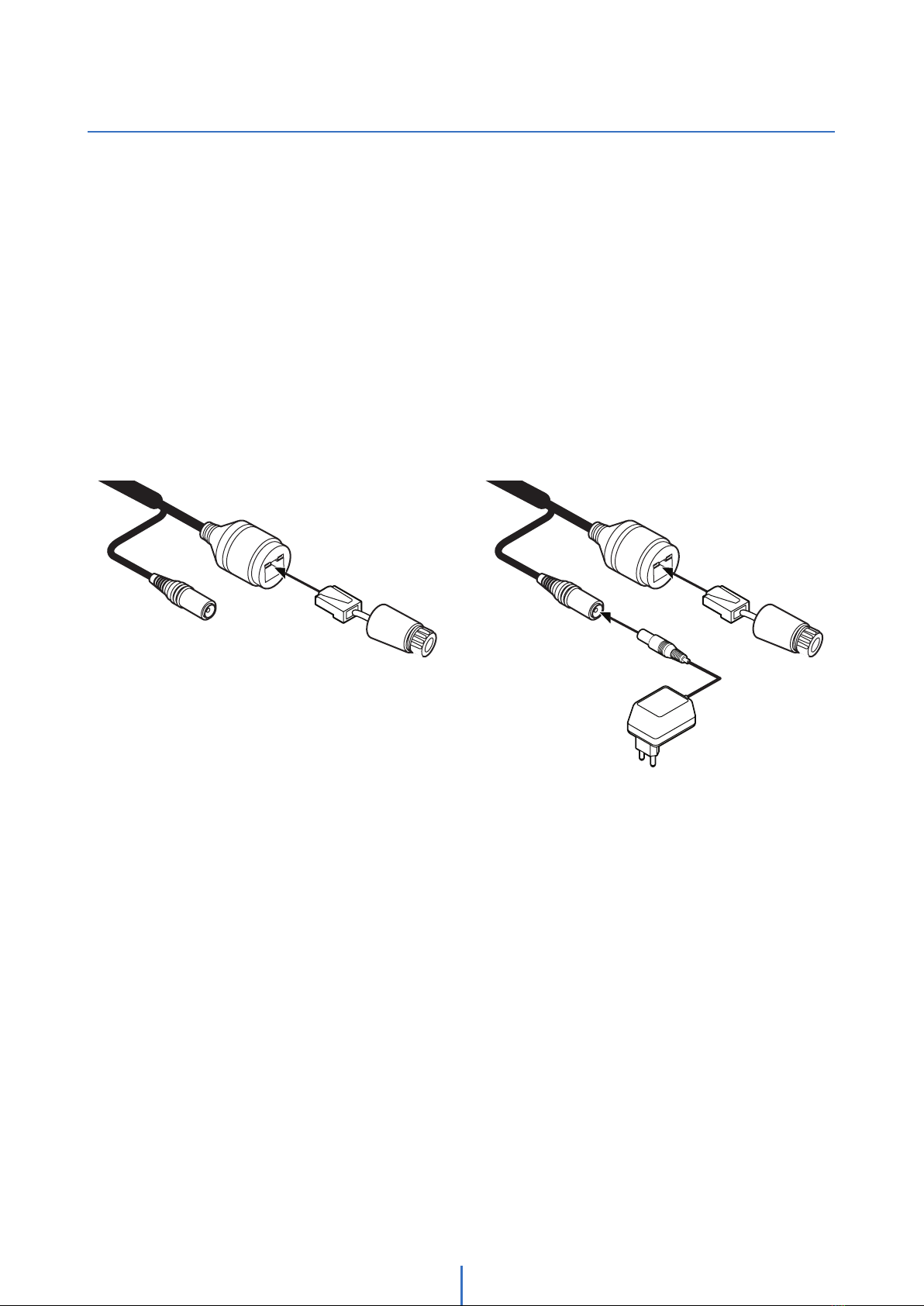

Cabling

1. Using a PoE-Enabled Switch

The Camera is PoE-compliant, allowing transmission

of power and data via a single Ethernet cable.

PoE eliminates the need for the different cables used

to power, record, or control the camera. Follow the

illustration below to connect the camera to a PoE-

enabled switch using an Ethernet cable.

2. Using a Non-PoE Switch

If a PoE-enabled switch is not used, use a power

adaptor for power transmission and non-PoE switch

for data transmission.

Follow the illustrations below to connect the camera

without a PoE-enabled Switch.

Two Options

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording

images instantly.

A non-PoE switch will require an adaptor for power transmission.

Ethernet Cable Ethernet Cable

Power

Installation -

Inserting/Removing an SD Memory Card

Micro

The memory card is an external data storage

device that has been developed to offer an

entirely new way to record and share video,

audio, and text data using digital devices.

Recommended SD card specification

(not included)

- Type: Micro SD (SD/SDHC/SDXC)

- Manufacturer: SanDisk, Samsung,

Transcend, Micron

- Capacity: 4GB~128GB

- Class: UHS-I U3 Class 10

New micro SD card over 64GB must be

formatted on the first use.

1Inserting an SD Memory Card

Insert the SD card in the arrow direction. The SD

card slot is located on the back of the camera,

under the mounting bracket.

Do not insert the SD memory card while it’s

upside down by force. Otherwise, it may

damage the SD memory card.

2Removing an SD Memory Card

Gently press down on the exposed end of the

memory card as shown in the diagram to eject the

memory card from the slot.

Pressing too hard on the SD memory card can

cause the card to shoot out uncontrollably from

the slot when released.

If you have saved data in the SD memory card,

removing the SD memory card before setting

the record to OFF will cause damage to the data

stored in the card.

Network Setup -

DW IP Finder™

1Go to http://www.digital-watchdog.com and search for ‘IP Finder’ on the

quick-search bar at the top of the page.

2The latest IP Finder software will appear in the search results. Click on

the link to download the file to your computer.

3The software will scan your network for all supported cameras and

display the results in the table. Allow up to 5 seconds for the IP Installer

to find the camera on the network.

4You can press the ‘Refresh List’ to search the network again, or filter the

search results by entering a value in the filter box.

5Check the box next to ‘Display Camera Thumbnail’ to view a JPEG image

of the camera’s view next to the camera name on supported models.

The default network type of camera is DHCP mode.

If you have a DHCP server, it will automatically set the Camera IP.

Contact your network administrator for more information.

6To save the changes made to the camera's settings, input the username

and password of the camera for authentication.

7If the camera needs to be rebooted after the settings were changed,

press the 'Reboot' button. The camera will power cycle and will appear back in the search results once

the reboot is complete.

Default username and password: admin/admin.

For security purposes, it is highly recommended to change your password after the initial setup.

8Click 'Save' to save changed values.

9To update the camera's firmware from the DW IP Finder™, click on the firmware tab, upload the firmware

file and select the camera to update. You can update multiple cameras at the same time.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Digital Watchdog

Digital Watchdog

Digital Watchdog MEGApix DWC-MV85WiAT Manual de usuario

Digital Watchdog

Digital Watchdog Snapit DWC-D4363D Manual de usuario

Digital Watchdog

Digital Watchdog DWC-MB72Wi4TW Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light DWC-V7253 Manual de usuario

Digital Watchdog

Digital Watchdog MEGApix DWC-MD72i4V Manual de usuario

Digital Watchdog

Digital Watchdog DWC-PTZ12x Manual de usuario

Digital Watchdog

Digital Watchdog Snapit DWC-V4363D Manual de usuario

Digital Watchdog

Digital Watchdog V1312XW Manual de usuario

Digital Watchdog

Digital Watchdog Starlight D1363D922 Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus Universal HD over Coax... Manual de usuario

Digital Watchdog

Digital Watchdog DWC-EXTIR100 Manual de usuario

Digital Watchdog

Digital Watchdog DWC-HD321M4TIR Manual de usuario

Digital Watchdog

Digital Watchdog DWC-PZ21M69TW Manual de usuario

Digital Watchdog

Digital Watchdog DWC-MB45Wi650T Manual de usuario

Digital Watchdog

Digital Watchdog DWC-LPR650 Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT Universal HD over Coax... Manual de usuario

Digital Watchdog

Digital Watchdog MEGApix PANO DWC-PVF9M2TIR Manual de usuario

Digital Watchdog

Digital Watchdog DWC-MB45Wi650TW Manual de usuario

Digital Watchdog

Digital Watchdog V3373D Manual de usuario

Digital Watchdog

Digital Watchdog MEGAPIX DWC-MV94Wi36T Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-V6263WTIR Manual de usuario

Digital Watchdog

Digital Watchdog DWC-B8553TIR Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light DWC-MC253WTIR Manual de usuario

Digital Watchdog

Digital Watchdog Infinity OMNI-Plus B2382TIR Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
