Danfoss ECtemp 530 Manual de usuario

MAKING MODERN LIVING POSSIBLE

Installation Guide

ECtemp 530

Electronic Thermostat

www.EH.danfoss.com

Danfoss A/S is not liable or bound by warranty if these

instructions are not adhered to during installation or service.

The English language is used for the original instructions.

Other languages are a translation of the original instructions.

(Directive 2006/42/EC)

Table of Contents

1 Introduction ............... 3

1.1 Technical Specifications ..... 4

1.2 Safety Instructions ........ 5

2Mounting Instructions ......... 6

3Settings ................. 10

4 Warranty ................. 12

5 Disposal Instruction .......... 12

1 Introduction

ECtemp 530 is an electronic thermostat provided with a 2-

pole switch and a wire sensor to measure and control the

desired floor temperature. It can be either flush-mounted

(standard) or surface-mounted (using special box).

The thermostat has a button for adjusting the temperature

setting with a scale from ( ) 1 to 6 (each step corresponds

to approximately 8°C). Furthermore, it has a LED indicator

showing standby periods (green light) and heating periods

(red light).

More information on this product can also be found at:

ectemp.danfoss.com

ECtemp 530

Installation Guide 3

1.1 Technical Specifications

Operation voltage 220-240V~, 50Hz

Standby power consump-

tion Max 0.25W

Relay:

Resistive load Max 15A / 3450W @ 230V

Inductive load cos φ= 0.3 max 1A

Sensing units NTC 15kOhm at 25°C

Sensing values:

0°C 42 kOhm

25°C 15 kOhm

50°C 6 kOhm

Hysteresis ± 0.4°C

Ambient temperature -10 to +30°C

Frost protection tempera-

ture 5°C -

Temperature range ( ) 5-45°C with floor sen-

sor only

Cable specification max 1x4mm2or 2x2,5mm2

Ball pressure temperature 75°C

Pollution degree 2 (domestic use)

ECtemp 530

4 Installation Guide

Type 1C

Storage temperature -20 to +65°C

IP class 31

Protection class Class II -

Dimensions 85 x 85 x 36mm

Weight 90g

The product complies with the EN/IEC Standard "Automatic

electrical controls for household and similar use":

▪EN/IEC 60730-1 (general)

▪EN/IEC 60730-2-9 (thermostat)

1.2 Safety Instructions

Make sure the mains supply to the thermostat is turned off

before installation.

IMPORTANT: When the thermostat is used to control a

floor heating element in connection with a wooden floor or

similar material, always use a floor sensor and never set the

maximum floor temperature to more than 35°C.

ECtemp 530

Installation Guide 5

Please also note the following:

▪The installation of the thermostat must be done by an

authorized and qualified installer according to local

regulations.

▪The thermostat must be connected to a power supply

via an all-pole disconnection switch.

▪The sensor is to be considered as live voltage. Have

this in mind if the sensor must be extended.

▪Always connect the thermostat to continuous power

supply.

▪Do not expose the thermostat to moisture, water, dust,

and excessive heat.

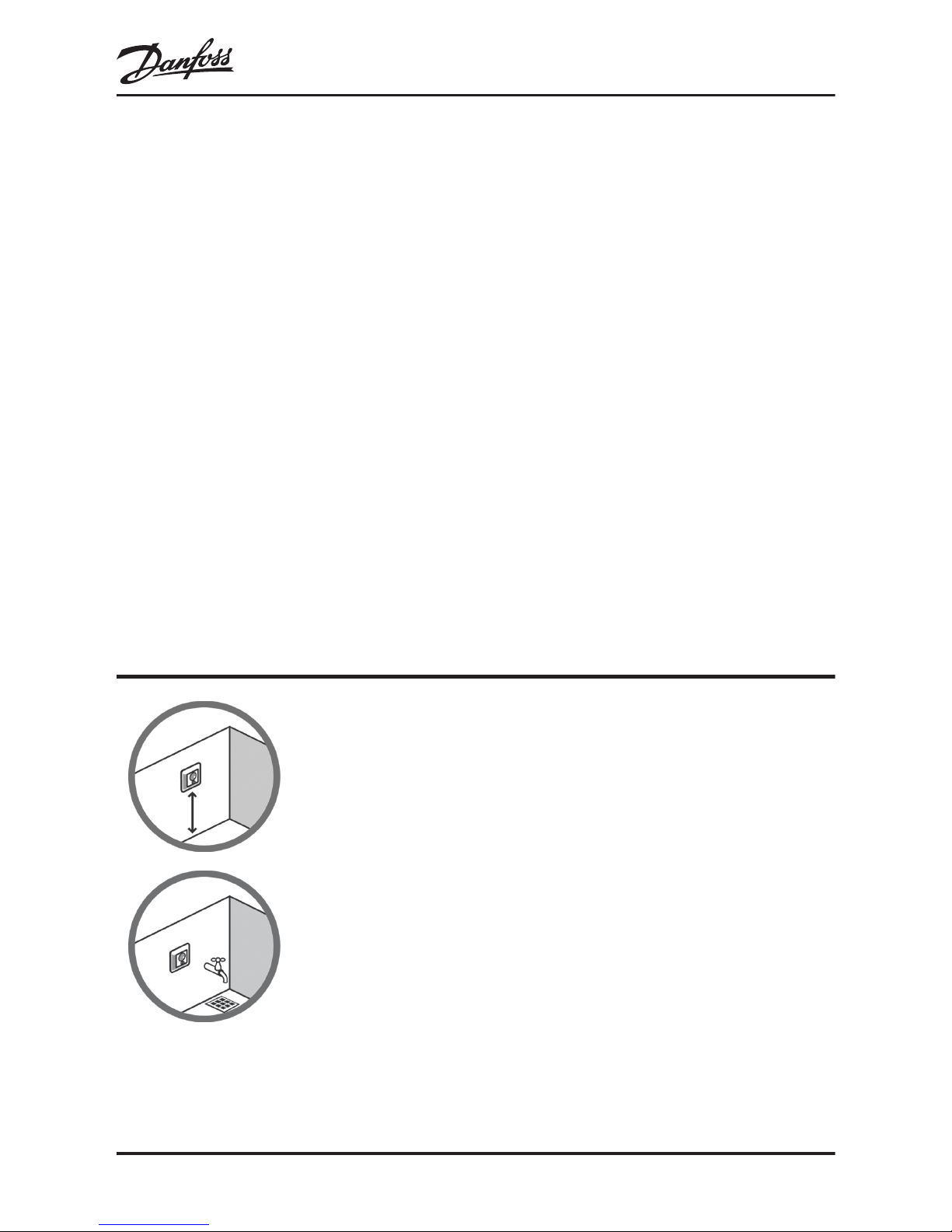

2 Mounting Instructions

Place the thermostat at a suitable height

on the wall (typically 80-170cm.).

In wet rooms, place the thermostat accord-

ing to local regulation on IP classes.

ECtemp 530

6 Installation Guide

Note: A floor sensor enables a more accu-

rate temperature control and is recom-

mended in all floor heating applications

and mandatory under wooden floors to

reduce the risk of over-heating the floor.

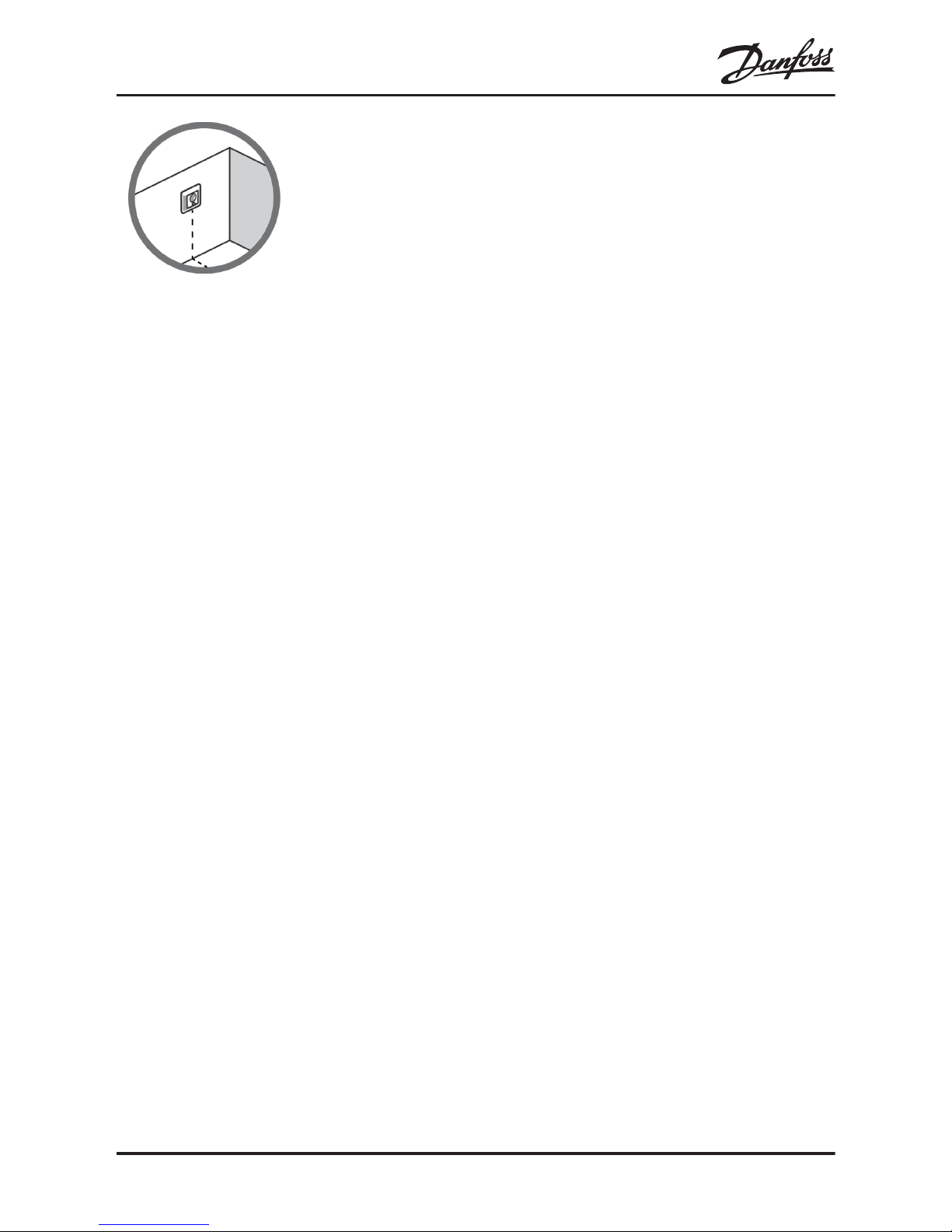

▪Place the floor sensor in a conduit in an appropriate

place where it is not exposed to sunlight or draft

from door openings.

▪Equally distant and >2cm from two heating cables.

▪The conduit should be flush with the floor surface -

countersink the conduit if necessary.

▪Route the conduit to the connection box.

▪The bending radius of the conduit must be min

50mm.

ECtemp 530

Installation Guide 7

Follow the steps below to mount the thermostat:

1. Open the thermostat:

devireg™550

▪Press the release tab in the bottom of the ther-

mostat using a flat object.

▪Carefully detach the front cover.

▪Carefully detach the frame.

ECtemp 530

8 Installation Guide

2. Connect the thermostat according to the connection

diagram.

IP31

-10T30

D530

Mains

220-240V~

Max. Load

15 (1) A

Sensor

NLNTC

LOAD

-5°C

By connecting an external timer to the terminal

marked by a moon symbol (and by using for example

the same phase as for the mains power supply), the

thermostat can be set to reduce the temperature by

5ºC during specified periods.

The screen of the heating cable must be connected to

the earth conductor of the power supply cable by us-

ing a separate connector.

Note: Always install the floor sensor in a conduit in the

floor.

ECtemp 530

Installation Guide 9

3. Mount and reassemble the thermostat.

▪Fasten the thermostat to a socket or an exterior

wall box by driving the screws through the holes

in each side of the thermostat.

▪Install the frame and front cover in the reverse or-

der of disassembly.

4. Turn on the power supply.

3 Settings

How to change the minimum and maximum floor tem-

peratures

1. Remove the adjustment

button.

devireg™550

2. Move the pins to the de-

sired positions.

3. Put the adjustment but-

ton back in place.

ECtemp 530

10 Installation Guide
