User Guide

BasicPlus2WT-DM

Room Thermostats for Floor Heating

www.heating.danfoss.com

User Guide BasicPlus2WT-DM Room Thermostats

2Danfoss Floor Heating Hydronics 06/2016

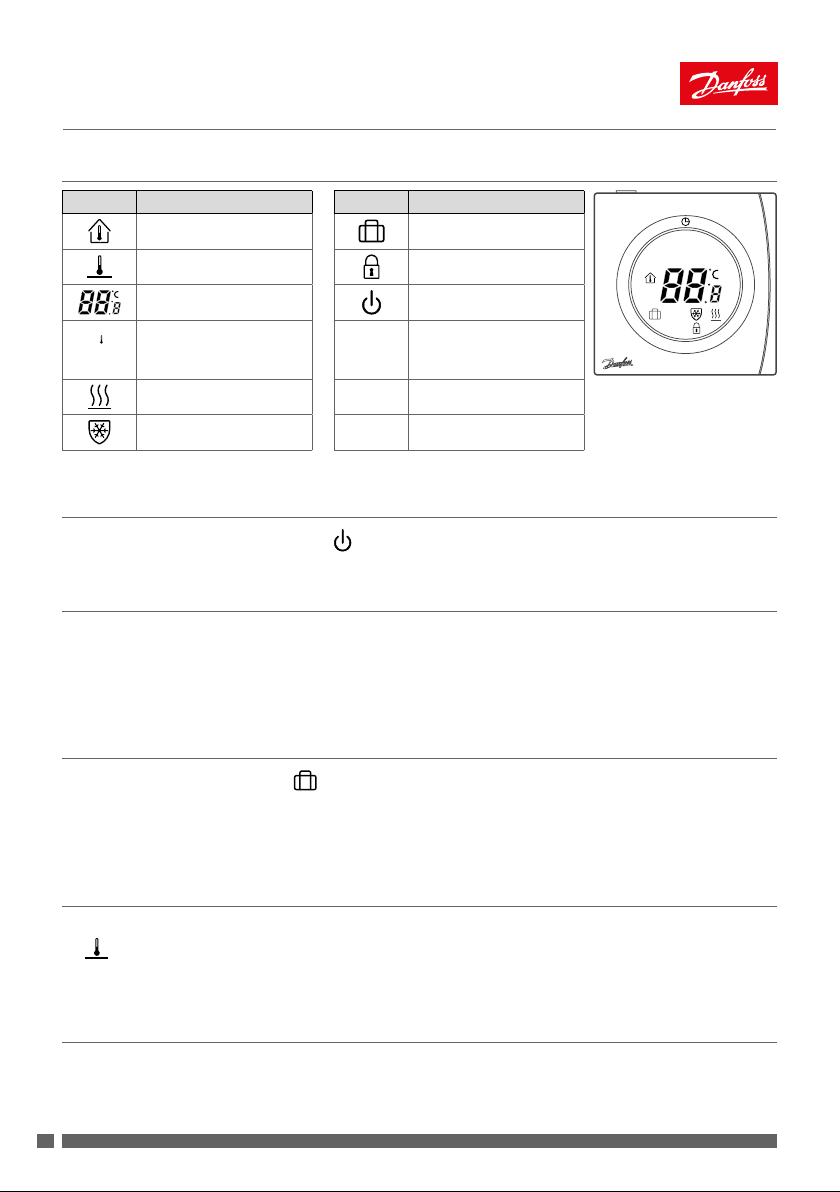

1 Functional Overview

Symbols Function description Symbols Function description

SET

Room temperature Away mode

Floor temperature Child safety lock

Temperature indication Power ON/OFF

SET

Set temperature M

Mode change/check oor

temp./child safety lock/

parameters setting

Floor heating, Active < > Up/down selectors

Frost protection, Active

2 Power ON/OFF

Turn the thermostat ON or OFF by pressing .

3 Setting the Temperature

• Press <or >at any time to change the desired temperature value. SET is shown in the display.

• When releasing <or >, the display returns to showing the actual temperature.

• The adjustment step is 0.5° C.

4 Select Away Mode

• Press Mto enter Away mode and will be displayed.

• Press <or >. SET appears; set the Away mode setpoint.

• Press Magain to exit Away mode.

5 Check Floor Temperature

• Press Mand hold. Press <within 6 seconds.

• ashes and the current oor temperature is displayed. Operate again, then exit (automatic exit after 6

seconds with no operation).

6 Child Safety Lock

• Press Mand hold. Press >within 6 seconds to lock all buttons.

• Press again to exit the child safety lock.

User Guide BasicPlus2WT-DM Room Thermostats

06/2016 Danfoss Floor Heating Hydronics 3

7 Set Control Parameters

Press Mbutton for 6 seconds to enter the parameter setting mode. Press Mfor parameter selection and set the

parameter range via <or >. The upper digits indicate the parameter number. Complete all adjustments.

To exit the parameter setting mode, wait for automatic exit (30 seconds).

The digits indicate the set value as follows:

No. Parameter settings Settings range Default

WT-DM

P01 Working mode

(Will not show on the display)

01: Manual

02: Advanced Programmable Timer NA

P02 Temperature control mode

01: Only room temp.;

02: Room and oor temp.;

03: Only oor temp.

P03 High room temp. limit 5-35° C (only for 01 and 02 in P02) 30° C

P04 Low room temp. limit 5-35° C (only for 01 and 02 in P02) 5° C

P05 Floor temp. limitation mode 01: High temp. limitation;

02: Low temp. limitation (only for 02 in P02) 01

P06 Floor temp. limitation setpoint 20-45° C (only for 02 in P02) 35° C

P07 High oor temp. limit 20-45° C (only for 03 in P02) 35° C

P08 Low oor temp. limit 20-45° C (only for 03 in P02) 20° C

P09 Frost protection 01: Enable; 02: Disable 01

P10 Frost protection setpoint 5-17° C 5° C

P11 Timer display option

(Will not show on the display) 01: 24 h; 02: 12 h NA

P12 Room temp. display option at

shutdown

01: No display current temp.;

02: Display current temp. 01

P13 MODBUS slave address 1 to 64 01

P14 MODBUS baud rate 00: 4800

01: 9600 00

P15 MODBUS parity check

00: No check

01: Odd check

02: Even check

P03 to P08 appear on relevant temperature control mode.

8 Error Messages

E1 Room sensor failure

E2 Floor sensor failure

EE EEPROM failure

Lo Temperature lower than 0° C

Hi Temperature higher than 50° C

All relay output will be turned o in all cases.
