ECtemp

130

Electronic Thermostat

Installation Guide

electricheating.danfoss.com

ECtemp 130

Installation Guide2

ECtemp 130

3Installation Guide

1 Introduction

ECtemp 130 is an electronic thermostat to be installed di-

rectly on the wall. It is provided with a oor sensor to measure

and control the desired oor temperature.

The thermostat has a button for adjusting the temperature

setting with a scale from ( ) 1 to 5 (each step corresponds to

approximately 9°C). Furthermore, the thermostat has an LED

indicator showing standby periods (green light) and heating

periods (red light).

More information on this product can also be found at:

ectemp.danfoss.com

Table of Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Technical Specications . . . . . . . . . . . . 4

1.2 Safety Instructions . . . . . . . . . . . . . . . 5

2 Mounting Instructions . . . . . . . . . . . . . . . . . 6

3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.1 Temperature Settings. . . . . . . . . . . . . 10

4 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 14

5 Disposal Instruction . . . . . . . . . . . . . . . . . 16

ECtemp 130

Installation Guide4

1.1 Technical Specications

Operation voltage 220-240V~, 50Hz

Power consumption Max 5W

Relay:

Resistive load

Inductive load

Max 16A / 3680W @ 230V

cos φ= 0.3 max 1A

Sensing units NTC 15 kOhm at 25°C

Sensing values:

0 °C

25 °C

50 °C

42 kOhm

15 kOhm

6 kOhm

Hysteresis ± 0,2 °C

Ambient temperature 0 to +30°C

Frost protection temperature 5 °C -

Temperature range ( ) 5–45 °C

Cable specication max 1x4 mm² or 2x2,5 mm²

Ball pressure temperature 75 °C

Pollution degree Degree 2 (domestic use)

Type 1C

Storage temperature -20 to +65°C

IP class 30

Protection class Class II -

ECtemp 130

5Installation Guide

Dimensions 82 x 82 x 36 mm

Weight 90 g

The product complies with the EN/IEC Standard «Automatic

electrical controls for household and similar use»:

• EN/IEC 60730-1 (general)

• EN/IEC 60730-2-9 (thermostat)

1.2 Safety Instructions

Make sure the mains supply to the thermostat is turned o

before installation.

IMPORTANT: When the thermostat is used to control a

oor heating element in connection with a wooden oor or

similar material, always use a oor sensor and never set the

maximum oor temperature to more than 35°C.

Please also note the following:

• The installation of the thermostat must be done by an

authorized and qualied installer according to local

regulations.

• The thermostat must be connected to a power supply

via an all-pole disconnection switch.

• The sensor is to be considered as live voltage. Have

this in mind if the sensor must be extended.

ECtemp 130

Installation Guide6

• Always connect the thermostat to continuous power

supply.

• Do not expose the thermostat to moisture, water,

dust, and excessive heat.

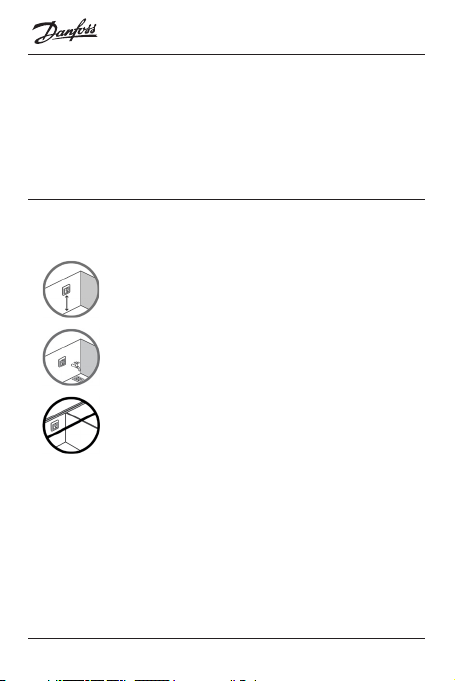

2 Mounting Instructions

Please observe the following placement guidelines:

Place the thermostat at a suitable height on

the wall (typically 80-170cm.).

In wet rooms, place the thermostat

according to local regulation on IP classes.

Do not place the thermostat on the inner

side of an exterior wall.

ECtemp 130

7Installation Guide

• Place the oor sensor in a conduit in an

appropriate place where it is not exposed

to sunlight or draft from door openings.

• Equally distant and >2cm from two heat-

ing cables.

• The conduit should be ush with the

oor surface - countersink the conduit if

necessary.

• Route the conduit to the connection box.

• The bending radius of the conduit must

be min 50mm.

ECtemp 130

Installation Guide8

Follow the steps below to mount the thermostat:

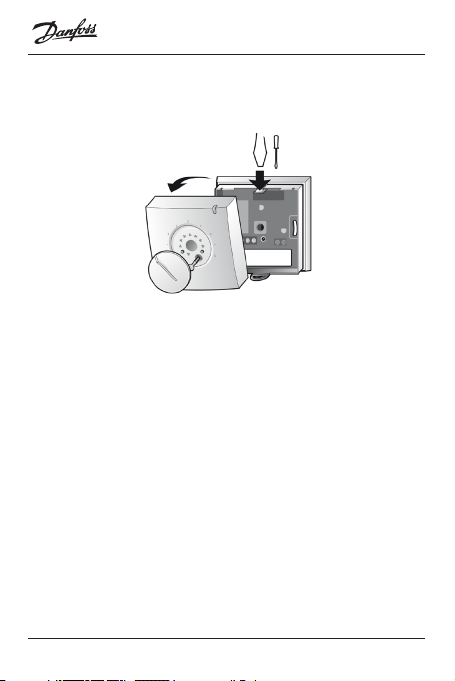

1. Open the thermostat:

• Lift o the button using a small screwdriver.

• Loosen the screw which holds the front.

• Push down the release tab at the top of the

thermostat using a at object while slowly pulling o

the front cover.

ECtemp 130

9Installation Guide

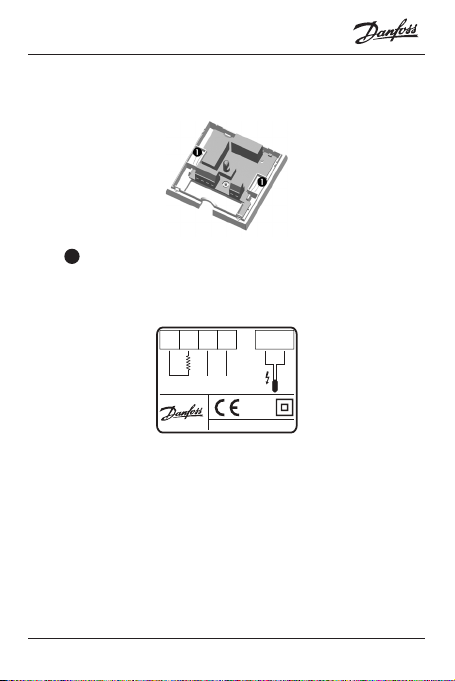

2. Fasten the thermostat directly to the wall by driving

the screws through the holes in each side of the

thermostat.

1= Screw holes for fastening the thermostat.

3. Connect the thermostat according to the

connectiondiagram.

IP30

0T30

D130

NTC

1234

Sensor

Max.Load

16 (1) A

Mains

220-240V~

LOAD

The screen of the heating cable must be connected

to the earth conductor of the power supply cable by

using a separate connector.

Note: Always install the oor sensor in a conduit in

the oor.

ECtemp 130

Installation Guide10

4. Install the front cover and button in the reverse order

of disassembly.

5. Turn on the power supply.

3 Settings

3.1 Temperature Settings

How to change the minimum and maximum oor

temperatures

1. Lift o the adjustment

button using a thin

screwdriver. (1)

2. Move the pins to the

desired positions. (2 and 3)

3. Put the adjustment button

back in place.

Please be aware of the following:

• The oor temperature is measured where the sensor

is placed.

• The temperature of the bottom of a wooden oor can

be up to 10 degrees higher than the top.

• Floor manufactures often specify the max

temperature on the top surface of the oor (usually

27-28˚C).
