Dahua Technology IPC-HDW1239DT-PV-STW Manual de usuario

Eyeball Network Camera

Quick Start Guide

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0

Quick Start Guide

Foreword

General

This manual introduces the installation and operations of network camera. Read carefully before

using the device, and keep the manual safe for future reference.

Safety Instructions

The following signal words might appear in the manual.

Signal Words

Meaning

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result in

property damage, data loss, lower performance, or unpredictable

result.

Provides additional information as a supplement to the text.

Revision History

Version

Revision Content

Release Date

V1.0.0 First release. May 2022

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy

protection laws and regulations to protect the legitimate rights and interests of other people by

implementing measures which include but are not limited: Providing clear and visible identification

to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

●The manual is for reference only. Slight differences might be found between the manual and the

product.

●We are not liable for losses incurred due to operating of the product in ways that are not in

compliance with the manual.

●The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper User Manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

the electronic version and the paper version.

●All the designs and software are subject to change without prior written notice. Product updates

might result in some differences appearing between the actual product and the manual. Please

contact customer service for the latest program and supplementary documentation.

●There might be deviations in the description of the technical data, functions and operations, or

errors in the print. If there is any doubt or dispute, we reserve the right of final explanation.

Quick Start Guide

●Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

●All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

●Please visit our website, contact the supplier or customer service if any problems occur while

using the device.

●If there is any uncertainty or controversy, we reserve the right of final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

This section introduces content covering the proper handling of the device, hazard prevention, and

prevention of property damage. Read carefully before using the device, comply with the guidelines

when using it.

Transportation Requirements

●Transport the device under allowed humidity and temperature conditions.

●Pack the device with packaging provided by its manufacturer or packaging of the same quality

before transporting it.

●Do not place heavy stress on the device, violently vibrate or immerse it in liquid during

transportation.

Storage Requirements

●Store the device under allowed humidity and temperature conditions.

●Do not place the device in a humid, dusty, extremely hot or cold site that has strong

electromagnetic radiation or unstable illumination.

●Do not place heavy stress on the device, violently vibrate or immerse it in liquid during storage.

Installation Requirements

●Strictly comply with the local electrical safety codes and standards, and check whether the power

supply is correct before operating the device.

●Please follow the electrical requirements to power the device.

◇When selecting the power adapter, the power supply must conform to the requirements of

ES1 in IEC 62368-1 standard and be no higher than PS2. Please note that the power supply

requirements are subject to the device label.

◇We recommend using the power adapter provided with the device.

●Do not connect the device to two or more kinds of power supplies, unless otherwise specified, to

avoid damage to the device.

●The device must be installed in a location that only professionals can access, to avoid the risk of

non-professionals becoming injured from accessing the area while the device is working.

Professionals must have full knowledge of the safeguards and warnings of using the device.

●Do not place heavy stress on the device, violently vibrate or immerse it in liquid during

installation.

●An emergency disconnect device must be installed during installation and wiring at a readily

accessible location for emergency power cut-off.

●We recommend you use the device with a lightning protection device for stronger protection

Quick Start Guide

against lightning. For outdoor scenarios, strictly comply with the lightning protection

regulations.

●Ground the function earthing portion of the device to improve its reliability (certain models

are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that

the power supply of the device is connected to a power socket with protective earthing.

●The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

during installation.

Operation Requirements

●The cover must not be opened while the device is powered on.

●Do not touch the heat dissipation component of the device to avoid the risk of getting burnt.

●Use the device under allowed humidity and temperature conditions.

●Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing it,

to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and flickering.

●When using a laser beam device, avoid exposing the device surface to laser beam radiation.

●Prevent liquid from flowing into the device to avoid damage to its internal components.

●Protect indoor devices from rain and dampness to avoid electric shocks and fires breaking out.

●Do not block the ventilation opening near the device to avoid heat accumulation.

●Protect the line cord and wires from being walked on or squeezed particularly at plugs, power

sockets, and the point where they exit from the device.

●Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens.

●The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

when using it.

●There might be a risk of electrostatic discharge on the dome cover. Power off the device when

installing the cover after the camera finishes adjustment. Do not directly touch the cover and

make sure the cover is not exposed to other equipment or human bodies

●Strengthen the protection of the network, device data and personal information. All necessary

safety measures to ensure the network security of the device must be taken, such as using strong

passwords, regularly changing your password, updating firmware to the latest version, and

isolating computer networks. For the IPC firmware of some previous versions, the ONVIF

password will not be automatically synchronized after the main password of the system has been

changed. You need to update the firmware or change the password manually.

Maintenance Requirements

●Strictly follow the instructions to disassemble the device. Non-professionals dismantling the

device can result in it leaking water or producing poor quality images. For a device that is

required to be disassembled before use, make sure the seal ring is flat and in the seal groove

when putting the cover back on. When you find condensed water forming on the lens or the

desiccant becomes green after you disassembled the device, contact after-sales service to

replace the desiccant. Desiccants might not be provided depending on the actual model.

Quick Start Guide

●Use the accessories suggested by the manufacturer. Installation and maintenance must be

performed by qualified professionals.

●Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently

wipe away the dirt.

●Clean the device body with a soft dry cloth. If there are any stubborn stains, clean them away

with a soft cloth dipped in a neutral detergent, and then wipe the surface dry. Do not use volatile

solvents such as ethyl alcohol, benzene, diluent, or abrasive detergents on the device to avoid

damaging the coating and degrading the performance of the device.

●The dome cover is an optical component. When it is contaminated with dust, grease, or

fingerprints, use degreasing cotton moistened with a little ether or a clean soft cloth dipped in

water to gently wipe it clean. An air gun is useful for blowing dust away.

●It is normal for a camera made of stainless steel to develop rust on its surface after being used in

a strong corrosive environment (such as the seaside, and chemical plants). Use an abrasive soft

cloth moistened with a little acid solution (vinegar is recommended) to gently wipe it away.

Afterwards, wipe it dry.

Quick Start Guide

Table of Contents

Foreword.........................................................................................................................................................................................................I

Important Safeguards and Warnings............................................................................................................................................. III

1 Introduction............................................................................................................................................................................................. 1

1.1 Cable................................................................................................................................................................................................. 1

1.2 LED Status...................................................................................................................................................................................... 1

2 Network Configuration...................................................................................................................................................................... 2

2.1 Initializing the Camera ............................................................................................................................................................ 2

2.2 Changing the Device IP Address ........................................................................................................................................ 3

2.3 Logging in to Web Page ......................................................................................................................................................... 4

3 Operating with DMSS ......................................................................................................................................................................... 5

4 Installation ............................................................................................................................................................................................... 7

4.1 Packing List ................................................................................................................................................................................... 7

4.2 Dimensions.................................................................................................................................................................................... 7

4.3 Installing Camera ....................................................................................................................................................................... 8

4.3.1 Installation Method........................................................................................................................................................ 8

4.3.2 Installing SD Card............................................................................................................................................................ 8

4.3.3 Attaching Camera ........................................................................................................................................................... 8

4.3.4 (Optional) Installing Waterproof Connector....................................................................................................10

4.3.5 Adjusting Lens Angle ..................................................................................................................................................11

Quick Start Guide

1 Introduction

1.1 Cable

Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and

prevent short circuits from occurring. For details, see the FAQ manual.

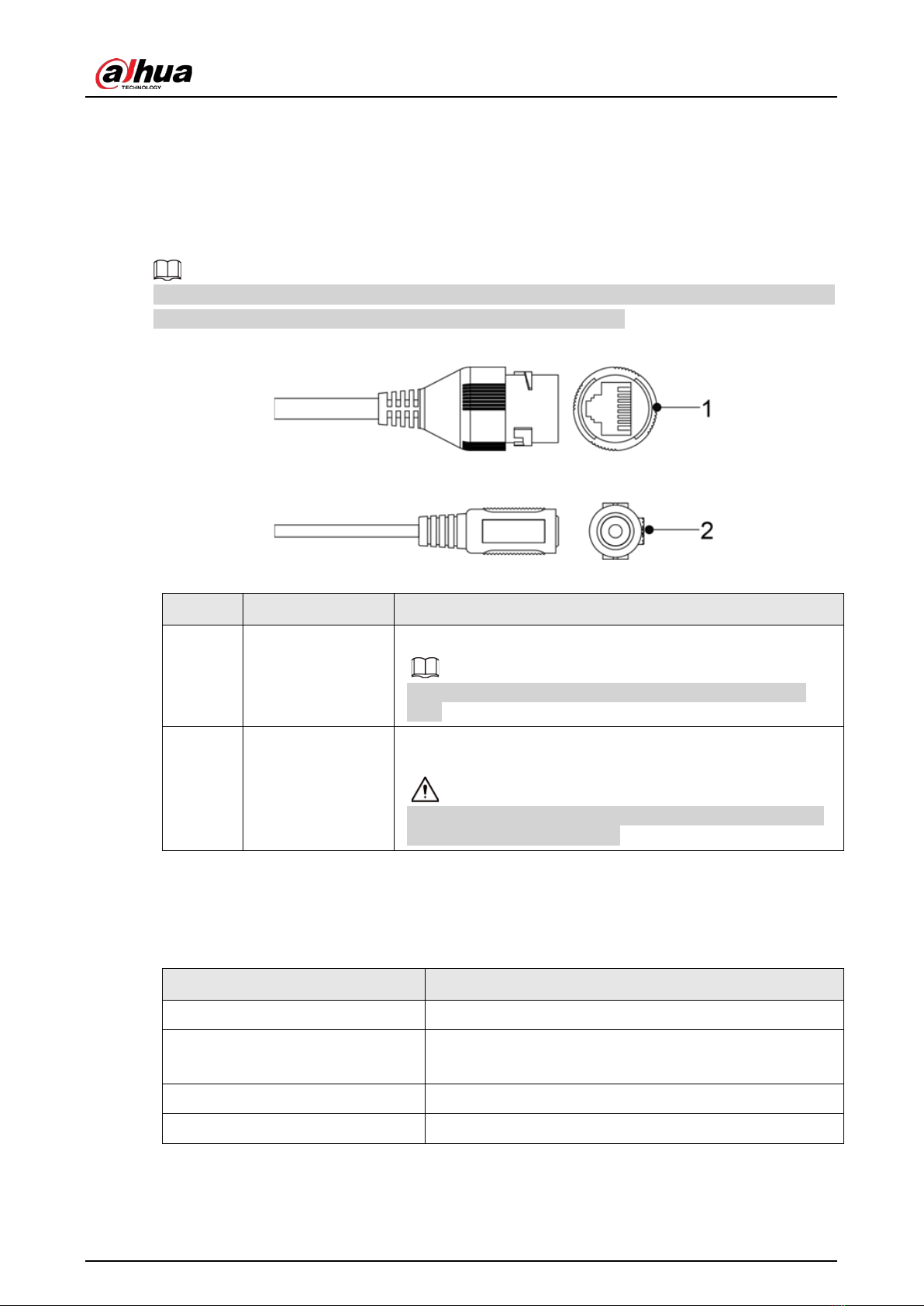

Figure 1-1 Cables

Table 1-1 Cable information

No.

Port Name

Description

1 Ethernet port

Connects to the network through a network cable.

Do not connect both network cable and Wi-Fi at the same

time.

2 Power port

Inputs 12 VDC power. Be sure to supply power as instructed in

the manual.

The device might become damaged or behave abnormally if

power is not correctly supplied.

1.2 LED Status

Table 1-2 LED status

LED Status

Device Status

Solid green Working properly.

Solid red

●Starting/Restarting.

●Resetting to factory default.

Slowly flashing red Network disconnected.

Flashing red and green Updating firmware.

Quick Start Guide

2 Network Configuration

Device initialization and IP configurations can all be managed with the ConfigTool or through the

web page. For more information, see the web operation manual.

●Device initialization is available on select models, and is required at first-time use and after the

device is reset.

●Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the computer are on the same network segment.

●Carefully plan the network segment to connect the device to.

●The following figures and pages are for reference only.

2.1 Initializing the Camera

Step 1 Search for the device that needs to be initialized through ConfigTool.

1. Double-click ConfigTool.exe to open the tool.

2. Click Modify IP.

3. Select the searching way, and then click OK.

4. Select one or several uninitialized cameras, and then click Initialize.

Step 2 Select the devices to be initialized, and then click Initialize.

If you do not provide the email address for password reset, you can reset the password

only through XML file.

Quick Start Guide

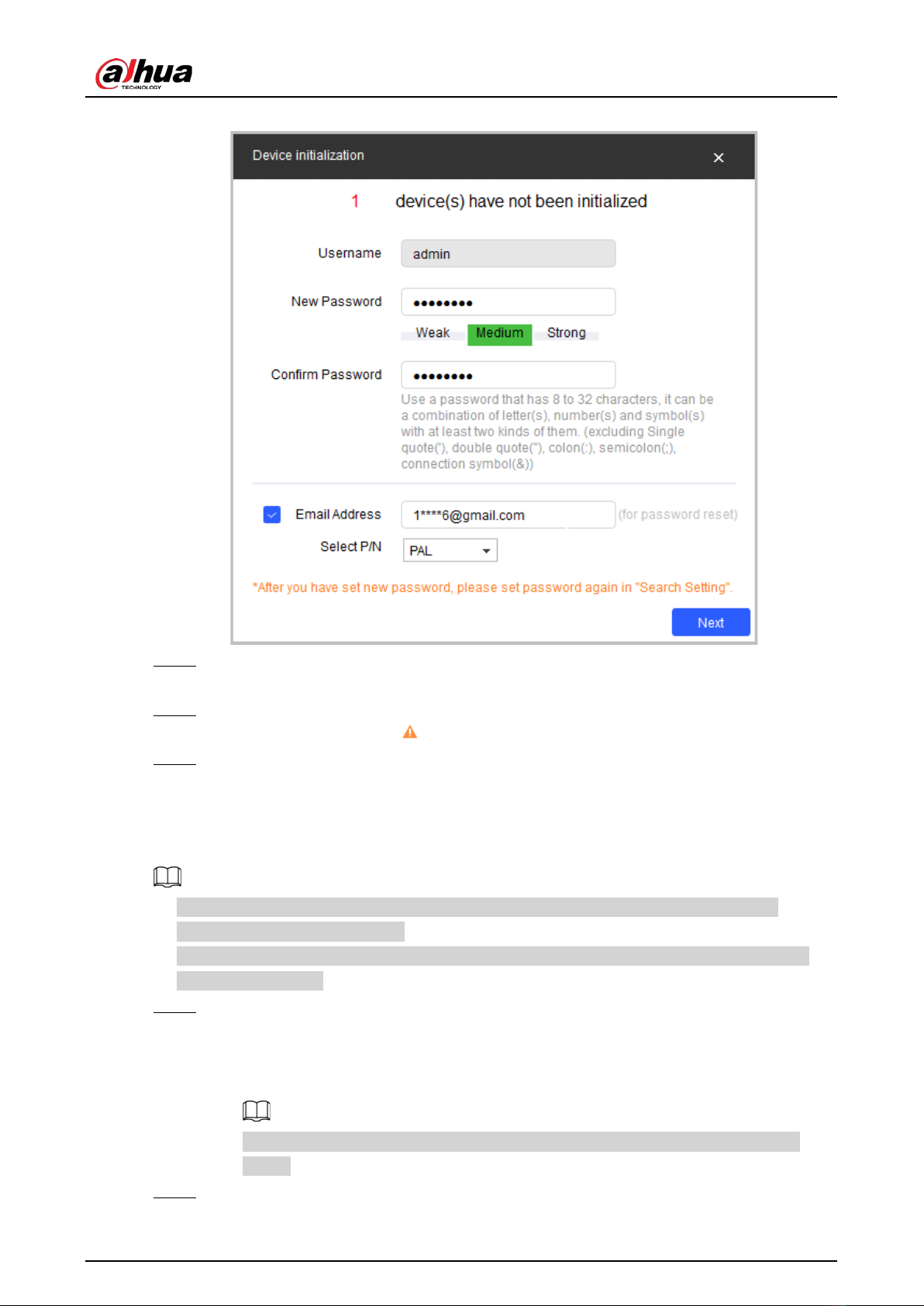

Figure 2-1 Password setting

Step 3 Set and confirm the password of the devices, enter a valid email address, and then click

Next.

Step 4 Select Auto-check for updates as needed, and then Click OK to initialize the device.

If initialization failed, click to see more information.

Step 5 Click Finish.

2.2 Changing the Device IP Address

●You can change the IP address of one or more devices at a time. This section is based on

changing IP addresses in batches.

●Changing IP addresses in batches is available only when the corresponding devices have the

same login password.

Step 1 Search for the device whose IP address needs to be changed through ConfigTool.

1. Double-click ConfigTool.exe to open the tool.

2. Click Modify IP.

3. Select the searching way, enter the username and password, and then click OK.

The username is admin, and the password is the one you set while initializing the

device.

Step 2 Select the devices whose IP addresses need to be changed, and then click Modify IP.

Tabla de contenidos

Otros manuales de Cámara de seguridad de Dahua Technology

Dahua Technology

Dahua Technology DH-IPC-PFW8601N-H-A180 Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW2431T-AS-S2 Manual de usuario

Dahua Technology

Dahua Technology 50430UN Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW1320S-W Manual de usuario

Dahua Technology

Dahua Technology WizMind IPC-PDBW82041-B360 Manual de usuario

Dahua Technology

Dahua Technology D-IPC-HUM8441-E1-L1 Manual de usuario

Dahua Technology

Dahua Technology Lite IPCHFW2231T-ZAS-S2 Manual de usuario

Dahua Technology

Dahua Technology DH-IPC-HFW4X-W Manual de usuario

Dahua Technology

Dahua Technology DH-IPC-HFW3 Manual de usuario

Dahua Technology

Dahua Technology IPC-EBW81242-AS-S2 Manual de usuario

Dahua Technology

Dahua Technology D-TPC-BF1241-B3F4-DW-S2 Manual de usuario

Dahua Technology

Dahua Technology IPC-HDB3202-DI Series Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW2831T-ZS-S2 Manual de usuario

Dahua Technology

Dahua Technology IPC-HUM8531M-V-LED-0360B Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW5449H-ASE-D2-0280B Manual de usuario

Dahua Technology

Dahua Technology DH-HAC-HUM1220GN-B Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW2249TM-S-IL-0280B Manual de usuario

Dahua Technology

Dahua Technology N52BF5Z Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW2849S-S-IL-0280B Manual de usuario

Dahua Technology

Dahua Technology D-IPC-HDBW3441F-AS-M-0360B Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW5842T-ZE Manual de usuario

Dahua Technology

Dahua Technology A83AR6 Manual de usuario

Dahua Technology

Dahua Technology 8A840WANF Manual de usuario

Dahua Technology

Dahua Technology D-SDZ4032-HNR-ZB Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
