Dahua Technology IPC-HFW1320S-W Manual de usuario

Dahua IR Wi-Fi Bullet Camera Quick Start Guide

V 1.0.1

Zhejiang Dahua Vision Technology CO., LTD

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Dahua IPC-

HFW1320S-W o cerca il tuo prodotto tra le migliori offerte di Videosorveglianza

1Packing List

Device ×1

Screw Package ×1 QSG ×1

2Product Appearance

Figure 2-1

Please refer to the following sheet for more details about the device.

Name

①

Network port

②

Power port

③

Unit device

Sheet 2-1

Figure 2-2

Please refer to the following sheet for more details about each component.

Sheet 2-2

Note:

For reset, long press for 8 seconds and then the light off; For WPS (Wi-Fi Protected Setup), one quick

press.

Please refer to the following sheet for more details about status of indicator light.

Name

①

Reset/ WPS (Wi-Fi Protected Setup) button

②

Indicator light 1

③

Lower cover

④

Micro SD card slot

⑤

Indicator light 2

⑥

Waterproof ring

⑦

Wifi antenna

⑧

Locking screw

Indicator light status

Device status

Red light normally on

Booting

Green light slow flashing

Booting completed, await wifi config,

enter smart config status;

Green light quick flashing

Wifi smart config in progress, including

WPS (Wi-Fi Protected Setup),

management frame and etc.

Green light normally on

Wifi connection succeeded, operate

normally.

Red and green lights flash alternately

Device upgrade

Red light slow flashing

Network connection failure or

disconnection after network connection

success.

Red light quick flashing

Device malfunction, fail to boot up; alarm

or SD card malfunction

Sheet 2-3

3Operate by Easy4ip APP

Step 1

Power on the device with power adapter.

Step 2

Connect your smart phone to your WiFi network. Scan the “Easy4ip APP” QR on the packing box,

download and install the Easy4ip APP.

Step 3

Open Easy4ipAPP (take IOS as an example), tap login to login the APP (Please register for first use).

Step 4

Tap “+”to add devices.

Figure 3-1

Step 5

Please select “Wired”when the network cable is connected, select “Wireless”for wireless connection.

Here is an example of wireless connection.

Figure 3-2

Step 6

Name the camera and scan the QR code on camera.

Figure 3-3

Figure 3-4

Step 7

Input the Wi-Fi password.

Figure 3-5

Step 8

Waiting for 60s to finish the Wi-Fi connection.

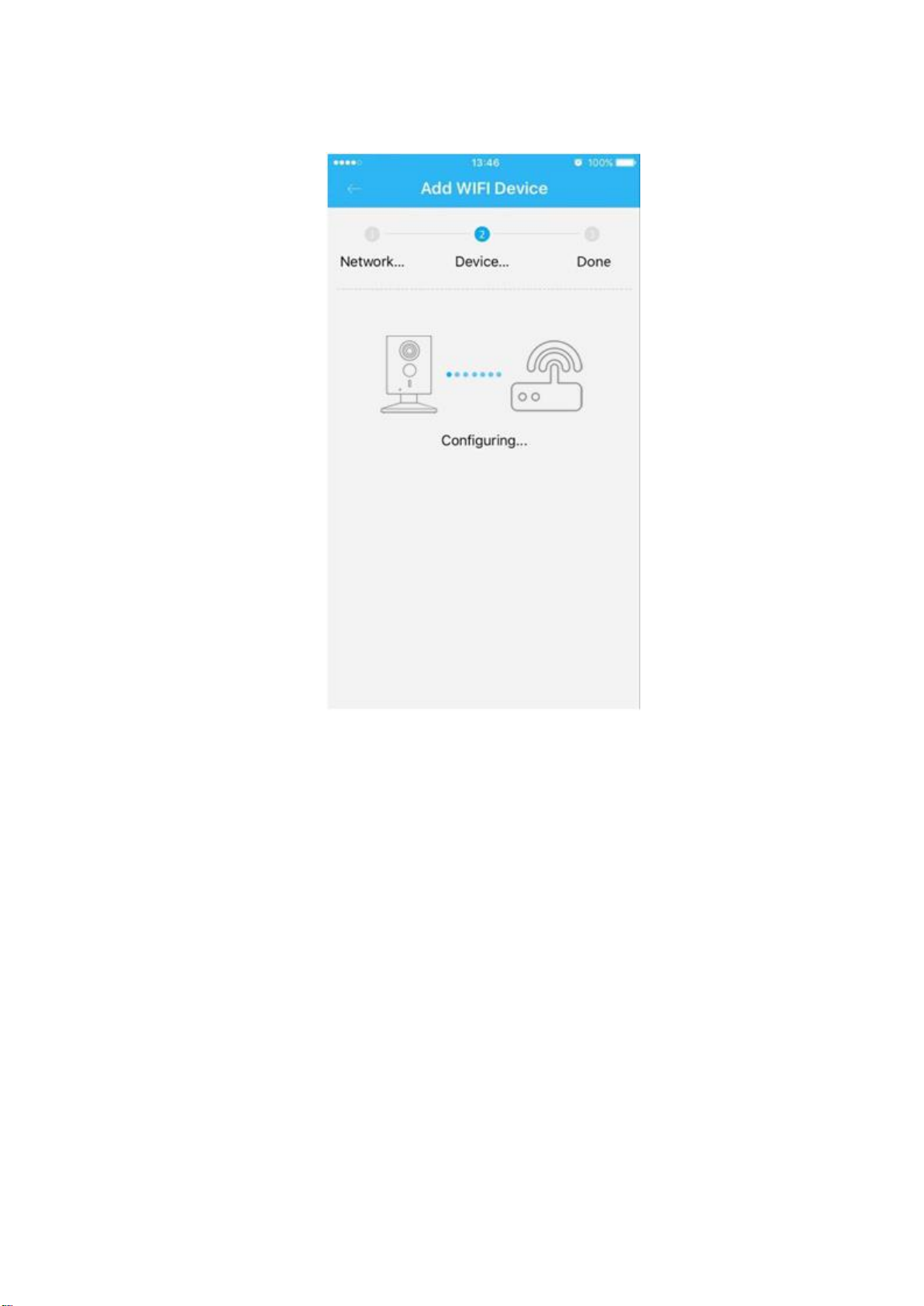

Figure 3-6

Note: If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat

step 5-8;

4Device Installation

Important

Before the installation, please make sure the installation environment can at least support 3x weight of

the camera.

Figure 4-1

Please see Figure 4-1 and Figure 4-2.

Step 1

Dig holes on the installation surface (wall or ceiling).

Step 2

Open accessories bag, take out expansion bolt and insert it into the hole you just dug.

Step 3

Open accessories bag, take out installation screws. Tighten the screws to fix the device on the

installation surface (wall or ceiling). You can move device sunshade back and forth. When you have

fixed the device, you must tighten screws on sunshade.

Step 4

Plug external wiring of the device properly.
