Dahua Technology DH-IPC-HDBW3541FP-AS-M-0280B Manual de usuario

Bullet Network Camera

Quick Start Guide

V1.0.2

Quick Start Guide

Foreword

General

This manual introduces the functions and operations of the camera.

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not

avoided, could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result

in property damage, data loss, lower performance, or

unpredictable result.

Provides additional information as the emphasis and

supplement to the text.

Revision History

Version Revision Content Release Date

V1.0.2 Updated "Important Safeguards and Warnings." April2020

V1.0.1 Modify the picture of Figure 1-2. June 2020

V1.0.0 First release. June 2020

About the Manual

●The manual is for reference only. If there is inconsistency between the manual and the actual

product, the actual product shall prevail.

●We are not liable for any loss caused by the operations that do not comply with the manual.

●The manual would be updated according to the latest laws and regulations of related

jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or our official

website. If there is inconsistency between paper manual and the electronic version, the

electronic version shall prevail.

●All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the manual. Please

contact the customer service for the latest program and supplementary documentation.

●There still might be deviation in technical data, functions and operations description, or errors in

print. If there is any doubt or dispute, we reserve the right of final explanation.

●Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

●All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

●Please visit our website, contact the supplier or customer service if there is any problem

occurring when using the device.

●If there is any uncertainty or controversy, we reserve the right of final explanation.

Quick Start Guide

Important Safeguards and Warnings

Electrical Safety

●All installation and operation shall conform to your local electrical safety codes.

●The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply

power with rated voltage which conforms to Limited Power Source requirement according to

IEC60950-1. Note that the power supply requirement is subject to the device label.

●Make sure that the power supply is correct before operating the device.

●A readily accessible disconnecting device shall be incorporated in the building installation wiring.

●Prevent the power cable from being trampled or pressed, especially the plug, power socket and

the junction extruded from the device.

Environment

●Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it might

cause over brightness or light marks, which are not the device malfunction, and affect the

longevity of Complementary Metal-Oxide Semiconductor (CMOS).

●Do not place the device in a damp, dusty extremely hot or cold environment, or the locations

with strong electromagnetic radiation or unstable lighting.

●Keep the device away from any liquid to avoid damage to the internal components.

●Keep the indoor device away from rain or damp to avoid fire or lightning.

●Keep sound ventilation to avoid heat accumulation.

●Transport, use and store the device within the range of allowed humidity and temperature.

●Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

●Pack the device with standard factory packaging or the equivalent material when transporting

the device.

●Install the device in the location where only the professional staff with relevant knowledge of

safety guards and warnings can access. The accidental injury might happen to the

non-professionals who enter the installation area when the device is operating normally.

Operation and Daily Maintenance

●Do not touch the heat dissipation component of the device to avoid scald.

●Carefully follow the instructions in the manual when performing any disassembly operation

about the device; otherwise, it might cause water leakage or poor image quality due to

unprofessional disassembly. Please make sure that the gasket ring is flat and properly installed in

the groove before installing the cover. Please contact after-sale service for desiccant replacement

if there is condensed fog on the lens after unpacking or when the desiccant turns green (Not all

models are included with the desiccant).

●It is recommended to use the device together with lightning arrester to improve lightning

protection effect.

●It is recommended to ground the device to enhance reliability.

●Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower,

or you can wipe the lens gently with soft cloth that is moistened with alcohol.

Quick Start Guide

III

●You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with

mild detergent. To avoid possible damage on device body coating which could cause

performance decrease, do not use volatile solvent such as alcohol, benzene, diluent and so on to

clean the device body, nor can strong, abrasive detergent be used.

●Dome cover is an optical component. Do not touch or wipe the cover with your hands directly

during installation or operation. For removing dust, grease or fingerprints, wipe gently with

moistened oil-free cotton with diethyl or moisten soft cloth. You can also remove dust with an air

blower.

●Strengthen the protection of network, device data and personal information by adopting

measures which include but not limited to using strong password, modifying password regularly,

upgrading firmware to the latest version, and isolating computer network. For some device with

old firmware versions, the ONVIF password will not be modified automatically along with the

modification of the system password, and you need to upgrade the firmware or manually update

the ONVIF password.

●Use standard components or accessories provided by manufacturer and make sure that the

device is installed and maintained by professional engineers.

●The surface of the image sensor should not be exposed to laser beam radiation in an

environment where a laser beam device is used.

●Do not provide two or more power supply sources for the device unless otherwise specified. A

failure to follow this instruction might cause damage to the device.

Quick Start Guide

Table of Contents

Foreword ..................................................................................................................................................... I

Important Safeguards and Warnings.........................................................................................................II

1 Introduction.............................................................................................................................................1

1.1 Cable................................................................................................................................................1

1.2 Connecting Alarm Input/Output .....................................................................................................2

2 Network Configuration............................................................................................................................4

2.1 Initializing Device............................................................................................................................4

2.2 Modifying Device IP Address...........................................................................................................6

2.3 Logging in to Web Interface ............................................................................................................6

3 Installation...............................................................................................................................................8

3.1 Packing List .....................................................................................................................................8

3.2 Dimensions......................................................................................................................................8

3.3 Installing Camera ............................................................................................................................8

3.3.1 Installation Method.................................................................................................................8

3.3.2 Installing SD Card (Optional) ..................................................................................................9

3.3.3 Attaching Camera .................................................................................................................10

3.3.4 Installing Waterproof Connector (Optional).........................................................................11

3.3.5 Adjusting Lens Angle ............................................................................................................12

Quick Start Guide

1 Introduction

1.1 Cable

●Cable type might vary with different devices, and the actual product shall prevail.

●Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and

water damage. For the detailed operation, see the FAQ Manual.

Figure 1-1 Cables

For more information about cable ports, see Table 1-1.

Table 1-1 Cable information

No. Port name Description

1 12V DC power

input

Inputs 12V DC power. Be sure to supply power as instructed in

the manual.

Device abnormity or damage might occur if power is not

supplied correctly.

2 Ethernet port

●Connects to network with network cable.

●Provides power to the device with PoE.

PoE is available on select model.

3 Alarm I/O

Includes alarm signal input and output ports, the number of

I/O ports might vary on different devices. For detailed

information, see Table 1-2.

4 Audio input

Connects to sound pickups to receive audio signal.

Audio input is available on select models.

5 Audio output

Connects to speaker to output audio signal.

Audio output is available on select models.

6 Aviation connector

Inputs and outputs network data and supplies PoE power.

Aviation connector is available on select models.

Quick Start Guide

For more information about I/O port, see Table 1-2.

Table 1-2 Alarm information

Port Port Name Description

Alarm I/O

ALARM_OUT Outputs alarm signal to alarm device.

ALARM_IN Receives the switch signal of external alarm source.

ALARM_GND Ground connection.

1.2 Connecting Alarm Input/Output

The camera can connect to external alarm input/output device through digital input/output port.

Alarm input/output is available on select models.

Step 1 Connect alarm input device to the alarm input end of the I/O port. See Figure 1-2.

Device collects different states of alarm input port when the input signal is idling and

being grounded.

●Device collects logic "1" when input signal is connected to +3V to +5V or idling.

●Device collects logic "0" when input signal is grounded.

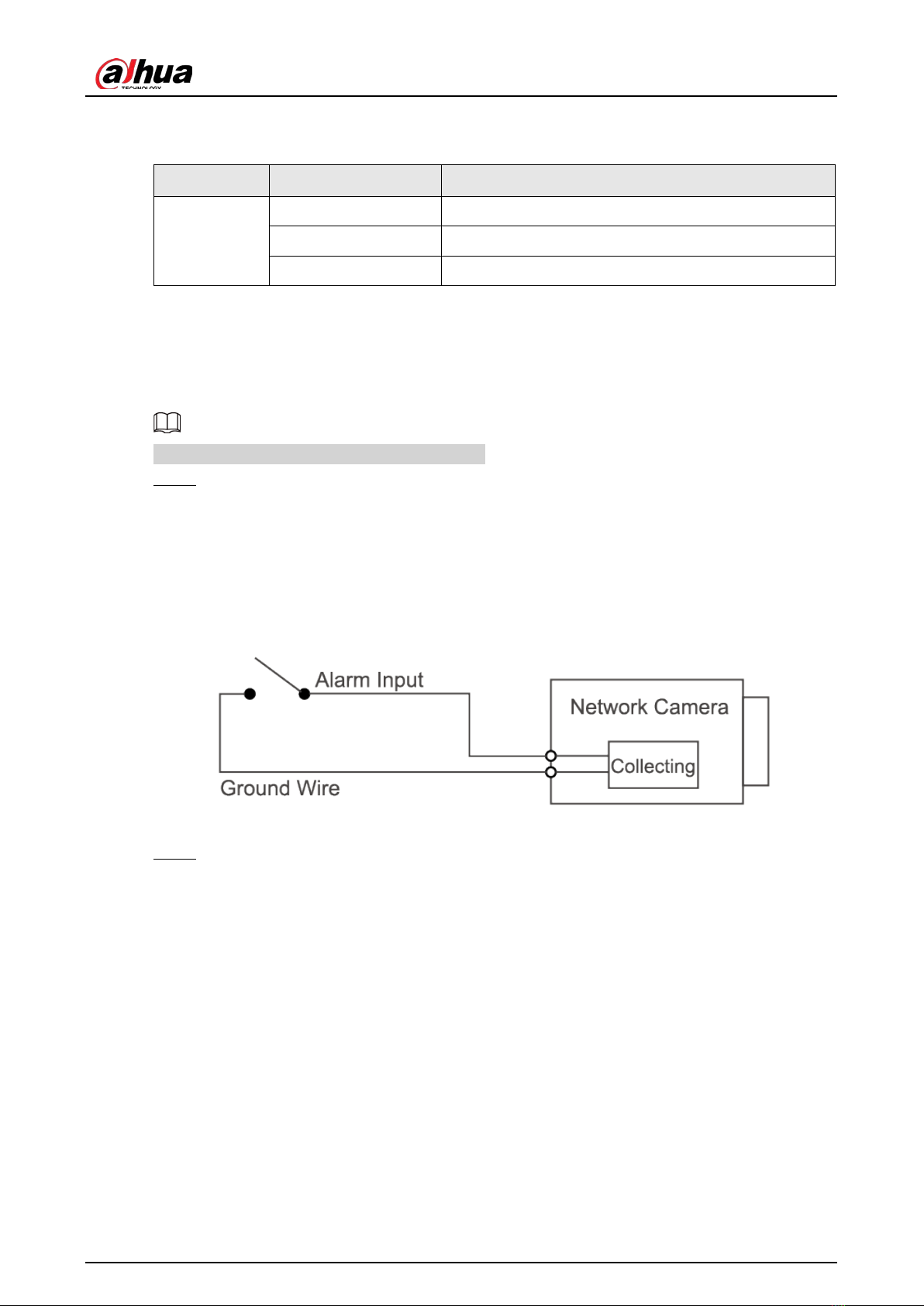

Figure 1-2 Alarm input

Step 2 Connect alarm output device to the alarm output end of the I/O port. The alarm output is

open-drain output, which works in the following modes.

●Mode A: Level application. Alarm outputs high and low level, and the alarm outlet is OD,

which requires external pull-up resistance (10K Ohm typical) to work. The maximum

external pull-up level is 12V, maximum port current is 300mA and the default output

signal is high-level (external pull-up voltage). The default output signal switches to low-

level when there is alarm output (As long as the operating current is below 300mA, the

output low-level voltage is lower than 0.8V).

●Mode B: Switch application. Alarm output is used to drive external circuit, the

maximum voltage is 12V and the maximum current is 300mA. If the voltage is higher

than 12V, please use an additional electric relay.

Quick Start Guide

Figure 1-3 Mode A

Step 3 Log in to web interface, and configure alarm input and alarm output in alarm setting.

●The alarm input on the web interface is corresponding to the alarm input end of the I/O

port. There will be high level and low level alarm signal generated by the alarm input

device when alarm occurs, set the input mode to "NO" (default) if the alarm input signal

is logic "0" and to "NC" if the alarm input signal is logic "1".

●The alarm output on the web interface is corresponding to the alarm output end of the

device, which is also alarm output end of the I/O port.

Quick Start Guide

2 Network Configuration

Device initialization and IP setting can be finished with the "ConfigTool" or on web interface. For

more information, see the Web Operation Manual.

●Device initialization is available on select models, and it is required at first-time use and after

device is being reset.

●Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stays in the same network segment.

●Plan usable network segment properly to connect the device to the network.

●The following figures and interfaces are for reference only, and the actual product shall prevail.

2.1 Initializing Device

Step 1 Double-click "ConfigTool.exe" to open the tool.

Step 2 Click .

The Modify IP interface is displayed.

Figure 2-1 Modify IP

Step 3 Click Search setting.

The Setting interface is displayed.

Step 4 Enter the start IP address and end IP address of the network segment in which you want to

search devices, and then click OK.

All the devices found in the network segment are listed.

Quick Start Guide

Step 5 Select one or several devices in uninitialized status, and then click Initialize.

The Device initialization interface is displayed.

Step 6 Select the devices that need initialization, and then click Initialize.

The password setting interface is displayed.

Figure 2-2 Password setting

Step 7 Set and confirm the password of the devices, then enter a valid email address, and then

click Next.

The final setting interface is displayed.

Password can be modified or reset in System Settings.

Step 8 Select the options according to your needs, and then click OK.

The Initialization interface is displayed after initialization is completed. Click the success

icon ( ) or the failure icon ( ) for the details.

Step 9 Click Finish.

The device status on the Modify IP interface (Figure 2-1) turns to Initialized.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Dahua Technology

Dahua Technology

Dahua Technology IPC-HDW1531SP Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW2531T-ZS-S2 Manual de usuario

Dahua Technology

Dahua Technology N28BL7Z Manual de usuario

Dahua Technology

Dahua Technology HD IR Mini Bullet Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW5449H-ASE-D2-0280B Manual de usuario

Dahua Technology

Dahua Technology HDW2831TM-AS-S2 Manual de usuario

Dahua Technology

Dahua Technology Pro IPC-HDW5241TM-AS Manual de usuario

Dahua Technology

Dahua Technology IPC-HUM8531M-V-LED-0360B Manual de usuario

Dahua Technology

Dahua Technology IPC-HDW2241T-S-0280B Manual de usuario

Dahua Technology

Dahua Technology Eyeball Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW81230E-Z Manual de usuario

Dahua Technology

Dahua Technology D-IPC-HDBW3841EP-S-0280-S2 Manual de usuario

Dahua Technology

Dahua Technology IPC-EBW81242-AS-S2 Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW1320S-W Manual de usuario

Dahua Technology

Dahua Technology DH-IPC-PFW8601N-H-A180 Manual de usuario

Dahua Technology

Dahua Technology D-IPC-HUM8441-E1-L1 Manual de usuario

Dahua Technology

Dahua Technology 49925TNI Manual de usuario

Dahua Technology

Dahua Technology IPC-HUM4231S-L4-0280B-S3 Manual de usuario

Dahua Technology

Dahua Technology D-TPC-BF1241-B3F4-DW-S2 Manual de usuario

Dahua Technology

Dahua Technology EOL Series Manual de usuario

Dahua Technology

Dahua Technology 59230UNI Manual de usuario

Dahua Technology

Dahua Technology DH-IPC-HFW11A0SN-W Manual de usuario

Dahua Technology

Dahua Technology IPC-HFW5431E-Z Manual de usuario

Dahua Technology

Dahua Technology N52BF5Z Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
