D-Link DCS?6010L Manual de usuario

DCS-6010L

Quick Install Guide

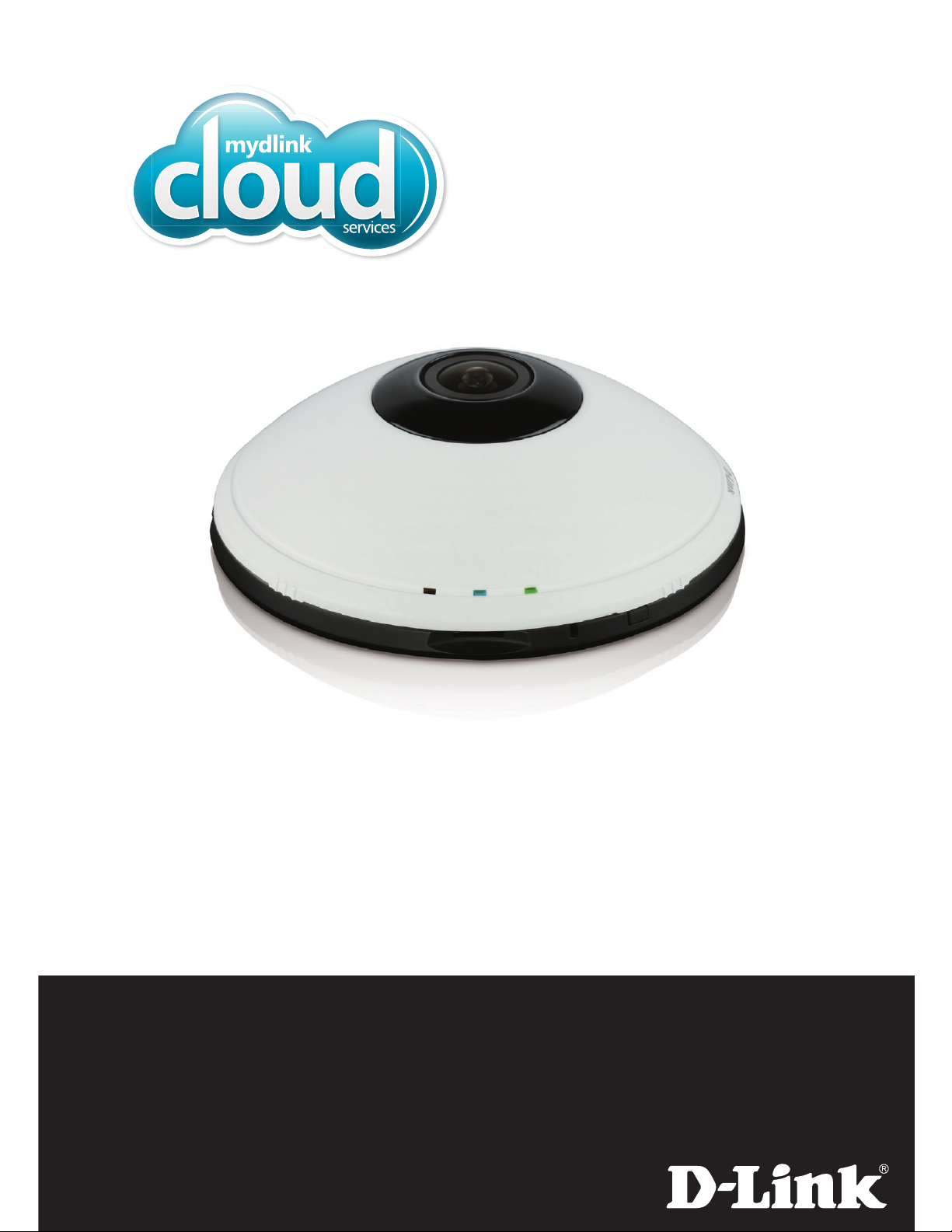

Wireless N 360oNetwork Camera

Cloud Camera 6100

If any of the above items are missing, please contact your reseller.

Minimum Requirements

DCS-6010L Wireless N 360oNetwork Camera

Power Adapter

Ethernet Cable

Quick Install Guide

Package Contents

Computer with:

Web Browser

• PC with 1.3GHz or above and at least 128MB RAM

• Windows® 8, 7, Vista® or XP (32-bit or 64-bit)

• Mac OS® X 10.6 or higher

• Internet Explorer® 7, Firefox, Safari 4, or Chrome

• Installed and enabled Java and ActiveX® controls

• A router (D-Link Cloud Router is recommended)

• A broadband Internet connection

• An e-mail account (required to create a mydlink account)

Network Device and Service

Mounting Kit

ENGLISH

What is mydlink™?

With a mydlink-enabled camera, you

can stay connected to everything

you love from anywhere, anytime.

The mydlink service can be accessed

by a web browser and also provides

an optional downloadable mydlink

app that allows users to have a

better experience on their mobile

devices. With the mydlink app, you

can quickly and easily view your

camera feed from anywhere using a

Wi-Fi, 3G or 4G connection.

Cloud Router

mydlink cloud service

DCS-6010L

iPod

Smartphone

Tablet

Laptop

Desktop

mydlink app

Modem

mydlink Lite App (Free)

Search for “mydlink lite” to download and install the app on your smartphone

or tablet when connected to the Internet. You can also nd the app by

scanning the QR code below with a QR code scan app.

mydlink+ App (Paid - Tablet Only)

Search for the word “mydlink+”to download and install the app on your

tablet when connected to the Internet. You can also nd the app by scanning

the QR code below with a QR code scan app.

System Requirements: iOS version 4.3 or above. Android version 2.1 or above.

ENGLISH

Installation

Rotate the top cover counter-clockwise

and lift it up.

Using the provided Ethernet cable connect

one end to your camera and the other-end

to your router or switch.

Connect the external power supply to

the power receptor and to plug into a

wall outlet.

Ensure the cables are seated in the

cable channel.

Set the cover in place and rotate to align the

cable channel guide over the cable channel.

It is recommended to complete the Setup

Wizard before putting the cover back

on. Skip to page 5 if you have a D-Link

Cloud router or page 6 if you don’t. Once

completed, you can refer to this step to put

the cover back on.

Note: If you want to use a wireless connection,

you still need to connect the Ethernet cable

during setup unless you use WPS.

ENGLISH

If you have a D-Link Cloud Router with an Internet connection, you can take

advantage of Zero Conguration. This feature automatically congures your

camera’s settings for you and adds it to your mydlink account automatically.

If you do not have a D-Link Cloud router, refer to the next page to install and

congure your camera.

If you wish to connect your camera to your router wirelessly, you can simply disconnect

the Ethernet cable and move the camera to its intended location after you have added

the camera to your account (step 3).

Zero Conguration Setup

From any computer, open a web browser, go

to http://www.mydlink.com and log into

your account.

Click on the device name when the notice

appears to add the camera to your account.

Connect the other end of the Ethernet cable to your

D-Link CloudRouterandconnectthecamera’s power

adapter to a power outlet.

Connect the Ethernet cable and power adapter to the

camera. Refer to the previous page on how to connect

an Ethernet cable.

Note: You can use WPS instead of using an Ethernet

cable. Simply press the WPS button on the camera and

then within two minutes press the WPS button on your

Cloud Router. Skip to step 3.

DCS-6010L

ENGLISH

Please download the Setup Wizard from http://www.mydlink.com/support.

Setup Wizard

If you do not have a D-Link Cloud Router, you can use any Windows or Mac

computer to go through the Setup Wizard, which will guide you through the

installation process from connecting your hardware to conguring your camera.

After about 20-30 seconds, the Setup Wizard will open, which will guide you

step-by-step through the installation process from connecting your hardware

to conguring your camera and registering it with your mydlink account.

Windows Users - Extract (“unzip”) the les to a folder on your computer and

then double-click the autorun.exe le.

Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le

and launch the application.

ENGLISH

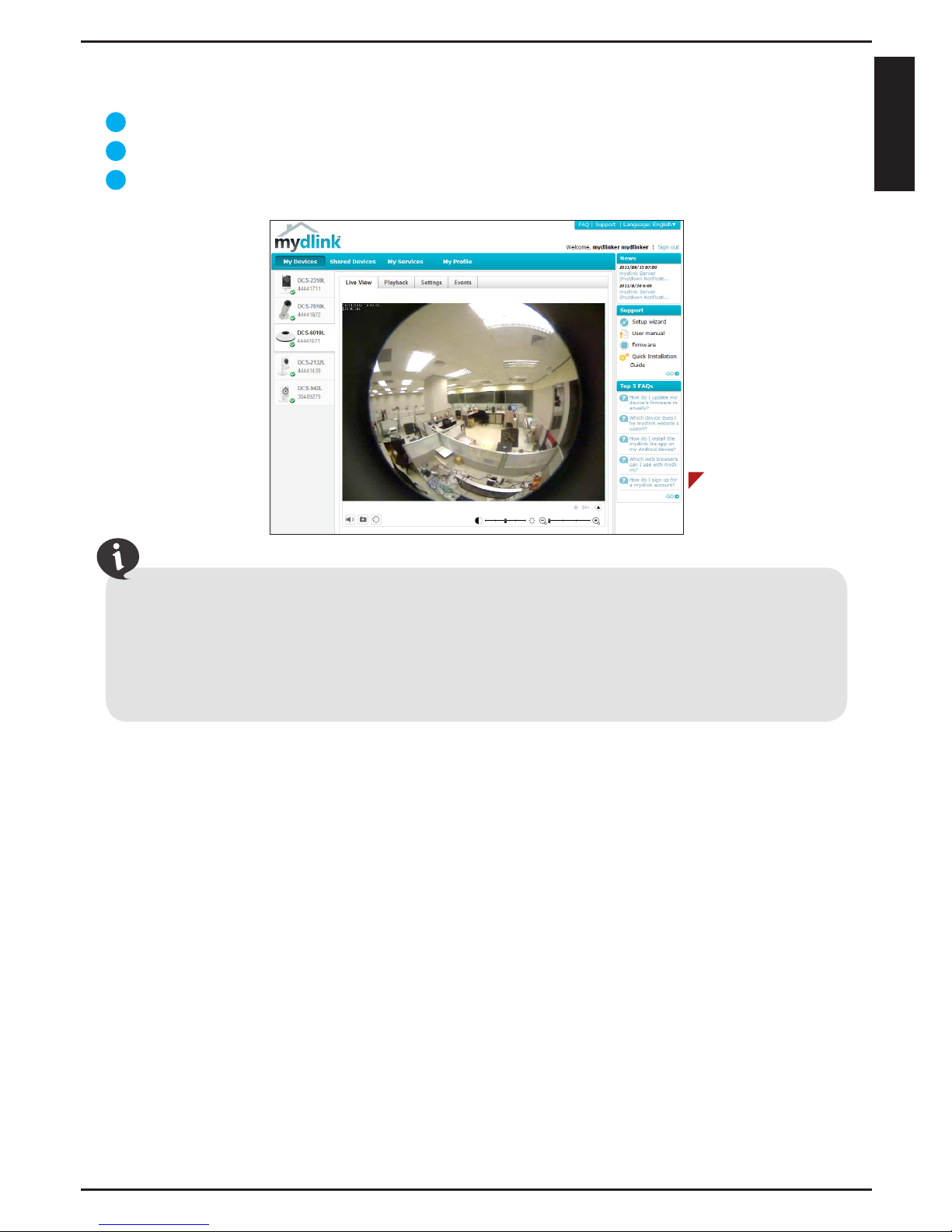

Start mydlink

Open a web browser on any computer connected to the Internet.

Enter http://www.mydlink.com in the address bar and press Enter.

Browser Requirements:

Java

Active X

• Windows does not have Java installed by default. Please download it from http://www.java.com.

• In Mac OS X 10.7.x, Java applets are disabled by default. Click the Finder > Applications > Utilities >

Java Preferences and check the Enable applet plug-in and Web Start applications option.

• The ActiveX® controls in IE will install automatically if needed. We suggest that you make sure that

you have enabled the related options in Tools > Internet Options > Security > Custom Level.

ENGLISH

Mount the Camera

Please refer to the steps below to assist you with mounting the camera.

We suggest that you congure the camera before mounting.

1. Unclip the wall bracket from the DCS-6010L

by sliding the base down.

2. Position the mounting bracket in the desired

location and mark the surface behind it with

a pencil using the bracket as a stencil.

3. Depending on the material of the wall or

ceiling, use the proper tools to drill two

holes where you marked with pencil. If the

wall is made out of concrete, drill the holes

approximately 25mm deep rst. Then insert

the plastic anchors to support the screws and

fasten to the bracket.

4. Place the camera over the screw that is on

the bracket. Make sure to t the screw-heads

over the big holes and slide it downward to

lock rmly. Lightly pull the base forward to

make sure that it is locked.

Note: If mounting on a wall, ensure that the

camera is oriented with the cables positioned

to the bottom of the device.

ENGLISH

Camera Use Without the mydlink Service

You might have some limitations without using the mydlink service:

• Not be able to manage multiple devices with a single account.

• Need a static IP address or DDNS account to access the camera remotely.

• Need several steps to manually setup remote access to the camera behind

a router.

• Not be able to view the image and modify the settings at the same time

on mobile devices.

If you do not want to use the mydlink service

now, run the Setup Wizard and choose the

option “I don’t want to enable mydlink cloud

service”. You can run the Setup Wizard again

when you want to enable the mydlink service

in the future. Check below if your camera is

behind a router or rewall.

Forwarding sections by entering the camera’s IP address and service ports.

Then you can use the router’s Internet (WAN) IP address and camera’s HTTP

port to access the camera remotely.

Conguring the Camera Behind a Router

To log in to the camera’s setup page, go to

SETUP > Network Setup, select “Static IP

Address” and assign an IP address to the

camera. The IP address must be in the same

subnet mask of the router’s LAN IP.

The camera’s default IP address is 192.168.0.20.

Enter the HTTP (80 by default) service port on

this page. Leave the other settings to their

default values and click Save Settings to nish.

ENGLISH

D-ViewCam enables centralized management of multiple network cameras,

supporting up to 32 network cameras and up to 64 users. With a dedicated

computer it oers digital monitoring and recording with a wide array of features,

including scheduled, motion and manual recording options for individual needs.

Download D-ViewCam at http://mydlink.com/support. Select your camera and

select“D-ViewCam”under Wizard.

D-Link provides software (D-ViewCam) and hardware (NVRs) solutions for advanced

users to choose from to manage their cameras and record videos. Depending on

the users needs, one or the other solution can be used to supplement their camera

system.

NetworkVideo Recorders (NVRs) are standalone storage devices with a powerful

embedded system that can record video from up to 9 network cameras located

on local or remote sites into a dedicated HDD storage without turning on a PC.

Video and camera management can be done as needed using any computer

attached to the network.

D-ViewCam™ and Network Video Recorders

DNR-322L

DCS-6010L

Router Modem

Internet

Mobile Device

Laptop

DCS-6010L

Router Modem

Internet

Mobile Device

Laptop

ENGLISH
