D-Link DCS-5020L Manual de usuario

DCS-5020L

Quick Install Guide

Pan & Tilt Wi-Fi Camera

If any of the above items are missing, please contact your reseller.

DCS-5020L Pan & Tilt Wi-Fi Camera

Power Adapter

Ethernet Cable

Quick Install Guide

Package Contents

Mounting Bracket

Minimum Requirements

Mobile Device

• iPhone, iPad, or Android smartphone or tablet

(Refer to the mobile app’s store page to see if your device is compatible)

Network Device and Service

• A wireless router (802.11ac/n/g) with Internet service

• An e-mail account (required to create a mydlink® account)

* If you use a mobile device with the mydlink Lite app, a PC is not required for

setup. Refer to Setting up Your Camera on page 4.

ENGLISH

Product Overview

Camera Lens

Microphone

IR LED

Light Sensor

Power and Link LED

WPS LED

Manual Focus Bezel

Power Connector

Ethernet Port

Reset Button

WPS Button

Front

Back

ENGLISH

Setting Up Your Camera

System Requirements: Refer to the mydlink Lite app page on Apple App Store, Google Play or Windows Phone Store.

Download the free mydlink Lite app on your smartphone or tablet by

scanning the QR code below, or by searching for mydlink Lite in the app

store for your device.

2Launch the mydlink Lite app, then create a new account or log in to your

existing account.

3The app will guide you through the rest of the conguration process.

ENGLISH

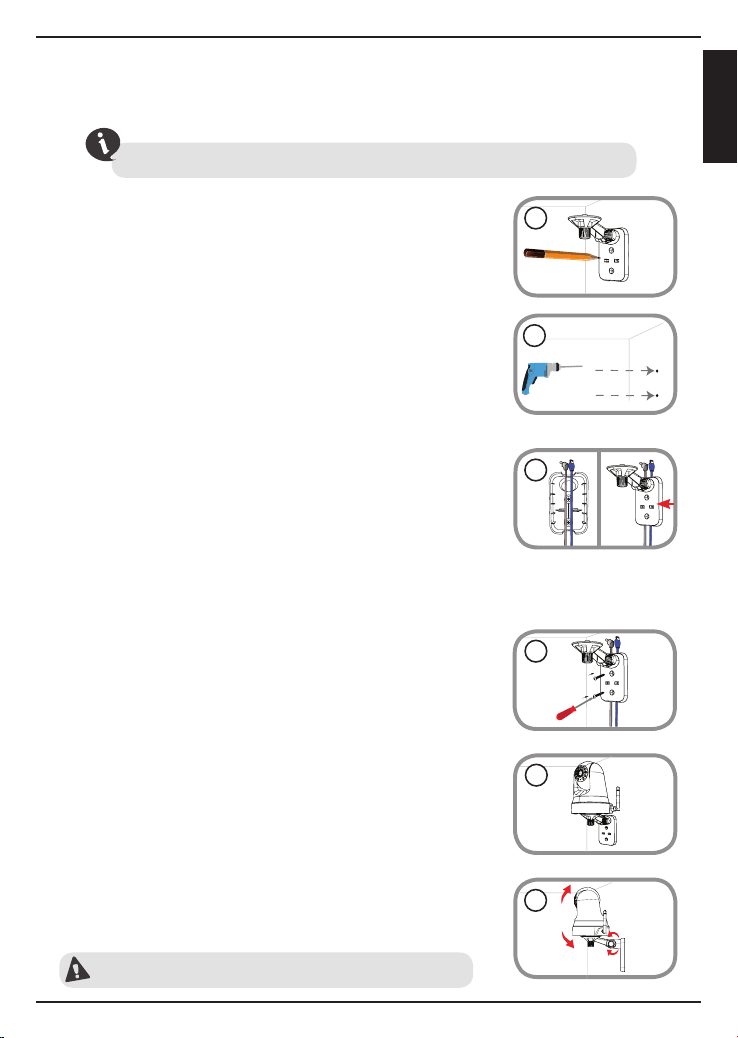

Mount the Camera

Please refer to the steps below to assist you with mounting the camera.

We suggest that you congure the camera before mounting.

Do not overtighten the screws as this may crack the bracket.

2. Depending on the material of the wall or ceiling,

use proper tools to drill two holes or screws

where you marked. If the wall is made out of

concrete, drill the holes rst, then insert the

plastic anchors to support the screws.

1. Place the mounting bracket where you want to

position the camera and use a pencil to mark

the holes.

3. The power and Ethernet cables can be

concealed behind the mounting bracket. Run

the cables through the back of the mounting

bracket, securing them with the built-in

guides. Be sure to leave enough cable length

protruding from the top to allow connection to

the camera.

4. Fasten the mounting bracket to the wall using

the screws provided. 4

5. Using the supplied thumbscrew, fasten the

camera to the mounting bracket. Connect the

power and Ethernet cables to the camera.

6. Adjust the angle of the arm on the mounting

bracket as required. Tighten the thumbscrew to

lock the arm in place.

ENGLISH

1. What is a mydlink No.? What is it used for?

Each camera has a unique eight-digit mydlink No. which will be shown on

the label on the back of your camera. This eight-digit number identies

your device, and is required to add your device to your mydlink account.

2. What can I do if my DCS-5020L is not working correctly?

• Reset the camera (see next step) and run the setup steps starting

on page 4 again.

• To make sure your hardware is installed correctly, make sure that:

- the power LED is solid green

- your Internet connection is working

- your router’s LAN & WAN connections are working

- your router supports UPnP®

- your camera is on the same network as your mobile device/PC

- both your mobile device/PC and camera have a working Internet

connection

• If your camera is still not working, check your router and make sure it

has the latest rmware.

3. What can I do if I forget my password?

FAQs

If you forget your password, you must reset the

camera. Unfortunately, this process will change

your settings back to factory default. To reset the

camera, locate the reset button on the back of

the camera. With the camera powered on, use an

unfolded paper clip to hold the button down for

10 seconds. Run the setup procedure located on

page 4 once the camera restarts.

4. Why is there a white haze when viewing in night vision mode?

When viewing in night vision mode, the IR lights on the camera may be

reecting o a nearby surface. Try repositioning the camera in order to

avoid glare from IR LEDs.

5. What can I do if the image is blurry?

You can manually adjust the focus of your camera using the focus ring

around the lens.

Reset

Button

ENGLISH

Notes

Technical Support

This guide is only for rst time conguration. Please refer to the user manual to learn

more or visit http://www.mydlink.com for more information. Also feel free to contact

us. U.S. and Canadian customers can contact D-Link Technical Support through our

website.

http://support.dlink.com

USA

http://support.dlink.ca

Canada

Version 1.30(NA)_130x183

March 19, 2015

6DCS5020LQD4G

subsidiaries. Other trademarks are the property of their respective owners. Maximum wireless signal rate derived from IEEE

Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental

factors, including volume of network trac, building materials and construction, and network overhead, lower actual

data throughput rate. Environmental factors will adversely aect wireless signal range. Product specications, size

and shape are subject to change without notice, and actual product appearance may dier from that depicted on the

packaging. Visit dlink.com (US) or dlink.ca (Canada) for more details.

DCS-5020L

Guide d’installation rapide

Caméra réseau horizontal/vertical

à vision jour/nuit

Contactez votre revendeur s'il manque l'un des éléments ci-dessus.

Caméra réseau panoramique horizontal/vertical à vision

diurne et nocturne DCS-5020L

Adaptateur secteur

Câble Ethernet

Guide d’installation rapide

Contenu de la boîte

Support de xation

Exigences minimales

Appareil mobile (pour utiliser l’app mydlink Lite)

• iPhone, iPad, ou smartphone ou tablette Android

(Veuillez vous reporter à la page de l'application mobile pour vérier si

votre appareil est compatible

Périphérique réseau et service

• Un routeur sans l (802.11ac/n/g) avec service Internet

• Un compte de messagerie (requis pour créer un compte mydlink®)

*Remarque: Si vous utilisez un appareil mobile avec l'application mydlink

Lite, un PC n'est pas requis pour l'installation. (Reportez-vous à la page 4

pour la conguration app mobile.)

FRANÇAIS
