2D-Link DCS-3410 Quick Install Guide
System Requirements
• Internet Explorer 6.x or above
• Windows®XP or Windows Vista™
• 1.7GHz processor or better and at least 256MB of RAM
• An available Ethernet connection
CAT5 Ethernet Cable
Package Contents
DCS-3410
POE Day & Night Network Camera
System Requirements
If any of the above items are missing, please contact your reseller.
CD-ROM with Manual and
Setup Wizard
Camera Stand 12V 1.25A AC Power Adapter
3 D-Link DCS-3410 Quick Install Guide
Hardware Overview
Hardware Overview
Connections
Ethernet Cable Connector (PoE)
The Network Camera’s back panel features an RJ-45 connector
for connections to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling. This network port supports the NWay protocol,
allowing the Network Camera to automatically detect or negotiate
the transmission speed of the network. The Ethernet port can also
be used to power the camera using a PoE switch.
Power LED
The power LED is on the back of the camera.
As soon as the power adapter is connected
to the camera, the LED will turn green.
DC Power Connector
The DC power input connector
is located on the DCS-3410
Network Camera’s back panel and
is labeled 12V DC with a single
socket to supply power to the
Network Camera.
4D-Link DCS-3410 Quick Install Guide
Hardware Overview
Audio Out Connector
The DCS-3410 provides an Audio Out connector to be used
for 2-way audio. Speakers (not included) may be connected
to the camera to provide audio for 2-way communication.
Microphone Connector
The DCS-3410 PoE Day & Night Network Camera has an internal
microphone built-in. However, you have the option of using
an external microphone by plugging it into the microphone
connector.

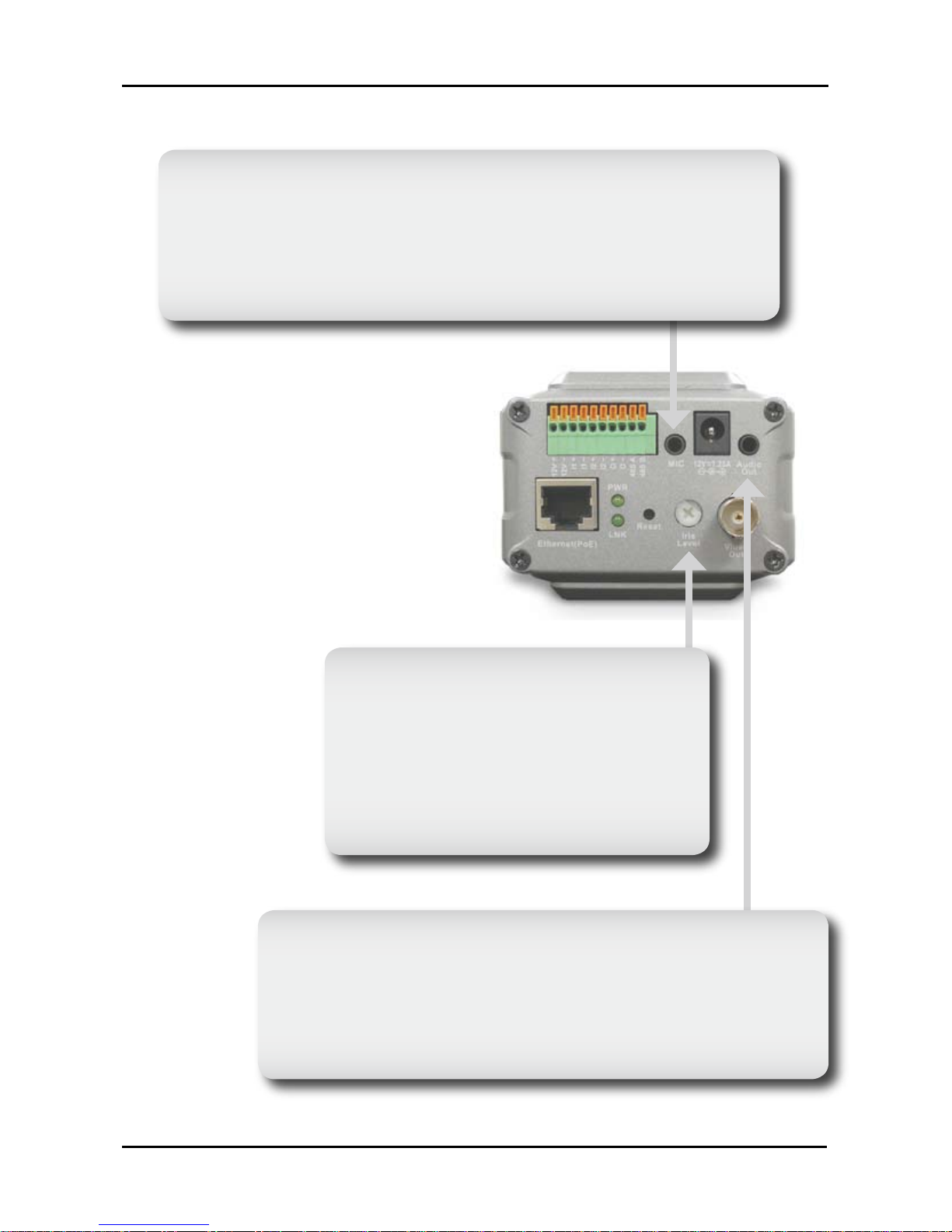

Iris Level
Used only when the DC-Iris lens
is connected to the camera. When
adjusting the Iris level, you can
determine the brightness of the video
images.
5 D-Link DCS-3410 Quick Install Guide
Hardware Overview
BNC
The BNC connector is used for professional
video connections. It benefits users who
integrate digital IP camera into traditional
system (CCTV) for both analog and digital video
streaming purpose.
I/O Connector
The DCS-3410 provides a terminal block with three pairs of
connectors situated on the back panel. Two pairs are for input and
the other is for output. The I/O connectors provide the physical
interface to send and receive digital signals to and from a variety
of external devices.
Link LED
Once a connection has been
established via Ethernet port, the
LINK LED will turn solid green. If
traffic is passing to the camera the
LINK LED will blink. If no ethernet
connection is detected, the LINK
LED will not light up.
Reset Button
Reset will be initiated when the reset
button is pressed once and held until
the Power LED flashes through its cycle
twice.
6D-Link DCS-3410 Quick Install Guide
Hardware Overview
DC-Iris Connector
The Camera supports additional DC-Iris lens,
and provides the power and control signal
required for adjusting the lens through this
DC-Iris connector (4-pin). You can attach any
standard DC-Iris lens (optional) for a specific
purpose, such as outdoor applications.
7 D-Link DCS-3410 Quick Install Guide
Hardware Installation
Hardware Installation
Connect the Ethernet Cable
Connect an Ethernet cable to the network cable
connector located on the Network Camera’s
back panel and attach it to the network.
Attach the External Power Supply
Attach the external power supply to the DC
power input connector located on the Network
Camera’s back panel (labeled DC 12V) and
connect it to an AC power outlet.
Note:When you have a proper connection,
the LED will turn green. The light may
cycle on and off and your computer may
show an intermittent loss of connectivity, this is normal until you have
configured your Network Camera.
Connect Using Power-Over-Ethernet
Once you connect an Ethernet cable to your PoE switch or adapter, the Power
LED on the DCS-3410 will turn green to indicate a proper connection and
power to the unit.
8D-Link DCS-3410 Quick Install Guide
Software Installation
Click Next
Insert the DCS-3410 CD into the CD-ROM drive. If the CD Autorun function
does not automatically start on your computer, click Windows®Start > Run.
In the Run command box type “D:\DCS3410.exe”, where D: represents the
drive letter of your CD-ROM. If it does start, proceed to the next screen.
Software Installation
Click Setup Wizard
Click Next to continue.
Click Yes
Click Yes to accept the License
Agreement.
9 D-Link DCS-3410 Quick Install Guide
Software Installation
Click Next
Click Finish
Click Finish to complete the instal-
lation.
To start the installation, click
Next.
Note: The installation may take
several minutes to complete.
10D-Link DCS-3410 Quick Install Guide
Configuration
Configuring Your Camera with
the Setup Wizard
Click on the D-Link Setup Wizard SE icon that was created in your Windows
Start menu.
Click the Wizard button
The Setup Wizard will appear and show the MAC address of the DCS-3410
and an IP Address (which may or may not be correct depending on what
you have your DCS-3410 connected to). If you have a DHCP server on your
network, there will be a valid IP Address displayed here.
Note: A DHCP server is a device that supplies the same IP address.
Click D-Link Setup Wizard SE
