D-Link DSL-300 Manual de usuario

DSL-300DSL-300

ADSL Ethernet ModemADSL Ethernet Modem

Quick Install GuideQuick Install Guide

Connecting the DSL-300Connecting the DSL-300

If the cable connection is good, a green LED on the front of the DSL-300

labeled Ethernet/Link will glow steadily.

To setup the DSL-300 begin by connecting it to a power source.

Once the unit power is on, insert one end of the included Ethernet cable

into the DSL-300’s Ethernet port, and the other end into the Ethernet port on

the NIC installed in your PC.

DSL-300

ADSL Ethernet Modem

Quick Install GuideQuick Install Guide

for Windows 98/SE/ME/2000

* Please refer to the Manual on the CD-ROM for more detailed information.

Connecting the DSL-300Connecting the DSL-300 continuedcontinued

Now connect the phoneline cable from the DSL-300 to your phone jack.

If the ADSL Link LED does not glow green within one minute of its being

connected, check all of your cable connections to make sure that they are

correct and securely installed.

When you have completed all the connections, your DSL-300 will look

like this:

Power Cord

(Plug the other end of the

power cord into the power

outlet.)

Ethernet Cable

(Plug the other end of the

Ethernet cable into the

Ethernet port on the NIC,

which is installed in your

computer.)

Phone line cable

(Plug the other end of the

phone line cable into the

phone jack.)

22 Installing the Software DriversInstalling the Software Drivers

Step 1 -Turn on your PC and

wait until Windows Operating

System has been fully installed.

Step 2 - Insert the DSL-300

Configuration Utility CD into

the CD drive.

Step 3 - Select START>RUN>

Type in the letter for the CD-ROM drive. If the CD-ROM drive is

“D”, then type “D:\Setup.exe” in the open field.

Click OK

Click Next

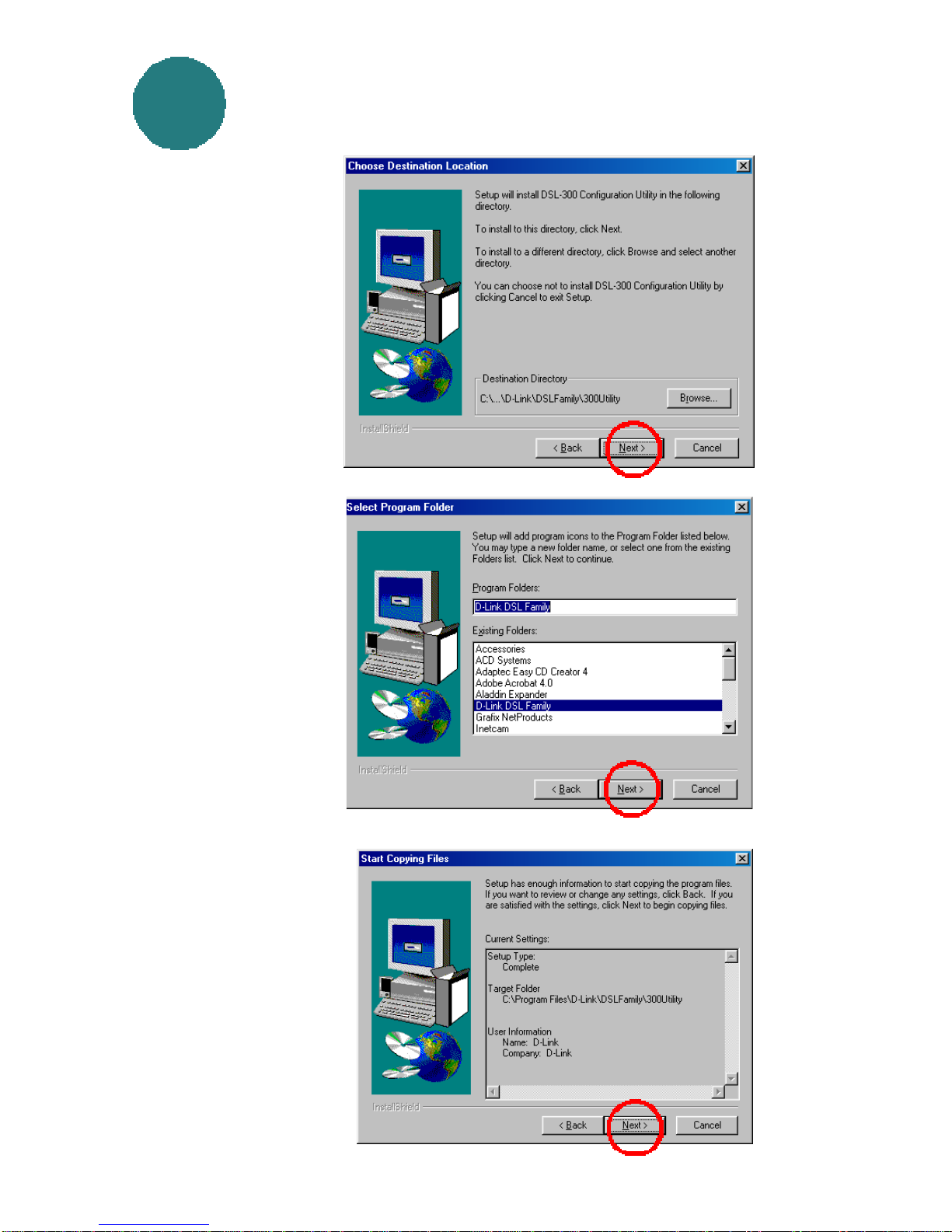

Installing the Software DriversInstalling the Software Drivers

continued

Click Next

22 Installing the Software DriversInstalling the Software Drivers

continued

After files have been

loaded, select “Yes,

Launch the program

file.”

33 Using the Configuration UtilityUsing the Configuration Utility

Click Discover

Double click on the MAC

address of the DSL-300.

Using the Configuration UtilityUsing the Configuration Utility

continued

Type “Admin” for the default

password.

Click OK

Click on the “General ADSL Information” tab and input the proper VPI

settings provided by your DSL provider.

The DSL-300 comes with a default VPI of “0” and a VCI of “35.”

To change these settings, simply highlight the number you wish to change,

and type in a new value in the box.

NOTE: VPI: “0” and VCI: “35” settings are most common among DSL

providers. This will not work for others who have different VPI and VCI

settings. Please contact your service provider for the correct VPI and

VCI settings.

Click OK after you

have input the correct

ADSL settings as

described above.

Using the Configuration UtilityUsing the Configuration Utility

continued

Click Yes

Note: Do not manually restart the modem. It will automatically restart by

itself. When the DSL-300 has been fully restarted, then it will be ready for use.
