D-Link DIM-128 - 56 Kbps Fax Manual de usuario

ISDN TA

56k FAX/ MODEM

PC Card

User Manual

- 1 -

INTRODUCTION

The ISDN TA PC Card brings the latest in mobile communication technology

with flexibility and convenience. With the wide range ISDN signaling

protocols switches supports, mobile experts may enjoy the mobile

communication across the world and the high speed digital service.

System Requirements

Pentium 75 or above

At least 30MB free hard disk space

At least 16MB RAM

PCMCIA Type II/III slot

PCMCIA Card Services and Socket Services v.2.1 or higher pre-

installed

Windows 95/98/2000 or Windows NT pre-installed

Specifications

Standard

PCMCIA 2.1 & JEIDA 4.1 compliant

ISDN standards

Basic Rate Access (2B+D)

U-Interface:

Compliant with ANSI TI.601

S/T-Interface:

Compliant with ITU-T I.430

D-channel:

ITU-T Q.921, Q.931

ETSI NET3

B-channel:

V.120,

V.110,

X.75/T.70NL/ISO8208

Async-to-Sync PPP conversion

Multilink PPP,

56 K Modem (CAPI only)

- 2 -

G3 fax (CAPI only)

Voice (CAPI only)

Line Rate

64/56 Kbps on 1 B-channel

128/112 Kbps on 2 B-channel (PPP/MP)

64/56Kbps on 1 B-channel

16Kbps on D-channel

ISDN Network & Switch Compatibility

National ISDN-1 (NI-1)

AT&T 5ESS Custom

Northen Telecom DMS-100 Custom

DSS1 (Euro-ISDN)

INS-Net 64

Application Program Interface Supported

VCOMM

WinISDN

CAPI 2.0

NDIS WAN

Operating System Supported

Windows 95 and OSR2

Windows 98

Windows 2000

Windows NT 4.0

Physical Specifications

RJ-45 ISDN line interface

Dimension: 85.6 x 54 x 5 (mm) PCMCIA Type II

- 3 -

Parts Names

15-pin PC Card

Connector

Analog Fax/Modem DAA

Connccet to PSTN

Telephone Line

15-pin PC Card Connector

ISDN Network

Connection Cable

Ear-piece

ISDN Phone Kit

Microphone

Connect to

ISDN Line

- 4 -

HARDWARE INSTALLATION

If you are using the ISDN TA PC Card under Windows 95/98, Do NOT insert the PCMCIA card until

after the software installation is completed.

1. Align the PC card with the arrow sign pointing toward the computer’s

PCMCIA slot.

2. Connect the 15-pin PC card connectors with the two exposed end of the

PC card. Precautions have been made so that you won’t install your two

cables backwards, relying on unique groves at the connectors. These

‘groves’ will insure a cable will not be installed in the wrong place. The

modem cable is on the right, while the ISDN cable is on the left. Push

evenly and steadily until the units ‘click’.

3. Connect the ISDN line to the opposite end of the ISDN Network

Connection Cable. Note: If your NT1 box does not have 100 ohm resistor,

then the 100

Ω

ΩΩ

Ω

terminator resistor (optional) is required and should be

used as a connector to connect the ISDN line with the ISDN Network

Connection Cable. Consult your dealer if the 100

Ω

terminator resistor is

not included in the package.

Connect to ISDN Line

Connect to ISDN TA 56K

FAX/MODEM PC Card

Connect to ISDN Line

Connect to ISDN TA 56K

FAX/MODEM PC Card

Terminal resistor

- 5 -

FIRST THING TO KNOW BEFORE SOFTWARE INSTALLATION

The ISDN TA PC Card is designed to support a wide bandwidth of

interfaces/drivers for a total solution in different environments. The software

setup procedures accordingly vary from interfaces/drivers to interfaces/drivers.

To help you set up the software efficiently, the software installation is

organized by interfaces under Windows 95/98/2000 and Windows NT

respectively.

The following figures are illustrated as guideline-like flow charts. If something

goes wrong, track down the flow to check if there is any procedure missing

while setting up; and move to the corresponding section for details.

VCOMM Port

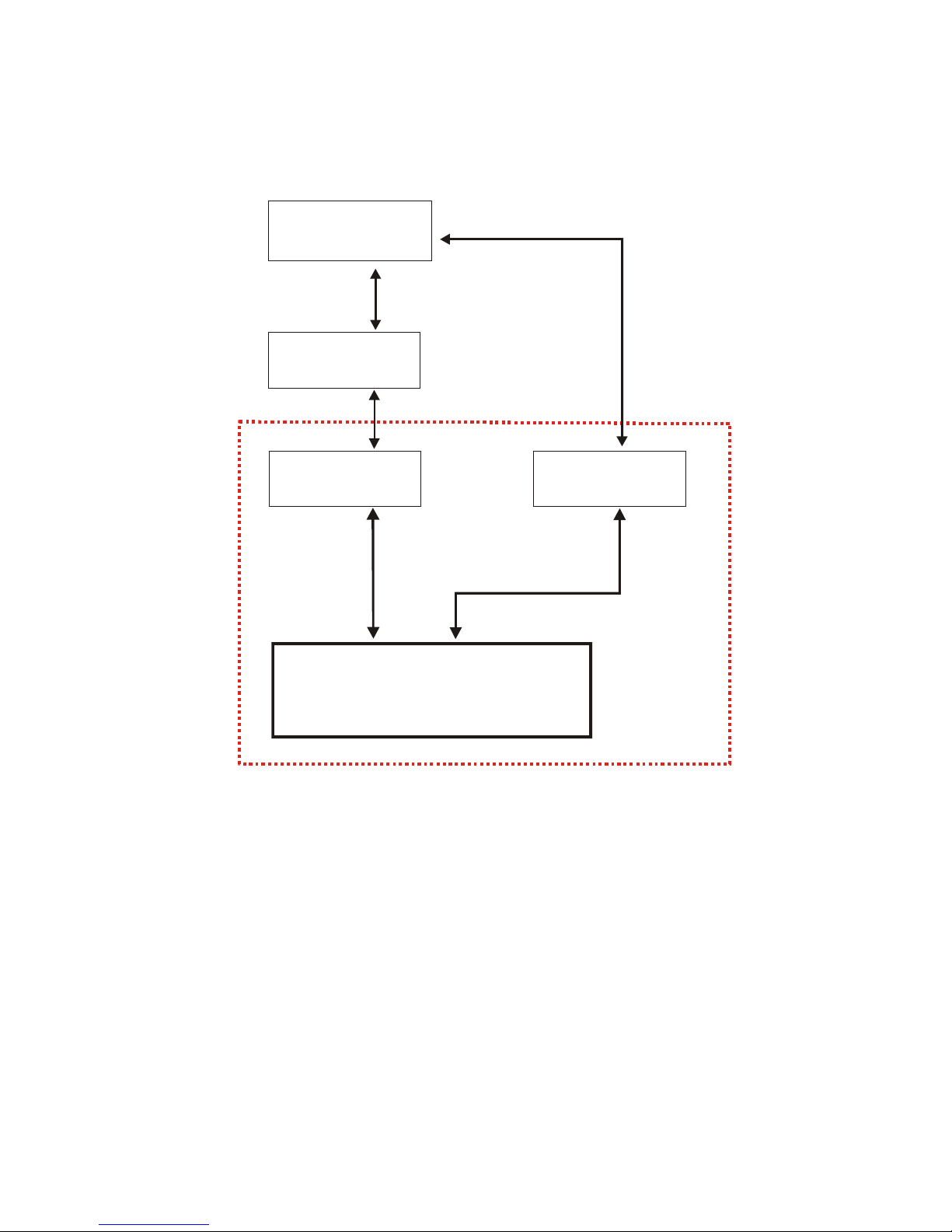

Hyper Terminal

CAPI 2.0

RVS-COM

NDIS Port

ISDN Low

Driver

DUN

CAPI NDISVCOMM

Interface

Center

Driver

Level Driver

* PPP

V.120

V.110

* PPP

* V.110

X.75

V.120

Modem

* Eurofile Transfer

* G3 FAX over ISDN

* PPP

Windows 95/98/2000

The blocked area indicate that after when setup.exe has been executed

(see section titled “Installing Device Driver”), the Phone Dialer

VCOMM Port driver, CAPI 2.0 and the ISDN Low Level Driver were

also installed. You may then use Phone Dialer or the functions with

VCOMM directly.

For CAPI mode, however, it is required to install RVS.COM Center

beforehand to enable the functions with CAPI.

For NDIS mode, unless the NDIS Port Driver has been installed, the

ISDN Low level Driver won’t be able to work.

- 6 -

Hyper Terminal

CAPI 2.0

RVS-COM

NDIS Port

ISDN Low

DUN

CAPI NDIS

Windows NT

Interface

Center

Driver

Level Driver

* PPP

* Modem over ISDN

* G3 Fax

* Voice application

* PPP

The blocked area indicate that after when setup.exe has been executed

(see section titled “Installing Device Driver”), the Phone Dialer CAPI

mode and NDIS were also installed. You may then use Phone Dialer or

the functions with NDIS mode directly.

For CAPI mode, however, it is required to install RVS.COM Center

beforehand to enable the functions with CAPI.

- 7 -

SOFTWARE INSTALLATION FOR WINDOWS 95/98/2000

Installing the Device Driver

1. Insert the device driver compact disc or disks by sequence into your

computer.

2. Double-click My Computer.

3. Double-click the drive whichever contains the device driver. For example,

if you are using disks, insert the disks into drive A, double-click “3½

Floppy (A:)”. Or if you are using compact disc, select the CD-ROM drive

and double-click folder Win9x when in Windows 95/98, or Win2000 for

Windows 2000.

4. Double-click Setup.exe. The installation program will proceed

automatically. Follow the on-screen instruction. While for installation

under Windows 2000, remember to close the following window to

continue.

5. When finished, click the Finish button, and you will be asked to restart

your computer. Before your computer is reset, insert the PCMCIA card

into your PCMCIA socket. (Refer to hardware installation.)

6. When Windows restart, Windows will automatically detect the new

device.

7. For Windows 2000, the following picture will also appear afterwards.

Click Yes to continue.

- 8 -

8. Select the appropriate protocol in Windows 2000. Click Next. Follow the

on-screen instruction to finish setting.

Installing the Application Programs

Before you start, make sure the type of your Application Program Interface. The Application

Program Interface (API) is used as the interface between the hardware (ISDN TA PC Card) and the

application programs. Before performing the installation, make sure the type of API matching your

system. The currently supported APIs are VCOMM, NDIS, and CAPI. Move to the specific section titled

the appropriate API for your need for installation.

VCOMM Mode

COM port is commonly used for connecting to the external ISDN devices.

With the VCOMM COM port emulation, the ISDN multifunction PC Card

works exactly like an ISDN TA (Terminal Adapter) external box, which can

run with traditional terminal program packages, such as Windows 95 Hyper

Terminal, Procom Plus for Windows, Telix, pcAnywhere, etc., to hook up to

the on-line services and bulletin boards. In this mode, ISDN AT commands are

usually used to drive the ISDN multifunction PC Card.

Making PPP Connection (Basic Internet)

1. Go to My Computer.

2. Select Dial-Up Networking. Double-click Make a New Connection, a

dialogue box will appear as shown below.

- 9 -

3. Name the new connection appropriately.

4. Select Intelligent ISDN MODEM (modem).

5. Enter in the area code and phone number of your Internet Service Provider

(ISP). Leave out the ‘-‘. (Example: ‘1234567’ NOT ‘123-4567’ )

Typically, the country and area codes are not required and should be

disabled.

6. From the Dial-Up Networking window right-click your newly created

connection. Select Properties. On the General tab, cancel the selection

of “Use area code and Dialing Properties” and click OK.

7. From the Start menu, select Programs. Select Configuration Utility.

Click Config. A dialogue box will prompt you to change the settings to

fit your needs.
