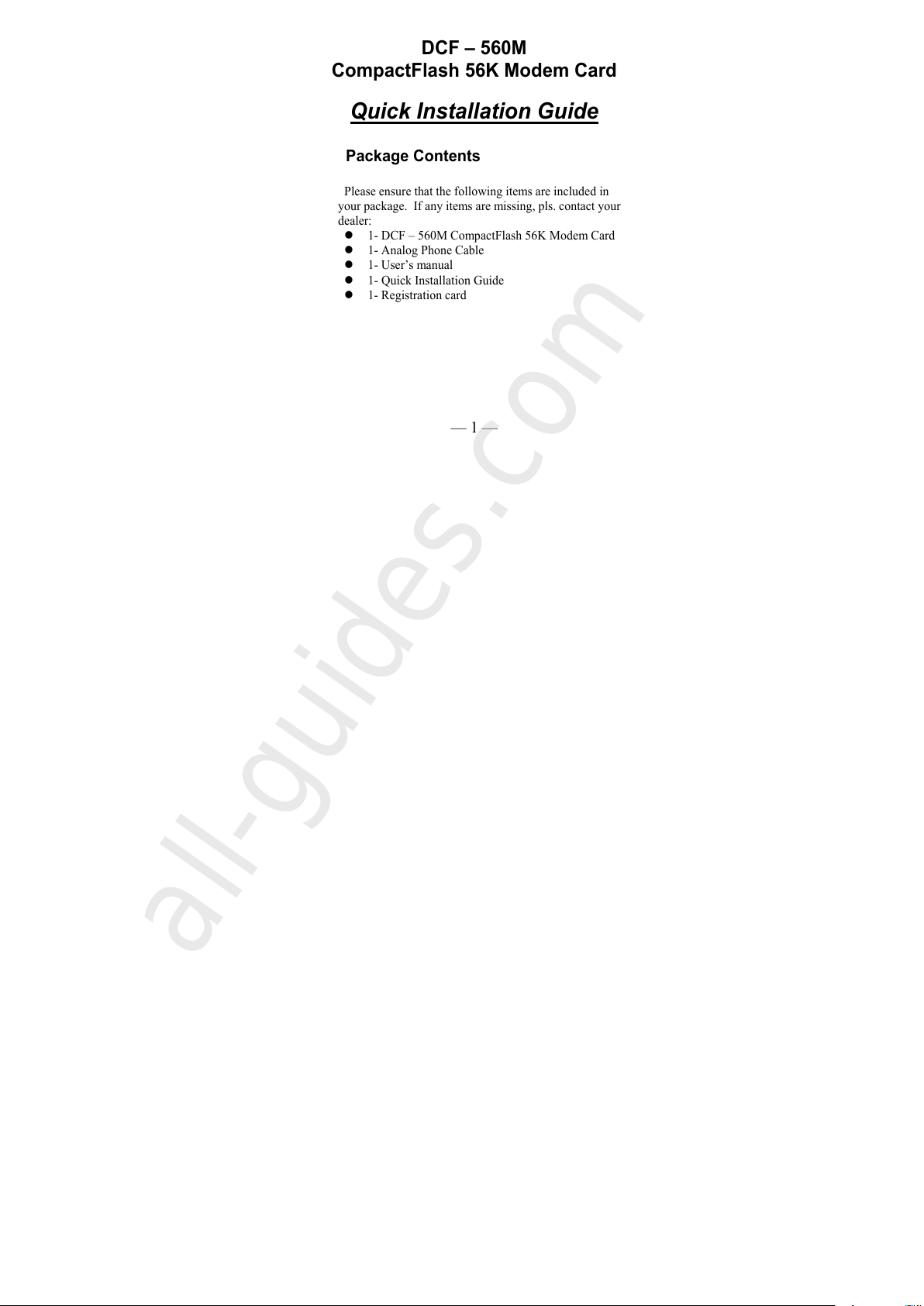

DCF – 560M

CompactFlash 56K Modem Card

Quick Installation Guide

Package Contents

Please ensure that the following items are included in

your package. If any items are missing, pls. contact your

dealer:

 1- DCF – 560M CompactFlash 56K Modem Card

 1- Analog Phone Cable

 1- User’s manual

 1- Quick Installation Guide

 1- Registration card

All manuals and user guides at all-guides.com

all-guides.com

Hardware Installation

1. Firmly insert the

DCF – 560M into

the CompactFlash

slot on top of your

pocket PC with the

50-pin connector

facing the

CompactFlash slot.

You will hear a

click when firmly

connected.

2. Please Press “YES”

to skip the warning

message.

—2 —

All manuals and user guides at all-guides.com

3. Connect the analog

phone cable to RJ-

11 of the DCF –

560M. And insert

the other end of the

analog phone cable

into a standard

telephone outlet.

—3 —

All manuals and user guides at all-guides.com

Configuring a Modem Connection on

Your Pocket PC

1. On your Pocket PC, tap

the “Start” button and

choose Settings.

2. Click the “Connections”

tab and choose

“Modem” icon.

Note: Consult with

your network

administrator for

specific settings.

—4 —

All manuals and user guides at all-guides.com

3. Click “New

Connection…”

—5 —

All manuals and user guides at all-guides.com

4. Type a name in the

“Enter a name for the

connection” text box.

5. Choose “CompactFlash

56K Modem” from the

Select a modem list.

6. Choose “Baud Rate” for

your CF modem.

For example: 115200.

Click the “Advanced”

button.

—6 —

All manuals and user guides at all-guides.com

all-guides.com

7. Click the “Name

Servers” tab.

8. According to your ISP

account, input

appropriate address if

necessary.

9. Click “OK” at top right

to continue.

10. Click the “Next” button.

—7 —

All manuals and user guides at all-guides.com

11. Type in your local ISP

access number.

12. Click “Next” to

continue.

—8 —

All manuals and user guides at all-guides.com

13. Click “Finish” to

complete the process…

—9 —

All manuals and user guides at all-guides.com

Setting up your Pocket PC for POP3

1. Launch the “ Inbox” from

your Pocket PC. Click “

Services”, followed by

New Service from the

menu. Then Click “Next”

—10 —

All manuals and user guides at all-guides.com
