D-Link DCM-200 Manual de usuario

Before you start

Local Cable Service

If you do not have an existing cable Internet connection, contact your local

cable operator to subscribe to a broadband connection.

For the modem to be recognized on the network of the cable Internet provider,

the following modem information will be needed:

 Modem Make and Model i.e. D-Link DCM-200

 Modem Serial Number i.e. HQT10C000180 (normally found on the label at

the bottom of the unit.

 Modem MAC Address i.e. 0050BA2F0804 (on the back of the modem)

Connecting The Cable Modem

Connect the external power adapter into

the connector labeled “POWER” and

the other end to the electrical outlet.

*NOTE: Use only the AC power

adapter supplied with the DCM-200

Cable Modem.

Connecting The Cable Modem Continued…

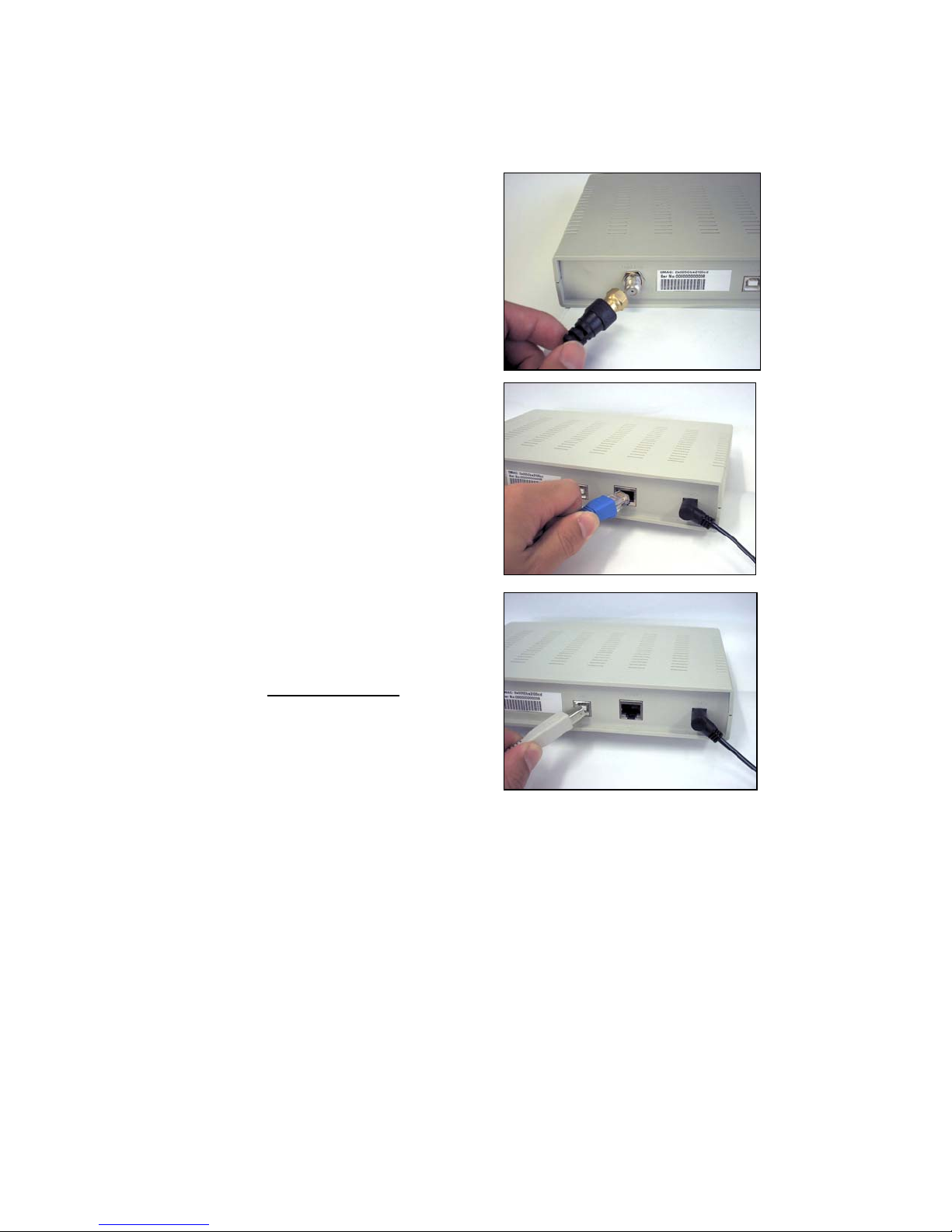

Connect the coaxial cable provided for the Internet connection to the jack

labeled “CABLE IN” in the back of the cable modem unit.

Wait 1 to 3 minutes for the link light to

illuminate. If the link light does not

glow, please contact your broadband

cable company for further instructions.

A. Connect an Ethernet cable to the

port labeled “Ethernet” on the back

of the cable modem

B. Connect a USB cable to the “USB

type B” port on the back of cable

modem unit.

IMPORTANT Note:

* The DCM-200 USB/Ethernet Cable Modem

will only work with either the Ethernet port or

the USB port at one time. THEY CANNOT

WORK SIMULTANEOUSLY.

Connecting The Cable Modem Continued…

C. The final cable modem setup will look like the figures below:

Ethernet Cable Connection USB Cable Connection

*Note: When using the USB Cable Connection, make sure the LINK light is

on in front of the modem before you connect the USB type A to your

computer. DO NOT CONNECT THE USB CABLE TO YOUR

COMPUTER IF THE LINK LIGHT IS NOT ON.

Verifying The Modem Status Lights

Status

Indicator

Link

Light

Activity

Light

Power

Indicator

Verify the Cable Modem connections using the LED indicators

 Power: On after the modem has been plugged into an AC power

source.

 Link: On when the connection to the cable network is established.

The link light must be on before any physical connections are

made to the computer.

 Act (Activity): Indicates that traffic activity is passing through your

cable modem port.

 Status: On when the Ethernet cable is properly connected to your PC.

Installing the USB Drivers

*Note: This installation is only necessary if you are using the USB cable to

connect your cable modem to the computer.

Windows 98/98 SE

If your PC is running Windows 98/98SE, it should detect the new hardware

automatically. However, if it does not, please follow the steps below to install

the necessary driver:

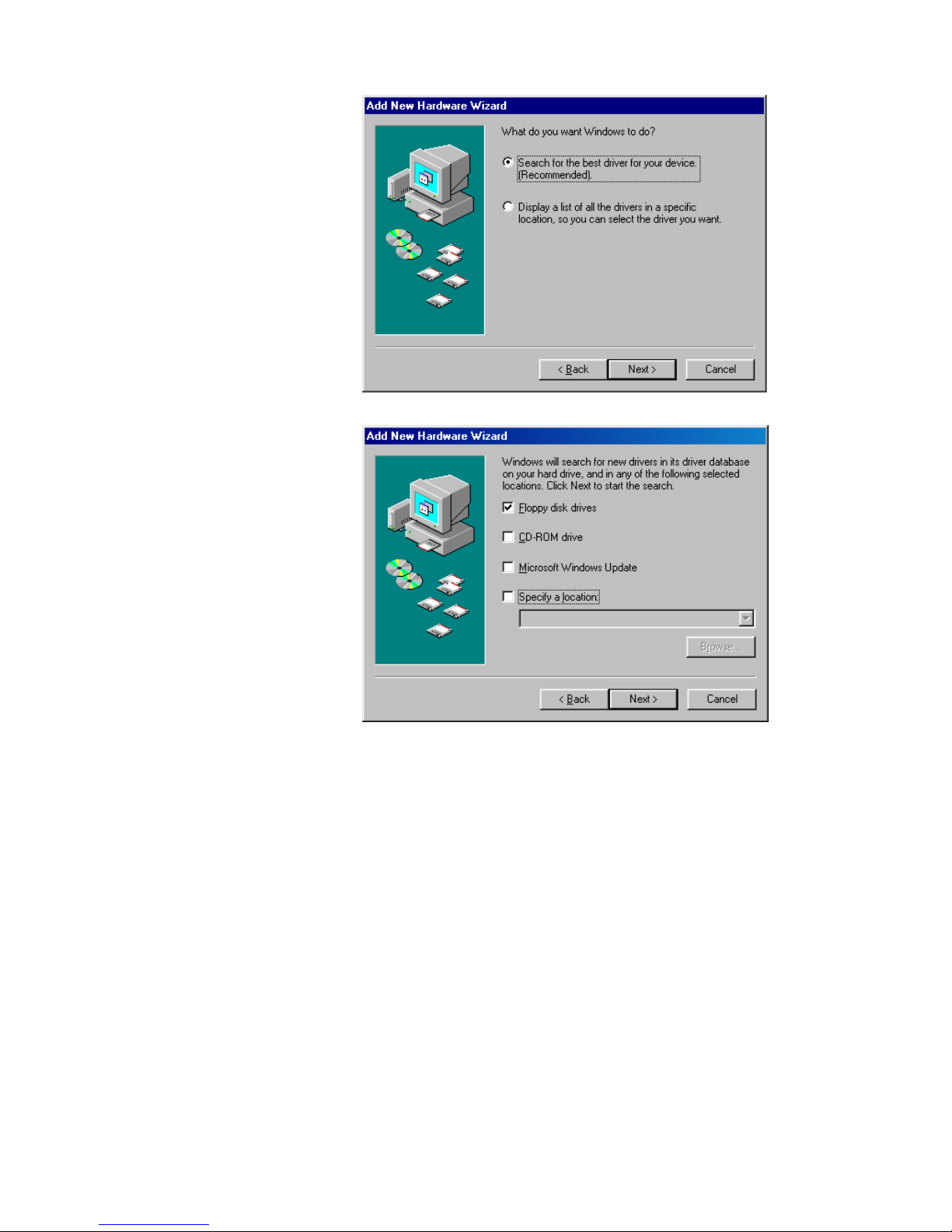

1. Click Start-> Settings-> Control Panel-> Add New Hardware. The

following window will open:

Click Next.

Windows 98/98 SE Continued…

Select “Search for

the best driver for

your device

(Recommended).”

and then click Next.

Check (√) “CD-Rom

drive” and then click

Next.

Windows 98/98 SE Continued…

Select “The updated

driver

(Recommended)

D-Link USB Cable

Modem” and then

click Next.

Click Next.

Windows 98/98 SE Continued…

If a warning message

as the following

appears, insert the

installation disk and

click OK.

Indicate the location of driver by typing a:\ in the space of “Copy files from:”

Click OK to allow

Windows to install

the driver for your

USB Cable Modem.

Once the necessary driver

files have been copied, t

following window will

displayed. In the event of

a version conflict, w

recommend keeping all

previous versions.

Windows 98/98 SE Continued…

Click Finish to complete

the driver installation

procedure. The DCM-200

is now installed.

Before you can begin using the DCM-200 USB/Ethernet Cable Modem, you

must reboot your PC. Click “Yes” to proceed with this operation

Windows ME (Millennium Edition)

If your PC is running Windows ME, it will automatically detect the new

hardware through a series of windows displayed below. Follow the steps

described below to add the driver for the USB/Ethernet Cable Modem.

Once the USB cable is connected to the USB interface, the following window

will be displayed:

Select “Automatic

search for a better

driver

(Recommended).”

and then click Next.
