DCM-202 Software 2.0.1 Loading Process

Copying Files:

Be sure to save the attached files to a temp directory:

Hitr252.bin and DLinkTFTPServer_10.exe (i.e. C:\temp)

Configurations and Software Loading Steps:

1. Go to Start →Control Panel →Click on Network Connections →Double click

on Local Area Connection.

2. In Local Area Connections Status page, select Properties.

3. Under the General Tab, select Internet Protocol (TCP/IP). Then click on Properties.

4. In the Internet Protocol (TCP/IP) Properties, select Use the following IP address.

Fill in the following information:

IP Address: 192.168.100.2

Subnet Mask: 255.255.255.0

Click OK to set the IP address on to the computer.

5. After Static IP configuration has taken place, go to Start →Run →cmd. This will

take you to the DOS mode. There, ping the modem by typing the following

command: ping 192.168.100.1. This is to validate the connection between the

computer and the modem.

6. Start the TFTP server program (DLinkTFTPServer_10.exe). Be sure to keep the all

the files in the same folder (i.e. C:\Temp)

Keep D-Link TFTP Server program running in the background. This will allow users

to see the progress of the download.

7. Go to Start →All Programs →Accessories →Communications →Hyper

Terminal.

Type in 123 in the Name field and click OK.

8. First, select Connect using and set it to TCP/IP (Winsock). Second, set the Host

address to 192.168.100.1 and click OK.

9. In the Hyper Terminal session, enter the user as dlink and password as dlink and

press enter.

10. After logging in, in the MAIN> field, type the following command: dload

192.168.100.2 Hitr252.bin and press enter.

Please note that the 192.168.100.2 is the static IP set to the computer being used to

upload the software.

11. The TFTP server will show that the file has been transferred. After the software

loading finishes, the modem will restart. After it restarts, the Power light will be on,

Cable light will be blinking amber, the Ethernet LED will not show.

Note: The Ethernet light will come on, once the modem is connected to the High-

Speed Cable Internet Service Provider.

12. Please perform another reset to make sure there is no file cached the flash

memory of the modem. To do the factory reset, press the reset button (with a pin or

paper clip) located on the back of the modem for about 7 seconds.

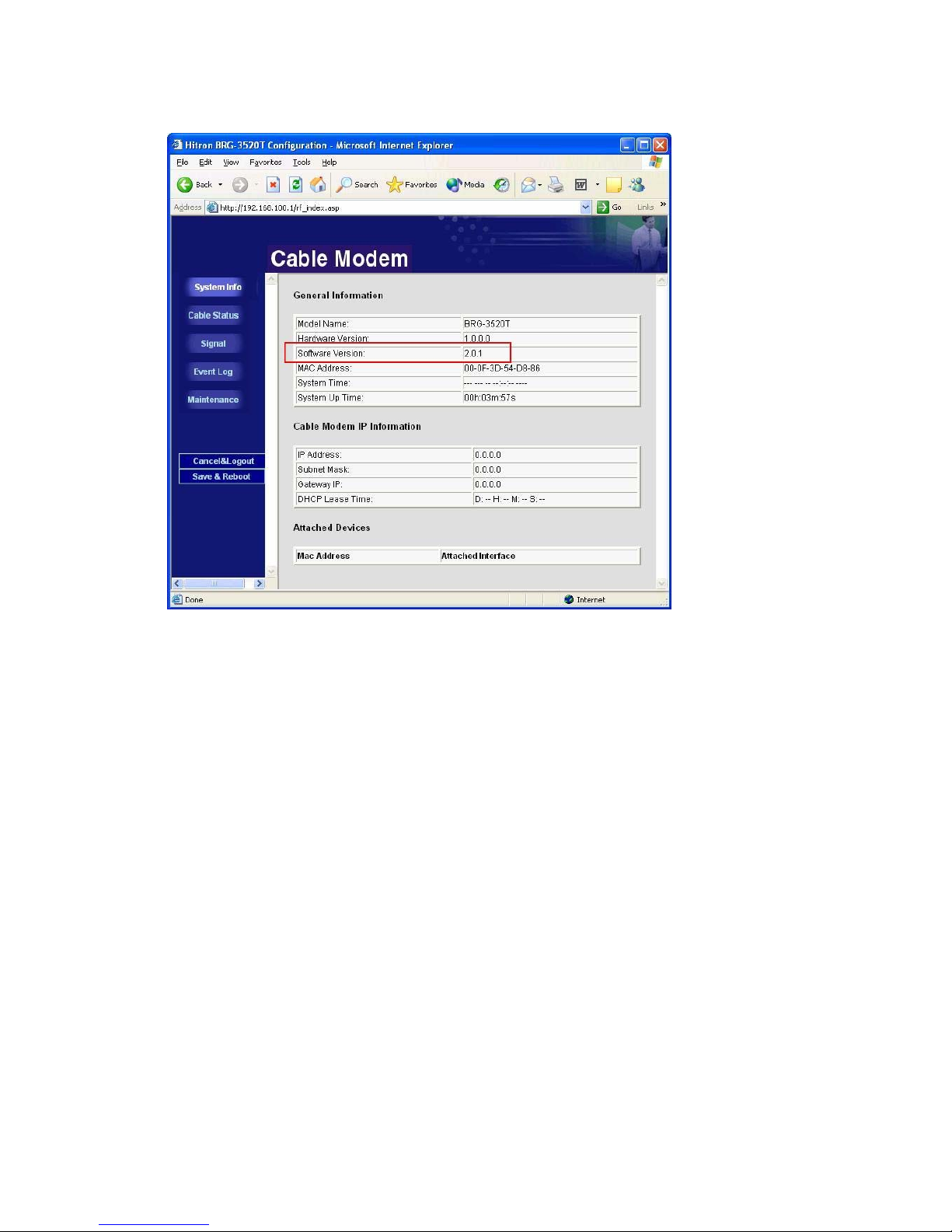

13. To verify that the correct software has been loaded, open up a web browser and

type in the following address: 192.168.100.1. The user name will be admin and

password will be hitron.

Now the software uploading process is complete.
