D-Link DSL-200

USB ADSL Modem

Before Your Begin

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DSL-200 ADSL Modem. The model you have purchased may appear slightly

different from those shown in the illustrations. For more detailed information about

the ADSL Modem, its components, making network connections and technical

specifications, please refer to the User’s Manual included with your ADSL Modem.

Check Your Package Contents

These are the items included with your DSL-200 purchase:

their respective holders. Software and specifications are subject to change without notice.

•DSL-200 ADSL Modem (USB interface)

•CD ROM include Driver and User’s Guide

• Quick Installation Guide

•USB Cable

•Phone Cable

This product can be set up

using any current web

browser, i.e., Internet Explorer

6 or Netscape Navigator 6.2.3.

If any of the above items are missing,

please contact your reseller.

Install Modem Drivers

Before starting the software setup process, close all windows and quit any

application programs you are running.

1.1 Windows 98SE/ME

1) Insert the DSL-200 Installation CD into the CD-ROM drive. The system should

detect the installation program and run the program automatically. If installation

does not begin automatically after a few seconds, find the autorun.exe icon

located on the CD and double-click it. To view the contents of the CD, open My

Computer from the desktop, and right-click on your CD-ROM. Select the

“Explore” option and this will reveal the folders and files on the CD.

Click Install

Drivers.

Insert the driver

CD supplied into

the CD-ROM

drive.

2) Choose the appropriate driver from the driver list and click it. A notification

message will appear indicating that the setup process has begun.

3) The Welcome window will appear. Make sure you have quit all other programs

and click Next.

Click Next.

Choose this

driver and click it

4) In the Select Service Provider window, select Other Service Provider and click

Next.

5) In the Select Driver Type window, choose the driver that best suits your ADSL

connection, and then click Next.

Click Next.

Select WAN Driver

LAN Driver

6) In the Communication Settings window you must provide the PVC settings,

Encapsulation method and Modulation method for configuring the Modem.

Type in the VPI and VCI values in their respective fields.

7) In the same window, select the appropriate Encapsulation method from the

drop-down menu. You will select the encapsulation setting that is appropriate for

the driver you are installing.

For RFC 2516 PPPoE, select RFC 2516 PPPoE Encapsulation. If you using

RFC 2364 PPPoATM and your service provider have not specified an

encapsulation setting, use RFC 2364 PPPoATM NULL Encapsulation.

If you are using the LAN driver, select the appropriate RFC 1483 encapsulation

setting. If your service provider has not specified an encapsulation setting, use

RFC 1483 IPoATM Bridged LLC Encapsulation.

8) Again in the same window, select the proper Modulation settings using the drop-

down menu. Your service provider will give you the appropriate Modulation

settings. Choose T1.413, Multimode, G.Lite or G.DMT. If your service provider

has not specified a modulation setting, use Multimode. Click Next to continue.

At this point you must choose the Encapsulation method and

Modulation technique used for your ADSL connection. Be sure to

have the correct information available.

Click Next

Enter your VPI and VCI.

Select your

Encapsulation.

Select your Modulation.

9) The Ready to Install window appears. Click Next to copy the needed driver files.

10) After clicking Next, the Installing screen below will appear notifying you that

your computer is downloading files and preparing for installation.

Click Next.

Wait for installation.

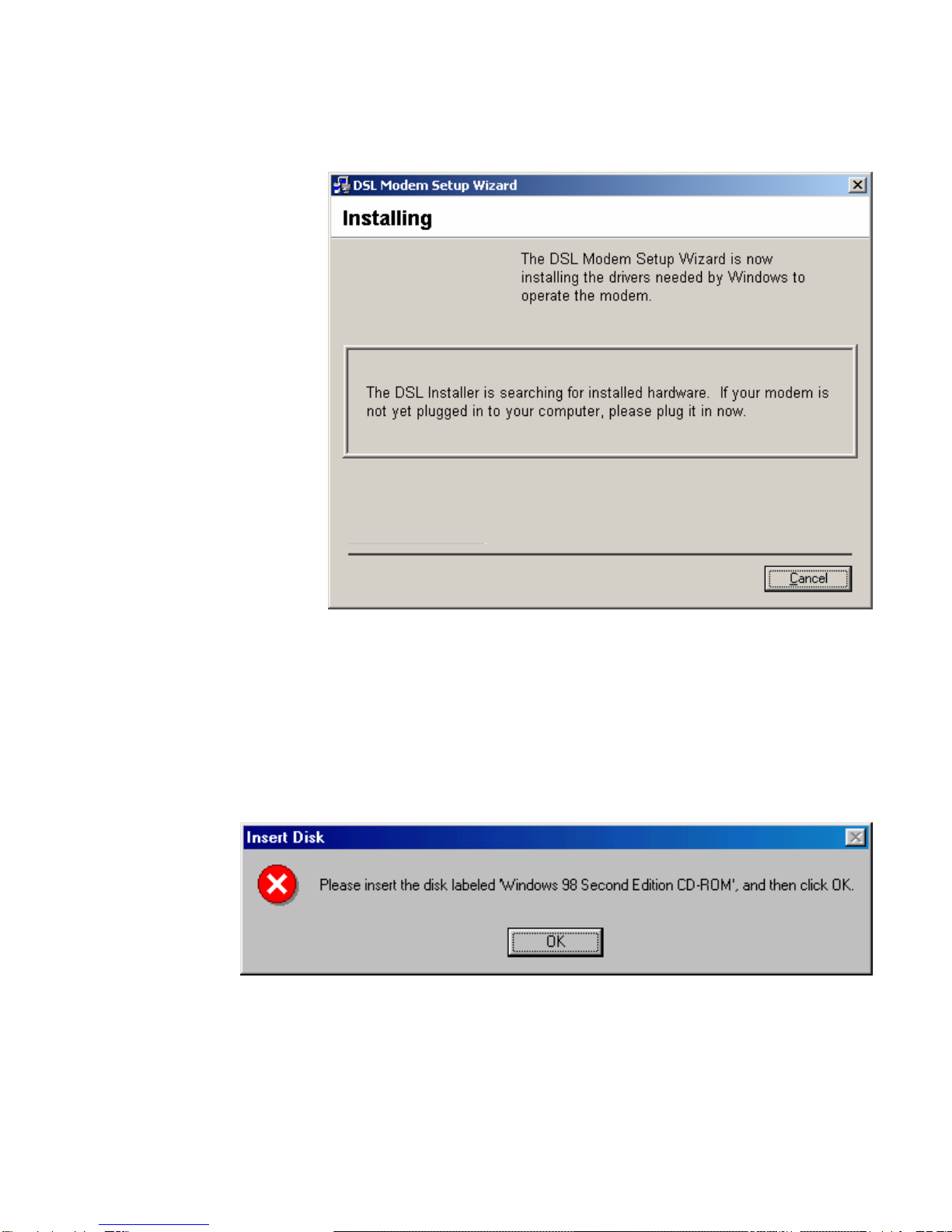

11) After the files are downloaded, another Installing screen will prompt you to plug

your modem into your computer. Plug the rectangular end of the USB cable into

the USB port of your PC, and then plug the square end of the USB cable into the

USB port of the ADSL Modem. The USB Modem will be detected and messages

will be displayed as the modem software is installed.

12) If you are installing Win98SE, please insert the Win 98SE disk into CD-ROM. If

you are installing Win ME, please go to next step.

Plug in your

Modem now.

13) The Found New Hardware screen will appear notifying you that your computer

has detected the modem and is currently installing it.

14) At the end of this process, the Reboot screen will appear prompting you to

restart your computer. Choose Yes, reboot the computer now because it is

necessary to reboot your computer to continue the installation, and then click

Close.

Click Close to reboot

the computer.

Please insert Win

98 CD-ROM now.

15) After restarting your computer, the Finished screen below should appear

notifying that you have successfully installed your DSL-200 Modem. Click Finish

to complete the installation process.

Upon restarting your computer, a new icon (two arrows) will appear in the

System Tray. If you are using PPP (WAN driver only) the D-Link Dial-up PPP

Connection icon will appear on your desktop after restarting.

After reboot, click

Finish to complete

the installation.

1.2 Windows 2000/XP
