CYP CH-103Rx Manual de usuario

CH-103RX

CAT6 to HDMI

Receiver

Operation Manual

CH-103RX

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Features...................................................................................... 1

3. Package Contents..................................................................... 1

4. Operation Controls and Functions............................................1

4.1 Front Panel.............................................................................1

4.2 Rear Panel..............................................................................2

5. Connection and Installation......................................................2

6. Specifications............................................................................. 2

1. Introduction

This is the Receiver (Rx) unit of CAT6 to HDMI Solution that can receive the

digital signal through CAT6 cables. This is compatible with HDMI v1.3

specifications, a cutting-edge technology which defines the supports to

transfer Deep Color (12 bits/color) video and new lossless compressed

(Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio,

with a bandwidth up to 225MHz. The installation of CAT6 to HDMI is easy

and quick, simply place receiver side next to your CAT6 transmitter unit,

then place the CAT6 to HDMI receiver side to your display and get all

necessary cables connected and enjoy.

2. Features

●HDMI 1.3, HDCP 1.1 and DVI1.1 Compliant.

●Supports digital video formats in Deep Color Mode at up to 36 bits

(12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital

Plus and DTS-HD Master Audio) Digital audio.

●Supports CAT6 cables of variable types.

●Supports equalize and recover incoming TMDS data before re-transmitting

them with optimal quality regardless of the incoming signal quality.

●Supports high definition resolution, the cable distance test with 1080p/8bits

resolution the Input/Output source can run up to 45/15 meters. If

1080p/12bits resolution the Input/Output source can run up to 15/15

meters.

●Supports CEC bypass.

●Supports xvYCC.

3. Package Contents

●CAT6 to HDMI Receiver.

●5V DC power supply adaptor.

●Operation Manual.

4. Operation Controls and Functions

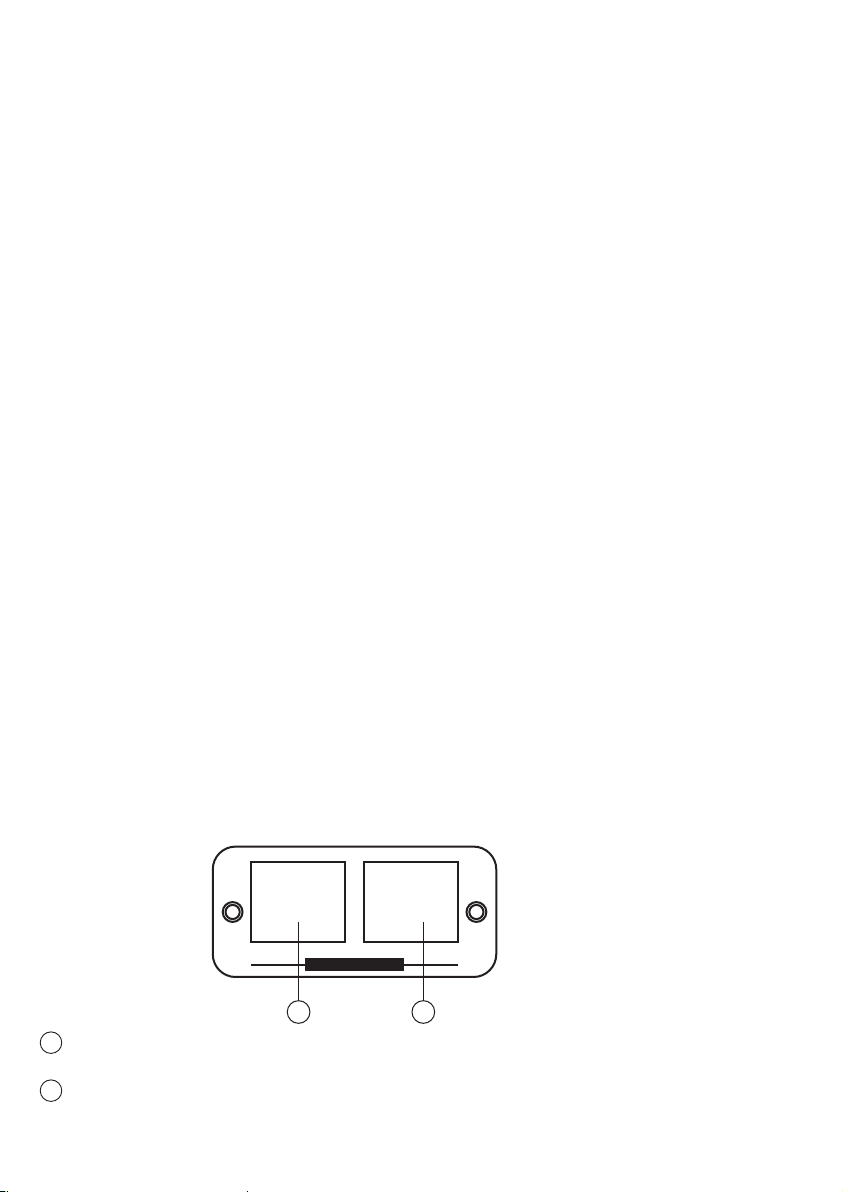

4.1. Front Panel

1 Video input: Connect the video input to the video output of the

transmitter unit using CAT6 cable.

2 DDC input: Connect the DDC input to the DDC output of the transmitter

unit using CAT6 cable.

1 2

DDC

CAT6 INPUT

VIDEO

1 HDMI output: Connect the HDMI output port to the HDMI or DVI input of

your display.

2 Power: Plug the 5VDC power supply into the unit and connect the

adaptor to AC wall outlet.

Note: A. Cable tested with CAT6 / 23AWG / Solid and therefore, cable

with different specification may result in different distance.

B. Cable distance tested with equipment PS3 20G, 37" Philips 8 bit

LCD TV and 37" SamSung 12 bit LCD TV.

C. Figures provided in this manual are reference figures only, actual

figures may depend on source and display use with cable

specification.

2008.1.14 MPM-CH103RX

1 2

4.2. Rear Panel

HDMI

HDMI LCD TV

CH-103TX CH-103RX

DVD PLAYER

HDMI

Cable

DDC

VIDEO

HDMI

Cable

HDMI

5. Connection and Installation

6. Specifications

Input Ports

Output Port

Power Supply

Dimensions (mm)

Weight(g)

Chassis Material

Silkscreen Color

Operating Temperature

1 x CAT6 input for Video, 1 x CAT6 input for DDC

1 x HDMI

5V/2.6A DC (US/EU standards, CE/FCC/UL certified)

50(W) x 62(D) x 23(H)

Aluminum

Black

0°C ~ 40°C

DC 5V

POWER

HDMI OUTPUT
