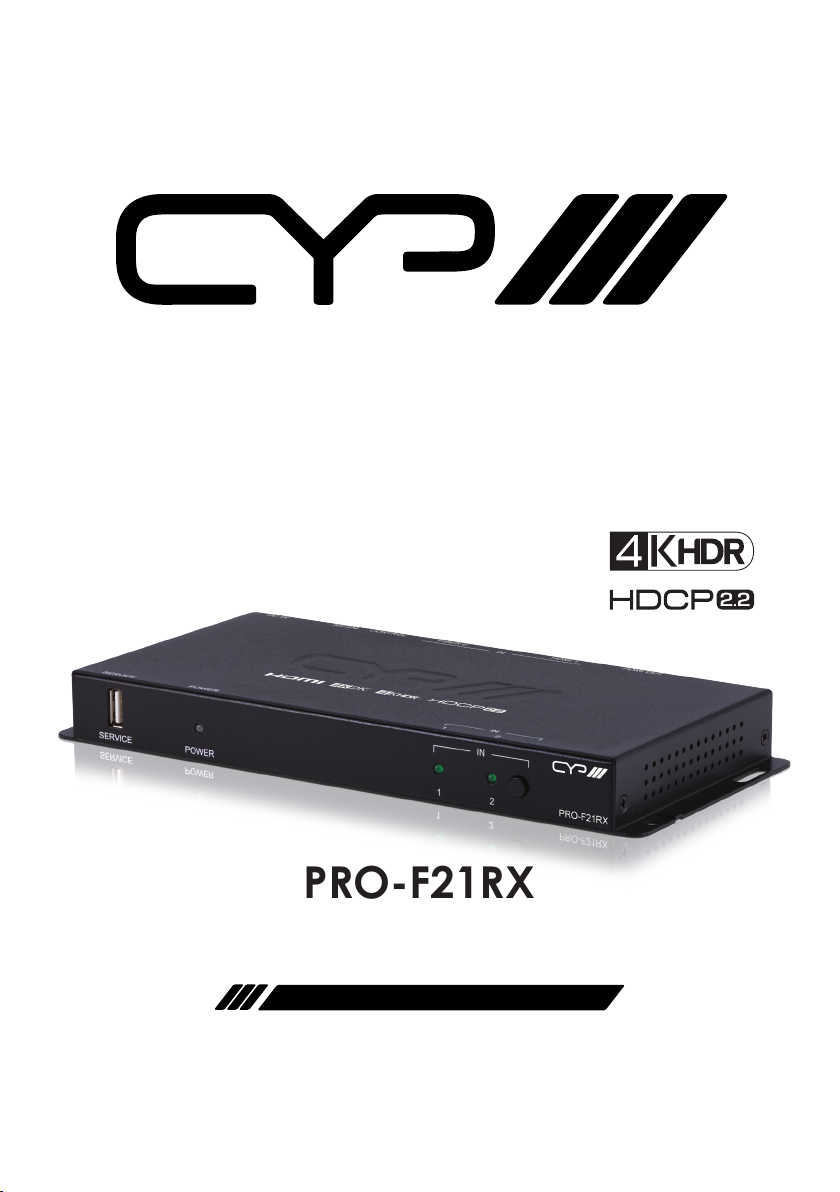

CYP PRO-F21RX Manual de usuario
OPERATION MANUAL
PRO-F21RX
4K HDMI Over Fiber Receiver with
Additional Local HDMI Input.
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 12/02/2019 First release
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................7
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel..................................................... 8
6.3 WebGUI Control ......................................... 9
6.4 RS-232 Control..........................................16
6.5 Telnet Control............................................16
6.6 RS-232 and Telnet Commands............17
7. Connection Diagram .......................... 22
7.1 Configuration 1 ........................................22
7.2 Configuration 2 ........................................23
8. Specifications...................................... 24
8.1 Technical Specifications ........................24
8.2 Video Specifications................................25
8.3 Cable Specifications ...............................26
9. Acronyms............................................. 26
6
1. INTRODUCTION
This HDMI over Fiber Receiver is designed to extend your 4K UHD HDMI
signal using a single segment of multi-mode optical ber cable. Using
ber optical cable provides many advantages over traditional copper-
based extension methods, including immunity to RF and magnetic
interference, thinner and lighter cables, and much longer extension
distances (up to 300 metres per segment). Multiple ber Transceiver units
can be placed between the Transmitter and Receiver to greatly extend the
total extension distance via cascading (up to 300 additional metres per
Transceiver) if the extra distance or exibility is desired.
The HDMI input and output of this unit supports resolutions up
to 4K@60Hz (4:4:4, 8-bit), 10/12-bit HDR, 16-bit Deep Colour up to
1080p@60Hz, HD audio formats and other features dened by the
HDMI 2.0 specication. The ber input of this unit supports sources
with bandwidth up to 10.2Gbps (4K@30Hz or 4K@60Hz, YUV 4:2:0). Six
pre-dened internal EDIDs, one external EDID selection and two User
uploaded EDIDs are available for EDID management. The unit provides
intuitive front panel controls as well as RS-232, Telnet and WebGUI control
options.
2. APPLICATIONS
Entertainment Rooms & Home Theatres
Showrooms & Demo Rooms
Lecture Hall Presentations
Public Commercial Displays
3. PACKAGE CONTENTS
1×HDMI over Fiber Receiver
1×5V/2.6A DC Power Adapter
1×3.5mm to 9-pin D-sub Adapter Cable
1×Shockproof Feet (Set of 4)
1×Operation Manual
7
4. SYSTEM REQUIREMENTS
HDMI source equipment such as a media player, video game console
or set-top box.
HDMI receiving equipment such as an HDTV, monitor or audio
amplifier.
The use of “Premium High Speed HDMI”cables is highly
recommended.
Use of the optical fiber input requires a compatible fiber Transmitter or
Transceiver and appropriate paired LC multi-mode fiber in a crossover
configuration.
5. FEATURES
HDMI with 3D & 4K@60Hz with HDR support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 2.2 and 1.x compliant
1 HDMI (18Gbps) input
1 Fiber (10.2Gbps, LC pair, multimode) input
1 HDMI (18Gbps) output
Supports UHD resolutions up to 4K@60Hz (4:4:4, 8-bit)
Supports 16-bit Deep Colour up to 1080p@60Hz
Supports pass-through of audio formats: LPCM 2.0/5.1/7.1, Bitstream,
and HD Bitstream
Comprehensive EDID management support including 6 pre-defined
internal EDIDs, 1 external EDID, and 2 User uploaded EDIDs
Compatible with the 3×2 HDMI and Fiber Matrix Transceiver (optional)
Fiber transmission distances of up to 300 metres
Supports control via front panel, WebGUI, Telnet, and RS-232
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SERVICE POWE
R1
2
IN
PRO-F21RX
321
1SERVICE: This slot is reserved for firmware update use only.
2POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
3IN Button & LEDs: Press this button to sequentially switch through
both inputs and mute. The LED will illuminate solid to indicate which
source is currently selected. When both LEDs are blinking, the output
is muted.
6.2 Rear Panel
DC 5VRS-232
CONTROL
FIBER 2
HDMI 1HDMI OUT
IN
3
21 4 5
1HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital
video and audio output.
2HDMI 1 & FIBER 2 IN: Connect to HDMI source equipment such as a
media player, game console or set-top box. Connect the fiber (paired
LC) input to the fiber output from a compatible fiber Transmitter or
Transceiver unit.
3CONTROL: Connect directly, or through a network switch, to your PC/
laptop to control the unit via Telnet/WebGUI.
4RS-232: Connect, via the provided 9-pin adapter cable, to a PC, laptop
or other serial control device to send RS-232 commands to control the
unit.
5DC 5V: Plug the 5V DC power adapter into the unit and connect it to
an AC wall outlet for power.
9
6.3 WebGUI Control
Device Discovery APP
Please obtain the “Device Discovery” software from your authorised dealer
and save it in a directory where you can easily nd it.
Connect the unit and your PC/Laptop to the same active network and
execute the“Device Discovery” software. Click on “Find Devices on
Network”and a list of devices connected to the local network will show
up indicating their current IP address.
Note: The unit’s default IP address is 192.168.1.50.
By clicking on one of the listed devices you will be presented with the
network details of that particular device.
1) IP Mode: If you choose, you can alter the static IP network settings for
the device, or switch the unit into DHCP mode to automatically obtain
proper network settings from a local DHCP server. To switch to DHCP
mode, please select DHCP from the IP mode drop-down, then click
“Save” followed by “Reboot”.
2) WebGUI Hotkey: Once you are satised with the network settings,
you may use them to connect via Telnet or WebGUI. The network
information window provides a convenient link to launch the WebGUI
directly.
10
WebGUI Control Page
After connecting to the WebGUI’s address in a web browser, the login
screen will appear. Please enter the appropriate user name and password
then click “Submit” to log in.
Note: The default user name and password is “admin”.
On the left side of the browser you will see the following menu tabs
where all primary functions of the unit (Video, EDID Settings and System
Settings) are controllable via the built in WebGUI. The individual functions
will be introduced in the following sections.
Clicking the red “Logout” tab will automatically log the currently
connected user out of the WebGUI and return to login page.
