Operation Manual
Operation Manual
CA-USBST & CA-USBS100R
USB over single CAT5e/6 Transmitter and Receiver
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version VR1.0 November 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 04/02/12 Preliminary release
CONTENTS
1. Introduction..............................................1
2. Applications.............................................1
3. Package Contents .................................. 1
4. System Requirements.............................. 1
5. Features....................................................1
6. Operation Controls and Functions......... 2
6.1 Front Panel ..........................................2
6.2 Front Panel ..........................................3
6.3 Rear Panel...........................................4
7. Connection and Installation................... 5
8. Specications .......................................... 7
1
1. INTRODUCTION
With USB being the standard connection for consumer electronic
products, there has long been a need for something to let us operate
our many devices over long distances. The USB over CAT5e/6
transmitter and receiver boxes developed for this purpose as they
can operate in both the home and commercial markets. These
devices allow most of the USB host to send data bidirectional within
a 100-meter distance while offering up to 4 USB outputs, giving this
product the ability to act like a USB hub. In addition, this product can
also access data from the output port devices even when there’s 100
meters separating the devices or using ethernet hub in between to
extend the distance double up to 200 meters. The USB over CAT5e/6
transmitter and receiver boxes are the ideal choice for your USB
extension needs.
2. APPLICATIONS
• USB Extension over CAT5/6 up to 100M or 200M throu Hub
• Control devices from far away
• Host device information sharing and control
3. PACKAGE CONTENTS
•USB over CAT5e/6 Transmitter x1
•USB over CAT5e/6 Receiver x1
•5V / 3A DC Power Supply x2
•Operation Manual x1
4. SYSTEM REQUIREMENTS
PC or laptop with USB and CAT5e/6 cables and USB devices.
5. FEATURES
• Support USB 2.0 high-speed devices
• Operate with USB 2.0 high speed host controllers
• True plug and play without any driver installation required
• Supports all major Operating Systems including Windows®, MAC
OS®, and Linux
• Tested CAT5e/6 cable distance of up to 100 meters
• Simple set up with easy to use
2
• LED indicators for easy viewing
• Each USB output port contains 500 mA of power
6. OPERATION CONTROLS AND FUNCTIONS
TRANSMITTER
6.1 Front Panel
1 2 3 4 5 6 7
1USB Link
This LED will illuminate when the transmitter has linked with
receiver’s USB signal.
2Power LED
This LED will illuminate when the device is plugged with
power supply.
3DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
4Link Pair Select
This dip switch allows user with multi-pairs setting for link up to 16
pairs of the devices with single IP router. Each pair must have the
same dip switch setting in order to pair to the right device setting.
The factory default setting is at 0000.
Note: To activate the setting a re-power on is required after
each new setting.
5Link On/Off button
Press this button to allow the receiver to be link up or unlink
3
with the transmitter’s USB input.
Note: To activate the link a re-power on is required after each
button pressed.
6USB In
This slot is to connect with PC/Laptop for input source signal with
USB B type cable.
7CAT5e/6 Out
This slot is to connect with CAT5e/6 cable with receiver
side’s CAT5e/6 input. When both transmitter and receiver is
connected the green LED will illuminate. When the data is
sending the yellow LED will be blinking.
RECEIVER
6.2 Front Panel
1 2 3 4 5 6
1USB Link
This LED will illuminate when the transmitter has linked with
receiver’s USB signal. User are only able to control the USB in
(the source device) when this LED is not illuminated.
2Power LED
This LED will illuminate when the device is plugged with
power supply.
3DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
4
4Link Pair Select
This dip switch allows user with multi-pair setting for link up to 16
pairs of the devices with single IP router. Each pair must have the
same dip switch setting in order to pair to the right device setting.
The factory default setting is at 0000. (This function is not available
yet with the rst generation of the product)
Note: To activate the setting a re-power on is required after each
new setting.
5USB Link button
Press this button to allow the receiver to be link up or unlink
with the transmitter’s USB input.
Note: To activate the link a re-power on is required after each
button pressed.
6CAT5e/6 Out
This slot is to connect with CAT5e/6 cable with receiver side’s
CAT5e/6 input. When both transmitter and receiver is connected
the green LED will illuminate. When the data is sending the yellow
LED will be blinking.
6.3 Rear Panel
3
1USB 1~4
These slots are where you connect your devices, such as keyboard,
mouse, USB storage device or etc with USB cables.
5

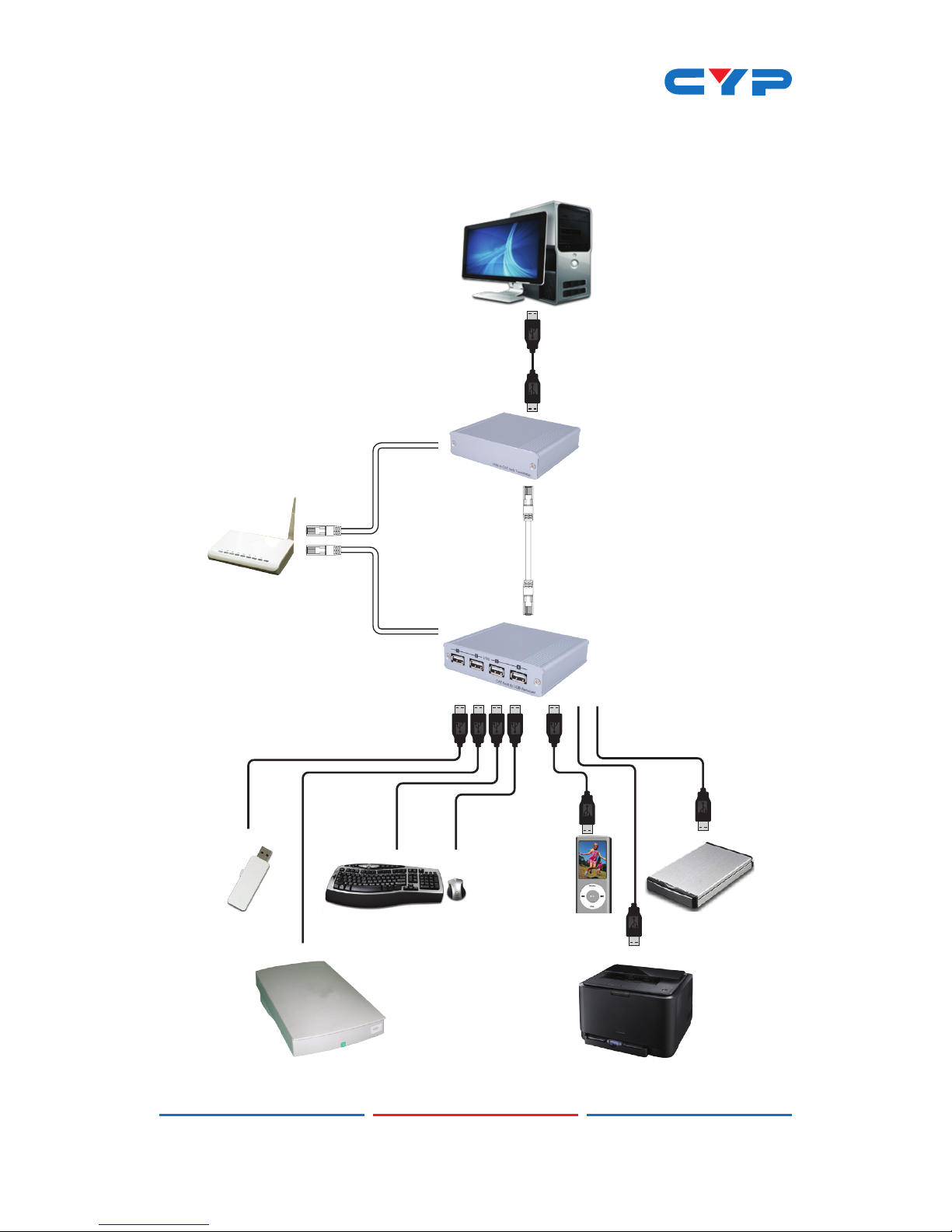

7. CONNECTION AND INSTALLATION
Flash MP4Keyboard Mouse hard drive
Scanner Printer
Receiver
Transmitter
CAT5e/6 100m
CAT5e/6 100m
CAT5e/6 100m
Internet Hub
USB
Example 1
Or
Or
6
Flash
Keyboard
HUB
Scanner
PC
PC
USB
USB
PC
PC
USB
USB
Example 2
Or
Transmitter X 16
1
2
3
4
1
2
3
4
Receiver X 16
Mouse
CAT5e/6 100mCAT5e/6 100m
