CTA PAD-HSKSBAE Manual de usuario

Rotating Desk Mount with

Acrylic Security VESA Enclosure

PAD-HSKSBAE / PAD-HSKSWAE

INSTALLATION - MANUAL

1A - Align holes at the base (B) with the holes on the base of the body (A). Rotate in screws (G) with tool provided (K) until

securely tightened.

2A - Identify the hole at the bottom of the

base where cable routing should begin.

2. Setting up cable routing :

M5 x 12

M5 x 8

M5 Nut

M5 x 8

M5 Allen Key

2B - Fish the cord from

the base, through the

body and out the top

opening as shown.

2C - Take the the cord at

the base and route it out

through the opening in the

base for a smooth even

placement on the surface.

Acrylic

Enclosure

Security

Star Key

M5 Allen

Key

1.Assembling base to body :

CONTENTS :

INSTALLATION:

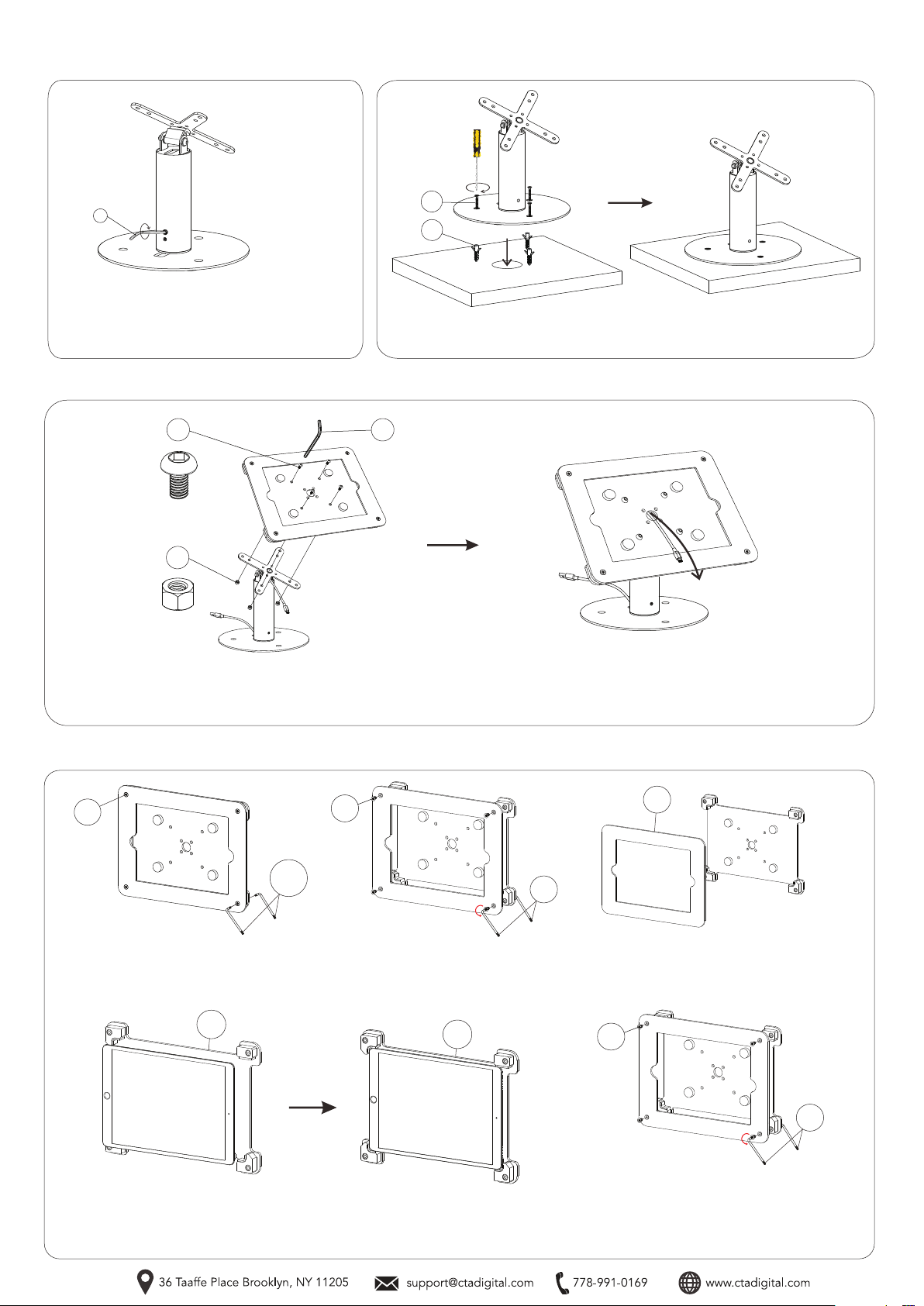

3. (Optional) Fasten to create a fixed setup: 4. (Optional) Mounting to surface top :

3A - Using provided tool (K), rotate clockwise

at the shown location on kiosk body to create

a locked fixed setup. Rotate until securely

tightened.

4A - Using a screwdriver (not included) rotate in screws (I) with anchors (J)

until securely bolted into surface top.

**Screwdriver for illustration

purposes and not included

6.Setting up device and enclosure :

6A. Align the security star keys x2 (L) and

insert it one in the front screw (D) and one in

the Back screw (E) as shown.

6B. While holding the back security star

key (L) tight in place. Turn the front

security star key (L) counter clock-wise

until all 4 Screws (D) are unscrewed.

6E. While holding the back security star key

(L) tight in place. Turn the front security star

key (L) counter clock-wise until all 4 Screws

(D) are securely fastened.

6C. Separate front part of enclosure

6D. Using one of the compatible listed tablets, insert into the foam adapters

for a secure and tight fit. Insert tablet in back part of enclosure (A) as shown.

Watch out orientation of tablet.

M5 x 12

M5 Nut

5A - Align enclosure VESA holes to the kiosk body VESA plate holes. Using provided tool (K), rotate in screws (F) from above

while holding hex nut (H) from behind with your hands. Rotate until securely tightened.

5.Attaching enclosure to stand :

**Tablet for

illustration

purposes and not

included

**Tablet for

illustration

purposes and not

included
