Creality Ender-3 S1 Manual de usuario

V1.0

3D Printer User Manual

Ender-3 S1 Pro

To further improve your user experience, you can ﬁnd more about our devices via the following methods:

User manual: Please ﬁnd instructions and videos in the SD card provided with the printer.

1 Instructions for Use

Do not use this printer by methods or operations not described in this manual, otherwise it may result in accidental

injury or property damage.

Do not place this printer near ﬂammable materials, explosive materials or high heat sources. Please place this

printer in a ventilated, cool and low-dust environment.

Do not place this printer in a vibrating or any other unstable environment, as the printing quality will be

compromised when the printer shakes.

Please use the ﬁlament recommended by the manufacturer, otherwise the nozzle may be clogged or the printer

may be damaged.

Do not touch the nozzle or hotbed while the printer is in operation, otherwise you may get burned.

After the printing process is complete, please use tools to clean up the ﬁlament on the nozzle while the nozzle is

still hot. Do not touch the nozzle with your hands when cleaning, otherwise your hands may get burned.

Please regularly clean the printer body with a dry cloth while the power is oﬀ, and wipe oﬀ dust, sticky printing

materials, and foreign objects on the guide rails.

This printer has a safety protection mechanism. Please do not manually move the nozzle or printing platform

quickly while the printer is on, otherwise the printer will automatically power oﬀ for protection.

Users should abide by the laws and regulations of the corresponding country and region where the equipment is

located (place of use) abide by professional ethics, and pay attention to safety obligations. The use of our

products or equipment for any illegal purpose is strictly prohibited. Our company is not responsible for the relevant

legal responsibilities of any violators.

3 List of Accessory Kit Items

Wrench and

Screwdriver x 1

Blade x 1

8Cutting Pliers x 1

9Filament x 1

10 11

cord set x 1

12 Nozzle Cleaner x 1

13 Memory Card and

Card Reader x 1

14 Nozzle x 1

2 List of Main Parts

Chassis Module x 1 Nozzle Kit x 1 Wire Clamp x 1 Filament tube x 1

Rack and Filament Detector x 1

Screen x 1

Gantry x 1

5 6 7

2 3 4

4 Printer Port Instructions

4.1 Mainboard Port Instructions

4.2 Nozzle Port Instructions 4.3 Z-Axis Pinboard

Instructions

Note: The components above are for reference only. The actual product may vary.

M5x45 Socket Head

Cap Screw with Spring

Washer x 4

16 M4x30 Hexagon Flat

Round Head Screw x 3

17 M3x6 Hexagon

Socket Head Cap

Screw x 5

Z-Axis

Motor Port

Memory Card Slot

10-Pin Cable 30-Pin CableMainboard Fan

Type-C Port

Filament

Detection Port

Z-Axis Limit

Port

Touch Screen

Port Knob Display

Screen Port

Hotbed

DC 24 V

Hotbed

Thermal Port

Fuse

24-Pin Cable

Auto Leveling Port

Heat Sink Fan Port

Model Fan Port

Nozzle

Thermal Port

Extrusion

Motor Port

Heating Tube Z-Axis Motor

Cable Port

Filament

Detection

Port

+ 24V

- 24V

PWM

Z-Axis Limit Switch Kit19

5 Install the Printer

5.1 Install the nozzle module and wire clamp

5.2 Install the gantry

A.Move the right proﬁle of the bottom module 35 mm out of the desktop to reveal the installation hole.

B.Place the gantry in the slot of the chassis, and pre-lock it with two M5x45 hexagon socket round screws with

spring washers from the bottom to the top.

C. Rotate the base module 180° to ensure that the proﬁles on both sides are level up and down. Use two M5x45

hexagon socket round screws with spring washers to align the holes on the left side of the hole to pre-lock, and

then tighten to ﬁx.

D. Rotate the base module 180° and tighten the screws on the right side.

A.Place the nozzle module on the back of the extruder, pre-lock the nozzle with 4 M3x6 hexagon socket head cap

screw, and then tighten it.

B.Clamp the wire clamp onto the X motor black plate.

Use the short side of the wrench when tightening the screws.

Bottom view

5.5 Wiring

X-Axis and Z-Axis

Motor Port X-Axis Limit Switch

5.4 Install the rack

A.Find the ﬁlament tube ﬁttings and ﬁx the threaded end on the right end of the rack.

B.Fit the front slot of the installed rack to the front slot of the proﬁle, and then press down to clamp

the bottom of the proﬁle.

5.3 Install the screen

Place the screen bracket to the side of the plastic that’s on the right, and tighten it with 3 M4x30 hexagon

ﬂat round head screws.

1.Connect the nozzle to the 24-pin port as shown in the ﬁgure. 2.Follow the yellow label on the 6-pin (4 wires)

port to connect the X-axis and Z-axis stepper motors. 3.Connect the X-axis limit motor according to the yellow

label on the 3pin (2 wires) port. 4.Connect the 3-pin (3 wires) 2.0 port to the pinboard, and connect the 3-pin (3

wires) 2.54 port to the ﬁlament detector. 5.The LED light 3pin (2 wires) 2.54 port is connected to the expansion

port of the adapter board.

Caution:

●

Please ensure the correct position for the power supply switch and mains before

supply connection, in order to avoid damage to the device.

●

If the mains between 200V and 240V, please select the 230V for the power supply

switch (default is 230V).

●

If the mains between 100V and 120V, please select the 115V for the power supply switch.

6 Auto Leveling

1.Go to "settings" and tap "leveling" to enter the CR Touch leveling interface.

Tap "start" and wait for the automatic leveling to complete.

(Please use the CR Touch for automatic leveling ﬁrst. If the CR Touch lights up in

red and it cannot be leveled, please use the auxiliary leveling again.)

Filament detection wiring

LED light wiring

115V

230V

Z-Axis Motor Cable

7 Assisted Leveling

Go to Settings → Leveling → Assisted Leveling. Tap numbers ①/②/③/④/⑤ respectively.

2.Return to the previous menu. Enter the assisted leveling interface. Adjust the Z-axis compensation value so

that the height from the nozzle to the printing platform is about the thickness of a piece of A4 paper. Return

to the previous menu, and the Z-axis compensation value will be conﬁgured.

(The CR Touch leveling will fail when the platform inclination is greater

than 2 mm. In this case, please use assisted leveling instead.)

The gap is about the thickness of

a piece of A4 paper, and there is

a slight resistance when pulling

the paper.

-2.30

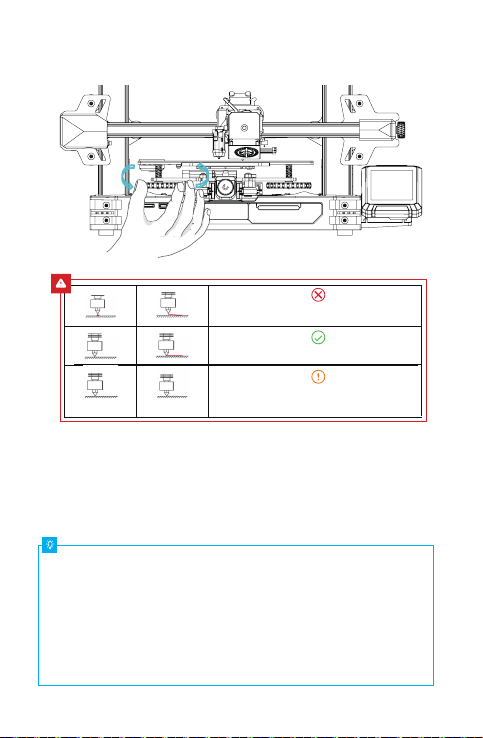

2.Turn the knob at the bottom of the hotbed and move the nozzle to the four corners of the printing

platform so that the gap between the nozzle and the printing platform is almost the thickness of a piece

of A4 paper (0.08 to 0.1 mm). Ensure that all the four corners are leveled.

The nozzle is too far away from the platform,

and the ﬁlaments cannot stick to the platform.

The nozzle is too close to the platform,

and the ﬁlament is not extruded enough,

which may damage the platform.

The ﬁlament is evenly extruded and sticks

to the platform just right.

A. In order to successfully load the ﬁlament, please trim the end of the ﬁlament at an angle of 45 degrees.

B. Press the ﬁlament until it passes through the ﬁlament detection hole. Then press and hold the extruder

handle to insert the ﬁlament into the extruder hole until it reaches the nozzle.

C.Warm up the nozzle. If the ﬁlament ﬂows out of the nozzle when the temperature reaches the target value,

the ﬁlament is properly loaded.

8 Loading the Filament

Replacing the ﬁlament:

1.When the printer is not printing:

A. Heat the nozzle to 185℃ or higher, wait for the ﬁlament in the nozzle to soften. Then press and

hold the extrusion handle to quickly extract the ﬁlament to prevent it from clogging in the heat break.

B. Place the new ﬁlament onto the rack and repeat the steps in Section 8: Loading the Filament.

2. When the printer is printing:

A. Pause the printing. After the printer stops, press and hold the extrusion handle and quickly extract

the ﬁlament to prevent it from clogging in the heat break.

B. Place the new ﬁlament onto the rack and press it through the ﬁlament detector. Press and hold the

extrusion handle to insert the ﬁlament into the nozzle. Then push the ﬁlament to squeeze out the

residual ﬁlament in the nozzle and clean up the nozzle before resuming printing.

9 First Printing

1. Visit our oﬃcial website

(https://www.creality.com) to download

and install the software, or install the

Creality software via the memory card

provided with the printer.

Creality Slicer

2.Go to Preferences → Conﬁgure Creality → Select

language → Next → Finish to complete the conﬁguration.

3.Select the model of this printer

(ENDER-3 S1 Pro).

4. Enter parameters → Close.

5. Launch the Creality

slicing software.

6. Load the ﬁle. 7.Select the ﬁle

Creality Slicer

Load

10 Start Printing

The ﬁle name must only contain Latin letters

and digits. Chinese characters or special

symbols must not be used.

Note: For details on using the software please

refer to the slicing software user manual on

the memory card.

9.Insert the memory card → Print

→ Select from the menu → Select the

ﬁle used for printing.

8.Generate the G-code ﬁle → Save

it to the memory card.

Before printing, please check the printer again following these steps:

When the printer is powered oﬀ:

1. The nozzle is tightly connected and moves smoothly to the left and right.

2. The X axis is horizontal and stable (not wobbling up or down), and it moves run smoothly up and down.

3. The Y axis is tightly connected. The platform does not shake and moves back and forth smoothly.

4. The ﬁlament rack does not shake. The rollers are smooth. The ﬁlament extrusion is smooth.

When the printer is powered on:

1. The screen display and touch work properly. The movements of the X, Y, and Z axes are smooth.

2. The nozzle and hotbed heat up properly.

3. The feed and return of the ﬁlament works properly.

4. The leveling of the printer works properly.
