Concept Pro VCP7236 Manual de usuario

VCP7236

Colour Mono Camera

USER MANUAL

1. This installation should be made by a qualified service person and should

abide to all local codes.

2. Do not disassemble the camera - this is to prevent electronic shock

and/or malfunction. Do not loosen any screws on the camera body.

3. Do not touch the front glass directly. If necessary, use a soft cloth to wipe off

dust or debris.

4. Avoid installation on surfaces subjected to frequent vibration or shocks.

5. Do not operate the camera beyond its temperature range or power source

ratings.

6. Should any damage or suspected damage occur, shutdown the power

source, unplug and contact your service provider.

7. Do not install the camera under unstable lighting conditions. Severe

lighting change or flicker can cause the camera to work improperly.

8. Never use the camera close to a gas or oil leak.

9. Do not drop the camera or subject the unit to physical shocks.

10. Never keep the camera facing directly to strong light.

11. Do not install near devices which emit a strong electro-magnetic field.

12. Unplug the camera from the power source before maintenance.

13. Use a soft cloth only for cleaning.

14. If the camera may be exposed to weather conditions, dust particles or

moisture install in an IP rated housing suitable to the conditions.

PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY

INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.

CAUTION

1. This installation should be made by a qualified service person and should

abide to all local codes.

2. Do not disassemble the camera - this is to prevent electronic shock

and/or malfunction. Do not loosen any screws on the camera body.

3. Do not touch the front glass directly. If necessary, use a soft cloth to wipe off

dust or debris.

4. Avoid installation on surfaces subjected to frequent vibration or shocks.

5. Do not operate the camera beyond its temperature range or power source

ratings.

6. Should any damage or suspected damage occur, shutdown the power

source, unplug and contact your service provider.

7. Do not install the camera under unstable lighting conditions. Severe

lighting change or flicker can cause the camera to work improperly.

8. Never use the camera close to a gas or oil leak.

9. Do not drop the camera or subject the unit to physical shocks.

10. Never keep the camera facing directly to strong light.

11. Do not install near devices which emit a strong electro-magnetic field.

12. Unplug the camera from the power source before maintenance.

13. Use a soft cloth only for cleaning.

14. If the camera may be exposed to weather conditions, dust particles or

moisture install in an IP rated housing suitable to the conditions.

PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY

INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.

INSTALLATION

IMPORTANT: ENSURE ALL CAUTIONARY PROCEDURES ARE

OBSERVED DURING INSTALLATION.

It is recommended the VCP7236 is tested during the most demanding

environmental conditions such as low light or bright sunlight to ensure

continuity of effective CCTV monitoring.

Remove the camera unit carefully from the box, reserving the

accessory contents in a safe place.

Point the Camera towards the intended area to be monitored.

Check the power supply voltage and connect your power supply into

the power port on the Camera.

Attach a test monitor to the video out BNC port and adjust the lens

to give the required image

Adjust the Camera picture using the OSD menu as necessary.

TROUBLESHOOTING

Ensure all power and cable connections are correct between the

Camera, power source, monitor, telemetry devices and DVR if used

Example

CONNECTION EXAMPLE

LENS ADJUSTMENTS

PSU

Built in Lens

Top Cover

Zoom Handle

Focus Handle

OSD

OSD Controller

LANGUAGE

ENGLISH / SPANISH / PORTUGUESE /

FRENCH / GERMAN / CHINESE /

JAPANESE / RUSSIAN

LENS

MANUAL

AUTO TYPE DC

MODE AUTO, OPEN, CLOSE

SPEED 0~255

LEFT

MENU / ENTER

DOWN

RIGHT VIDEO OUT

P.I

DC12V/AC24V F.G

POWER LED

POWER

VIDEO OUT JACK

SHUTTER / AGC

AUTO

MANUAL

HIGH LUMINANCE

MODE SHUT+AUTO IRIS, AUTO IRIS

BRIGHTNESS 0~255

LOW LUMINANCE

MODE AGC, OFF

BRIGHTNESS 0.25~1.00

MODE SHUT+AGC

SHUTTER 1/50~1/10000

AGC 6.00~44.80

WHITE BALANCE

DAY/NIGHT

AUTO BURST

DELAY CNT

DAY~NIGHT

NIGHT~DAY

B/W BURST

COLOUR

ON/OFF

0~255

ON/OFF

ATW

PUSH LOCK

MANUAL LEVEL 0~255

ANTI CR

USER 1 B-GAIN 0~255

R-GAIN 0~255

USER 2 B-GAIN 0~255

R-GAIN 0~255

PUSH

SPEED 0~255

DELAY CNT 0~255

ATW FRAME X0.50~X2.00

ENVIRONMENT INDOOR/OUTDOOR

PICT ADJUST

MIRROR

BRIGHTNESS

CONTRACT

SHARPNESS

HUE

GRAIN

OFF/ON

0~255

NR MODE

Y LEVEL

C LEVEL

Y/C, C, Y, OFF

0~15

BACKLIGHT

OFF/BLC/HLC

ATR

OFF

ON LUMINANCE LOW, MID, HIGH

CONTRAST LOW, MIDLOW, MID,

MIDHIGH, HIGH

PRIVACY

OFF

ON AREA SEL 1~4

TOP 0~288

BOTTOM 0~288

LEFT 0~468

RIGHT 0~468

COLOUR 1~8

TRANSP 0.00~1.00

MOSIAC OFF/ON

MOTION DETECTION

OFF

ON DETECT SENSE 0~127

BLOCK DISPLAY OFF/ON/ENABLE/

SELECT AREA

MONITOR AREA OFF/ON

AREA SELECT 1~4

TOP 0~288

BOTTOM 0~288

LEFT 0~288

RIGHT 0~288

CAMERA ID

OFF

ON OPENS VIRTUAL KEYBOARD

IMPORTANT - PLEASE NOTE:

When all configurations have been made select SAVE

ALL at the bottom of the OSD before exiting

SAVE ALL

DIMENSIONS

150mm

58mm

7mm

38mm

51mm

42mm

64mm

Tabla de contenidos

Otros manuales de Cámara de seguridad de Concept Pro

Concept Pro

Concept Pro CVP9324DN-IP Manual de usuario

Concept Pro

Concept Pro VCP553 Manual de usuario

Concept Pro

Concept Pro CVP9324DNIR-HDA-3MP Manual de usuario

Concept Pro

Concept Pro VHSD-810EXT Manual de usuario

Concept Pro

Concept Pro CBP360-HD Manual de usuario

Concept Pro

Concept Pro VHSDIR-670EXT-IP Manual de usuario

Concept Pro

Concept Pro AIR3526-IP2M Manual de usuario

Concept Pro

Concept Pro AIR8010-AHD-Z Manual de usuario

Concept Pro

Concept Pro CPL-MVIR-IP2M/2.8 Manual de usuario

Concept Pro

Concept Pro VHSDIR-680EXT-IP Manual de usuario

Concept Pro

Concept Pro AIR8012-IP3M-Z Manual de usuario

Concept Pro

Concept Pro AIR8012-IP3M-Z Manual de usuario

Concept Pro

Concept Pro CVP5325DNIR-IP2M/2.8 Manual de usuario

Concept Pro

Concept Pro CVP9328DNIR-IP2M-Z Manual de usuario

Concept Pro

Concept Pro VCP7238-AHD Manual de usuario

Concept Pro

Concept Pro CVP9328DNIR-IP4M Manual de usuario

Concept Pro

Concept Pro AHD CP-HSD10-AHD Manual de usuario

Concept Pro

Concept Pro CVP9324-AHD Manual de usuario

Concept Pro

Concept Pro CP-HSD20-IP Manual de usuario

Concept Pro

Concept Pro CP-HSD10-IP Manual de usuario

Concept Pro

Concept Pro CBP360-IP12M Manual de usuario

Concept Pro

Concept Pro CVP5325DNIR-AHD2M/2.8 Manual de usuario

Concept Pro

Concept Pro AIR2024-IP2M/2.8 Manual de usuario

Concept Pro

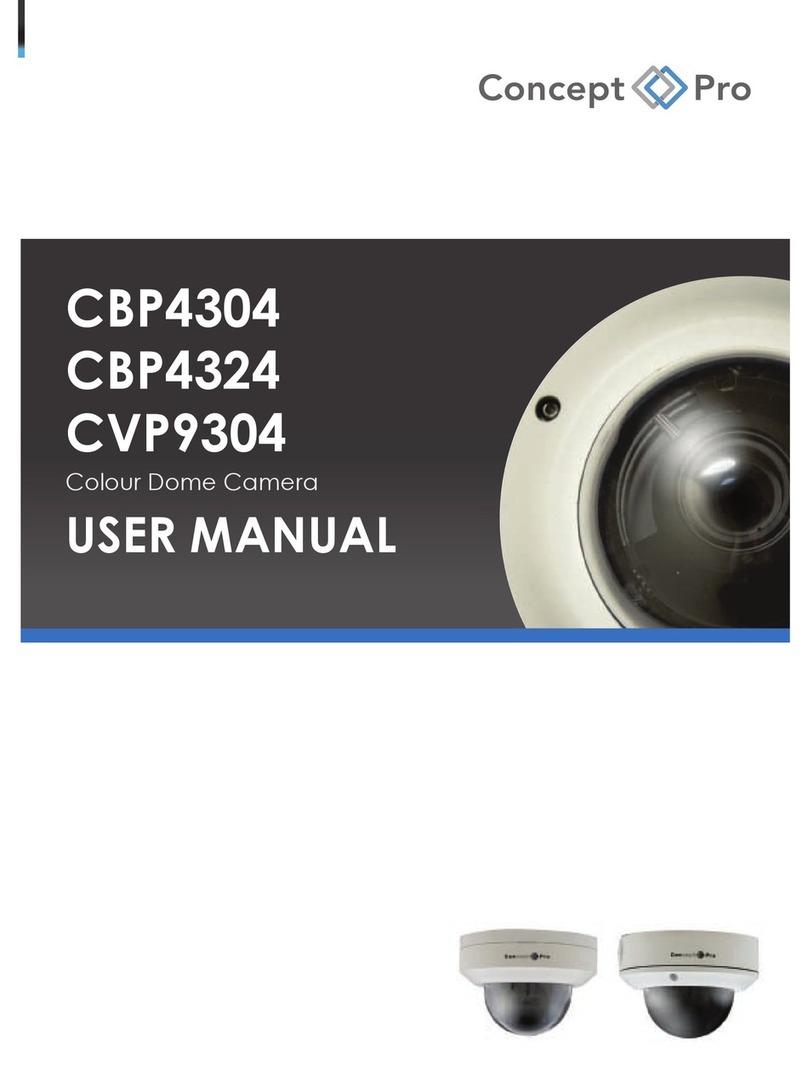

Concept Pro CBP4304 Manual de usuario
