Concept Pro CBP4304 Manual de usuario
CBP4304
CBP4324
CVP9304
Colour Dome Camera
USER MANUAL
1. This installation should be made by a qualified service person and should abide to all local
codes.
2. Avoid installation on a surface subjected to frequent vibration or shocks.
3. Do not operate the camera beyond its temperature range or power source ratings.
4. Should any damage or suspected damage occur, shutdown the power source, unplug and
contact your service provider.
5. Do not install the camera under unstable lighting conditions. Severe lighting change or
flicker can cause the camera to work improperly.
6. Never use the camera close to a gas or oil leak.
7. Do not disassemble the camera.
8. Never keep the camera face to strong light directly, this can damage the CCD.
9. Ensure all removable covers are replaced to protect the inner components.
10. Do not install near devices which emit a strong electro-magnetic field.
11. Use a dry or damp cloth only for cleaning.
12. Internal dome only - Do not drop the camera or subject the unit to physical shocks.
PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY
INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.
Remark: Changes or modifications not expressly approved by the manufacturer can
cause the camera to be damaged and become inoperable. This may invalidate the
user warranty.
CAUTION
1. This installation should be made by a qualified service person and should abide to all local
codes.
2. Avoid installation on a surface subjected to frequent vibration or shocks.
3. Do not operate the camera beyond its temperature range or power source ratings.
4. Should any damage or suspected damage occur, shutdown the power source, unplug and
contact your service provider.
5. Do not install the camera under unstable lighting conditions. Severe lighting change or
flicker can cause the camera to work improperly.
6. Never use the camera close to a gas or oil leak.
7. Do not disassemble the camera.
8. Never keep the camera face to strong light directly, this can damage the CCD.
9. Ensure all removable covers are replaced to protect the inner components.
10. Do not install near devices which emit a strong electro-magnetic field.
11. Use a dry or damp cloth only for cleaning.
12. Internal dome only - Do not drop the camera or subject the unit to physical shocks.
PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY
INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.
Important: Ensure all cautionary procedures are
observed during installation.
It is recommended the camera is tested during the most
demanding environmental conditions such as low light
or bright sunlight to ensure continuity of effective CCTV
monitoring.
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover by pushing firmly in place
onto the base
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using a suitable coin or
screwdriver
FIXING TO A WALL
CBP4304/4324
Ceiling
PACKING CONTENTS
CBP4304 / 4324
Wall Plugs
X4
Mounting Template
X1
Fitting Screws
X4
INTERNAL DOME INSTALLATION
Important: Ensure all cautionary procedures are
observed during installation.
It is recommended the camera is tested during the most
demanding environmental conditions such as low light
or bright sunlight to ensure continuity of effective CCTV
monitoring.
Attach the weatherproof sealing pad to the base of
the dome with the sticky side against the camera
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Please note: To ensure correct weatherproof you
must use the enclosed fitting screws and
weatherproof washers
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover and tighten the dome cover
screws using the supplied dome cover screw driver
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using the supplied dome
cover screwdriver
FIXING TO A WALL
CVP9304
PACKING CONTENTS
Wall Plugs
X4
Conduet hole cover
opener
X1
Mounting Template
X1
Fitting Screws
X4
Dome cover
screwdriver
X1
Weatherproof
sealing washers
X8
Weatherproof
sealing pad
X1
Ceiling
CVP9304
VANDAL RESISTANT DOME INSTALLATION
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover by pushing firmly in place
onto the base
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using a suitable coin or
screwdriver
Attach the weatherproof sealing pad to the base of
the dome with the sticky side against the camera
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Please note: To ensure correct weatherproof you
must use the enclosed fitting screws and
weatherproof washers
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover and tighten the dome cover
screws using the supplied dome cover screw driver
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using the supplied dome
cover screwdriver

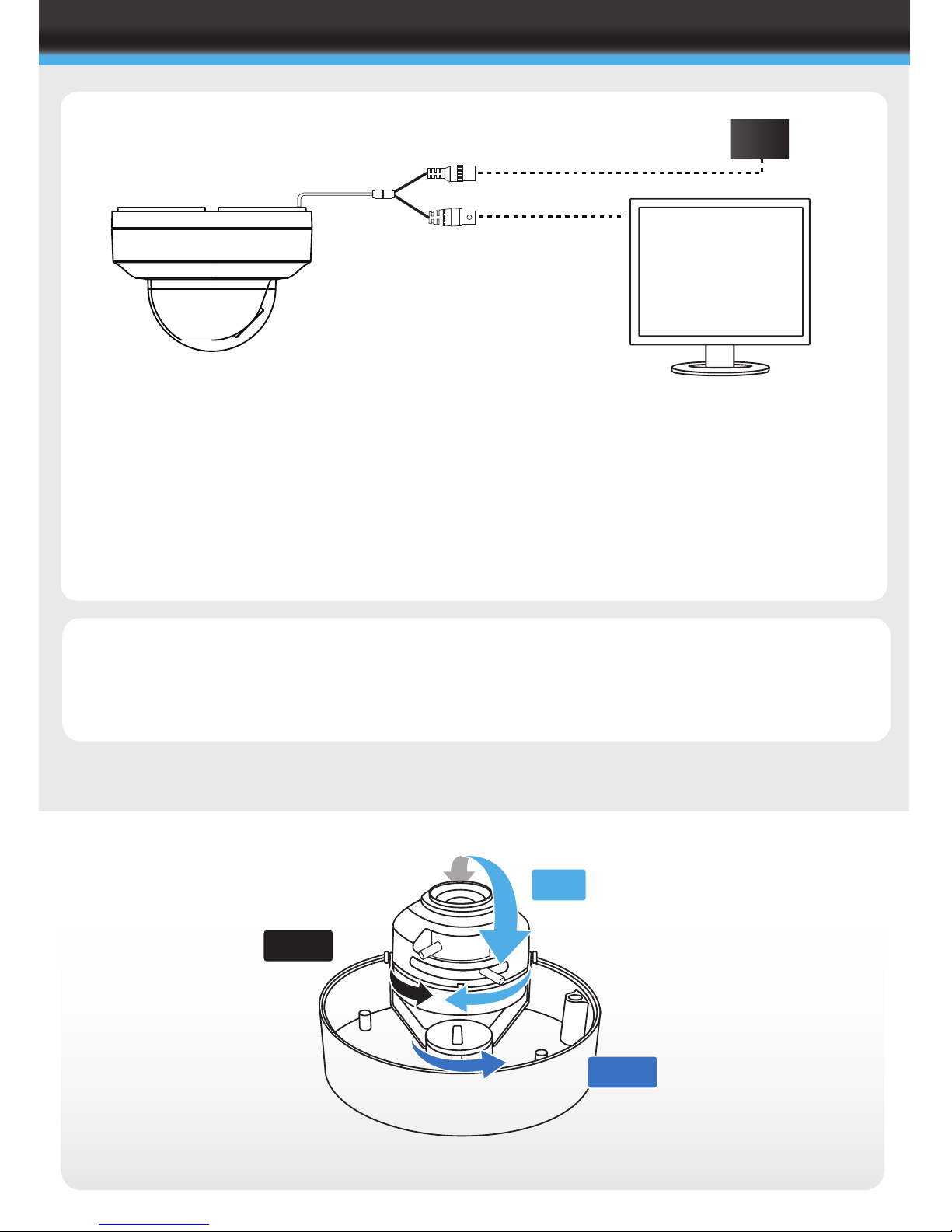

CONNECTION
Connect the video out port to your video cable
running to the monitor / recorder
Check the power supply is of the correct level
and connect your power supply into the power
port on the Camera.
View the picture on a monitoring device to
check the power and video connection is
working properly.
PSU
Troubleshooting
Ensure all power and cable connections are correct with the Camera and DVR.
If all power and cable connections are correct and the camera picture can not be
produced then contact your supplier for technical support.
Tri-Axis Gimbal
Example shows vandal resistant dome casing
360º
90º
360º
94.64
51.0135.48
148.39
46.00
82.50
105.00
86.00
86.00
94.64
53.18
15.00
147.97
106.10
CVP9304CBP4304 / 4324
SPECIFICATION
Design and specification are subject to change without notice.
MODEL
Image Sensor
Effective Pixels
Horizontal Resolution
Min. Illumination
Lens
Day & Night
S/N Ratio
White Balance
AGC
BLC
Sync System
BNC Video Output
Input Voltage
Power Consumption
Operating Temperature
Dimension
Weight
CBP4304 CBP4324
Sony Super HAD
PAL: 500(H) x 582(V) ; NTSC: 510(H) x 494(V)
420TVL
0.3Lux/F1.2
Colour Only
more than 48dB
AUTO
AUTO
AUTO
Internal
CVBS 1.0Vp-p / 75Ω
12v DC
120mA
-10ºC~ +50ºC RH90% MAX
Fixed Lens f=4mm Auto Iris Vari-focal
lens F=4-9mm
148x106 (DxH)
650g
SPECIFICATION
Design and specification are subject to change without notice.
MODEL
Image Sensor
Effective Pixels
Horizontal Resolution
Min. Illumination
Lens
Day & Night
S/N Ratio
White Balance
AGC
BLC
Sync System
BNC Video Output
Input Voltage
Power Consumption
Operating Temperature
Dimension
Weight
CVP9304
Sony Super HAD
PAL: 500(H) x 582(V) ; NTSC: 510(H) x 494(V)
420TVL
0.3Lux/F1.2
Fixed Lens f=4mm
Colour Only
more than 48dB
AUTO
AUTO
AUTO
Internal
CVBS 1.0Vp-p / 75Ω
12v DC
120mA
-10ºC~ +50ºC RH90% MAX
148.35x105 (DxH)
950g
CONCEPT PRO DOME CAMERA RANGE
INTERNAL DOME CAMERAS
CBP3212
CBP5112
CBP5212
CBP4304
CBP5314
CBP4324
CBP6324
CBP6324-B
CBP6324DN
CBP6324WDR
VANDAL RESISTANT DOME CAMERAS
CVP9304
CVP9314
CVP9324
CVP9324DN
CVP9324LL
CVP9324WDR
INFRARED DOME RANGE
CBP6314DNIR
CBP6324DNIR
CVP9314DNIR
CVP9324DNIR
VANDAL RESISTANT WALL BRACKET
CVP-BRK
480TVL, 0.3 Lux, 3.6mm Lens. 90(ø)x62mm
420TVL, 0.3 Lux, 3.6mm Lens, 128(ø)x93mm
480TVL, 0.3 Lux, 3.6mm Lens, 128(ø)x93mm
420TVL, 0.3 Lux, 4mm Lens, 148(ø)x106mm
650TVL, 0.03Lux, 4mm Lens, 148(ø)x106mm
420TVL, 0.3 Lux, 4-9mm Lens,148(ø)x106mm
650TVL, 0.03Lux 2.8-10mm Lens, 148(ø)x106mm
650TVL, 0.03 Lux, 2.8-10mm Lens, 148(ø)x106mm, Black casing
650TVL, 0.03 Lux, 2.8-10mm, Day Night, 148(ø)x106mm
690TVL, 0.01 Lux, 2.8-10mm Lens, Day Night, Wide Dynamic
Range,148(ø)x106mm
420TVL, 0.3 Lux, 4mm Lens, 148.35(ø)x105mm
650TVL, 0.03Lux, 4mm Lens, 148.35(ø)x105mm
650TVL, 0.03Lux 2.8-10mm Lens, 148.35(ø)x105mm
650TVL, 0.03 Lux, 2.8-10mm, Day Night, 148.35(ø)x105mm
600TVL, 0.0002 Lux (DSS/Sens Up on) 2.8-10mm Lens,
148.35(ø)x105mm
690TVL, 0.01 Lux, 2.8-10mm Lens, Day Night, Wide Dynamic Range,
148.35(ø)x105mm
600TVL, 4mm Lens, IR LED, 148(ø)x106mm
650TVL, 2.8-10mm Lens, IR LED, ICR, 148(ø)x106mm
600TVL, 4mm Lens, IR LED, 148.35(ø)x105mm
650TVL, 2.8-10mm Lens, IR LED, ICR, 148.35(ø)x105mm
Wall bracket for use with all CVP dome cameras
