Concept Pro CBP6314DNIR Manual de usuario
CBP6314DNIR
CBP6324DNIR
CVP9314DNIR
CVP9324DNIR
Infrared Dome Camera
USER MANUAL
Remark: Changes or modifications not expressly approved by the manufacturer can
cause the camera to be damaged and become inoperable. This may invalidate the
user warranty.
CAUTION
1. This installation should be made by a qualified service person and should abide to all local
codes.
2. Avoid installation on a surface subjected to frequent vibration or shocks.
3. Do not operate the camera beyond its temperature range or power source ratings.
4. Should any damage or suspected damage occur, shutdown the power source, unplug and
contact your service provider.
5. Do not install the camera under unstable lighting conditions. Severe lighting change or
flicker can cause the camera to work improperly.
6. Never use the camera close to a gas or oil leak.
7. Do not disassemble the camera.
8. Never keep the camera face to strong light directly, this can damage the CCD.
9. Ensure all removable covers are replaced to protect the inner components.
10. Do not install near devices which emit a strong electro-magnetic field.
11. Use a dry or damp cloth only for cleaning.
12. Internal dome only - Do not drop the camera or subject the unit to physical shocks.
PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY
INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.
PACKING CONTENTS
CBP Range
Important: Ensure all cautionary procedures are
observed during installation.
It is recommended the camera is tested during the most
demanding environmental conditions such as low light
or bright sunlight to ensure continuity of effective CCTV
monitoring.
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover by pushing firmly in place
onto the base
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using a suitable coin or
screwdriver
FIXING TO A WALL
CBP Range
Ceiling
Wall Plugs
X4
Mounting Template
X1
Fitting Screws
X4
INTERNAL DOME INSTALLATION
1. This installation should be made by a qualified service person and should abide to all local
codes.
2. Avoid installation on a surface subjected to frequent vibration or shocks.
3. Do not operate the camera beyond its temperature range or power source ratings.
4. Should any damage or suspected damage occur, shutdown the power source, unplug and
contact your service provider.
5. Do not install the camera under unstable lighting conditions. Severe lighting change or
flicker can cause the camera to work improperly.
6. Never use the camera close to a gas or oil leak.
7. Do not disassemble the camera.
8. Never keep the camera face to strong light directly, this can damage the CCD.
9. Ensure all removable covers are replaced to protect the inner components.
10. Do not install near devices which emit a strong electro-magnetic field.
11. Use a dry or damp cloth only for cleaning.
12. Internal dome only - Do not drop the camera or subject the unit to physical shocks.
PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY
INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.
Important: Ensure all cautionary procedures are
observed during installation.
It is recommended the camera is tested during the most
demanding environmental conditions such as low light
or bright sunlight to ensure continuity of effective CCTV
monitoring.
Attach the weatherproof sealing pad to the base of
the dome with the sticky side against the camera
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Please note: To ensure correct weatherproof you
must use the enclosed fitting screws and
weatherproof washers
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover and tighten the dome cover
screws using the supplied dome cover screw driver
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using the supplied dome
cover screwdriver
FIXING TO A WALL
CVP Range
PACKING CONTENTS
Wall Plugs
X4
Conduet hole cover
opener
X1
Mounting Template
X1
Fitting Screws
X4
Dome cover
screwdriver
X1
Weatherproof
sealing washers
X8
Weatherproof
sealing pad
X1
Ceiling
CVP Range
VANDAL RESISTANT DOME INSTALLATION
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover by pushing firmly in place
onto the base
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using a suitable coin or
screwdriver
Attach the weatherproof sealing pad to the base of
the dome with the sticky side against the camera
Using the supplied fitting screws, securely attach the
camera to the drilled surface
Please note: To ensure correct weatherproof you
must use the enclosed fitting screws and
weatherproof washers
Adjust the tri-axis gimbal zoom/focus to give the
required image of the area to be monitored.
Replace the dome cover and tighten the dome cover
screws using the supplied dome cover screw driver
Carefully clean the dome surface with a soft lint
free cloth
Remove the camera unit carefully from the box
reserving the accessory contents in a safe place
Use the supplied mounting template to mark the
space for drilling
Remove the dome cover using the supplied dome
cover screwdriver
CONNECTION
Connect the video out port to your video cable
running to the monitor / recorder
Check the power supply is of the correct level
and connect your power supply into the power
port on the Camera.
View the picture on a monitoring device to
check the power and video connection is
working properly.
PSU
Troubleshooting
Ensure all power and cable connections are correct with the Camera and DVR.
If all power and cable connections are correct and the camera picture can not be
produced then contact your supplier for technical support.
Tri-Axis Gimbal
Example shows vandal resistant dome casing
360º
90º
360º
DIMENSIONS
51.0135.48
94.64
148.39
46.00
82.50
105.00
86.00
86.00
94.64
53.18
15.00
147.97
106.10
CVP VANDAL RESISTANT RANGECBP INTERNAL DOME RANGE
OSD Controller
LANGUAGE
ENGLISH / SPANISH / PORTUGUESE /
FRENCH / GERMAN / CHINESE /
JAPANESE / RUSSIAN
LENS
MANUAL
AUTO TYPE DC
MODE AUTO, OPEN, CLOSE
SPEED 0~255
SERVICE CABLE
(OPTION)
RCA SERVICE VIDEO
OUTPUT
UP
RIGHT
MENU / ENTER
DOWN
LEFT
OSD
NR
NR MODE
Y LEVEL
C LEVEL
Y/C, C, Y, OFF
0~15
0~15
SHUTTER / AGC
AUTO
MANUAL
HIGH LUMINANCE
MODE SHUT+AUTO IRIS, AUTO IRIS
BRIGHTNESS 0~255
LOW LUMINANCE
MODE AGC, OFF
BRIGHTNESS 0.25~1.00
MODE SHUT+AGC
SHUTTER 1/50~1/10000
AGC 6.00~44.80
WHITE BALANCE
PICT ADJUST
MIRROR
BRIGHTNESS
CONTRACT
SHARPNESS
HUE
GRAIN
OFF/ON
0~255
0~255
0~255
0~255
0~255
ATW
PUSH LOCK
MANUAL LEVEL 0~255
ANTI CR
USER 1 B-GAIN 0~255
R-GAIN 0~255
USER 2 B-GAIN 0~255
R-GAIN 0~255
PUSH
SPEED 0~255
DELAY CNT 0~255
ATW FRAME X0.50~X2.00
ENVIRONMENT INDOOR/OUTDOOR
BACKLIGHT
OFF/BLC/HLC
ATR
OFF
ON LUMINANCE LOW, MID, HIGH
CONTRAST LOW, MIDLOW, MID,
MIDHIGH, HIGH
PRIVACY
OFF
ON AREA SEL 1~4
TOP 0~288
BOTTOM 0~288
LEFT 0~468
RIGHT 0~468
COLOUR 1~8
TRANSP 0.00~1.00
MOSIAC OFF/ON
SPECIFICATION
MOTION DETECTION
OFF
ON DETECT SENSE 0~127
BLOCK DISPLAY OFF/ON/ENABLE/
SELECT AREA
MONITOR AREA OFF/ON
AREA SELECT 1~4
TOP 0~288
BOTTOM 0~288
LEFT 0~288
RIGHT 0~288
CAMERA ID
OFF
ON OPENS VIRTUAL KEYBOARD
IMPORTANT - PLEASE NOTE:
When all configurations have been made select SAVE
ALL at the bottom of the OSD before exiting
SAVE ALL
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Cámara de seguridad de Concept Pro
Concept Pro
Concept Pro VCP7236 Manual de usuario
Concept Pro
Concept Pro CBP4304 Manual de usuario
Concept Pro

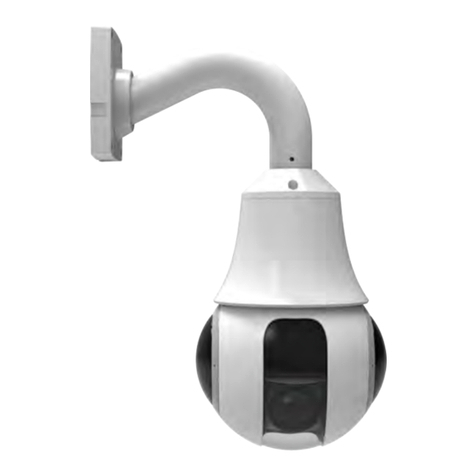

Concept Pro VHSDIR-812EXT-IP3M Manual de usuario
