CAS ER Series Manual de usuario

ER Series

Price Computing Scale

OWNER’S MANUAL

CONTENTS

PRECAUTIONS 4

PREFACE 6

OVERALL VIEW OF ER SERIES 6

DISPLAY & KEYBOARD 7

OPERATIONS 11

1. Programming mode 11

Chapter 1. Basic Operation 12

Chapter 2. PLU Saving & Calling - up 13

Chapter 3. User's Set-up Mode 16

Chapter 4. Formatting Printing Receipt 20

2. Sales Mode 24

Chapter 5. Basic Operation 25

Chapter 6. Sales Transaction 27

Chapter 7. Discount & Payment 35

Chapter 8. Daily Total Sales Amount 37

ASCII CODE 39

ERROR MESSAGES 40

SPECIFICATION 41

PRECAUTIONS WARNING

Precautions when installing the scale. To ensure that you get the most from

your scale,pleasefollowthese instruction. Make sure to plug your scal into the proper power outlet. For maximum

performance,plug into apower outlet30minutes beforethe usage forwarm up.

Do not disassemble the scale.

When any damage or defect occurs,

contact your CAS

authorized dealer

immediately for

proper repair.

Do not overload beyond the maximum

weight limit.

Do not pull the plug by its cord when

unplugging. Damaged cord could cause

electric shock or fire.

To prevent from fire occurring, Do not

place or use the scale near flammable or

corrosive gas.

Avoid placing the scale near heater

or in direct sunlight.

Scale must be grounded to minimize

electricity static. This will minimize

defect or electric shock.

Insert plug firmly to wall outlet to

prevent electric shock. Use proper Adapter. Incorred adapter

could damage the scale.

To reduce electric shock or incorrect

reading, Do not spill water on the scale

or place it in humid condition.

Warning

For consistent and accurate reading,

maintain periodical check by your

CAS authorized dealer.

Avoid sudden shock to the scale.

Internal mechanism could be damaged.

Place the scale on firm and temperature

consistent environment.

Take the battery out when scale is not in

use for long time. Leakage from the

batteries is hazardous.

Keep the scale away from other

electromagnetic generating devices.

This may interfere with accurate

reading.

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instruction.

Correct type of battery

Grab on the bottom of the scale when

moving. Do not hold by the platter.

Attention

By adjusting 4 corners of the scale, set

the scale even using the built in scale

leveling indicator.

PREFACE

OVERALL VIEW

Thank you for the purchasing of CAS ER series.

This series have been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your specialty departments can enjoy with

CAS product. We hope that CAS product meets your needs.

The user manual is designed to guide you to understand product operation and

proper care of product.

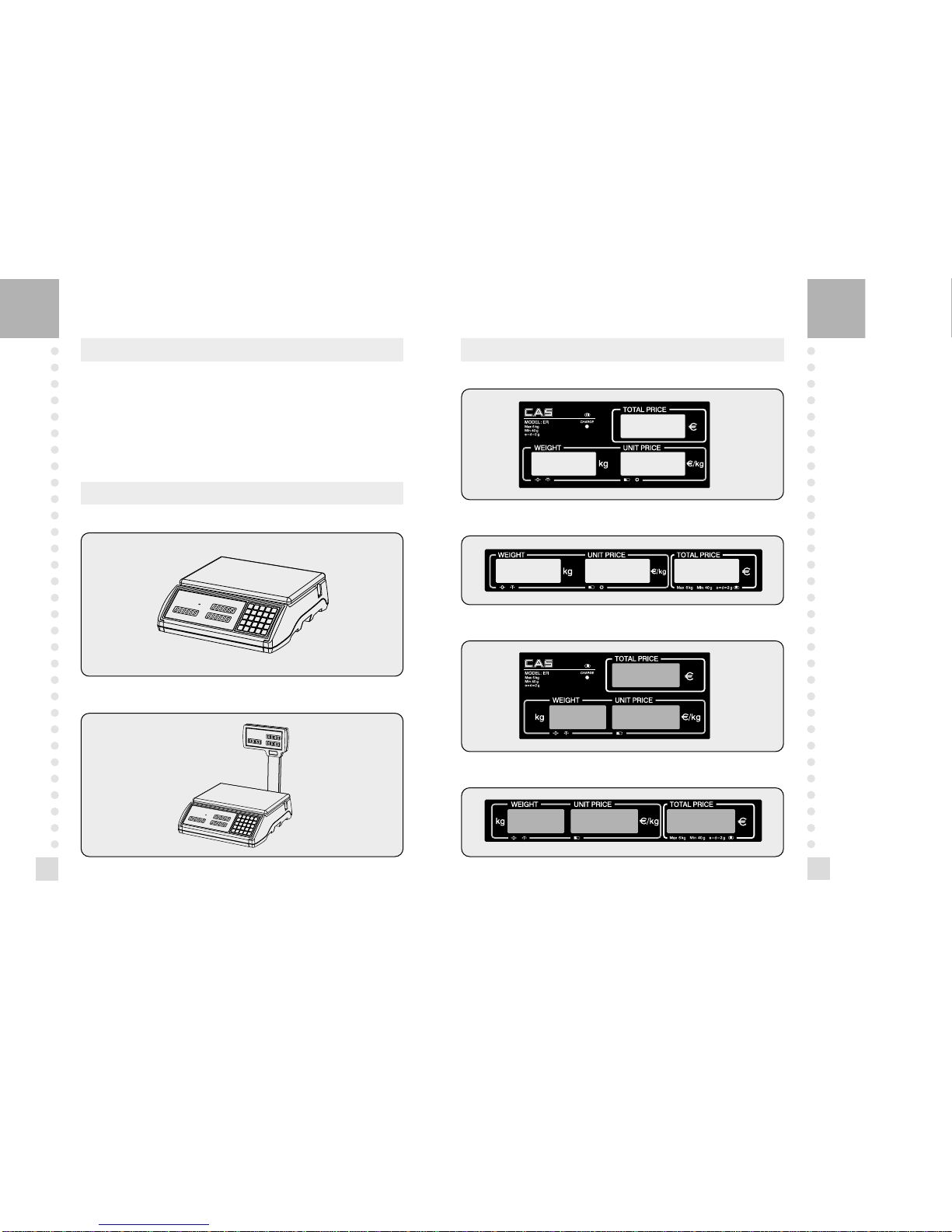

DISPLAY & KEYBOARD

LCD TYPE : Front Display

LCD TYPE : Rear Display

STADARD TYPE

POLE TYPE

VFD TYPE : Front Display

VFD TYPE : Rear Display

KEYBAORD

Table : Symbols on Display

SYMBOLS DESCRIPTION

To adjust zero

Tare on

Backlight on

Low battery warning

LCD TYPE : Front Display

LCD TYPE : Rear Display

VFD TYPE : Front Display

VFD TYPE : Rear Display

To input all of numerical data

Direct PLU keys

To save PLU

To call up PLU

To clear data

To set zero

To set or clear tare value

To turn on & off the scale or backlight (LCD version only)

To make several sales transaction by adding up

To make discount transaction

To multiply the same item when making sales transaction

To check total sales amount or finalize sales transaction

10 11

OPERATIONS

1. Programming Mode

Chapter 1. Basic Operation

a. Turning the scale on / off

b. Turning backlight on / off (a option in LCD version only)

c. Zero function

Chapter 2. PLU Saving & Calling-up

a. Saving unit price on PLU

b. Saving PLU name (option)

c. Calling up PLU

- Indirect PLU

- Direct PLU (M1~M5)

Chapter 3. User's Set-up Mode

a. Auto power-off

b. EL backlight on / off (backlight option in LCD version only)

c. Selecting printer

d. Option setting for daily total sales amount

Chapter 4. Formatting Printing Receipt

a. Using Printer

b. Receipt header setting

c. Receipt currency (unit) setting

d. Receipt date setting

Table : Key Functions

KEYS FUNCTIONS

12 13

Chapter 2. PLU Saving & PLU Calling-up

a. Saving unit price on PLU

This section explains how to save unit price in PLU.

Number of direct PLU may be different on product model.

“C” key is to clear data input.

Number of PLU Range Remarks

PLU 199 1~199

PLU name (option) 28 1~28

“C” key is to input, save a character, and move to next character (or byte).

“ZERO” key is to move previous character (or byte).

“TARE” key is to move next programming menu.

Press numeric key to input unit price you wish

to have. Ex) 1.99 Press “ M” key.

Press numeric key to input a PLU address.

Ex) PLU 10.

Chapter 1. Basic Operation

a. Turning the scale on / off

Press ON/OFF key to turn on. Press ON/OFF key to turn on.

b. Turning the backlight on / off (Option in LCD version only)

Press ON/OFF key again for a few seconds

under the power on. Press ON/OFF key again under the backlight

on.

c. Zero function

Press ZERO key to set zero point when the

weight is unstable.

14 15

c. Calling up a PLU

To call up indirect PLU saved

press appropriate numeric keys (address) and

“M ” key. Ex) PLU 10

To go back to normal weighing mode

press “C” key.

To call up direct PLU saved just

press appropriate direct PLU key. Ex) PLU 2 To go back to normal weighing mode

press “C” key.

“ ”

Press “ M” key to save it.

b. Saving PLU name (option)

If you have “28 PLU name inputting option” you may save the name of PLU

for 1~28.

“C” key is to input, save a character, and move to next character (or byte).

“ZERO” key is to move previous character (or byte).

“TARE” key is to move next programming menu.

Input appropriate ASCII codes to save the PLU

name. Ex) “APPLE” is “4, 1, C, 5, 0, C, 5, 0,

C, 4, C, C, 4, 5, C”

Press TARE key to exit to normal weighing

mode or C key up to maximum 8th byte. Then

automatically exit to normal weighing mode.

a. Auto power-off

This section explains how to set backlight on & off function and automatic off

function.

Select a option you wish to have by using

“TARE” key. Ex) 30 (minuets)

Options Description Remarks

NO No auto power-off.

10 (minutes) Auto power-off in 10 minutes when no use.

30 (minutes) Auto power-off in 30 minutes when no use.

60 (minutes) Auto power-off in 60 minutes when no use.

Chapter 3. User's Set-up Mode

This section explains how to set up the following functions.

To get into “User’s Set-up Mode” press

ON/OFF key pressing and holding ZERO key.

Functions Options Remarks

1. Auto power-off NO / 10 / 30 / 60

2. EL Backlight On/OFF OFF / ON / 3 / 5 / 10 When backlight option selected

in LCD version only

3. Printer selection NON / Top / EPSON /Dep-50

Press “ZERO” key to save current option and move to next function setting

mode.

Press “TARE” key to move to other next option.

c. Selecting the printer

This section explains how to select the printer option when you'd like to use the

printer connected to ER series.

Select the printer you’re using with ER by

pressing °”TARE” key. EX) DEP-50

Options Description Remarks

NON No printer in use

TOP Top printer interface

EPSON Epson printer interface

DEP-50 DEP-50 printer interface

b. EL backlight ON/OFF function

(Only when backlight option selected in LCD version)

This section explains how to set backlight on & off function and automatic off

function.

Options Description Remarks

OFF Backlight OFF

ON Backlight ON

3 (Seconds) Automatic backlight-off when not in use for 3 seconds.

5 (Seconds) Automatic backlight-off when not in use for 5 seconds.

10 (Seconds) Automatic backlight-off when not in use for 10 seconds.

Press “ZERO” key to move next function

setting, EL Backlight ON/OFF. Use “TARE” key to select one of backlight

auto power-off option or EL Backlight ON/OFF.

Ex) Select 5 seconds auto power-off option.

Press “ZERO” key to save current option and

move to next function setting.
