Simple Weighing Scale

OWNER’S MANUAL

DL Series

CONTENTS

PRECAUTIONS 4

PREFACE 6

NAMES AND FUNCTIONS 6

INSTALLATIONS 8

OPERATIONS 9

1. General Weighing 9

2. Weighing with Tare 10

3. Changing Unit of Weight 10

4. HOLD Function 11

5. Comparator Function 11

6. Counting Function 13

7. AUTO Power Off Function 15

BATTERY MAINTENANCE 16

ERROR MESSAGE 16

SPECIFICATIONS 17

Keep the scale away from strong EMI noises may cause incorrect weight

readings.

Do not subject the scale to sudden

temperature changes.

PRECAUTIONS

Place the scale on a flat and stable

surface.

If the scale is not properly

level, please adjust the 4 legs

at the bottom of the scale

(turn legs clockwise or

counterclockwise) so as to

center the bubble of the

leveling gauge inside the

indicated circle.

Do not subject the platter to sudden

shocks. This scale must be installed in a dry

and liquid free environment.

Make sure that you plug your scale into the proper power outlet.

Plug into a power outlet 30 minutes before operations.

Leveling gauge

PREFACE

NAMES AND FUNCTIONS

Thank you for purchasing our CAS DL series.

These series have been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your specialty departments can enjoy these

high quality reliable CAS products.

We believe that your needs will be satisfied and you will have reliability.

This manual will help you with proper operation and care of the DL series.

Please keep this handy for future reference.

OVERALL VIEW

DISPLAY AND KEYBOARD

PLATTER

LEVELING GAUGE

DISPLAY

KEYBOARD

ADJUSTING BOLT

KEY FUNCTIONS

OFF

Used to set the zero point.

Used to input or cancel the weight of tare.

Used to change the unit of weight, and shown as following sequence

on the display. [WEIGHT] [HOLD] [WL on or off] [PCS] [WEIGHT]

Used to turn on and off the scale.

FUNCTIONSKEYS

POLE

Turn on the display by pressing the ON/OFF key. Then the display will show

all the segments and count up "0" to "9". You may stop this automatic counting

by pressing the ZERO key.

When you turn on the display, make sure that platter is empty.

Otherwise, display will show "Err", an error of initial zero range. Please refer

"ERROR MESSAGE" section for more information on page 16.

When the weight becomes stable the display shows the stable sign(0) on.

You may need to make it "0.00" by pressing the ZERO key unless the display

indicate "0.00" under the empty platter.

OPERATIONS

1. General Weighing

INSTALLATIONS

1. Insert and fasten the bracket support assembly screws.

2. Connect the load cell wire and power line to head.

3. Insert the support cover into the support.

4. Insert and fasten the screws.

Place a commodity on

the platter. Remove the commodity

from the platter.

kg kg

2. Weighing with Tare

TARE means the weight of container being used for a commodity.

TARE key function is to subtract the weight of the container from full weight

loaded.

4. HOLD Function

When the weight is not stable, press the MODE key.

The display shows the “HOLd” and then press ZERO key.

The display will show average weight.

Place a container on the

platter. Press the TARE key.

Remove container and

commodity, then the display

will show the weight of the

container with "-" symbol.

Press the TARE key, then

display will show the

"0.00".

Place a commodity into the

container, then the display

will show only the weight of

the commodity.

kg kg

When the weight is unstable,

pres the MODE key.

The display shows the "HOLd".

Press ZERO key. Then "HOLd"

display blink for two times.

Then the display will show

the averageweight.

The average weight

blink for two times.

*NOTE : Stable indication(0) will not display in HOLD mode.

Remove the commodity from

the platter.

3. Changing Unit of Weight (kg, lb, oz)

Press the MODE key first. Holding it, press the TARE key in the simple

weighing mode. The display shows the "UnIt" shortly and then you may select

kg, lb, or oz as the unit of weight.

Press ZERO key once to set

up the low limit. The display

shows "0.00" and the first

number flashes.

Press the MODE key until

the display shows "WL

OFF". "WL OFF" means

that comparator function

is not activated.

Press TARE key to activate

this function. The display

shows "WL ON".

5. Comparator Function - HI / LOW Limit Setting

Press the MODE key to have

number increase. To move

flash to next digit, press

the TARE key.

Press ZERO key to set up HIGH

limit. The display shows

"0.00" and you can change

these numbers by pressing

MODE key. If you want to move

to next digit you can go by

pressing TARE key.

If you set up HIGH limit you

can go out by pressing ZERO

key, and you can see "ENd"

message shortly and "WL

on" message on the display.

If you set up HIGH limit and LOW limit incorrectly, "Err" will be shown on the display.

Then you may need to set it up again. For example, LOW LIMIT=39.90 kg and HIGH

LIMIT=49.90 kg this is incorrect setting because HIGH limit is lower than the LOW limit.

When HIGH and LOW limit are set as the same or above maximum capacity it still shows

"Err" message.

If you want to go back to the

simple weighing mode just

press MODE key twice.

Suppose that the HIGH limit and

LOW limit are set up as 49.90kg

and 39.90kg respectively. If the

weight loaded is 2kg between

HIGH and LOW limit the display

shows "OK" and the scale

continues to beep slowly.

If the weight loaded is above

49.90kg, HIGH limit, the scale

continues to beep rapidly.

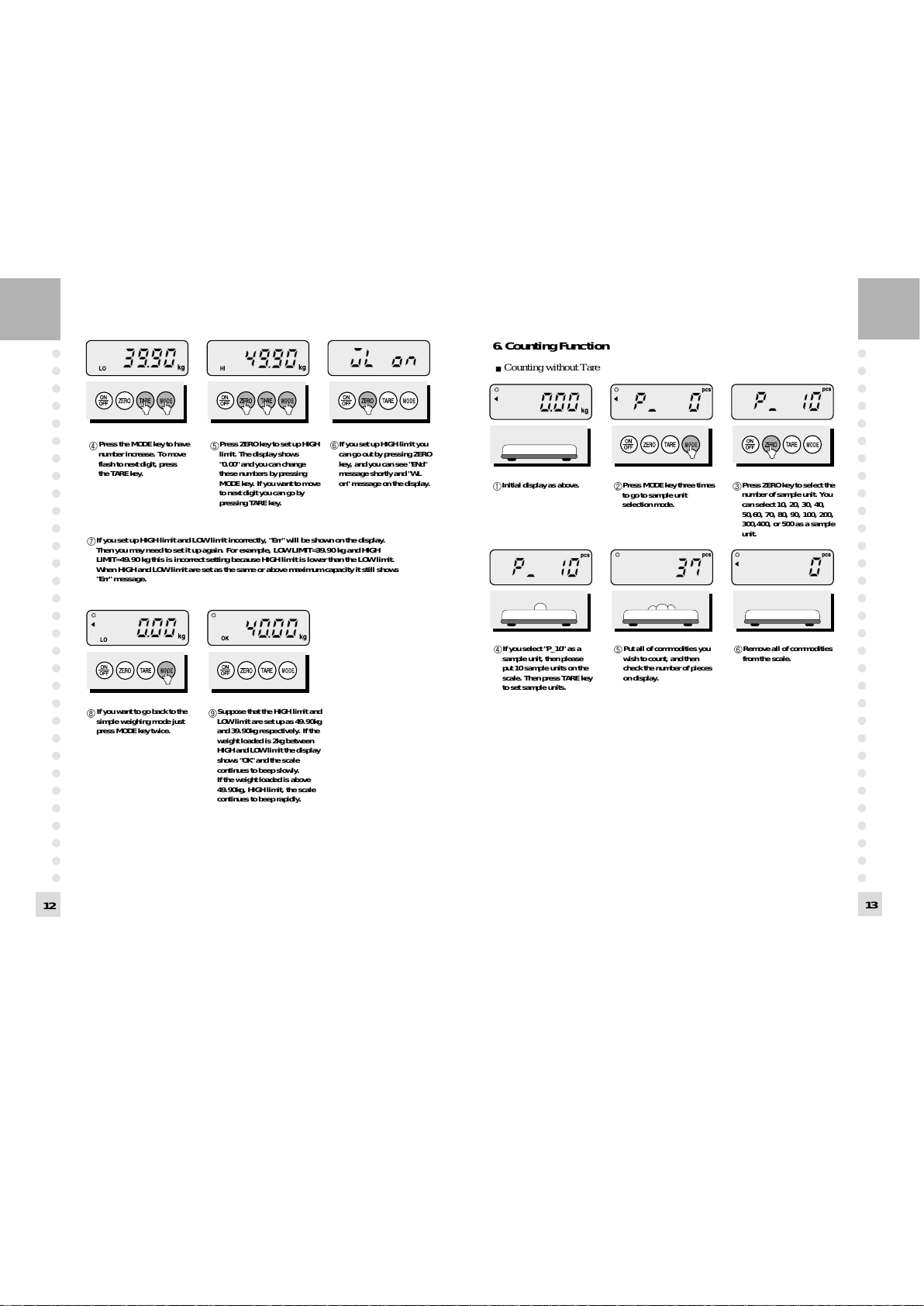

6. Counting Function

Counting without Tare

Initial display as above. Press MODE key three times

to go to sample unit

selection mode.

Press ZERO key to select the

number of sample unit. You

can select 10, 20, 30, 40,

50,60, 70, 80, 90, 100, 200,

300,400, or 500 as a sample

unit.

If you select "P_10" as a

sample unit, then please

put 10 sample units on the

scale. Then press TARE key

to set sample units.

Put all of commodities you

wish to count, and then

check the number of pieces

on display.

Remove all of commodities

from the scale.

7. Auto Power Off Function

Auto-Power off function is to automatically power off as time is set. This

function is helpful to save battery, which is not in use. The following is the

setting procedure of Auto-power off.

When the scale is turned off

press ON/OFF key, holding

ZERO key. Then you will see

the "AP-10".(If you have set

this before,display will show

previous value.)

Press the TARE key until the

display shows the "AP-x0"

that you wish to take.

(Refer to TABLE 1.)

Press the ON/OFF key, and

then the scale saves what you

programmed and shows all

the segments, counting up

"0" to "9".

DISPLAY FUNCTION

AP-00 This function does not automatically power off.

AP-10 This function does automatically power off when the scale is not in use for 10 minutes.

AP-20 This function does automatically power off when the scale is not in use for 20 minutes.

AP-30 This function does automatically power off when the scale is not in use for 30 minutes.

TABLE 1.

OFF

Put all of commodities you

wish to count, and then

count the number on display.

Remove all of commodities

from the scale.

Remove all of commodities

from the scale. Remove the tare from

the platter.

Counting with Tare

Press MODE key twice to go to

sample unit selection mode.

"PCS" is shown on the display,

then press ZERO key to select

the number of sample unit.

Put the container on the

scale and press TARE key to

set weight of tare.You can

select 10, 20, 30, 40, 50,

60, 70, 80, 90, 100,200,

300,400, or 500 as a sample

unit, by pressing ZERO key.

If the number of selected

sample unit is 20, please

put 20 sample units on the

scale.Then press TARE key

to set unit weight.

When you try to set the number

of sample unit at the stage the

display may show "LACK"

message shortly.

The result of counting may be

incorrect in the following cases.

a.unit weight 1/2

e *

weight loaded 2% of maximum

weighing capacity.

Press "Zero" key and then press

"Tare" key to exit from

tare function.

*"e" value may be various on capacity of product model.

Please refer to "SPECIFICATION" on page 18. For example, a product model

which capacity is 60.00kg has 0.02kg as "e" value

ERROR MESSAGE

An error of the initial zero range

Problems on Analog Module

Overload on the platter

Unstable conditions of scale

Set the platter empty.

Try to turn OFF and ON the scale.

Call your CAS dealer if still problems.

Remove it from the platter

Do not put somthing exceeding maximum

capacity on the platter

Make the scale stable conditions

ERROR REASONS SOLUTIONS

Err

Init

OFL

UNStA

BATTERY MAINTENANCE

LOW BATTERY WARNING

When the battery is low the display shows the "BAT" sign.

You can replace the battery new one.

If you still use the scale without replacing the battery the scale may provide

incorrect result on measurement.

How to connect the ground wire.

Connect ground wire to external ground

*Connect ground wire with washer hex bolt

from pole connection.

*NOTE : Specifications are subject to change for improvement without notice

DL-60 DL-100 DL-150

60.00kg 100.00kg 150.00kg

20g 50g 50g

1/30,000 1/20,000 1/30,000

1/3,000 1/2,000 1/3,000

5 digit LCD

STABLE, ZERO, kg, lb, oz, BAT

ZERO, TARE, MODE, ON/OFF

General Weighing, Hold Function

Counting Function, Comparator Function

365 620 730mm 420 655 710mm

355 465mm 395 520mm

18kg 15kg

1.5V 6 (option C size battery) or 9V adapter

about 5.8V

-10°C 40°C

1.5V 6 (C size battery is optional)

SPECIFICATIONS

MODEL

CAPACITY

MIN. DIVISION

INTERNAL RESOLUTION

EXTERNAL RESOLUTION

DISPLAY

SYMBOLS

KEYS

FUNCTIONS

DIMENSIONS

PLATTER SIZE

WEIGHT

POWER

MINIMUM VOLTAGE

OF THE BATTERY

TEMPERATURE

OPTION

MEMOMEMO

Otros manuales para DL Series

Tabla de contenidos

Otros manuales de Escala de CAS

CAS

CAS CL5500 Series Manual de usuario

CAS

CAS AP Series Manual de usuario

CAS

CAS RETAIL WEIGHING SOLUTION CT100 Manual de usuario

CAS

CAS CT100 Series Manual de usuario

CAS

CAS BF-1255 Manual de usuario

CAS

CAS SW-II Series Manual de usuario

CAS

CAS LP-II Instrucciones de instalación y mantenimiento

CAS

CAS KE-7000 Manual de usuario

CAS

CAS GBF-1257 Manual de usuario

CAS

CAS BF-1410 Manual de usuario

CAS

CAS FW500-E Manual de usuario

CAS

CAS CL5200 Series Manual de usuario

CAS

CAS AD-1 Manual de usuario

CAS

CAS LP-1000N Series Manual de usuario

CAS

CAS AP Plus-MX Manual de usuario

CAS

CAS PD-II Manual de usuario

CAS

CAS BW-1N Manual de usuario

CAS

CAS CUW Series Manual de usuario

CAS

CAS SW-1S Series Manual de usuario

CAS

CAS Retail PR-T Series Manual de usuario

CAS

CAS EC-II Series Manual de usuario

CAS

CAS PR-II Series Manual de usuario

CAS

CAS XE 300 Manual de usuario

CAS

CAS PR Plus-B Manual de usuario

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
