CAS DL-30 Manual de usuario

CONTENTS

PRECAUTIONS 4

PREFACE 6

NAMES AND FUNCTIONS 6

INSTALLATIONS 8

OPERATIONS 9

1. Power Source 9

2. General Weighing 9

3. Weighing with Tare 10

4. HOLD Function 10

5. Auto Power Off 11

6. Mode 11

ERROR MESSAGES 14

SPECIFICATIONS 14

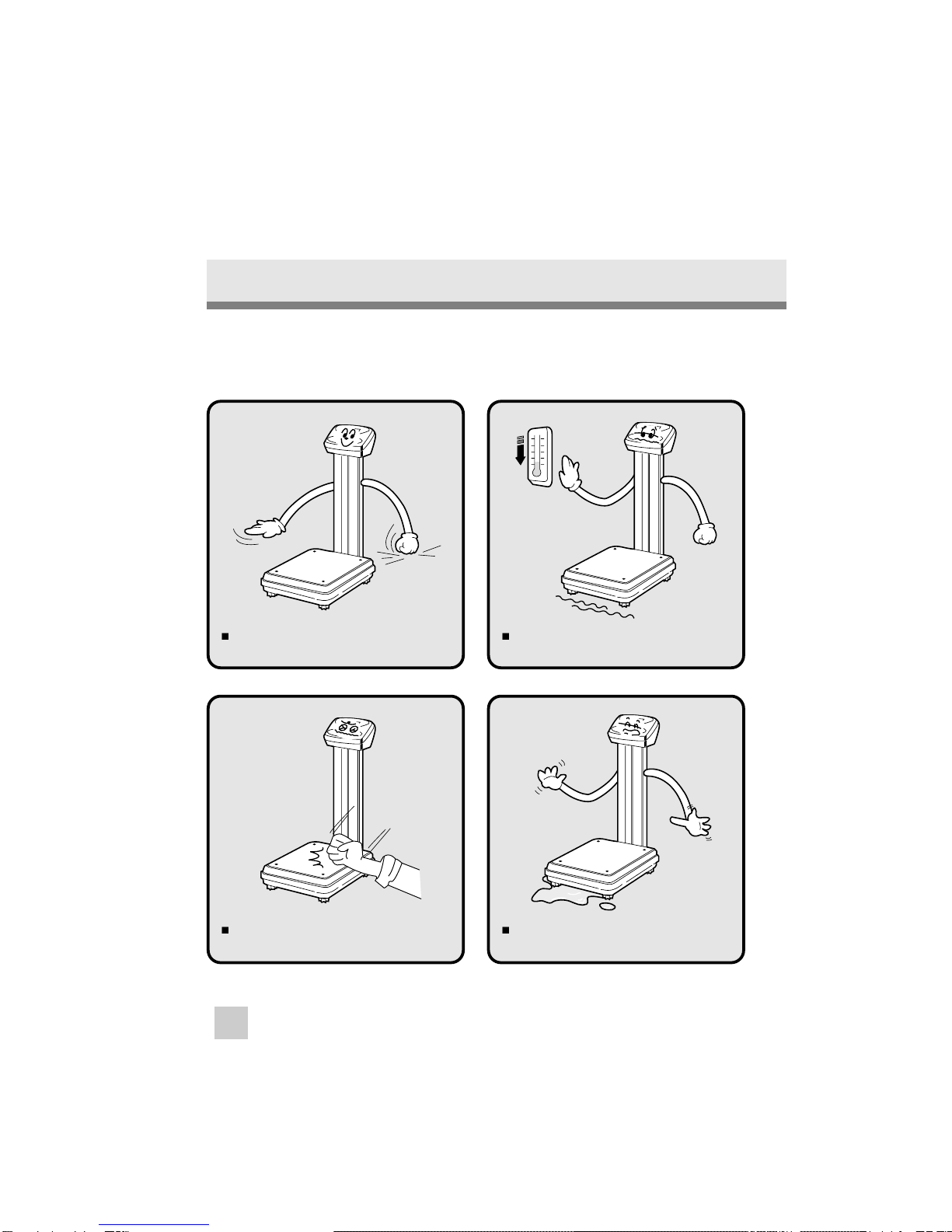

Do not subject the scale to sudden

temperature changes.

PRECAUTIONS

Place the scale on a flat and stable

surface.

Do not subject the platter to sudden

shocks. This scale must be installed in a dry

and liquid free environment.

Make sure that you plug your scale into the proper power outlet.

Plug into a power outlet 30 minutes before operations.

Keep the scale away from strong EMI noises may cause incorrect weight

readings.

If the scale is not properly

level, please adjust the 4 legs

at the bottom of the scale

(turn legs clockwise or

counterclockwise) so as to

center the bubble of the

leveling gauge inside the

indicated circle.

Leveling gauge

PREFACE

NAMES AND FUNCTIONS

Thank you for purchasing our CAS DL series.

These series have been designed with CAS reliability, under rigid quality control

and with outstanding performance. Your specialty departments can enjoy these

high quality reliable CAS products.

We believe that your needs will be satisfied and you will have reliability.

This manual will help you with proper operation and care of the DL series.

Please keep this handy for future reference.

OVERALL VIEW

PLATTER

LEVELING GAUGE

DISPLAY

KEYBOARD

ADJUSTING BOLT

DISPLAY AND KEYBOARD

CAL

ZERO TARE HI GO LO

PCS

OFF

ZERO TARE HOLD

OFF

ZERO TARE SET MODE

HOLD

INC

KEY FUNCTIONS

OFF

ZERO

TARE

HOLD

Turn on or off the display.

Used to set the zero point.

Used to enter a tare weight and used to cancel a tare weight.

If the weight is not stable, the display shows the average weight.

DESCRIPTIONSKEYS

INSTALLATIONS

1. Insert and fasten the bracket support assembly screws.

2. Connect the load cell wire and power line to head.

3. Insert the support cover into the support.

4. Insert and fasten the screws.

USING ADAPTOR Convert switch to AC 110V or 220V.

Use only adaptor DC 9V/300mA.

Connect the adaptor into AC outlet and

insert plug into the jack on the scale.

Press the ON/OFF key.

1. Power Source

USING BATTERIES

Prepare six pieces of DC 1.5V(CM) batteries.

Open the cover in the back of the scale and insert the batteries as shown in

Fig.1.

Close the cover and press the ON/OFF key then the scale is on.

If you have low battery, the display shows “Err-5” as Fig.2 and the scale is off

automatically.

OPERATIONS

Fig.1 Fig.2

Fig.3

ZERO

2. General Weighing

When the display is not zero though there is nothing on the platter, press the

ZERO key.

Place a commodity on the

platter. Remove the commodity

from the platter.

ZERO TARE

TARE

OFF

ZERO TARE HOLD

ZERO TARE

ZERO

OFF

ZERO TARE HOLD

3. Weighing with TARE

Tare is the weight of container being used for a commodity.

The TARE key subtracts the weight of the container.

4. HOLD Function

When the weight is not stable, press the HOLD key.

The display shows the “HOLd” and then average weight.

Place a container on the

platter. Press the TARE key.

Remove the commodity and

container from the platter. Press the TARE key.

Place a commodity in the

container.

OFF

ZERO TARE SET MODE

HOLD

INC

Auto power off function set

Initial display

Auto power off function reset

5. Auto Power Off

Auto-Power off function lengthen the battery life.

When you don’t operate the scale, this function makes the power OFF

automatically.

Turn off the scale.

While pressing the ZERO key, press the ON/OFF key then you will see the

display below.

6. Mode

While pressing the ON/OFF key, press the ZERO key to change the function.

If you want to use this function, set to YES.

While pressing the ON/OFF key, press the TARE key to go to normal mode.

If you don’t use the scale for more than 3 minutes, the scale is turned off

automatically.

If your scale has 6 keys, there are 5

modes.

(Reference How to Change Mode.)

KEY FUNCTIONS

SET

HOLD

INC

MODE

When the weight is not stable, the display will show average weight.

Used to increase the number to enter the limit value.

Used to save the limit value and select the mode.

Used to change the mode.

DESCRIPTIONSKEYS

How to Change Mode

If you want to use counting mode, press the MODE key until the display shows

“tyPE4” and then press the SET key.

Counting Mode

To count samples, you have to set the quantity.

Change the mode to counting mode and press the SET key.

Put 10 samples on the platter and press the SET key.

If the weight of sample is greater than the 0.5% of the full capacity, the counting

function will be performed. otherwise, the display will show “-----”.

The display will show “Put 20” or “Put 50” to request more samples if the loaded

weight is less than 0.5% of the full capacity.

Put 20 or 50 samples and press the SET key.

To perform counting function, the weight of 50 samples must be greater than 0.5%

of the full capacity.

PCS

Weighing mode (kg) Weighing mode (lb) Limit mode (kg)

Limit mode (lb) Counting mode
