Car-Interface RL4-MM-NP Manual de usuario
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Video inserter
RL4-MM-NP
Compatible with Opel vehicles with
Multimedia Navi Pro infotainment and 8inch monitor
Video-inserter for front- and rear-view camera
and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors –video interface
1.4. Settings of the 8 Dip switches (black)
1.4.1. Activating the front camera (dip 1)
1.4.2. Enabling the interface’s video inputs (dip 2-3)
1.4.3. Rear-view camera setting (dip 5)
1.4.4. Monitor selection (dip7-8)
1.5. Settings of the 4 Dip switches (CAN-BUS function –red)
2. Installation
2.1. Place of connection
2.2. Connection schema
2.3. Connection - picture signal cable
2.4. Connection –10pin PNP cable
2.4.1. Connection of the yellow line in case of faulty touch function or non-off-
switching of the video interface
2.5. Analog power supply for the video interface
2.6. Power supply output
2.7. Connection - video-sources
2.7.1. Audio insertion
2.7.2. After-market front camera
2.7.3. After-market rear-view camera
2.7.3.1. Case 1: Interface receives the reverse gear signal
2.7.3.2. Case 2: Interface does not receive the reverse gear signal
2.8. Connection - video-interface and external keypad
2.9. Picture settings
3. Interface operation
3.1. By factory infotainment button
3.2. By keypad
4. Specifications
5. FAQ –Trouble Shooting-Interface functions
6. Technical support
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
video interface’s place of installation must be free of moisture and away from heat sources.
Before the final installation in the vehicle of the video sources, we recommend a test-run
to ensure the compatibility of vehicle and interface. Due to changes in the production of
the vehicle manufacturer there’s always a possibility of incompatibility.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page4
Requirements
Brand
Compatible vehicles
Compatible systems
Opel
Insignia B since 06/2018
Multimedia Navi Pro with 8inch monitor
Limitations:
Video only The interface inserts ONLY video signals into the infotainment.
For inserting Audio signals either the possibly existing factory
audio-AUX-input or a FM-modulator can be used. If 2 audio
sources shall be connected to the infotainment, an additional
electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-
view camera is only possible while the reverse gear is engaged. To
delay the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds
after disengaging the reverse gear. A manually front camera
switching is possible by external keypad.
Video input signal NTSC video sources compatible only.
1.2. Checking the compatibility of vehicle and accessories
1.3. Boxes and connectors –video interface
The video-interface converts the connected after-market sources video signals into a LVDS
signal which is inserted in the factory monitor using separate trigger options. Further it reads
the vehicle’s digital signals out of the vehicle’s CAN-BUS and converts them for the video
interface.
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page5
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the dip-switches on the
video interface.
Dip position down = ON and position up = OFF.
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
See the following chapters for detailed information.
After each Dip-switch-change a power-reset of the video interface has to be performed!
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled*
disabled
Power supply output
(red wire)
+12V (max. 3A) when
reverse gear is engaged incl.
10 seconds delay and +12V
by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS Video 1-input
enabled
disabled
3
CVBS Video 2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
set to OFF
7
Monitor selection
set to OFF
8
Monitor selection
set to OFF
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page6
1.4.1. Adjustment –power supply output (dip 1)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear, depending on the menu
adjustments. In addition, a manual switch-over to the front camera input is possible via
keypad (short press) from any image mode.
Description of the power supply output: see chapter “Power supply output”.
1.4.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed by switching through the interface’s video
sources. It is recommended to enable only the required inputs. So the disabled inputs will be
skipped while switching through the video interfaces inputs.
1.4.3. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
1.4.4. Monitor selection (dip 7 and 8))
Dip switch setting of dip7= OFF
Dip switch setting of dip8= OFF
Note: Dip4 and dip6 are out of function and have to be set to OFF!

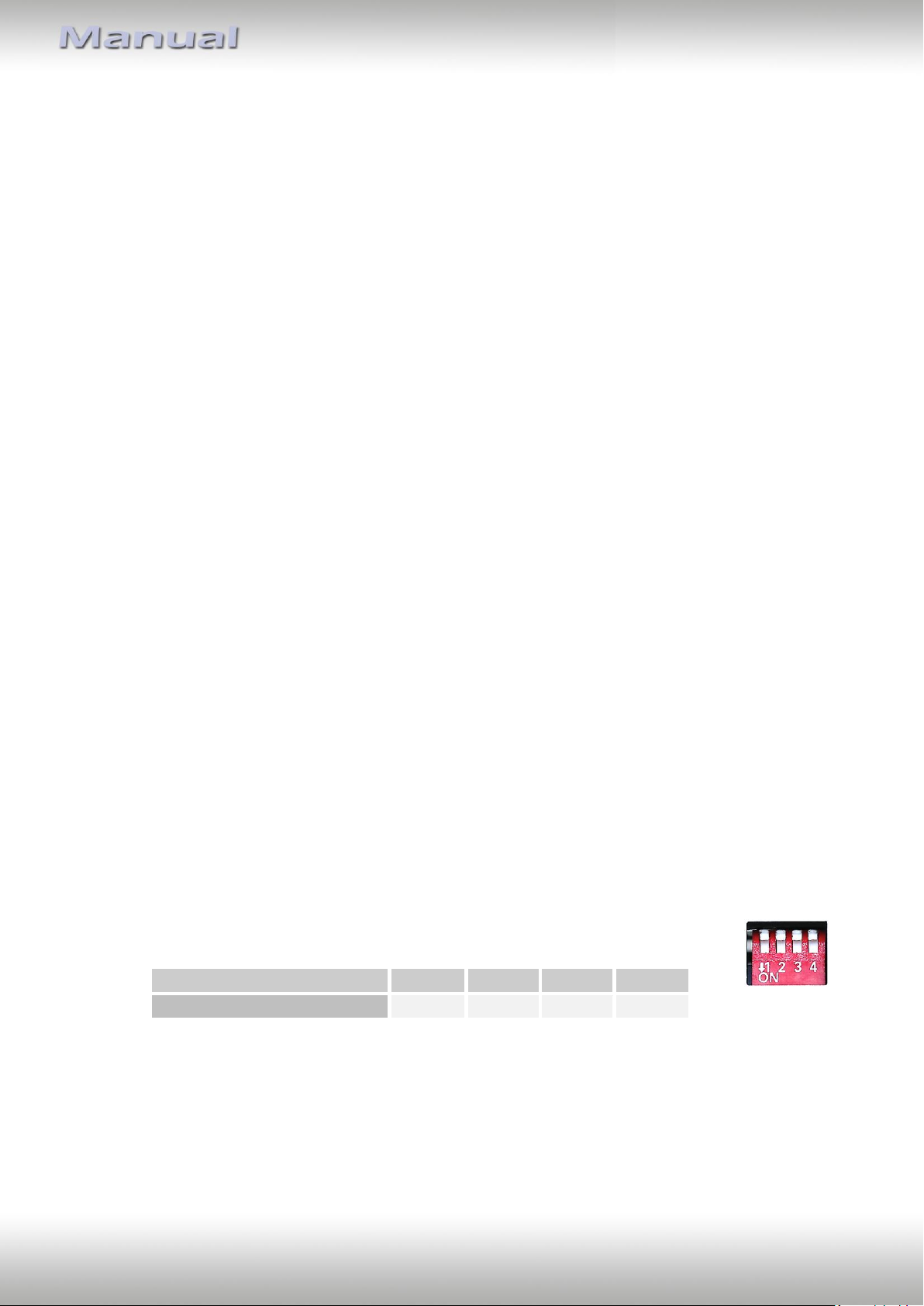

1.5. Settings of the 4 Dip switches (CAN-BUS function –red)
All 4 dip-switches of the video interface have no function for normal use and have to be set
to OFF.
Dip position down is ON and position up is OFF.
Vehicle/Navigation
Dip 1
Dip 2
Dip 3
Dip 4
All vehicles
OFF
OFF
OFF
OFF
After each Dip-switch-change a power-reset of the video interface has to be performed!
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page7
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
As with any installation of retrofit equipment, a stand-by test is neccessary after the
installation of the video interface, to ensure that the unit also switches off after reaching
the vehicle‘s sleep mode.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
2.1. Place of connection
The interface has to be connected at the factory head-unit.
The factory head unit in the Insignia-B with 8inch monitor is located in the passenger
footwell on the right side under the glove compartment.
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page8
2.2. Connection schema
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page9
2.3. Connection –picture signal cable
Remove the head unit
Disconnect the factory picture signal cable’s female 12pin connector at the rear-side of the
head unit and connect it to the grey coloured 12pin connector of the enclosed picture signal
cable.
Connect the opposite grey coloured female 12pin connector of the enclosed picture signal
cable to the head unit’s previously become free male 12pin connector.
Connect the picture signal cable’s female waterblue coloured HSD+2 connector to the
bordeaux coloured male HSD+2 connector of the video interface.
Note: The colours of the head unit’s and factory harness’s male and female 12pin
connectors may vary.
Version 12.04.2023 HW:CAM(V100)/(V20+V41) + CAM(V100)/(V21+V41.3) RL4-MM-NP
Page10
2.4. Connection –10pin PNP cable
Connect the 10pin PNP cable’s female 10pin connector to the 10pin connector of the
video interface.
Disconnect both female 28pin connectors of the factory harness at the rear side of the
head unit and connect it to the male grey coloured 28pin connectors of the 10pin PNP
cable.
Connect the 10pin PNP cable’s opposite female grey coloured 28pin connectors both to
the head unit’s previously become free male 28pin connectors.
