Car-Interface CI-RL3-CIC Manual de usuario

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

r.LiNK Video-inserter

CI-RL3-CIC

Compatible with BMW vehicles with

Business/Professional CIC-E and CIC-F series

navigation systems or radios with colour display

and 4pin HSD LVDS monitor plug

Video-inserter for rear-view camera

and 2 additional video sources

Product Features

Video-Inserter for factory-infotainment systems

1 Rear-view camera CVBS Input

2 CVBS Video Inputs for After-Market Devices (e.g. DVD-Player, DVD-Tuner)

Automatic Switching to rear view camera input by engagement of reverse gear

Activatable parking guide lines for rear-view camera (not available for all vehicles)

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC / Pal compatible

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Connectors - Video-Interface

1.4. Settings of the 8 Dip switches (black)

1.4.1. Enabling the interface’s video inputs (dip 2-3)

1.4.2. Rear-view camera setting (dip 5)

1.4.3. Activation of the Interface PDC Graphic (Dip 7)

1.4.4. Monitor selection (dip 8)

1.5. Settings of the 4 Dip switches (CAN function –red)

2. Installation

2.1. Place of installation

2.2. Connection schema

2.3. Connections –factory monitor

2.3.1. Picture signal cable

2.3.2. 8pin PNP cable

2.4. Analog power supply for the video interface

2.5. Connection - video sources

2.5.1. Audio insertion

2.5.2. After-market rear-view camera

2.5.2.1. Case 1: Video-interface receives the reverse gear signal

2.5.2.2. Case 2: Video interface does not receive the reverse gear signal

2.6. Connection video-interface - external keypad

2.7. Picture settings and guide lines

3. Interface operation

3.1. By I-Drive buttons

3.2. By external keypad

4. Specifications

5. FAQ –Trouble shooting

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. If

available, we offer free software-updates for our interfaces for one year after purchase. To

receive a free update, the interface must be sent in at own cost. Labor cost for and other

expenses involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

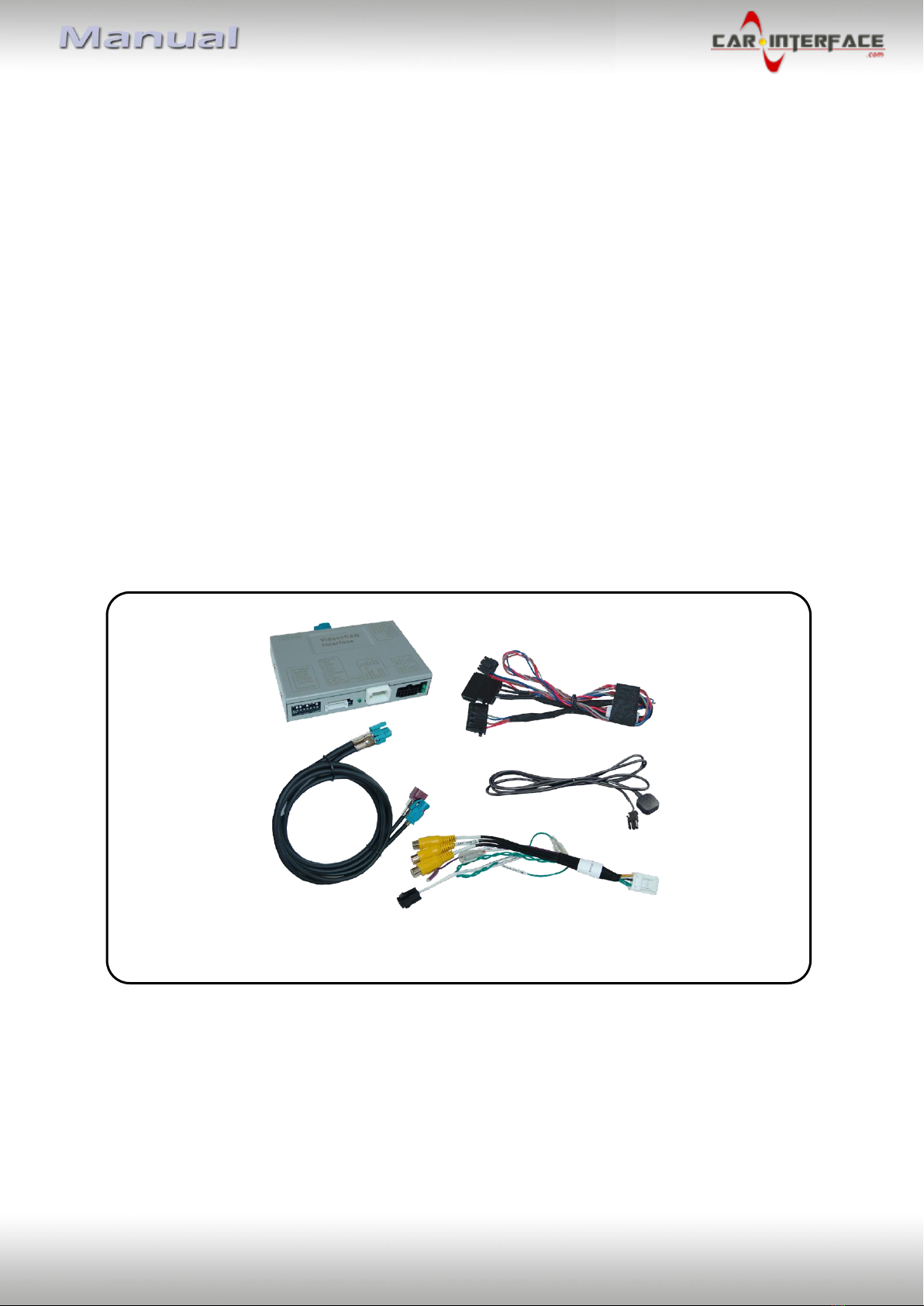

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page4

Requirements

Brand

Model

Navigation

BMW

1series (E87), 3series (E90/91/92),

5series (E60/E61/F10/F11),

6series (E63/F12/F13/F14), 7series (F01/02),

GT5 (F07), X1 (E84), X3 (F25), X5 (E70),

X6 (E71),

mentioned F-series vehicles only til approx

06/2012

Do not use for convertables 1series (E88),

3series (E93), 6series (E64), Z4 (E89)!

Professional navigation CIC,

Business navigation M-ASK,

radio CHAMP -

E+F-series

6.5 inch

8.8 inch,

and 10.25 inch monitors

Mini

Vehicles from about 09/2010 up to 12/2015

Do not use for convertables R57!

Professional Navigation CIC

or Radio Visual Boost - 6.5"

monitor

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For inserting Audio signals either the possibly existing factory

audio-AUX-input or a FM-modulator can be used. If 2 audio

sources shall be connected to the infotainment, an additional

electronic is necessary to switch them.

Factory rear-view camera Automatic switch-back from inserted video to factory rear-view

camera only while reverse gear is engaged. To delay the switch-

back time, additional electronics is required.

Guidelines If the video interface does not receive the required information

from the vehicle CAN-bus, guide-lines will not be supported.

1.2. Checking the compatibility of vehicle and accessories

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page5

1.3. Connectors - Video-Interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

1.4. Settings of the 8 dip switches (black)

Some settings must be selected by the dip-switches on the

video-interface. Dip position down is ON and position up is OFF.

*If the PDC graphic is not shown laterally on some vehicles, but only offset in the middle of

the display, this cannot be adjusted. If necessary, deactivate the PDC function via Dip-7.

See the following chapters for detailed information.

After each Dip-switch-change a power-reset of the Interface-box has to be performed!

Dip

Function

ON (down)

OFF (up)

No Function

Set OFF

Video 1

enabled

disabled

Video 2

enabled

disabled

No Function

set to OFF

Rear-view cam type

After-Market

Factory or none

No Function

set to OFF

PDC*

enabled

disabled

Monitor selection

6.5 inch

8.8 + 10.25inch

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page6

1.4.1. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface’s video

sources. It`s recommended to enable only the required inputs, for the disabled will be

skipped when switching through the video interfaces inputs.

1.4.2. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged

to display a factory rear-view camera or a factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input „Camera-IN“ while the

reverse gear is engaged.

1.4.3. Activation of the factory Interface PDC Graphic (Dip 7)

Dip 7 is used to display the interface PDC graphic as „picture in picture“ in combination with

the camera image. If the PDC graphic is not shown laterally on some vehicles, but only offset

in the middle of the display, the position cannot be adjusted.

If necessary, deactivate the PDC function via Dip-7.

1.4.4. Monitor selection (dip 8)

Dip 8 is for monitor-specific video settings.

Note: Dips 1, 4 and 6 are out of function and have to be set to OFF.

After each Dip-switch-change a power-reset of the Interface-box has to be performed!

1.5. Settings of the 4 Dip switches (CAN functions –red)

Dip position down is ON and position up is OFF.

Vehicle/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

All vehicles

OFF

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page7

2. Installation

Switch off the ignition and disconnect the vehicle’s battery! The interface needs a

permanent 12V source. If -according to factory rules- a disconnection of the battery has to

be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode

doesn’t succeed, the battery has to be disconnected with a resistor lead.

The Interface needs a permanent power supply! If power isn’t directly taken from the

battery, the connection’s power has to be checked for being start-up proven and

permanent.

Before the final installation, we recommend a test-run of the interface. Due to changes in

the production of the vehicle manufacturer, there’s always the possibility of

incompatibility.

2.1. Place of installation

The interface is installed on the factory monitor’s backside.

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page8

2.2. Connection Scheme

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page9

2.3. Connections - factory monitor

Remove the factory monitor.

2.3.1. Picture signal cable

Connect the female 4+2pin HSD connector of picture signal cable to the male

4+2pin HSD connector of the video interface.

Disconnect the female 4pin HSD connector at the rear-side of the factory monitor

and connect it to the picture signal cable’s male 4pin HSD connector.

Connect the picture signal cable’s female 4pin connector to the male 4pin HSD

connector of the head-unit.

Note: If the originalHSD picture signal cable of the vehicle harness is too short for the

installation, an HSD extension can be ordered separately with item number CAB-HSD-MF100.

Version 27.04.2021 HW CAM(V100)/(V20) CI-RL3-CIC

Page10

2.3.2. 8pin PNP cable

Connect the 8pin PNP cable’s female 10pin connector to the 10pin connector of the video

interface

Remove the female 8pin connector of the factory harness at the monitor’s rear-side and

connect it to the male 8pin connector of the 8pin PNP harness.

Connect the female 8pin connector to the monitor’s previously become free 8pin connector.

If, after connecting the PNP harness, no interface LED lightens up while the ignition is

turned on, the single red wire ACC-out (max 3A) and the purple coloured wire Manual ACC

of the 12pin interface cable both have to be connected additionately to S-contact terminal

86s +12V e.g. glove compartment illumination (refer to “Analogue power supply fot the

video interface).
