AVAILABLE AIR ASSIST AIRLESS ORIFICES

PART NO. ORIFICE SIZE SPRAY ANGLE

(DEGREES)

APPROX.

PATTERN SIZE PART NO. ORIFICE SIZE SPRAY ANGLE

(DEGREES)

APPROX.

PATTERN SIZE

36-207 0.007 20 4" 36-315 0.015 30 6"

36-309 0.009 30 6" 36-415 0.015 40 8"

36-409 0.009 40 8" 36-515 0.015 50 10"

36-311 0.011 30 6" 36-615 0.015 60 12"

36-411 0.011 40 8" 36-715 0.015 70 14"

36-511 0.011 50 10" 36-815 0.015 80 16"

36-213 0.013 20 4" 36-417 0.017 40 8"

36-313 0.013 30 6" 36-517 0.017 50 10"

36-413 0.013 40 8" 36-619 0.019 60 12"

36-513 0.013 50 10" 36-621 0.021 60 12"

36-613 0.013 60 12"

Coating Atomization Technologies 337 South Arthur Avenue, Louisville CO 80027 Phone: 888.820.4498, Fax: 303.438.5708

www.spraycat.com

CougarCougar

Cougar

AIR ASSIST AIRLESS SPRAY GUN

PRODUCT INFORMATION

Operation and Maintenance Instructions for

CougarCougar

Cougar

Spray Guns

Operation

1. Connect air supply hose at handle of gun.

2. Connect material supply hose from pump to the gun fluid inlet.

3. The fluid shut-off knob locks the trigger and prevents gun operation when turned clockwise as far as possible.

4. Maximum pattern width is determined by tip selection. Turning the fan control knob counter clockwise will narrow the

fan. Pattern is maximum when fan control is completely closed.

5. For HVLP compliance, do not exceed 15 psi air pressure at gun handle.

MAINTENANCE NOTE:

- Complete gun disassembly is not recommended for normal cleaning and maintenance.

IMPORTANT! Relieve gun fluid pressure to 0 psi before performing any maintenance.

10-113 Complete Gun Repair Kit

10-127 Gun Repair Kit (soft seals only)

Replacing needle cartridge assembly

1. Remove the trigger by removing both trigger screws (17).

2. Remove fluid control knob (27) by turning counter clockwise. Remove return spring (25) and spring seat (26).

3. Using a 5/8” open end wrench or socket, remove rear bushing (16). Gasket (15) can be reused.

4. Using a 3/8” wrench remove the needle seal body (27). The needle seal cartridge (27) can be removed through the

back of the gun.

5. When replacing spring seat, the long end goes inside spring for operating pressures below 1000 PSI. For operating

pressures above 1000 PSI, the short end of the spring seat goes into the spring.

Replacing gun seat

1. Remove air cap (11) and tip (12). Using 1/2” socket, remove fluid nozzle body (1).

2. Using an 1/8” rod, push both the seat (2) and seat retainer (3) out of the nozzle body.

Replacing gun filter

1. Using a 3/4” open end wrench, remove filter retainer nut (33) and separate the upper and lower filter housings

exposing the filter. It is not necessary to disconnect the fluid hose to change the filter. NOTE: The gun is equipped

with a 100 mesh filter as standard. 60 mesh filters are also available.

DISTRIBUTED BY COATING EQUIPMENT TECHNOLOGY, INC

PHONE: 586-210-0555

WEB: www.cetinc.com

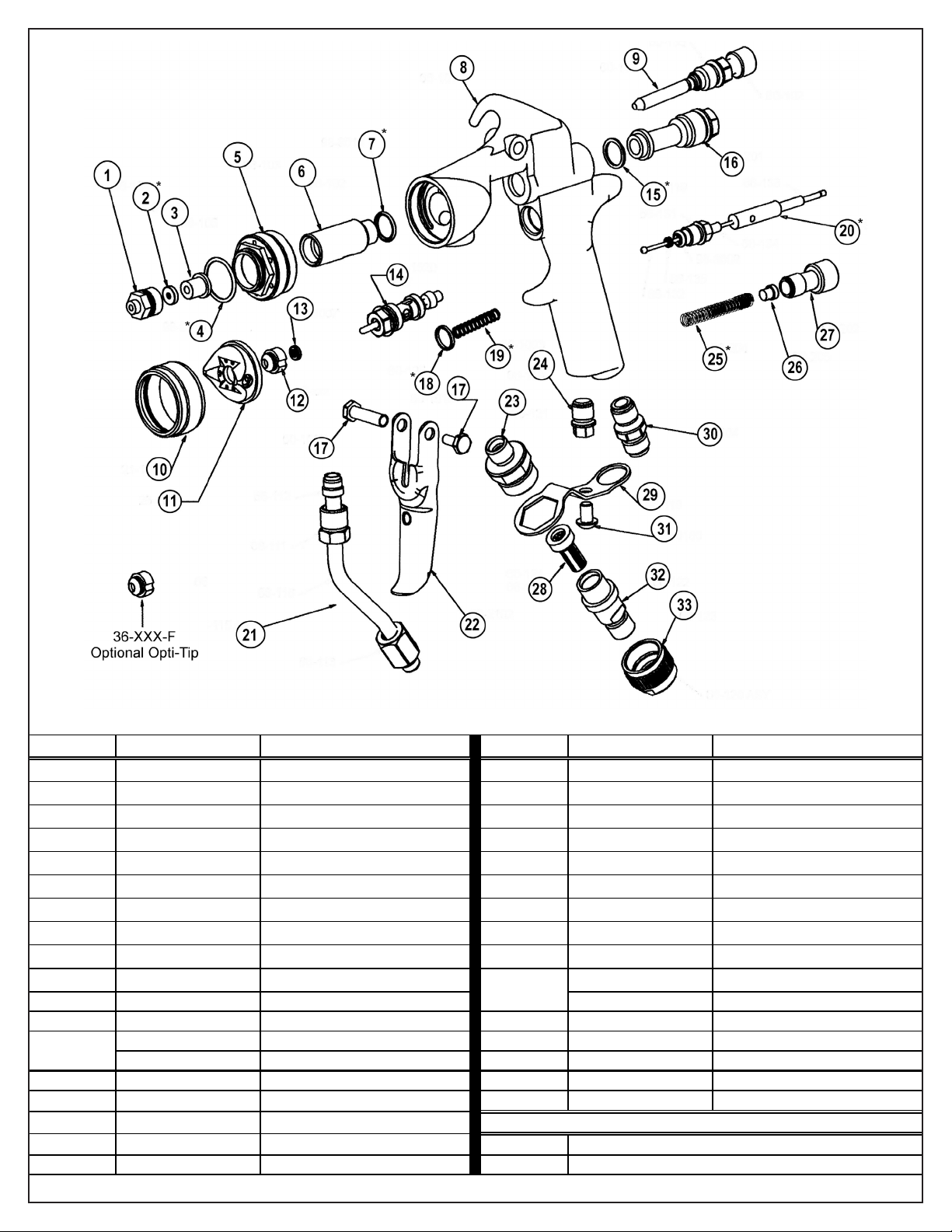

ITEM NO. PART NO. DESCRIPT ION ITEM NO. PART NO. DESCRIPT ION

1 66-104 Nozzle Body 19 61-1003 Air Valve Spring

2 66-105 Seat 20 66-130 Needle Seal Cartridge**

3 66-110 Seat Retainer 21 66-115 Fluid Tube Assembly

4 98-8019 O-Ring* 22 60-2102 Trigger

5 66-103 Air Cap Adapter 23 66-121 Upper Filter Housing

6 66-102 Nozzle Carrier 24 66-119 Handle Plug

7 98-8014 O-Ring* 25 60-208 Spring

8 66-101 Gun Body 26 66-137 Spring Seat

9 60-1505 Fan Control 27 60-202 Fluid Control Knob

10 21-1001 Air Cap Ring 66-125 Filter (100 mesh standard)

11 26-101 Air Cap 66-124 Filter (60 mesh optional)

12 36-XXX Fluid Tip 29 66-118 Bracket

98-8007 O-Ring* 30 60-104 Air Inlet

36-100 Tip Strainer (Optional) 31 98-0186 Screw

14 60-1520 Air Valve 32 66-122 Filter Housing, Low er

15 60-119 Gasket 33 66-123 Filter Retaining Nut

16 60-201 Rear Bushing

17 60-1033 Trigger Pivot Assembly 10-127 Gun Repair Kit (soft seals only)

18 60-125 Air Valve Gasket 10-113

Re pair Kit s

Repair Kit

*Included in repair kit # 10-113

Revised 3/20/14

20 40 60

1500 PSI FLUID (107 PSI AIR)

1000 PSI FLUID (72 PSI AIR)

350 PSI FLUID (25 PSI AIR)

SCFM

13 26 39

C14 AAA Pump Air Consumption

Gun Air Consumption

CougarCougar

Cougar

10 20 30

SCFM

Gun Regulator Pressure - PSI

*Max pressure for HVLP

Pump Speed - Cycles per minute

Pump Output - Ounces per minute

Compressed Air Requirements

Minimum compressor size will vary with the application. Air requirements for the gun and pump must be added together for total air

requirements.

Example: Gun Regulator Setting 25 psi, scfm = 3.5

Pump fluid pressure is 1000 psi and cycle rate is 30, scfm = 1.75

Minimum compressor requirement: 3.5+1.75 = 5.25 scfm

Fluid Tip Flow Rate Chart (Fluid oz/min.)

Tip Size Light

Materials

Heavy

Materials

Light

Materials

Heavy

Materials

Light

Materials

Heavy

Materials

Light

Materials

Heavy

Materials

0.007 3 --- 4 --- 5 --- 6 ---

0.009 5 --- 8 --- 9 --- 11 ---

0.011 8 --- 11 --- 13 --- 16 ---

0.013 10 --- 14 --- 17 --- 21 ---

0.015 13 --- 18 --- 22 --- 27 ---

0.0171713241829223527

0.0192116302336274433

0.0212721382945355643

Note: Values are approximate and will vary depending on actual material viscosity.

Pressure (psig)

350 700 1000 1500
