C.A. Technologies Panther 200C Manual de usuario
CONVENTIONAL AIR CAP AND FLUID NOZZLE CHART
MODEL
NO. AIR CAPS Press /
Siphon
*SUGGESTED
GUN INLET
PRESS.
FAN
CONTROL SCFM AIR CAP
RING
AVAI LABLE FLUI D
NOZZLES
NEEDLES /
marking on needle
22-2030 siphon 50 12
22-2058 p & s 40 6 32-0611 1.1mm (.042") 40-1211 (211)
22-2080 siphon 60 14 32-0614 1.4mm (.055") 40-1214 (214)
22-2062** pressure 80 19 32-0618 1.8mm (.070") 40-1218 (218)
22-2064** pressure 80 22 32-0618V 1.8mm (.070") 40-5301
22-2704 pressure 70 21 32-0818 1.8mm (.070")
22-2765 pressure 80 22 32-0622 2.2mm (.086")
22-2777 pressure 70 23 32-0622V 2.2mm (.086") 40-5301
22-2797 pressure 70 21 32-0628 2.8mm (.110") 40-1228 (228)
22-2880 siphon 60 15 included 32-0628V 2.8mm (.110") 40-5301
22-2900 siphon 45 12 22-1001
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Gun inlet pressures may vary as required by application
**Air caps available with teflon coating (22-2062T & 22-2064T)
40-1222 (222)
P200C 60-1500
included
22-1001
Panther 200CPanther 200C
Panther 200CPanther 200C
Panther 200C
PRESSURE/SIPHON FEED SPRAY GUN
PRODUCT INFORMATION
Coating Atomization Technologies 337 South Arthur Avenue, Louisville CO 80027 Phone: 888.820.4498, Fax: 303.438.5708
www.spraycat.com
Operation and Maintenance Instructions for
PP
PP
P200C200C
200C200C
200C
Spray Guns
Operation
1. Connect air supply hose at handle of gun.
2. Connect a pressurized fluid supply or paint siphon cup to the gun fluid inlet.
3. Fluid flow can be controlled using the fluid control knob, this restricts flow by limiting needle travel. It is best to control
fluid flow by proper selection of fluid orifice size and use the fluid control knob to “fine tune flow rate”.
4. Fan width can be adjusted using the fan control knob. Turning the knob clockwise narrows the fan.
Maintenance
IMPORTANT! Routine cleaning and maintenance is essential to insure proper gun operation.
Several states prohibit spraying solvent into the atmosphere and require the use of covered gun cleaner.
1. If a gun cleaner is being used, connect and clean the gun in the gun cleaner according to the manufactures
instructions.
2. If a gun cleaner is not being used:
Remove air cap and clean separately using clean solvent.
For pressure setups, connect a pressurized solvent supply to the fluid inlet, trigger the gun allowing solvent to flow
thru the gun until clean.
For siphon setups, first clean the siphon cup thoroughly then spray clean solvent thru the gun until clean.
NOTE: Gun head disassembly is not recommended for normal cleaning and maintenance.
Gun head disassembly and reassembly instructions:
Have repair kit # 10-110 available before gun disassembly.
Gun head disassembly
To remove the nozzle carrier (5) and air cap adapter (6):
1. Remove the air cap (1), fluid nozzle tip (2), fluid nozzle body (3), and needle (13).
2. Remove the needle seal cartridge (23).
3. Loosen the locknut (9) and remove fluid inlet (10) using a 5/8” open-end wrench.
4. The nozzle carrier (5) and air cap adapter (6) will now slide forward from the gun body (11).
Gun head reassembly
1. Install a new o-ring (7) on the air cap adapter (6).
2. Install o-ring (4) between fluid nozzle body (3) and fluid nozzle carrier (5).
3. Install the thread locknut (9) onto the fluid inlet (10) as far as possible.
4. Install a new fluid inlet seal (8) into the recess area on the nozzle carrier (5) inlet port.
5. Slide the nozzle carrier (5) into air cap adapter (6) and insert into the gun body (11) as far as possible. Be sure the
nozzle carrier (5) extends into the hole at the back of the gun head. Install the needle seal (23) but do not tighten.
6. Rotate the nozzle carrier (5) until the fluid inlet port in the nozzle carrier (5) is aligned with the threaded hole in the
body. While in this position, insert the fluid inlet (10) and tighten firmly.
7. Tighten the needle seal (23) to approx. 12 ft.-lb. torque.
8. Tighten the fluid inlet (10) to approx. 25 ft.-lb. torque.
9. Tighten the locknut (9) to approx. 33 ft.-lb. torque.

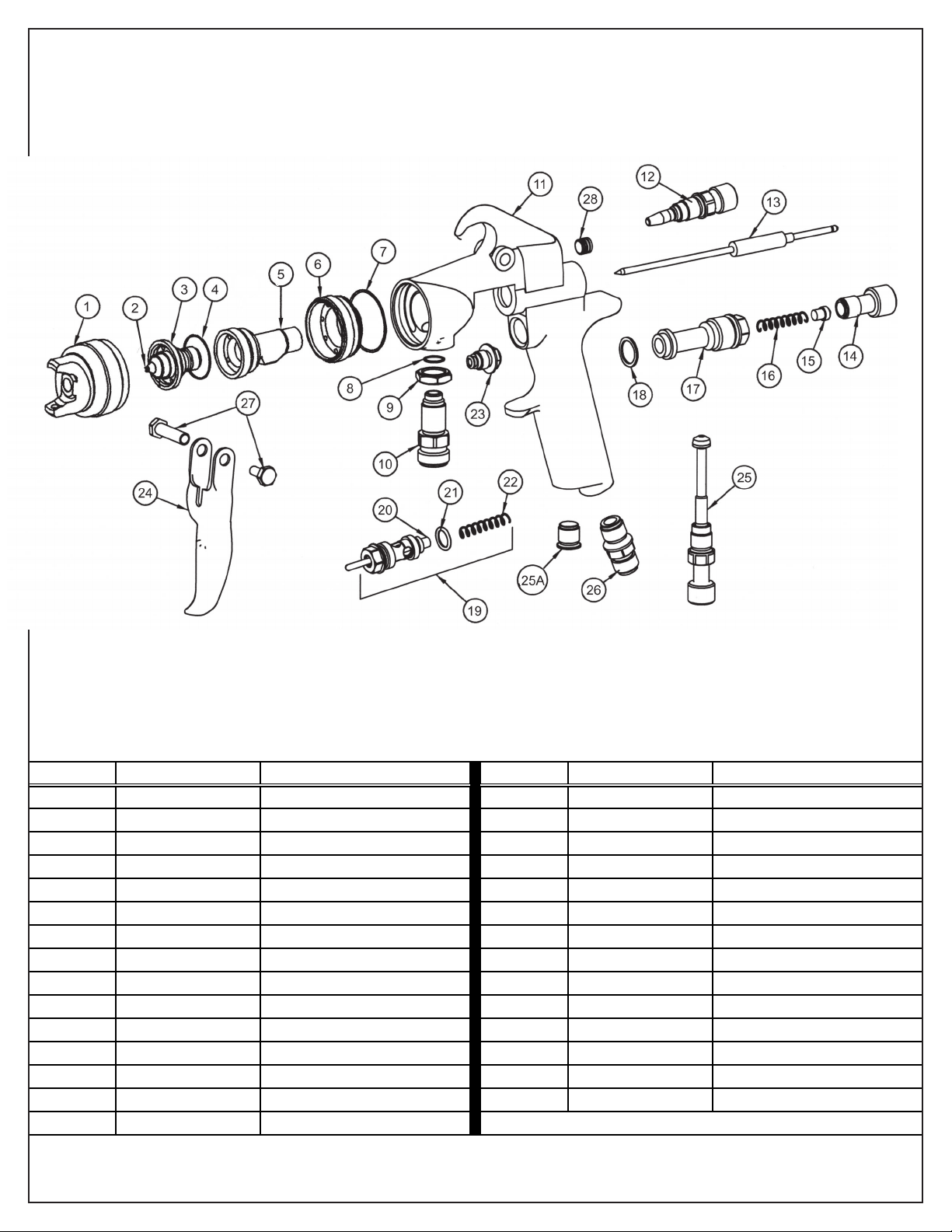

ITEM NO. PART NO. DESCRIPT ION ITEM NO. PART NO. DESCRIPT ION
1 See Air Cap Chart Air Cap** 16 60-206 Needle Return Spring (HD)*
2 See Air Cap Chart Fluid Nozzle Tip** 17 60-201 Rear Bushing
3 32-2201 Fluid Nozzle Body 18 60-119 Seal*
4 98-8020 Gasket* 19 60-1520 Air Valve Assembly
5 60-L21C Nozzle Carrier 20 60-302 Air Valve Poppet
6 60-22 Air Cap Adapter 21 60-125 O-Ring*
7 60-131 O-Ring* 22 61-1003 Air Valve Spring*
8 60-124 Fluid Inlet Seal 23 60-1400 Needle Seal Cartridge*
9 60-128 Locknut 24 60-2101 Trigger
10 60-126 Fluid Inlet Fitting 25 60-1510 Air Control
11 60-1125 Panther Gun Body Conventional 25A 60-122 Plug (optional)
12 See Air Cap Chart Fan Control Assembly** 26 60-104 Air Inlet Fitting
13 See Air Cap Chart Fluid Needle** 27 60-1033 Trigger Pivot Set
14 60-202 Fluid Control Knob 28 98-0109 Allen Plug
15 60-209 Spring Seat*
**See air cap selection chart on page 1
*Indicates part included in repair kit # 10-110
*
*
*
*
*
*
*
**
P200C CONVENTIONAL SPRAY GUN
MATERIAL TYPE FLUID ORIFICE x
AI R C AP
MAXIMUM
PATTERN WIDTH PRESS. / SIPHON
Very Thin
less than 16 sec. Zahn #2
inks , dyes,
solvents, stains
Thin
16 to 20 sec. Zahn #2
lacquers, enamels,
primers, sealers
Medium
21 to 30 sec. Zahn #2
automotive base coat
enamels, primers
epoxies, urethanes
automotive clear coat
Heavy
over 30 sec. Zahn #2
heavy body primers
high solid enamels
high solid automotive coatings
adhesives
FLUID NOZZLE / AIR CAP SELECTION CHARTS
PANTHER Series 200C - Pressure / Siphon Feed Guns
1.1 mm x 2058
1.1 mm x 2030
9
10
P/S
S
1.8mm x 2765
1.8mm x 2797
2.2 mm x 2880
2.2 mm x 2064
15
17
13
14
P
P
S
P
1.1, 1.4 mm x 2058
1.1, 1.4 mm x 2030
1.1, 1.4 mm x 2900
9
10
10
P/S
S
S
1.4, 1.8 mm x 2080
1.4, 1.8 mm x 2704
1.4, 1.8 mm x 2765
1.4, 1.8 mm x 2777
1.4, 1.8 mm x 2797
1.4, 1.8 mm x 2900
13
12
15
14
17
10
S
P
P
P
P
S
Revised 3/18/14
