Hardware User’s Manual
Megapixel Day & Night
Vandal Dome Network Camera
VD-E400Af
Table of Contents
Before You Use This Product .......................................................................................1
Regulatory Information.................................................................................................2
Chapter 1 - Package Contents......................................................................................3
Chapter 2 - Vandal Dome Network Camera Overview ................................................4
Chapter 3 - Device Appearance Description ...............................................................5
Chapter 4 - LED Behavior .............................................................................................6
Chapter 5 - Installation..................................................................................................6
5.1 Hardware Installation..........................................................................................6
5.2 Camera Connection............................................................................................8
5.3 System Requirements........................................................................................9
5.4 Software Installation .........................................................................................10
5.4.1 EasyConfig............................................................................................ 13
1
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network
Camera, carefully read and follow the instructions in the “Installation” chapters to avoid
damages due to faulty assembly or installation.
2
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
3
Chapter 1 - Package Contents
a. Network Camera
b. Location Sticker
c. Product CD
d. Warranty Card
e. Easy Installation Guide
f. Screw Bag,
g. Wall-Mount Bracket: VDMD-B-WALL (Optional)
h. High Power PoE (Optional)
(Please refer to bottom message)
Waterproof connector
The product is intended to be supplied by a Listed Power Unit marked “L.P.S”(or “Limited Power Source”) and rated
output 24V AC, 50/60 Hz, 0.7A minimum or 12V DC, 1A minimum or 48V DC, 0.25A minimum”
“The product shall be installed by a qualified service person and the installation shall conform to all local codes”
“The product is to be connected to only PoE networks without routing to the outside plant
4
Chapter 2 - Vandal Dome Network Camera
Overview
The VD-E400Af vandal dome network camera features the 4-megapixel CMOS sensor,
IR-cut filter, IR LEDs, auto light sensor, and is designed to provide the 24-hour indoor
and outdoor surveillance.
The VD-E400Af is designed to provide the high-quality video feed for security system.
The embedded high-performance image sensor and CPU allow the camera to stream
the real-time, high-resolution video at 30 fps. The camera supports many video codecs,
including MJPEG and H.264. H.264 can reduce the bandwidth and storage
requirements without compromising the video quality.
Installation is simplified with the support for Power over Ethernet (PoE), which enables
the camera to receive power and transmit data through the same cable. The camera's
vandal-proof enclosure protects itself from damage caused by vandalism or harsh
environments. With the IP66-certified enclosure, the VD-E400Af is not only water
resistant, but also dust and rust resistant.
The included EasyConfig software offers the users the easy installation without the
need for a strong technical background. The design makes the VD-E400Af the
perfect security camera for the school, retail stores, or restaurant surveillance system.
5

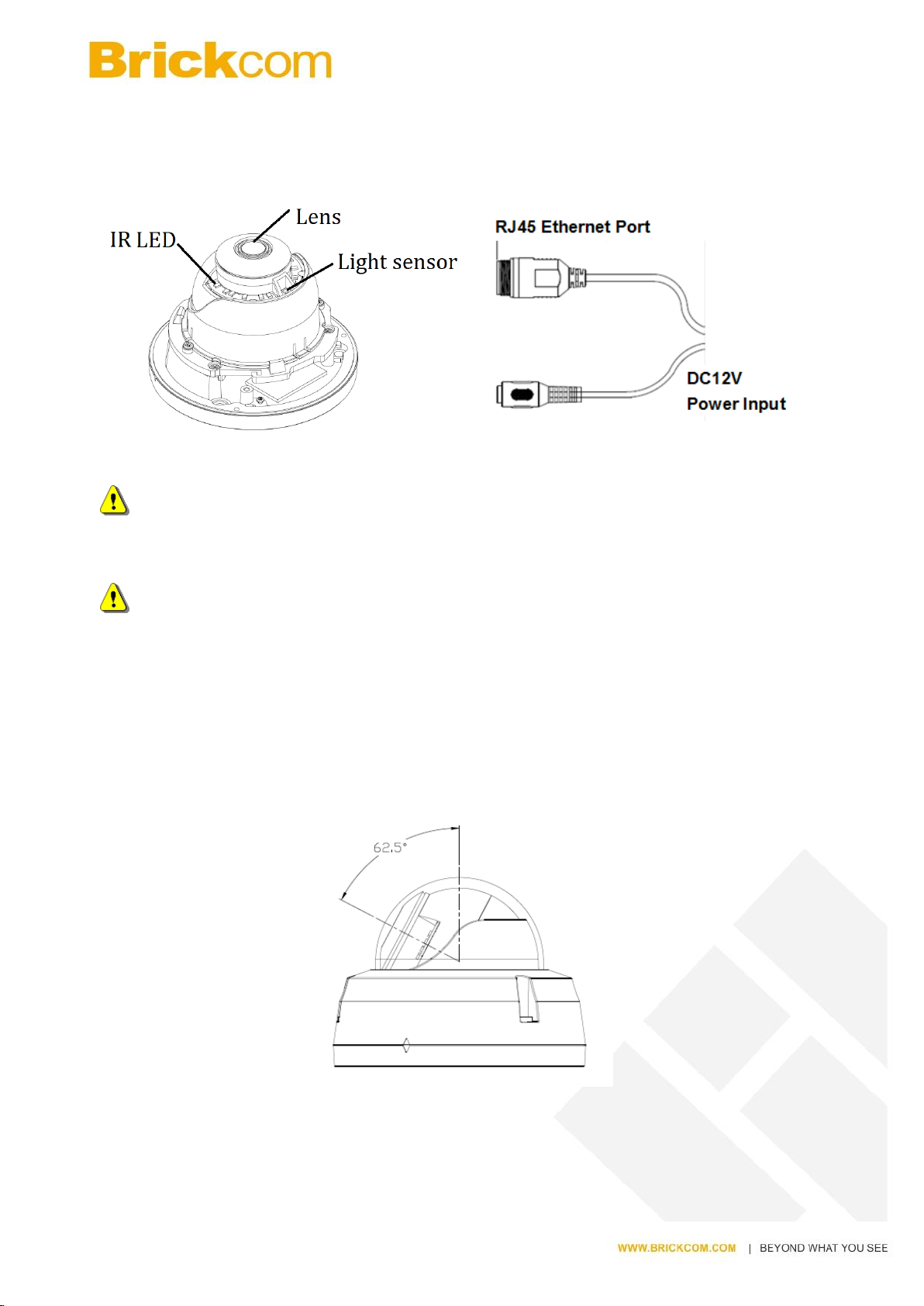

Chapter 3 - Device Appearance Description
NOTE- Before installing, please make sure all the IR LED are NOT been
covered or it will cause refraction.
NOTE- To avoid damaging inner cables, please avoid turning around the
rotation set over 3 laps.
<Rotation Limitation>
Please adjust VD-E400Af Series lens+LEDs in 62.5 degree as picture bellowed for
better optical performance and surveillances.
6
Chapter 4 - LED Behavior
Function
LED Behavior
Description
Ethernet Link
Continuous illumination (Green)
Ethernet Connected
Data Link
Blinking (Orange)
Data Transmitting
Chapter 5 - Installation
5.1 Hardware Installation
a. Use the enclosed Allen key to detach the dome cover from the camera device.
b. Put the three waterproof rubbers which are provided in the product package into the
location holes.
c. Hammer the three plastic anchors which are provided in the product package into the
three location holes. The user needs the three screws which are included in the product
package and a screwdriver. Mount the camera on the wall or ceiling and position the
three screw slots over the plastic anchors. Insert the screws into the holes and use the
screwdriver to tighten the screws clockwise until they are secure.
(* Please make sure the three location holes are tightly sealed for better waterproof
function)
7
<Hardware Reset >
The Reset Button can be used to restore the camera to factory default settings. If the
camera experiences a problem, rebooting the camera may correct the problem. If the
problem remains, please restore the camera to factory default settings and set it up
again.
To Reset
Press and hold the Reset Button for more than 10 seconds using a paper clip or thin
object. Wait for the camera to reset to default.
NOTE - By resetting the camera, all settings will be restored to the factory default
settings.
8
5.2 Camera Connection
The VD-E400Af is DC12V and PoE compliant, so there are two options for connecting the
camera to a power and Ethernet source. The camera can either be connected to a PoE-enabled
switch or a non-PoE switch.
a. If using a PoE-enabled switch:
Use a single Ethernet cable to connect the camera to the PoE-enabled switch.
b. If using a non-PoE switch:
i. Use a standard RJ-45 cable to connect the camera to a PoE Injector.
ii. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.
iii. Use a standard power cable to connect the PoE Injector to a power outlet.
c. If using the DC12V power supply. The RJ45 Ethernet cable will be for
data transmission only.
