Brickcom OSD-040 36x Series Manual de usuario

36x Outdoor Speed Dome

Network Camera

OSD-040 36x Series

Mounting Accessories

Installation Guide

Quality Service Group

Speed Dome Package Content

a. Speed Dome Camera

b. Mount Kit

c. I/O Cable

d. Waterproof Rubber

e. Warranty Card

f. M5 Screw

g. Dome Cover

h. Lubricant

i. Product CD

j. Screw for Dome Cover

k. Easy Installation Guide

1. Ceiling Mounting with Straight Tube

The Straight Tube is available in different length: 25 cm and 30 cm.

Follow the steps to mount the Speed Dome Camera with the Straight Tube.

1. Ensure that the ceiling can support the weight of the Speed Dome Camera

and Straight Tube.

2. Make a cable entry hole on the ceiling.

3. Attach the Straight Tube to the ceiling with proper screws and screw

anchors.

4. Connect the supplied Waterproof Rubber to the Straight Tube.

5. Run the cable(s) through the Straight Tube with the supplied I/O Cable’s

connector coming out of the outlet.

NOTE: After running the cable(s) through the Straight Tube, please block

the Tube’s outlet with the supplied sponge to avoid insects entering the

tube.

6. Thread the cable(s) through the supplied camera top holder and join the

holder to the Straight Tube with the supplied screws and washers. Then

adjust the Waterproof Rubber over the joint.

7. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

8. Attach the Speed Dome Camera to the top holder with the supplied M5

screw and washers.

Ceiling Mounting

Wall Mounting

2.1 Mini/Standard Pendent Moun

Follow the steps below to mount the Speed Dome Camera with the

Mini/Standard Pendent Mount.

1. Make a cable entry hole on the wall to insert the cables through the

bracket or push up the Cable Entry Board on the Mini/Standard Pendent

Mount’s Mounting Plate to place the cables.

2. Attach the Mini/Standard Pendent Mount to the wall with proper screws

and screw anchors.

3. Attach the supplied Waterproof Rubber to the Mini Pendent Mount.

4. Run the cable(s) through the Mini/Standard Pendent Mount with the I/O

Data Cable’s connector coming out of the outlet.

NOTE: Please block the cable entry hole with the supplied sponge to avoid

insects entering the Pendent Mount. The sponge can be placed in two

ways as shown in the illustrations below.

Cable Entry Board

Mounting Plate

Sponge

5. Thread the cable(s) through the supplied camera top holder and join the

holder to the Mini/Standard Pendent Mount with the supplied screws and

washers. Then adjust the Waterproof Rubber over the joint.

6. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

7. Attach the Speed Dome Camera to the top holder with the supplied M5

screw and washers.

Wall Mounting: Mini Pendent Mount

Wall Mounting: Standard Pendent Mount

2.2 Wall Box Mounting

Follow the steps to mount the Dome Camera with the Standard/Mini Pendent

Mount and Wall Box Mount.

1. Make a cable entry hole on the wall to insert the cable(s).

2. Attach the Wall Box Mounting to the wall with proper screws and screw

anchors. Then run the cable(s) through the hole on the Wall Box Mounting

with the I/O Cable’s connector coming out.

3. Fasten the Standard/Mini Pendent Mount onto the Wall Box Mounting with

the supplied screws and washers. Then thread the cable(s) through the

Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent

Mount’s outlet.

NOTE: Please block the cable entry hole with the supplied

sponge to avoid insects entering the Pendent Mount. See the

illustrations in section2.1 Mini Pendent Mount > Step 4.

4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent

Mount.

5. Thread the cable(s) through the top holder and join the top holder to the

Standard/Mini Pendent Mount with the supplied screws and washers.

Then adjust the Waterproof Rubber over the joint.

6. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

7. Join the Speed Dome Camera to the top holder with the supplied screw

and washers.

Wall Box Mounting: Wall Box Mounting + Standard/Mini Pendent Mount

3. Corner Mount

3.1 Corner Mounting Plate

Follow the steps below to mount the Speed Dome Camera with the Corner

mounting Plate and Standard/Mini Pendent Mount.

1. Make a cable entry hole on the wall to insert the cable(s).

2. Attach the Corner Mounting Plate to the corner of the wall with the proper

screws and screw anchors. Then run the cable(s) through the hole on the

Corner Mounting Plate with the I/O Cable’s connector coming out.

3. Fasten the Standard/Mini Pendent Mount onto the Corner Mounting Plate

with the supplied screws and washers. Then thread the cable(s) through

the Standard/Mini Pendent Mount with the cable(s) coming out of the

Pendent Mount’s outlet.

NOTE: Please block the cable entry hole with the supplied sponge to avoid

insects entering the Pendent Mount. See the illustrations in section 2.1

Mini Pendent Mount > Step 4.

4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent

Mount.

5. Thread the cable(s) through the top holder and connect the top holder to

the Standard/Mini Pendent Mount with the supplied screws and washers.

Then adjust the Waterproof Rubber over the joint.

6. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

7. Join the Dome Camera to the top holder with the supplied M5 screw and

washers.

Corner Wall Mounting: Corner Mounting Plate + Standard/Mini Pendent Mount

3.2 Corner Box Mounting

Follow the steps below to mount the Speed Dome Camera with the Corner Box

and Standard/Mini Pendent Mount.

1. Make a cable entry hole on the wall to insert the cable(s).

2. Attach the Corner Box to the corner of the wall with proper screws and

screw anchors. Then run the cable(s) through the hole on the Corner Box

with the I/O Cable’s connector coming out.

3. Fasten the Standard/Mini Pendent Mount onto the Corner Box with the

supplied screws and washers. Then thread the cable(s) through the

Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent

Mount’s outlet.

NOTE: Please block the cable entry hole with the supplied sponge to avoid

insects entering the Pendent Mount. See the illustrations in section 2.1

Mini Pendent Mount > Step 4.

4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent

Mount.

5. Thread the cable(s) through the top holder and join the top holder to the

Standard/Mini Pendent Mount with the supplied screws and washers.

Then adjust the Waterproof Rubber over the joint.

6. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

7. Attach the Dome Camera to the top holder with the supplied M5 screw

and washers.

Corner Box Mounting: Corner Box + Standard/Mini Pendent Mount

4. Pole Mount

4.1 Pole Direct Mounting

Follow the steps below to mount the Speed Dome Camera with the Pole Direct

Mount and Standard/Mini Pendent Mount.

1. Fasten the Pole Direct Mounting onto a pole using the stainless straps.

2. Run the cable(s) through the hole on the Pole Direct Mount with the I/O

Cable’s connector coming out.

3. Fasten the Standard/Mini Pendent Mount onto the Pole Direct Mounting

with the supplied screws and washers. Then thread the cable(s) through

the Standard/Mini Pendent Mount with the cable(s) coming out of the

Pendent Mount’s outlet.

NOTE: Please block the cable entry hole with the supplied sponge to avoid

insects entering the Pendent Mount. See the illustrations in section 2.1

Mini Pendent Mount > Step 4.

4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent

Mount.

5. Thread the cable(s) through the top holder and join the top holder to the

Standard/Mini Pendent Mount with the supplied screws and washers.

Then adjust the Waterproof Rubber over the joint.

6. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

7. Join the Speed Dome Camera to the top holder with the supplied M5

screw and washers.

Pole Direct Mounting: Pole Direct Mounting + Standard/Mini Pendent Mount

4.2 Pole Box Mounting

Follow the steps below to mount the Speed Dome Camera with the Pole Box

Mount and Standard/Mini Pendent Mount.

1. Fasten the Pole Direct Mounting onto a pole using the stainless straps.

2. Run the cable(s) through the hole on the Pole Box Mount with the I/O

Cable’s connector coming out.

3. Fasten the Standard/Mini Pendent Mount onto the Pole Box Mount with

the supplied screws and washers. Then thread the cable(s) through the

Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent

Mount’s outlet.

NOTE: Please block the cable entry hole with the supplied sponge to avoid

insects entering the Pendent Mount. See the illustrations in section 2.1

Mini Pendent Mount > Step 4.

4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent

Mount.

5. Thread the cable(s) through the top holder and join the top holder to the

Standard/Mini Pendent Mount with the supplied screws and washers.

Then adjust the Waterproof Rubber over the joint.

6. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

7. Join the Speed Dome Camera to the top holder with the supplied M5

screw and washers.

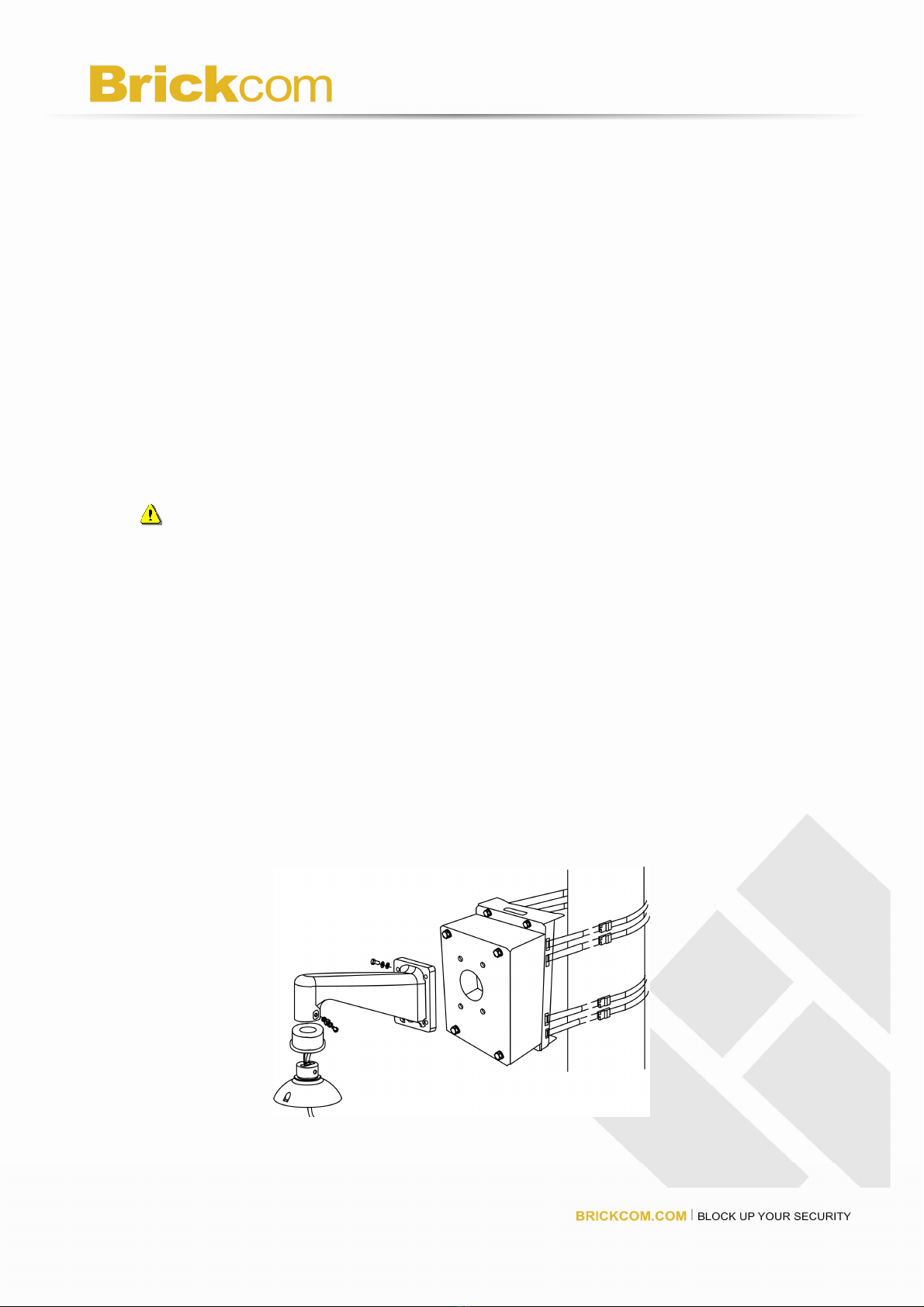

Pole Box Mounting: Pole Box Mount + Standard/Mini Pendent Mount
