Brickcom OSD-040 36x Series Manual de usuario

36x Outdoor Speed Dome

Network Camera

OSD-040 36x Series

Quick Installation Guide

Quality Service Group

Read Before You Use

1. Power off the camera device

immediately if it starts smoking or

smells unusual.

2. Power off the camera device

immediately if the camera is exposed

to rain or liquid.

3. Do not set the camera device near

any heat sources. (Ex: television and

oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over the specific

operating temperature.

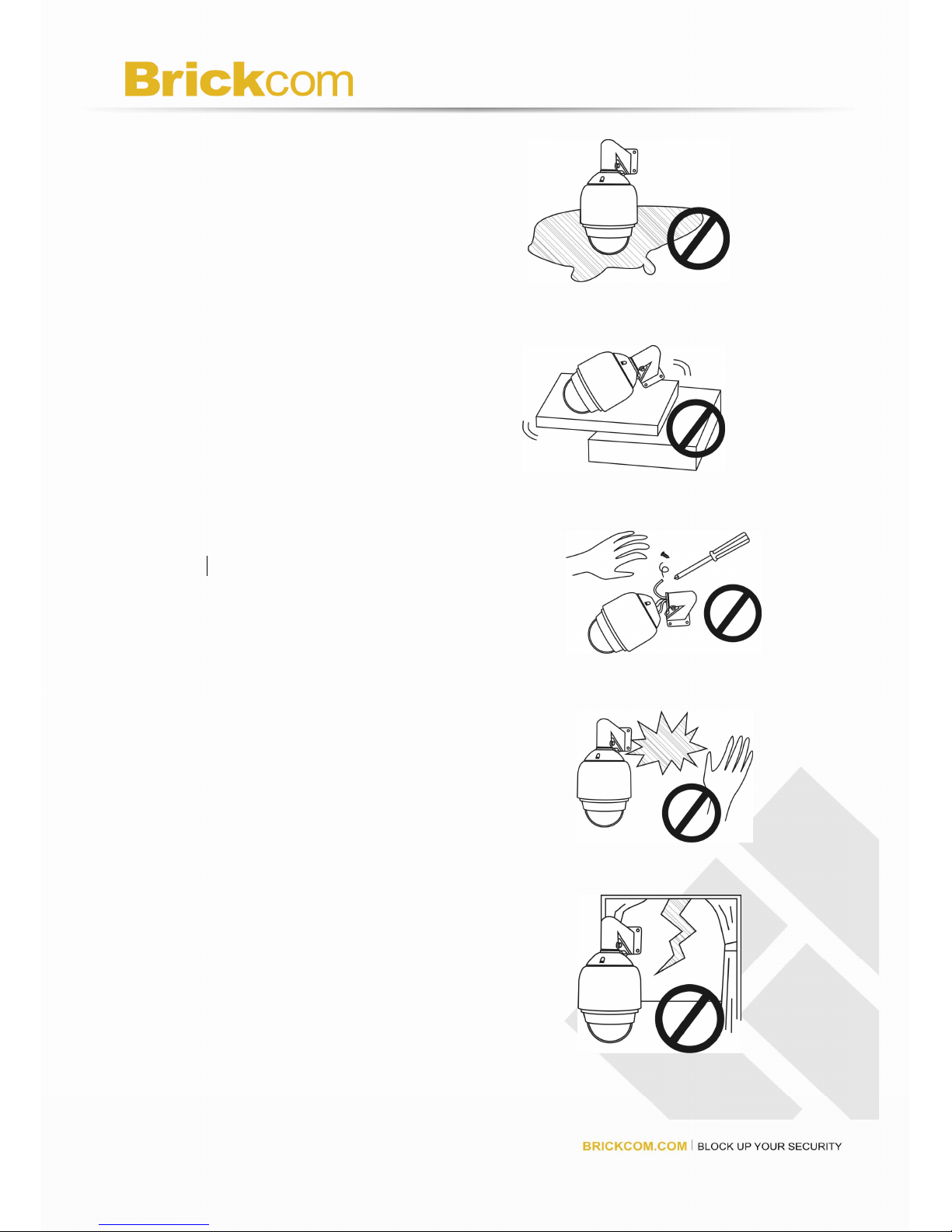

6. Do not set the camera device in any wet

and humid environments.

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the camera

device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

1. Check Package Contents

a. Speed Dome Camera

b. Mount Kit

c. I/O Cable

d. Waterproof Rubber

e. Warranty Card

f. M5 Screw

g. Dome Cover

h. Lubricant

i. Product CD

j. Screw for Dome Cover

k. Easy Installation Guide

2. Device Description

Mount

Holder

Ethernet RJ45

10/100 Socket

Safety Wire Hook

I/O Cable Connector

Reset Button

Power LED

Link LED

Audio Out(Pink)

AC Power Input

Extension I/O

Terminal Block

Video Out

Microphone/Line In(Green)

3. Camera Connection

1. Connect the camera to a switch using an Ethernet cable.

2. Connect supplied I/O cable to the camera.

3. To attach external devices, such as sensors and alarms, connect them

to the extension I/O terminal block.

4. Hardware Installation

Before Installation

The SD-040 36x is supplied with a dome cover to protect the camera unit.

Before installation, follow these instructions to attach the dome cover and

remove the mount holder.

1. Unpack the dome package and take out the Dome body.

2. Rotate the mount holder and take it off the Dome body.

3. Remove the protective cover and PE sheet.

4. Apply lubricant to the Dome cover’s water-proof rubber to make the

installation process smoother.

NOTE: The tiny protrusion on the dome cover must align with one of

the four holes on the dome body.

5. Attach the Dome cover to the Dome body by gently pressing down on

the sides of the Dome cover with both hands.

NOTE: DO NOT press the cover from the top as this may cause

damage to the Dome body.

6. Screw the Dome cover and body together.

Install Camera with Mount Kit

1. Make a cable entry hole on the wall/ ceiling to insert the cable(s).

2. Mount the Speed Dome camera according to the “Speed Dome

Mounting Accessories Installation Guide”.

3. Attach the waterproof rubber to the selected mount kit.

4. Route the Ethernet and I/O cables through the top holder and join the

selected mount kit with supplied screws and washers. Then adjust the

Waterproof Rubber over the joint.

5. Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

6. Attach the camera to the top cover with the supplied screw and

washers.

Wall Mounting: Pendant Mount (mounting example)

NOTE: Refer to the mounting instruction in the “Speed Dome Mounting

Accessories Installation Guide” for more details.

5. Setup the Network Camera

1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool

directly from the CD-ROM to start the installation. When installing the

Brickcom software kit for the first time, select a desired language for the

interface. The available languages are listed in the scroll box. Click

<Install> and follow the steps to install the EasyConfig wizard on the

desired computer.

Please follow the instruction of the InstallShield Wizard to finish the

Brickcom Software Kit installation.
