Brickcom Fixed Box Series Manual de usuario

Hardware User’s Manual

Megapixel Day & Night

Fixed Box Network Camera

Quality Service Group

Fixed Box Series

Review History:

1. Separate User Manual into HW and SW.

2. Merge FB-100Ap/FB-100Ae/FB-130Np Series into this User Manual.

3. Merge FocusEasy™ version

Product name:

Network Camera (Fixed Box series)

Release Date:

2013/07

Manual Revision:

V4.0

Web site:

www.brickcom.com

Email:

[email protected]om

info@brickcom.com

Table of Contents

Before You Use This Product..................................................................... 3

Regulatory Information ............................................................................ 4

Chapter 1- Package Contents .................................................................... 5

Chapter 2- Fixed Box Network Camera Overview ........................................... 6

Chapter 3-LED Behavior........................................................................... 7

Chapter 5- Installation............................................................................ 11

5.1 Hardware Installation............................................................................................ 11

5.2 System Requirements.......................................................................................... 13

5.3 Camera Connection.............................................................................................. 14

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance devices.

This Network Camera is a high-performance, web-ready camera which can be part of a

flexible surveillance system. It is user’s responsibility to ensure that the operation of this

camera is legal before installing this unit for its intended use.

Upon opening the product’s package, verify that all the accessories listed on the “Package

Contents” are included. Before installing the Network Camera, read the warnings in the

“Easy Installation Guide” to avoid misuse. When installing the Network Camera, carefully

read and follow the instructions in the “Installation” chapters to avoid damages due to

faulty assembly or installation.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE :

FCC Radiation Exposure Statement :

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

The availability of some specific channels and/or operational frequency bands are country

dependent and are firmware programmed at the factory to match the intended destination. The

firmware setting is not accessible by the end user.

Chapter 1- Package Contents

Please check to make sure that the product package contains all the accessories listed

below.

a. Network Camera

b. CS mount Lens (Optional)

c. Product CD

d. Camera Stand

e. Warranty Card

f. Allen Key

g. Power Adapter (Optional)

h. Easy Installation Guide

i. Detachable Antenna (Optional)

Chapter 2- Fixed Box Network Camera

Overview

The Brickcom Fixed Box series offers a reliable and efficient solution for 24-hour video

surveillance. The Fixed Box series offers highly efficient H.264 video compression, which

reduces bandwidth and storage requirements without compromising image quality.

M-JPEG and MPEG-4 are also supported for flexibility.

With the megapixel progressive sensor and removable IR-cut Filter, this series delivers

extremely clear and detailed images that CCTV cameras cannot offer. The internal

SD/SDHC memory card slot allows for local storage, which prevents data loss if the data

connection is lost. Users can view live feed anywhere by internet browser or 3G mobile

phone. Also, the Fixed Box series can transmit the video to portable devices through other

technology, such as WiMax, NAS, Digital Frame and power line.

The Fixed Box series receives power through the same cable as for data transmission.

This makes installation easy because there is no external power supply needed.

For easy setup, the Fixed Box series offers a step-by-step installation package. “Easy

Config” makes the configuration simple even for users without an IT background.

With IEEE 802.11 a/b/g/n wireless compliance, network installation is not restricted by

location or landforms. The Wireless Fixed Box series can be installed in any location with

wireless coverage. It can easily be used to cover remote districts and historic spots.

In addition to the motion detection function, the Fixed Box advanced Series can also

support Intelligent Video Analysis which can be used for applications such as object

tracking, people counting, and forbidden region alarm.

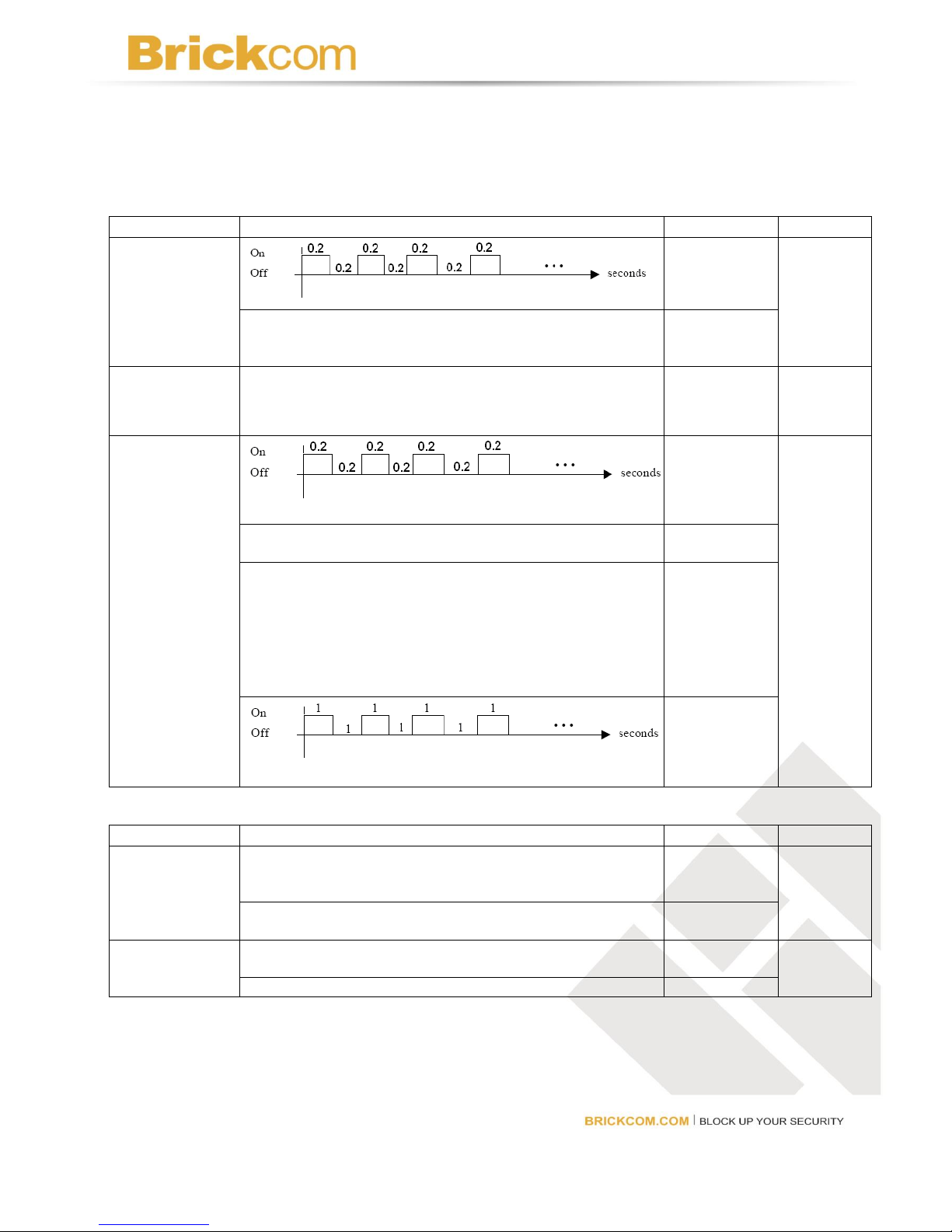

Chapter 3-LED Indicators

Function

Front LED Behavior

Description

Remark

WPS

WPS in

process

Right

(Blue)

Steady

WPS

Successfully

Connected

FocusEasy™

(V2 Series only)

Steady

Lens

focusing

in process

Right

(red)

Status

Hardware

failure

Left

(Green)

Steady

Normal

Operation

Unlit

Power Off

While F/W

upgrading

Function

Rear LED Behavior

Description

Remark

Link

Flashes

Blinking while

connecting to

the network

Left

(Amber)

Unlit

connection

Power

Steady

Normal

Operation

Right

(Green)

Unlit

Power off

Chapter 4- Device Appearance Description

NOTE

1. The WPS buttons must first be enabled through the web GUI in order to work. See WPS

page for details on how to enable the WPS Button.

2. (*) These are optional features. Please refer to the Product List for the full list of optional

features available for the product.

CS Mount Lens -Optional

<Vari-focal Lens with Manual Iris> --- CS Mount

Zoom Controller (*)

Focus Controller

Iris Controller (*)

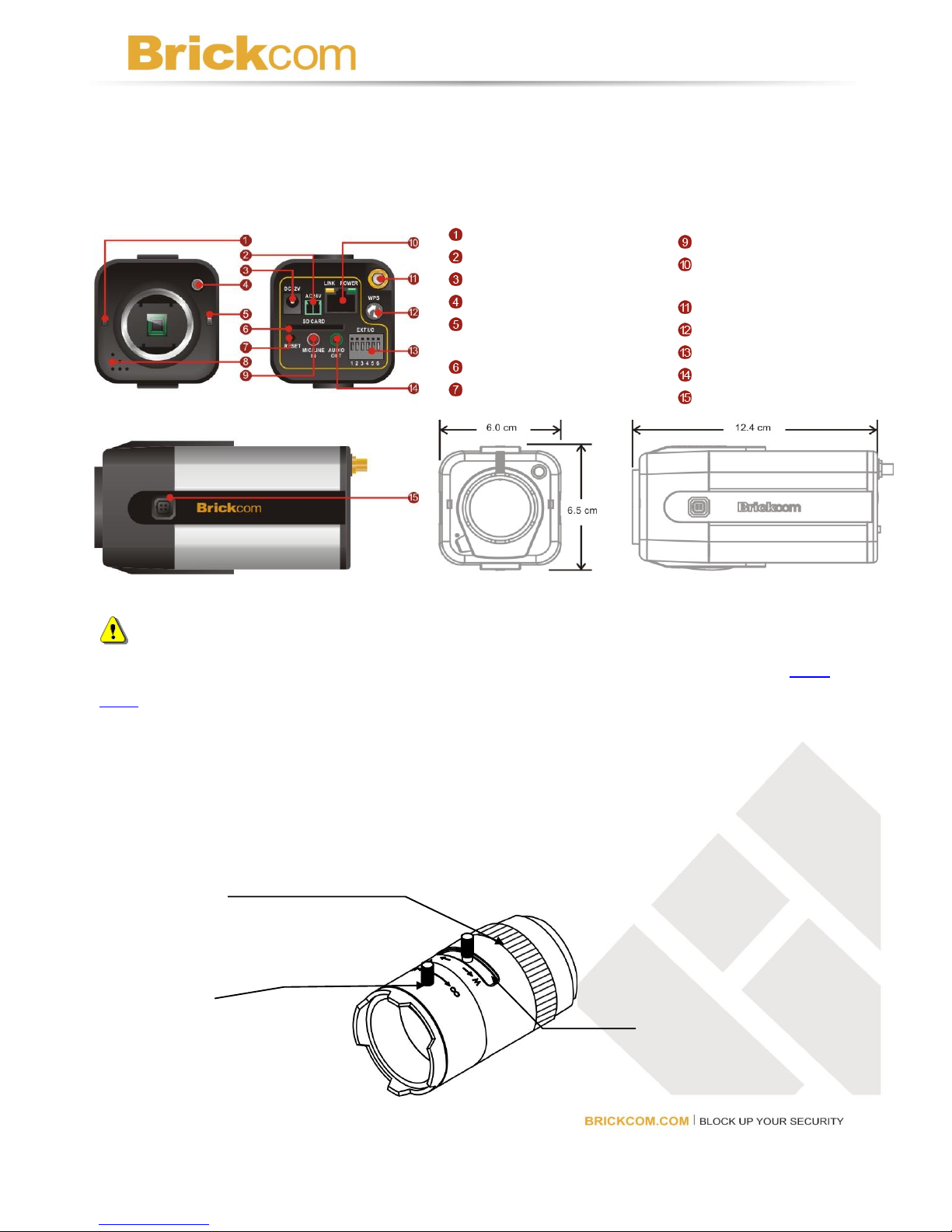

Photo Indication & Dimension Diagram

Status LED

Power Connector (AC24V In)

Power Connector (DC12V In)

Light Sensor

WPS/FocusEasy™ LED

(WIFI series/FocusEasy™ series)

SD/SDHC Card Slot

Reset Button

Build-in Microphone

Microphone/Line In

Ethernet RJ45 10/100 Socket

(Link/Power LED embedded)

DetachableAntenna (WIFI series)

WPS Button (WIFI Series)

Extension I/O Terminal Block

Audio Out

Auto Iris Connector

<Vari-focal Lens with Auto Iris> (DC Drive) --- CS Mount

Extension I/O Terminal Block

The Network Camera provides an extension I/O terminal block which is used to connect the

camera with external input/output devices. The pin definitions are listed as below.

DI/DO Diagram

Function

Power +5V

Digital Output

Digital Input

Ground

RS-485 -

RS-485 +

Zoom Controller

Focus Controller
