Brickcom OB-E400AF Instrucciones de uso

Hardware User’s Manual

Megapixel Day & Night

Bullet Network Camera

OB-E400Af

Table of Contents

Before You Use This Product .......................................................................................1

Regulatory Information.................................................................................................2

Chapter 1 - Package Contents......................................................................................3

Chapter 2 - Megapixel Day & Night Bullet Network Camera Overview .....................4

Chapter 3 - Device Appearance Description ...............................................................5

Chapter 4 - LED Behavior ............................................................錯誤! 尚未定義書籤。

Chapter 5 - Installation..................................................................................................5

5.1 Hardware Installation .......................................................................................6

5.2 Camera Connection..........................................................................................7

5.3 System Requirements......................................................................................8

5.4 Software Installation.........................................................................................8

5.4.1 EasyConfig............................................................. 錯誤! 尚未定義書籤。

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance

devices. This Network Camera is a high-performance, web-ready camera which can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of this camera is legal before installing this unit for its intended use.

Upon opening the product’s package, verify that all the accessories listed on the

“Package Contents” are included. Before installing the Network Camera, read the

warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network

Camera, carefully read and follow the instructions in the “Installation” chapters to avoid

damages due to faulty assembly or installation.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are

country dependent and are firmware programmed at the factory to match the

intended destination. The firmware setting is not accessible by the end user.

Chapter 1 - Package Contents

1. Network Camera

2. Screw bag

3. Location sticker

4. Product CD

5. Easy Installation Guide

6. Warranty Card

7. High Power PoE (Optional)

(Please refer to bottom message)

8. Waterproof connector

The product is intended to be supplied by a Listed Power Unit marked “L.P.S”(or “Limited Power Source”) and

rated output 24V AC, 50/60 Hz, 0.7A minimum or 12V DC, 1A minimum or 48V DC, 0.25A minimum”

“The product shall be installed by a qualified service person and the installation shall conform to all local codes”

“The product is to be connected to only PoE networks without routing to the outside plant

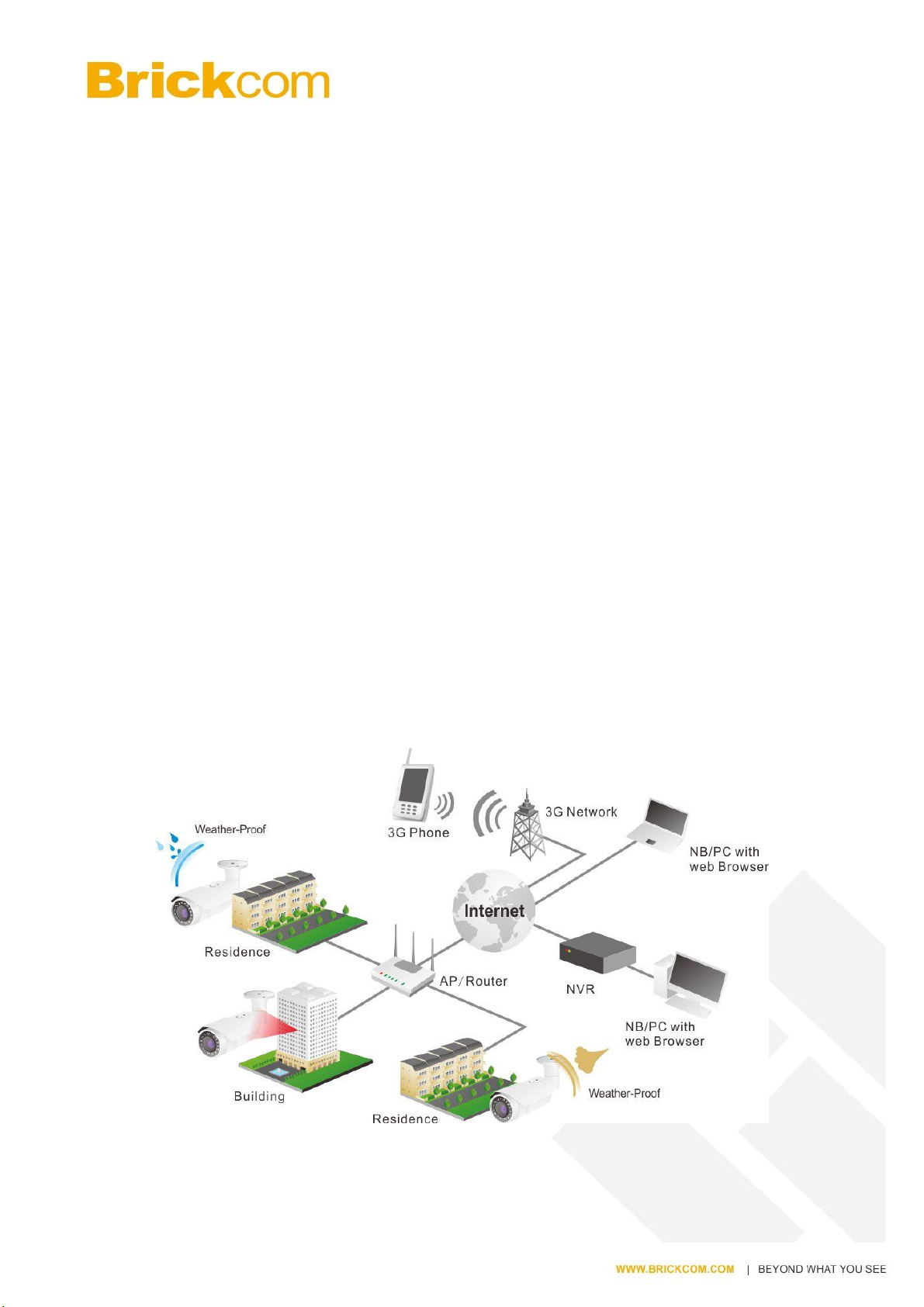

Chapter 2 - Megapixel Day & Night Bullet

Network Camera Overview

The Brickcom OB-E400Af outdoor bullet network camera adopts the two-megapixel

sensor which allows the camera to deliver extremely clear and detailed images that

CCTV cameras cannot offer. To optimize use of the megapixel resolution, the

OB-E400Af use efficient H.264/ MJPEG codec compression to deliver dual configurable

video streams simultaneously. These features make OB-E400Af the perfect outdoor

camera for neighborhood, school campus, and parking lot surveillance.

The OB-E400Af supports Power over Ethernet and enables the camera to use the same

cable for power and data transmission, eliminating the need to install an external power

supply. With an IP66 certified outdoor enclosure, the OB-E400Af is not only weather

proof, but also dust and rust resistant.

The OB-E400Af supports the removable IR cut filter, the camera can automatically

switch into the day mode or night mode, which allows the users to enjoy the best quality

of images in the different circumstances. The megapixel day and night bullet network

camera is the best choice for the outdoor application.

Chapter 3 - Device Appearance Description

The Reset Button can be used to restore the camera to factory default settings. If the

camera experiences a problem, rebooting the camera may correct the problem. If the

problem remains, please restore the camera to factory default settings and reinstall the

software.

To Reset

Press and hold the Reset Button for more than 10 seconds using a paper clip or thin

object. Wait for the camera to reset to default.

NOTE - By resetting the camera, all settings will be restored to the factory default settings.

Lens

IR Leds

Light Sensor

Chapter 4 - Installation

4.1 Hardware Installation

Do not mount the camera on any soft material. The camera may fall and be

damaged.

A compliant waterproof connector shall be attached tightly to the conduit hole

of the Vandal Dome Network Camera, and all the cables shall run through the

connector for the camera to be IP66-compliant.

This document is for the easy installation purpose only; please refer to the

user manual for more details.

A. Wall Installation

(1) Drill three holes into the wall. (2) Hammer the supplied plastic anchors into the three

holes. (3) Use a screwdriver and the supplied screws to secure the camera to the wall.

5.2 Camera Connection

The Bullet Series is DC12V and PoE compliant, so there are two options for connecting

the camera to a power and Ethernet source. The camera can either be connected to a

PoE-enabled switch or a non-PoE switch.

a. If using a PoE-enabled switch:

Use a single Ethernet cable to connect the camera to the PoE-enabled switch.

b. If using a non-PoE switch:

1. Use a standard RJ-45 cable to connect the camera to a PoE Injector.

2. Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE switch.

3. Use a standard power cable to connect the PoE Injector to a power outlet.

c. If using the DC12V for the power supply. The RJ45 cable will be data

transmission.

5.3 System Requirements

Operating System:

Microsoft Windows 8.1/8/7/Vista/XP/2000

Computer:

IBM PC/AT Compatible

CPU:

Pentium 3GHz or faster

Memory:

1024 MB or more

Monitor:

1024 x 768 pixels or more, 24-bit True color or better

Network Interface:

10/100Mbps Network interface card must be installed

Web Browser:

Microsoft Internet Explorer 6.0 SP2 or higher

Adobe Reader:

Adobe Reader 8.0 or higher

Audio:

The audio function will not work if a sound card is not installed in the PC.Audio

may be interrupted depending on network traffic.
