Control Your Video
HDMI LAN Extender over Single CAT5/6
VLAN Setup and IP Management
© 2016Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
Model #: HDM-C6IP-SET
HDM-C6IPX-SET
PORTS 13-16
PORTS 9-12
PORTS 5-8
PORTS 1-4
HDMI CABLE 6FT
HDMI CABLE 6FT
HDMI CABLE 6FT
1X HDM-C6IP-S
HDM-C6IP-R

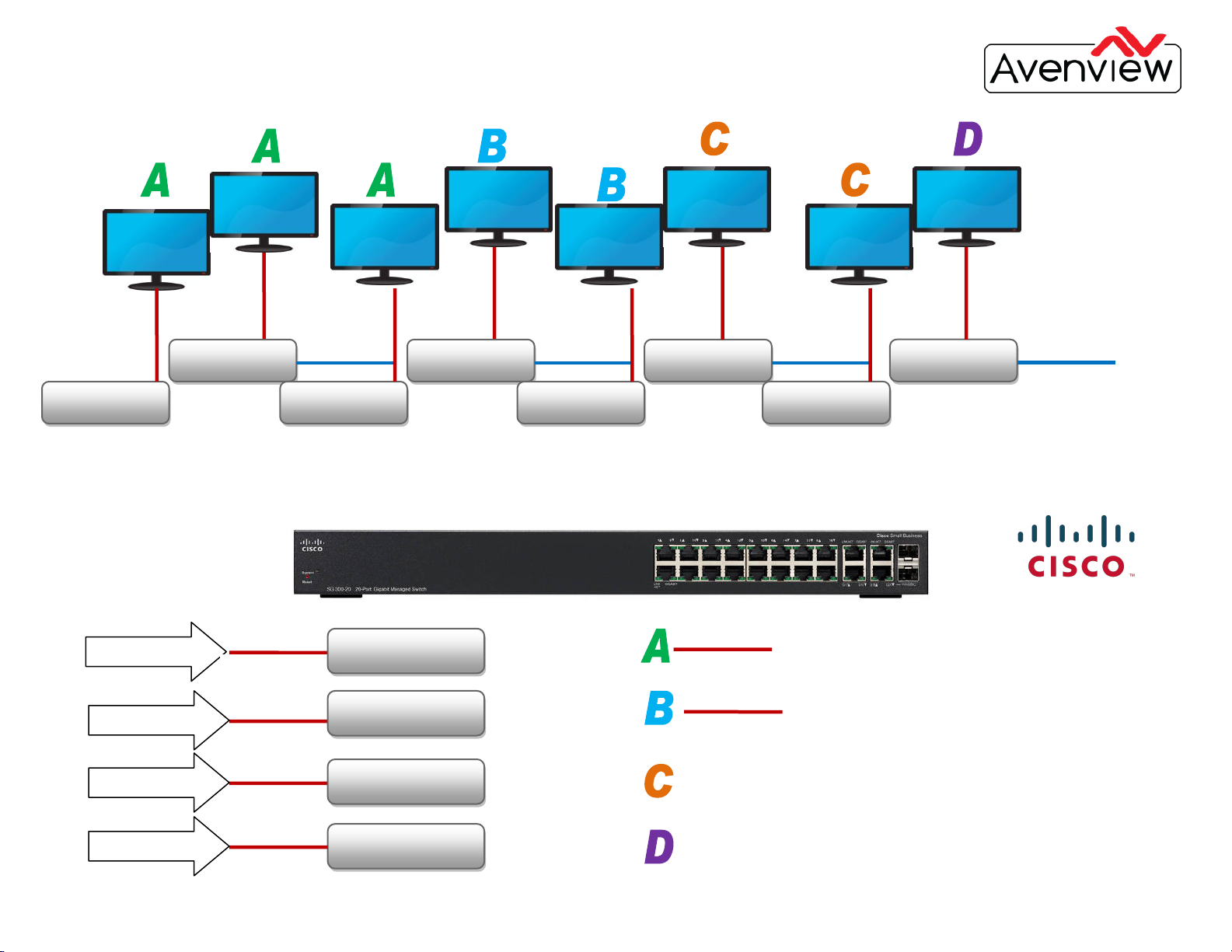

16 PORT MANAGED SWITCH WITH MULTICAST/ IGMP SNOOPING V.2.0
SOURCE 1
SOURCE 2
SOURCE 3
SOURCE 4
1X HDM-C6IP-S
HDMI CABLE 6FT
1X HDM-C6IP-S
1X HDM-C6IP-S
SUPPORTS PORTS 5-8
SUPPORTS PORTS 1-4
SUPPORTS PORTS 9-12
SUPPORTS PORTS 13-16
HDM-C6IP-RHDM-C6IP-RHDM-C6IP-R
HDM-C6IP-RHDM-C6IP-RHDM-C6IP-RHDM-C6IP-R
VLAN 1
VLAN 2
NOTE: IP and MAC Addresses of all units (Tx and Rx) are the
same set by default. it needs to be changed. Follow the
instructions on page 3.
As an Example:
For the VLAN1 TXA IP address should be set to 10.176.1.1
For the VLAN2 TXB IP Address should be set to 10.176.2.1
and so on....
10.176.2.2
10.176.1.2
10.176.1.3
10.176.1.4 10.176.2.3
10.176.4.2
10.176.3.2
10.176.3.3
www.avenview.com|1
192.168.1.239
1. Connect a CAT5E or 6 cable to the HDM-C6IP-S Transmitter and to your PC or Laptop
2. On your PC or Laptop (example using Windows 7), please go to Start > Computer > Network.
3. Right Click on your Local Area Icon > Properties > TCP/IPv4
4.
Enter the following IP address in the field: 192.168.1.88 and
Subnet Mask: 255.255.255.0, Default Gateway: 192.168.1.1
Configure IP Address
Note: The default IP address for HDM-C6IPX Sender and Receiver are
192.168.1.238
Steps to change the IP address to be compatible with your network IP settings:
HDM-C6IP-SET is used in this guide as an example (Same steps applies for HDM-C6IPX-SET)
www.avenview.com|2
6. Click on the add button and input the following default address of the Transmitter (TX) IP
7. TX IP address 192.168.1.238 Subnet mask 255.255.255.0
8. RX IP address 192.168.1.239 Subnet mask 255.255.255.0
9. This will allow your computer to be on your network and allow the TX/RX to be visible in your
browser. (No network Conflicts)
10. Type the IP address in your browser and see the below results.
11. Once the browser opens on the "TX Server" Please note: The TX Server needs to have two files
upgraded, a ".PKG" file and a ".bin"file. Please make sure to select the appropriate file to upgrade
for the TX Server unit. Loading the incorrect firmare will render the unit inoperable.
Click on "Choose File" Select the .PKG file and click
"Upgrade". Wait till a "Please Reboot" screen appears and
power cycle the unit.
Once rebooted please repeat the steps for the .bin file upgrade.
TX Server Update process
www.avenview.com|3
Disclaimer
While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or
use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning
such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive,
incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other
products and documentation provided herein.
Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability, function
or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties regarding such
products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
RX Server Update process
Click on "Choose File" and select the appropriate .PKG file and the select "Upgrade"
Once the upgrade is finished the unit will reboot. Please Power cycle the unit
after a soft reboot.
HDM-C6IP-S TX TRANSMITTER
TX# VLAN IP ADDRESS MAC ADDRESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
IP/MAC ADDRESS LOG
8
www.avenview.com
RX# VLAN IP ADDRESS MAC ADDRESS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
9
www.avenview.com
HDM-C6IP-R RX RECEIVER
