AF-WD Page 1 of 2

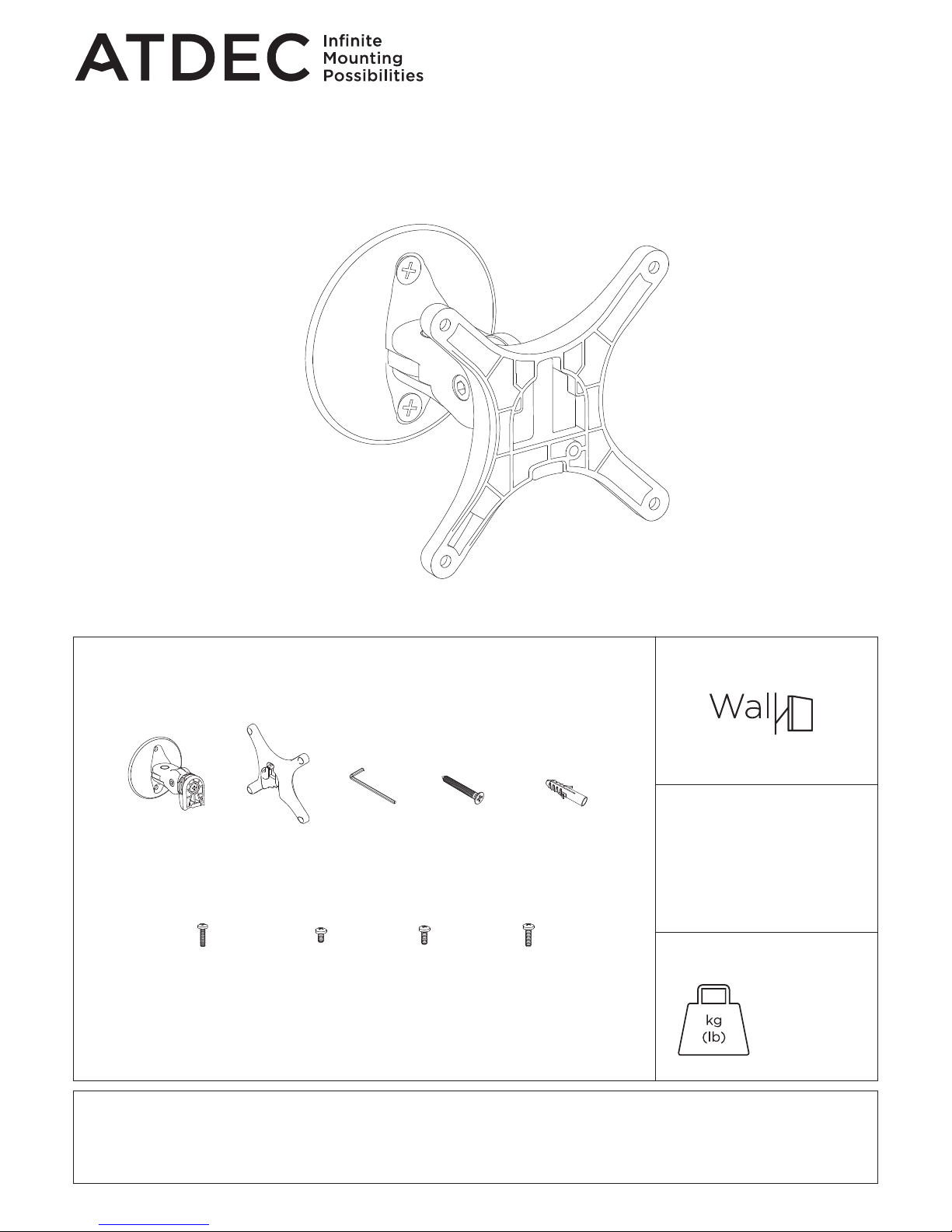

COMPONENT CHECKLIST

VESA

head

(x1)

Wall direct

assembly

(x1)

Security Screw

M4 x 16mm

(x1)

Mounting

screws

M4 x 10mm

(x4)

Mounting

screws

M4 x 12mm

(x4)

Mounting

screws

M4 x 16mm

(x4)

5mm

Allen key

(x1)

Countersunk

Screw

M6 x 50mm

(x2)

Wall plug

(x2)

Installation Guide

AF-WD

Wall Direct Monitor Mount

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is designed to support a flat panel monitor in a non interactive environment. i.e. It should not be used in a situation

where the display’s position will be frequently change.

! The manufacturer accepts no responsibility for incorrect installation.

REQUIRED TOOLS

WEIGHT RANGE

• Phillips Head Screwdriver

• Drill Bit

• Power Drill

0 - 8kg

(0 - 17.6lbs)

AF-WD Page 2 of 2

1. Disassemble 2. Attach base to wall 3. Re-assemble

1.1 Using the supplied allen key,

remove the bottom screw

Masonry Wall

Tip: Use a spirit level to ensure

this suface is horizontal

Tip: Use a spirit level to

ensure this suface is horizontal

1.2 Seperate the two components

Timber stud wall

3.1 Reassemble the wall direct assembly

3.2 Close the two halves of the bracket

around the base by firstly positioning

the top half and then the bottom half

4. Install VESA monitor head 5. Mounting Monitor

Optional Spacers

(may be required

for recessed and

uneven surfaces)

VESA monitor

head

Screen

M4x10/12/16mm

Phillips Head

Mounting Screws

4.1 Install VESA monitor head as

100mm

VESA monitor head

Wall Direct

Assembly

5.2 OPTIONAL

SECURITY SCREW

Ensure the Monitor is

supported, then loosen

the Monitor head screw

with the 5mm Allen Key

and tilt screen up before

installing the M4 x 16mm

Security Screw into the

Security Screw hole

5.1 Insert VESA

monitor head into

the receptacle in

the Arm Assembly

5mm Allen Key

Phillips Head

Screwdriver

Loosen

Tighten

Security

Screw

Hole

M4 x 16mm

Security Screw

Monitor

head

screw

6. Adjusting the Display Bracket

Portrait/ Landscape Tilt (Screen angle up/down) Pan (Screen angle left/right)

5mm Allen Key

Tighten

Loosen

No Allen Key necessary No Allen Key necessary

Note: Support Screen when adjusting tilt.

50mm

Screw

Wall Plug

8mm (5/16”) hole

50mm

Screw

5.5mm (1/4”) hole

atdec.com | atdec.co.uk | atdec.com.au

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Note: Support Screen

when adjusting tilt.
