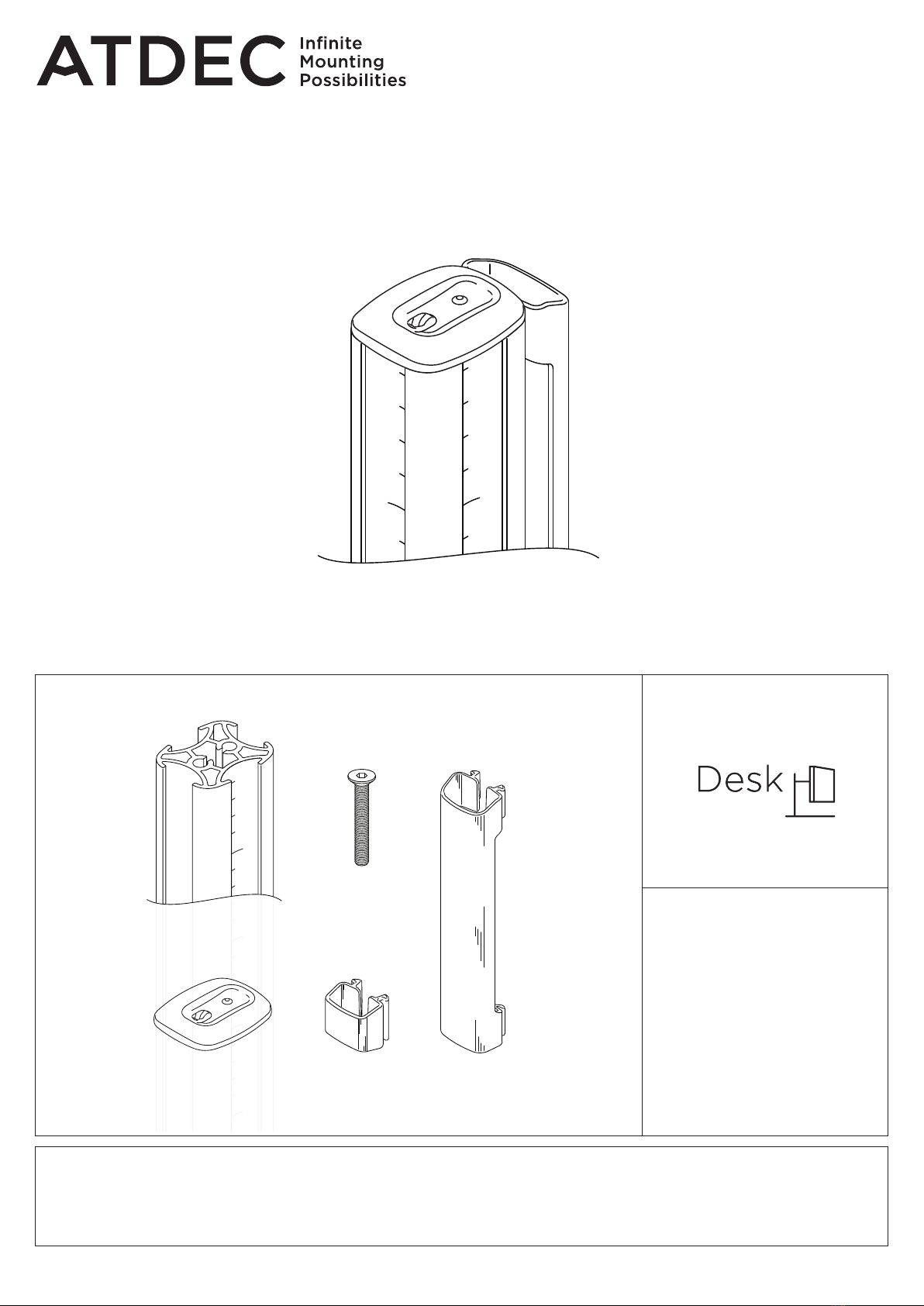

AWM-P G Page 1 of 2

Installation Guide

AWM-P G

Post with Guide marks

COMPONENT CHECKLIST

REQUIRED TOOLS

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with Atdec AWM Series products.

! The manufacturer accepts no responsibility for incorrect installation.

Post

(x1)

Post Cap

(x1)

Cable Cover

(not supplied

with all posts)

Cable Clip

(not supplied

with all posts)

M8x60mm

Screw

(x2)

• All tools provided

AWM-P G Page 2 of 2

Use guide marks on post

channels as a reference

for setting the height of

each arm.

NOTE Additional

adjustments may be

required once monitors

are installed.

Rear of Mounting

Surface

Rear of Mounting

Surface

Rear of Mounting

Surface

1. Attach Post to xing (xing sold seperately)

2. Mount Arms onto Post

4. Cable clips and cover

3. Position Cable Cover and t Post Cap

NOTE: Do not mount monitor arm

on rear channel post when using the

following desk clamps:

3.1 To reposition the cable cover,

unclip cable cover from post and insert

it into any of the available channels

Optional cable

cover positions

3.2 Fit post cap onto the top of the post

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

Allen Key

(Supplied w/xing)

Post Cap

Post

Note: An allen key

may be stored in

the Post Cap.

AWM-FF AWM-FH AWM-FC

AWM Fixing options

1.1 Follow the

installation guide

provided with your

xing to attach it to

the post and t it to

the worksurface.

SQUEEZE

Cables can

exit from the

side of the

cable cover

PUSH

4.1 Load cables into

cable clip.

4.2 Insert one side of the cable

clip into a channel on the post,

then push in the other side.

Load cables

into cable

cover

4.3 Load

cables into

cable cover.

4.4 Clip the

cable cover

onto any of

the four post

channels.

AWM-FH

Heavy Duty

F Clamp

AWM-FC

C Clamp

AC-GC

Grommet

Clamp

Atdec

Custom

Rail Plate

AWM-FF

F Clamp

AWM-FB

Bolt

Through

Kit

2.1 Follow the

installation guide

provided with

your arm(s) to

mount it to the

post.
