W-515 & W-530 Fog Machine

User Manual

Antari Lighting and Effects Ltd.

Please read and save these instructions.

User Manual

W-515 & W-530 Fog Machine

Congratulations on the purchase of your new

ANTARI W-Series FOG MACHINE.

Thank you for choosing an ANTARI W-Series Fog Machine. You now own a

rugged and powerful state-of-the-art machine. Prior to use, we suggest that

you carefully read all of the instructions. By following the suggestions found in

this user manual, you can look forward to the reliable and satisfactory

performance of your ANTARI Fog Machine for years to come.

Please follow these operation, safety and maintenance instructions to ensure a

long and safe life for your fog machine.

Risk of electric shock. Disconnect the appliance from the electric supply

before refilling liquid, cleaning or performing maintenance on the

machine.

Keep this device dry.

For inside use only. Not designed for outside use.

For all models, use 3-prong grounded electrical outlet only. Prior to use take

care to determine that the unit is installed at the rated voltage.

Always unplug your ANTARI W-Series Fog Machine before filling its tank.

Always keep fog machine in upright position.

Turn off or unplug the machine when not in use.

This machine is not water-proof. If moisture, water, or fog fluid gets inside

the housing, immediately unplug the unit and contact a service technician or

your ANTARI dealer before using it again.

No user serviceable parts inside. Refer to your ANTARI dealer or other

qualified service personnel.

Danger of Burns

This device is for adult use only and must be installed out of the reach of

Introduction

CAUTION:

Danger of Electric Shock

-01-

children. Never leave the unit running unattended.

Never aim the output nozzle directly at people.

Fog machine output is very hot. Avoid coming within 50 cm of the output

nozzle during operation.

Locate the fog machine in a well-ventilated area. Never cover the unit's vents.

In order to guarantee adequate ventilation, allow a free air space of at least

20 cm around the sides and top of the unit.

Never aim the output nozzle at open flames.

If the supply cord is damaged, it must be replaced by manufacturer or its

service agent or similarly qualified personnel in order to avoid a hazard.

The output nozzle becomes very hot during operation (200°C). Keep

flammable materials at least 50 cm away from the nozzle.

Always allow your ANTARI Fog Machine to cool down before attempting to

clean or service it.

Danger of Explosion

Never add flammable liquids of any kind (such as oil, gas, perfume) to the fog

liquid.

Use only high-quality, water-based fog liquid that your dealer recommends.

Other fog liquids may cause clogging or “spitting”.

Always make sure there is sufficient liquid in the tank. Operating this unit

without liquid might cause damage to the pump as well as over-heating of the

heater.

If your ANTARI W-515 & W-530 Fog Machine fails to work properly,

discontinue use immediately. Drain all fog liquid from the tank, pack the unit

securely (preferably in the original packing material), and return it to your

ANTARI dealer for service.

Always drain tank before mailing or transporting this unit.

Never drink fog liquid. If it is ingested, call a doctor immediately. If fog liquid

comes in contact with skin or eyes, rinse thoroughly with water.

Pay attention to all warning labels and instructions printed on the

exterior of your ANTARI Fog Machine.

Open the shipping carton and verify that all equipment necessary to operate

the system has arrived intact.

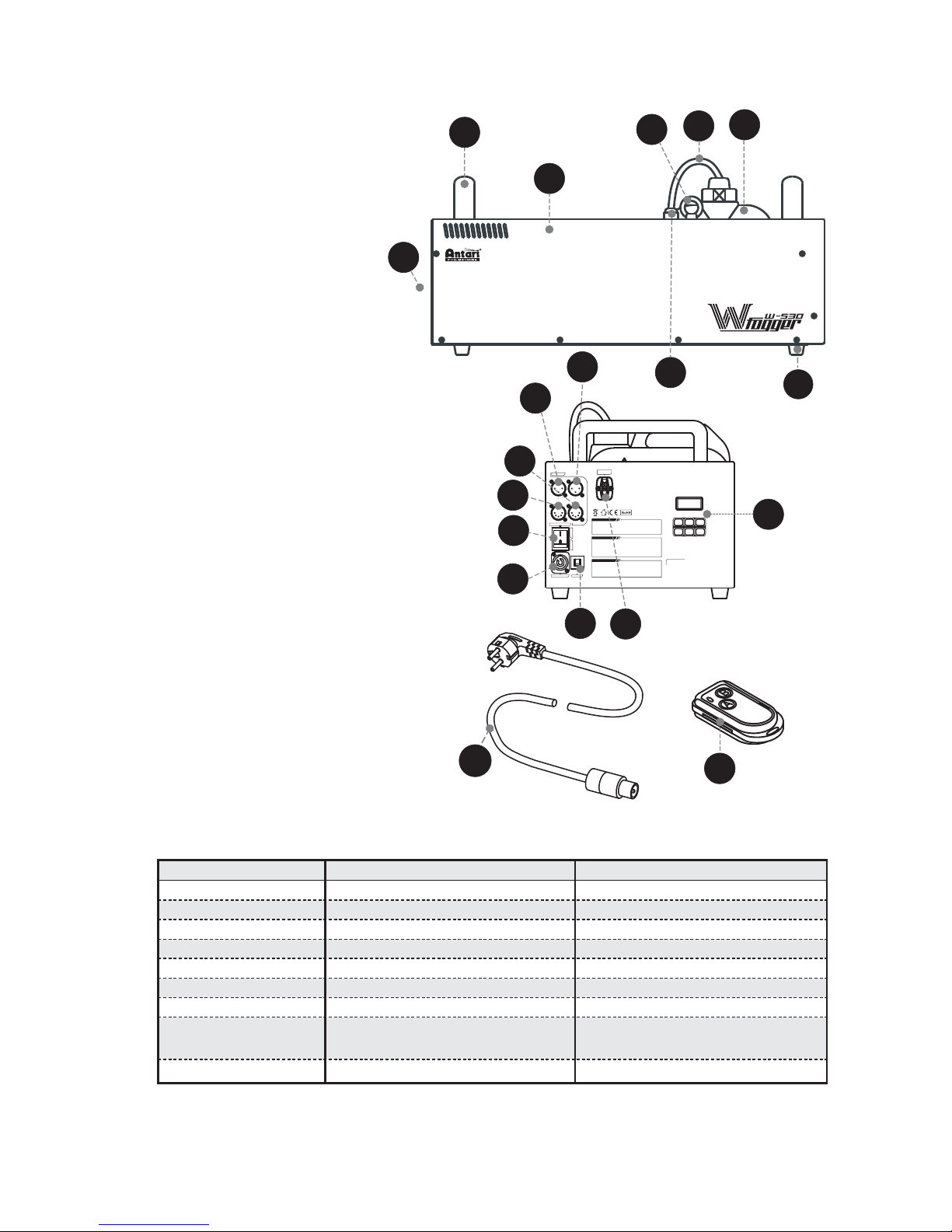

The shipping carton should contain the following items:

1. One unit of W-515 or W-530 Fog Machine

2. Power cord

3. One Set of W-1 transmitter

4. User Manual

5. Mounting hanging brackets with washers/screws

If any equipment is missing contact your ANTARI dealer immediately.

Note:

Unpacking & Inspection

Before beginning your initial setup on ANTARI W-515 & W-530 Fog Machine,

make sure that there is no evident damage caused by transportation. In the

event that the unit's housing or cable is damaged, do not plug it in and do not

attempt to use it until after contacting your ANTARI dealer for assistance.

Remove all packing materials from shipping box. Check that all foam and

plastic padding is removed, especially in the nozzle area.

Place fog machine on a flat surface and remove fog liquid tank cap.

Place the liquid tube into a properly filled liquid tank.

Fill with high-quality, water-based fog liquid recommended by ANTARI dealer.

The W-515 & W-530 only works with uncontaminated Antari FLR or FLG Fog

Liquid. Any other types of liquid can damage the unit resulting in spitting and

serious clogging problem. When filled, place cap back on liquid tank. Be

careful not to exceed the maximum fluid level. DO NOT OVERFILL.

There are total 6 buttons on the control panel of Antari W-515/W-530. They are

, , , , , and respectively. User can

adjust the desired settings in the sub-menus as followings:

When the heat-up process is completed, the LCD (Liquid Crystal Display)

screen shows “Ready To Fog W” (* “ ” means the machine is under wireless

control mode.)

1. When LCD displays “Ready To Fog”, press button once, the

LCD screen shows . Under this status, user can adjust the

fog output interval of Timer mode (the range is between 1 and 200

seconds) by / buttons.

2. When LCD displays “Ready To Fog”, press button twice, the

LCD screen shows . Under this status, user can adjust the

fog output duration of Timer mode (the range is between 1 and 200

seconds) by / buttons.

3. When LCD displays “Ready To Fog”, press three times, the

LCD screen shows . Under this status, user can adjust the fog

Setup

Operation

Control Panel Instruction

Function Timer Up Down Volume Manual

FUNCTION

INTERVAL SET

UP DOWN

FUNCTION

DURATION SET

UP DOWN

FUNCTION

TIMER OUT

FUNCTION

VOLUME

TIMER MANUAL

output volume of Timer mode (the range is between 1% and 100%) by

/ buttons. User can trigger Timer mode when LCD shows “Ready

To Fog” and press button and when machine is working under Timer

mode, pressing button again can end Timer mode.

There is a Non-Stop Burst function between Timer Out 1% and

Timer Out 100%. Choosing this function can make machine generate

continuous fog output under Timer mode.

4. When LCD displays “Ready To Fog”, press four times, the LCD

screen shows VOLUME OUT . Under this status, user can adjust the fog

output volume of Volume mode (the range is between 1% and 100%) by

/ buttons. User can trigger Volume mode when LCD shows

“Ready To Fog” and press button and when machine is working

under Volume mode, pressing button again can end Volume

mode.

There is a Non-Stop Burst function between Volume Out 1% and

Volume Out 100%. Choosing this function can make machine generate

continuous fog output under Volume mode.

5. When LCD displays “Ready To Fog”, press five times, the LCD

screen shows . Under this status, user can adjust the DMX

address by / buttons.

6. When LCD displays “Ready To Fog”, press six times, the LCD

screen shows Wireless On. Under this status, pressing either or

button once can switch off the wireless function. On the other hand, when

the LCD shows Wireless Off, pressing either or button once can

switch on the wireless function.

7. When LCD displays “Ready To Fog”, keeping pressing button can

force machine generate 100% full fog output. As soon as releasing

button, machine stops fogging immediately.

8. There is an “Optoelectronics Fluid Sensor” inside the W-515/W-530 Thus,

when the fluid tank is empty, the pump will be cut off automatically.

At this time, the LCD screen will show “Empty Fluid”.

Please add sufficient fog fluids into fluid tank and then keep pressing

button until the “Empty Fluid” is relieved (dis-alarmed) on the

LCD screen.

9. On W-515 and W-530, if the fluid sensor is not needed, user can switch it

off. When LCD displays “Ready To Fog”, press seven times,

the LCD screen shows Fluid Sensor On . Under this status, pressing

either or button once can switch off the fluid sensor. On the

other hand, when the LCD shows Fluid Sensor Off , pressing either or

button once can switch on the fluid sensor.

10 When the heating process of the fog machine is completed and ready to

fog, the status of wireless function and fluid sensor on the LCD screen are

as followings:

DOWN

Timer

Note:

FUNCTION

UP DOWN

Volume

Note:

FUNCTION

DMX 512 ADD

UP DOWN

FUNCTION

UP DOWN

Manual

FUNCTION

UP DOWN

DOWN

“ ”

- When the wireless function is on, LCD displays Ready To Fog W” (W means

Wireless)

- When the fluid sensor is on, LCD displays “Ready To Fog S” W means Sensor

- When the above two features both are on, LCD displays “Ready To Fog WS”

- When the above two features both are off, LCD displays “Ready To Fog”

( )

Instructions of Radio Wireless Remote

* Transmitter:

* Receiver:

- Use DC 12V battery

- Working Distance: 50 meters in open area

(Wireless distance may vary depending on the interference)

- All transmitters are compatible to any receiver.

- The receiver is pre-equipped firmly and tested to each of the W-515 & W-

530 (rear panel), please do not try to remove it.

Radio Wireless Remote Functions and Setting:

1. All receivers can receive signals from any registered transmitter.

2. Each receiver at most can record 5 transmitters.

3. The included transmitter has been registered before shipment. User

can use it directly without any setting. The initial setting is pressing

button A can trigger the machine and pressing button B can stop it.

4. If user wants to use other transmitters (except the included one) to

control machine, the setting must be completed within 15 seconds

after switching on machine.15 seconds after switching on machine, it

will leave “transmitter setting mode” automatically.

If user wants to register other 3 transmitters, when machine is

turned on and LCD (Liquid Crystal Display) screen shows “Wireless

Setup”, user has to press the button A of each transmitter for 1

second rapidly within 15 seconds to complete the registration of the

3 transmitters.

Please note that 15 seconds after switch on machine, when LCD

screen shows “Wireless Setup OK”, it represents that machine has

left “transmitter setting mode”. At this point, user can not add any

transmitter to the receiver.

If user wants to use 1 transmitter to control 2 or more machines, user

has to turn on 2 (or more) machines at the same time, and press the

button A of the transmitter when the LCD screen shows “Wireless

Setup” for 1 second within 15 seconds. (The same procedure as

registering transmitter to 1 machine)

5. If no any new transmitter is registered when machine is switched on,

the memory of the receiver will remain the same record of last

operation.

6. Please note if a new transmitter is registered when machine is

switched on, no matter how many new transmitters is registered (at

most 5), all previous transmitters registered record will be cleared

(overridden).

This fog machines are DMX on board. It uses 1 channel to control volume

output. This channel has a value range of 0 to 255. Timer functions such as

duration and interval can be programmed using the DMX controller or the

DMX control software used by the lighting and effects operator.

Between the values 6 to 255 the volume of fog output is regulated. With 6

being the minimum volume of fog produced and 254 approaching the

maximum. The volume output rises as the DMX value is increased.

If the unit is assigned to DMX address 124 e.g., Channel A corresponds

to DMX address 124.

Setting Example 1:

Setting Example 2:

If Channel A has a value from 0 to 5, the unit is OFF.

Note:

On-board DMX settings

Note

* If you experience low output, pump noise or no output at all, unplug

immediately. Check fluid level, the external fuse, and power from the wall.

If all of the above appears to be O.K., plug the unit again. If fog does not

come out after pressing the remote button for 30 seconds, check the hose

attached to the tank to make sure there is fluid going through the hose. If

you are unable to determine the cause of the problem, do not continue

pressing the remote, as this may damage the unit. Return the machine to

your ANTARI dealer.

W-515 External View

01-Nozzle

02-Handle

03-Body

04-Tank & tank’s cap

05-PU tube & filter

06-Tube adaptor

07-Safety ring

08-Control outlet socket

(3 Pin XLR for DMX)

09-Control inlet socker

(3 Pin XLR for DMX)

10-Control outlet socket

(5 Pin XLR for DMX)

11-Control inlet socket

(5 Pin XLR for DMX)

12-Rocker switch / Power

13-Circuit breaker

14-Power socket

15-W-1 wireless receiver

16-Control panel

17-Foot

18-Power cord

19-W-1 wireless transmitter

18 19

POWE R SWITC H

DMX

POWE R INPUT

WIRE LESS

RECE IVER

OUT IN

BREA KER

ON OFF

WAR NING !

ATTE NTION!

ACH TUNG !

• DISC ONNEC T POWER B EFORE C HANGI NG FUSE .

USE ON LY WITH AD ULT SUPE RVISI ON.

DO NOT O PERATE W ITHOU T LIQUI D.

FOR IN SIDE US E ONLY. KEEP D RY.

NO USE R SERVI CEABL E PARTS IN SIDE.

•

• AVANT L E REMPL ACEM ENT DU FU SIBLE D ÉBRAN CHER L' APPARE IL.

• N'UT ILISE Z JAMAI S L'APPA REIL S ANS SUR VEILL ANCE DE S ADULT ES.

• NE JAM AIS UTI LISER L 'APPAR EIL SA NS LIQU IDE.

• L'AP PAREIL A É TÉ CONÇ U POUR UN E MPLOI DA NS DES LO CAUX CLO S.

PROT ÉGER DE L 'HUMI DITÉ.

• L'IN TÉRIE UR DE L'A PPAREI L NE CONT IENT PA S DE PARTI ES NÉCE SSITA NT

UN ENT RETIE N.

• VOR DE M SICHE RUNGS WECHS EL ALLP OLIG VOM N ETZ TRE NNEN.

• DIE BE DIENU NG IST NU R UNTER D ER AUFS ICHT VO N ERWACH SENEN

GESTA TTET.

• NIEM ALS OHN E FLUID B ETREI BEN.

• NUR IN I NNENR ÄUMEN V ERWEN DEN. VO R NÄSSE S CHÜTZ EN.

• KEIN E ZU WART ENDEN T EILE IM G ERÄTE INNER EN.

W-530 External View

Technical Specifications

01-Nozzle

02-Handle

03-Body

04-Tank & tank’s cap

05-PU tube & filter

06-Tube adaptor

07-Safety ring

08-Control outlet socket

(3 Pin XLR for DMX)

09-Control inlet socker

10-Control outlet socket

(3 Pin XLR for DMX)

(5 Pin XLR for DMX)

11-Control inlet socket

(5 Pin XLR for DMX)

12-Rocker switch / Power

13-Circuit breaker

14-Power socket

15-W-1 wireless receiver

16-Control panel

17-Foot

18-Power cord

19-W-1 wireless transmitter

Model

Power Supply

Power Consumption

Output Volume

Tank Capacity

Fluid Consumption

Weight

Dimensions (LxWxH)

Remote Included

Wireless

Warm-up Time

W-515

100~240V AC 50/60 Hz

1,500 W

20,000 cu.ft/min (566 m³/min)

6 liters

8.3 min / liter

14 kg

561 x 278 x 186 (mm)

W-1

11 min

W-530

100~240V AC 50/60 Hz

2,450 W

40,000cu.ft/min (1132 m³/min)

6 liters

5.3 min / liter

19 kg

581 x 278 x 186 (mm)

W-1

12 min

POWE R SWITC H

DMX

POWE R INPUT

WIRE LESS

RECE IVER

OUT IN

BREA KER

ON OFF

WAR NING !

ATTE NTION!

ACH TUNG !

• DISC ONNEC T POWER B EFORE C HANGI NG FUSE .

USE ON LY WITH AD ULT SUPE RVISI ON.

DO NOT O PERATE W ITHOU T LIQUI D.

FOR IN SIDE US E ONLY. KEEP D RY.

NO USE R SERVI CEABL E PARTS IN SIDE.

•

• AVANT L E REMPL ACEM ENT DU FU SIBLE D ÉBRAN CHER L' APPARE IL.

• N'UT ILISE Z JAMAI S L'APPA REIL S ANS SUR VEILL ANCE DE S ADULT ES.

• NE JAM AIS UTI LISER L 'APPAR EIL SA NS LIQU IDE.

• L'AP PAREIL A É TÉ CONÇ U POUR UN E MPLOI DA NS DES LO CAUX CLO S.

PROT ÉGER DE L 'HUMI DITÉ.

• L'IN TÉRIE UR DE L'A PPAREI L NE CONT IENT PA S DE PARTI ES NÉCE SSITA NT

UN ENT RETIE N.

• VOR DE M SICHE RUNGS WECHS EL ALLP OLIG VOM N ETZ TRE NNEN.

• DIE BE DIENU NG IST NU R UNTER D ER AUFS ICHT VO N ERWACH SENEN

GESTA TTET.

• NIEM ALS OHN E FLUID B ETREI BEN.

• NUR IN I NNENR ÄUMEN V ERWEN DEN. VO R NÄSSE S CHÜTZ EN.

• KEIN E ZU WART ENDEN T EILE IM G ERÄTE INNER EN.

18 19

07 05 04

Performance Note

Cleaning and Storage

All fog machines develop condensation around the output nozzle. Because

this may result in some moisture accumulation on the surface below the

output nozzle, consider this condensation when installing your unit.

All fog machines may sputter small amounts of fog occasionally during

operation and for a minute or so after being turned off.

All fog machines have a recycling period after long bursts when the machine

will shut itself down for a short period in order to heat up again. During this

time no fog can be produced.

Do not allow the fog liquid to become contaminated. Always replace the caps on

the fog liquid container and the fog machine liquid tank immediately after

filling. Cleaning your fog machine regularly can help you to reduce the

frequency of parts replacement and the cost of maintenance. After every 40

hours of continuous operation, it is recommended to use distilled water to clean

the heater as per following steps:

1. Fill proper distilled water into a clean tank and place the fluid tube of the

fog machine to the tank.

2. Run the unit in a well-ventilated area until the tank is almost empty.

3. Use dry cloth to wipe the fog machine. Cleaning is now completed. Refill

with fog liquid. Run the machine briefly to clear any remaining liquid from

the pump and heater.

All fog machines are prone to clogging due to the thick

consistency of fog liquid and the high temperature at which it

vaporizes. However, a properly maintained fog machine should

provide years of reliable use.

If the fog machine is not in use, please clean it before storage.

Store the fog machine in a dry and cool place. At least operate

the fog machine once a month.

The recommended cleaning steps is as follows:

Note:

Clean with a dry cloth only. Store dry.

Otros manuales para W-515

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de niebla de Antari

Antari

Antari FT-100 Fire Training Manual de usuario

Antari

Antari Z II Series Manual de usuario

Antari

Antari WiFi-800 Manual de usuario

Antari

Antari Z Series Manual de usuario

Antari

Antari F-4 Fazer Manual de usuario

Antari

Antari DNG-250 Manual de usuario

Antari

Antari Z-350 FAZER Manual de usuario

Antari

Antari FT-100 Fire Training Manual de usuario

Antari

Antari FT-200 Manual de usuario

Antari

Antari X FAZER Manual de usuario

Antari

Antari Z Series Manual de usuario

Antari

Antari X-510PRO Manual de usuario

Antari

Antari Fazer X-310 PRO Manual de usuario

Antari

Antari S-120 Manual de usuario

Antari

Antari Z-1500II Manual de usuario

Antari

Antari FT-100 Fire Training Manual de usuario

Antari

Antari ICE-101 Manual de usuario

Antari

Antari Z-1000 III Manual de usuario

Antari

Antari F-80Z Manual de usuario

Antari

Antari M-5 Manual de usuario

Antari

Antari B-200 Manual de usuario

Antari

Antari Z-1020 Manual de usuario

Antari

Antari ICE-100 Manual de usuario

Antari

Antari Z-1000X MK3 Manual de usuario

Manuales populares de Máquina de niebla de otras marcas

Boost

Boost BOOST-FOG400LED-BK Manual de usuario

Home Accents Holiday

Home Accents Holiday FM1000-ASH Manual de usuario

EuroLite

EuroLite ZEITGEIST FOG-1200 Manual de usuario

Dyna-Fog

Dyna-Fog CYCLONE ULTRA 2734 Manual de usuario

PROEL

PROEL DRAGO HEAVY PLFD150HY Manual de usuario

Sparklyn

Sparklyn Y846 Manual de usuario

Magicfx

Magicfx CO2 Gun Manual de usuario

Ibiza

Ibiza LSM500LAS Manual de usuario

Venue Lighting Effects

Venue Lighting Effects ULTRA MINI-FOGGER Manual de usuario

High End

High End F-100 Manual de usuario

Chauvet

Chauvet ARENA 2100 FLEX Manual de usuario

Beamz

Beamz F1600 Manual de usuario

Sagitter

Sagitter SG ARS900C Manual de usuario

KISANKRAFT

KISANKRAFT KK-STF-480 Manual de usuario

Orion

Orion OT-U250PP Guía

Beamz

Beamz S2500 Manual de usuario

American DJ

American DJ Dyno-Fog II Manual de usuario

JB Systems

JB Systems FX 1700 Manual de usuario
