American Standard Whirlpool/Bathing Pool 2645 Series Manual de usuario

750733-100 Rev. F

INSTALLATION INSTRUCTIONS

SCALA™ 5-1/2

WHIRLPOOL/BATHING POOL

2645 SERIES

HIGH GLOSS ACRYLIC

SHOWN LESS ALL FITTINGS

All product names listed herein are trademarks

of American Standard nc un ess otherwise noted

OR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.

THANK YOU...

for selecting an American Standard bath. Your new

bath is shipped to you after careful inspection. The

whirlpool version is completely assembled with pump,

motor, and system piping. All you need to finish the

installation are your selected fittings and electrical

connections for a whirlpool.

To insure maximum performance and pleasure from

this product, please follow the instructions and

cautions.

GENERAL INSTALLATION INFORMATION

Carefully uncrate and inspect your new bath for any

shipping damage. If such damage is found, report it to

your vendor immediately.

After inspection and during installation, protect the bath

from construction damage. After installation, and before

enclosing with wallboard, tile, etc., water test the unit

and check for leaks.

If a whirlpool, do not make modifications to the whirlpool

system or remove pump from factory mounting. This

could adversely affect the safety and performance of the

whirlpool and void the warranty. Do not handle or move

the whirlpool by the pump, motor, or piping system.

Fittings (bath filler, shower arm, etc.) are not provided

with the bath and must be ordered separately. Framing

and enclosing materials are provided by others. Check

for availability of optional American Standard wall tiling

bead (required for recess installations).

Protect all finished surfaces of the whirlpool during

construction and installation using a drop cloth.

WARNING! Do not lift whirlpool by the piping har-

ness at any time.

List of Optional Components (not included):

• Apron Kit*

* see your American Standard Distributor

List of Required Components (not included):

• Drain 1583.470* • Bath Filler*

* see your American Standard Distributor

List of Required Tools and Supplies:

Tools

• Level

• Tape Measure

• Pipe Wrench

• Slip Joint Pliers

• Screw Driver

• Standard

Woodworking Tools

• Personal Safety

Equipment

• Caulking Gun

Supplies

• Nails

• Putty

• Caulking (waterproof)

• 1 x 3 or 2 x 2

Stringers

• Drop Cloth

• 15 amp

GFCI Outlet

• Cement, Plaster,

Grout

C/L OF

DRAIN

1676mm

(66) 6mm

(1/4)

TYP.

25mm (1)

TYP.

302mm

(11-7/8)

PROVIDE ACCESS

TO PUMP FOR

SERVICING ON ALL

INSTALLATIONS

914mm

(36)

51mm

(2)

HAND SHOWER

LOCATION

●RECOMMENDED FITTING LOCATION

64 X 330mm (2-1/2" x 13")

OUTLINE OF CUTOUT

1626mm X 864mm

(64 X 34)

419mm

(18) 44mm

(1-3/4)

210mm

(8-1/4)

ON/OFF

SWITCH

PUMP

229mm X 305mm

(9 X 12) CUTOUT

FOR DRAIN

1-1/2 O.D. TAILPIECE

1-1/2 N.P.T.M. THREADS

INTEGRAL

FEET SUPPORT

502mm

(19-3/4)

464mm

(18-1/4)

457mm

(3-5/8)

44mm

(1-3/4)

38mm

(1-1/2)

102mm

(4)

LEVELING STRINGER

(NOT FOR SUPPORT)

■

66 x 36 x 19-3/4 In. (1676 x 914 x 502mm)

95 Lbs. (43 Kg.)

595 Lbs. (268 Kg.)

60 Gal. (227 L)

55 Gal. (208 L)

46 x 24 In. (1168 x 610mm)

62 X 31-1/2 In. (1575 x 800mm)

13-1/4 In. (337mm)

36 Lbs./Sq.Ft. (175 Kgs/Sq.m)

25.6

45.1

GENERAL SPECIFICATIONS FOR 2645 WHIRLPOOL

1.1 HP, 9.9 AMPS,120V.

WHIRLPOOL ELECTRICAL SPECIFICATIONS

SYSTEM I PUMP

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

SUGGESTED INSTALLATION

METHODS

WHIRLPOOL ONLY:

UNLESS AN ACCESS OPENING OF AT LEAST

12" X 24" (305 X 610 mm) IS PROVIDED,

WARRANTY SERVICE WILL NOT BE PERFORMED.

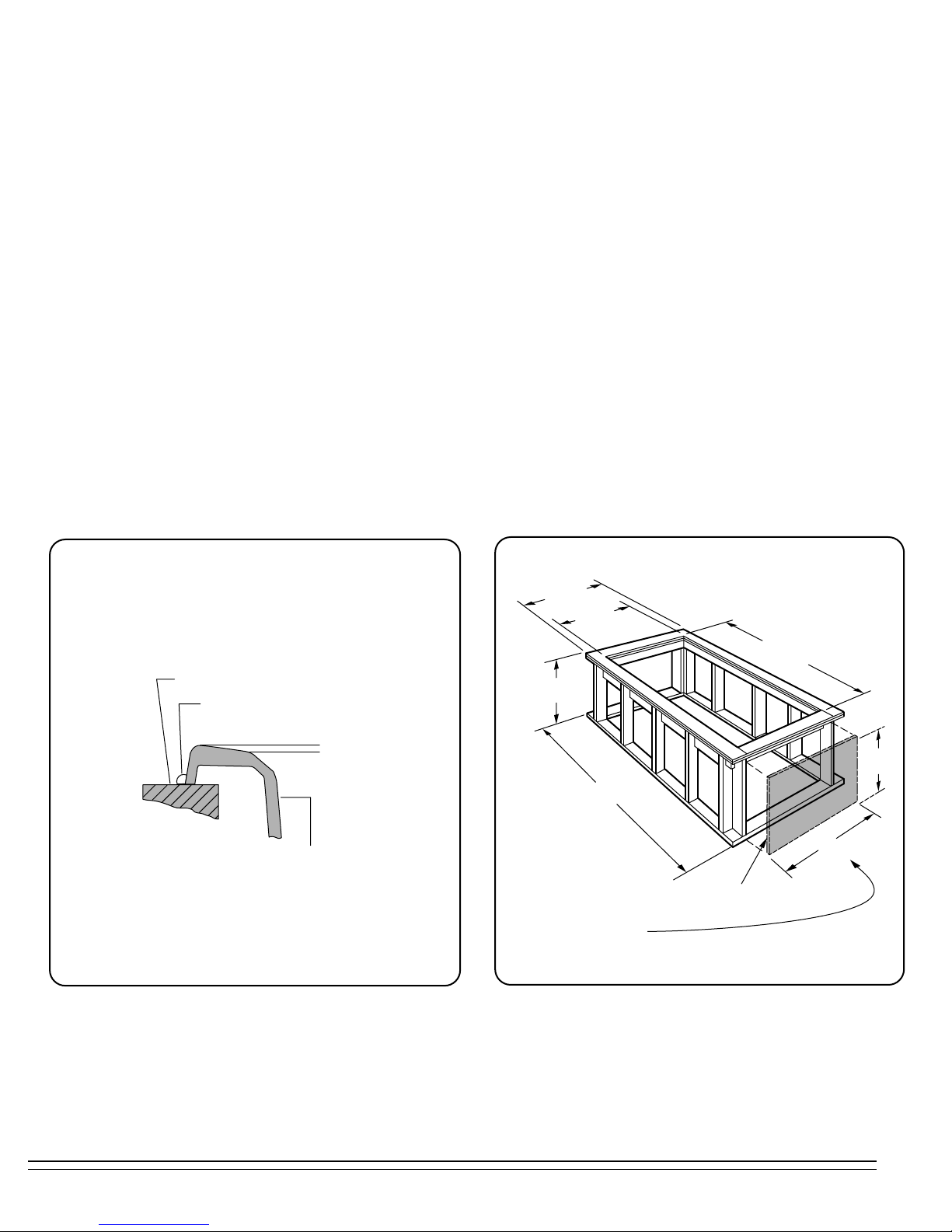

TYPICAL PIER TYPE INSTALLATION

AS DESIRED

(864mm)

CUTOUT

AS DESIRED

(1626 mm)

CUTOUT

18-1/4

(464mm)

ACCESS PANEL

(610 mm)

(305 mm)

MOUNTING SURFACE

WATERPROOF

SEALANT

BATH

FRAMING AND INSTALLATION

THE VARIETY OF INSTALLATIONS POSSIBLE FOR THIS BATH MAY REQUIRE FRAMING PROCEDURES OTHER THAN THOSE SHOWN.

LOCATE STUDS AS REQUIRED. INSURE ROUGH DIMENSIONS ARE PROPER, PLUMB AND SQUARE. FOR WHIRLPOOLS, PROVISION MUST

BE MADE IN ALL INSTALLATIONS FOR AN ACCESS OPENING FOR SERVICING PUMP AND CONTROLS.

THE FOLLOWING PROCEDURE MUST BE USED FOR ALL INSTALLATIONS: STRINGER OR PIER HEIGHT SHOULD BE AS INDICATED. THE

SUMP OF THE BATH IS SUPPORTED BY INTEGRAL FEET AND NO ADDITIONAL SUMP SUPPORT IS REQUIRED. ONCE THE BATH IS IN

PLACE, THE FEET SHOULD BE SHIMMED ACCORDINGLY, SO THAT THE RIM OF THE BATH CONTACTS THE STRINGER OR PIER BUT

SUPPORTS NO WEIGHT. ANY FINISH MATERIAL, SUCH AS TILE OR WALL BOARD, MUST BE SELF-SUPPORTING IF IT CONTACTS THE

RIM OF THE BATH.

50733-100 Rev. F (2) SPIC AND SPAN®IS A REGISTERED TRADEMARK OF PROCTER & GAMBLE

ELECTRICAL DIAGRAM

READ AND FOLLOW ALL INSTRUCTIONS

BLACK

WHITE

120 VAC

GND.

SEPERATE

15 AMP

GFCI OUTLET

WHIRLPOOL MOUNTED

AIR SWITCH OR

WALL TIMER

ELECTRICAL INSTALLATION

PUMP/MOTOR

750733-100 Rev. F

ELECTRICAL INSTALLATION INSTRUCTIONS

All wiring must be performed by a licensed electrician in accordance with the national electrical code and all other

applicable codes.

WARNING:

When using electrical products, basic precautions should always be observed, including the following:

1. DANGER: RISK OF ELECTRIC SHOCK

Connect only to a circuit protected by a ground-fault circuit interrupter.

2. Grounding is required. The unit should be installed by a licensed electrician and grounded.

3. Install to permit access for servicing.

4. All building materials and wiring should be routed away from the pump body and heater (if equipped).

The whirlpool should be installed on a 120 vac, 15 amp dedicated circuit. The circuit should be hard-wired from the

electrical power supply panel. The circuit must be a three (3) wire circuit from the electrical supply panel. A grounded

neutral wire and a third wire, earth ground, are essential.

(3)

WIRE SELECTION GUIDE

750733-100 Rev. F

DRAIN CONNECTION AND SYSTEM TEST

Using recommended drain opening, connect whirlpool drain to waste line. Tighten all drain joints securely. Check the

pump couplings and make sure they are hand-tight. Clean the whirlpool and fill with water to a point 2" above the top of

the highest jet. Recheck the pump couplings and make certain that they are not leaking. (Although the pump couplings

are factory tightened and inspected, some loosening may have occured during transit.) Make sure the whirlpool is

connected to the electrical supply and turn the whirlpool on. Check for leaks around all piping connections while the

whirlpool is running.

POST INSTALLATION CLEAN-UP

Remove all construction debris from bath. Tile grout can be removed with a wooden popsicle stick or tongue depressor.

Do not use wire brushes or any other metal implement on bath surface.

Post installation clean-up generally can be completed using warm water and liquid dishwashing detergent. Stubborn dirt or

stains may be removed using granular Spic and Span®mixed with water.

Painter's naphtha can be used to remove excess adhesives and/or wet oil-base paint.

HARSH CHEMICALS SHOULD NEVER BE USED ON ACRYLIC SURFACES.

Abrasive cleaners must not be used since they will scratch and dull the surface. Dulled areas can be restored by rubbing

with a white automotive-type polishing compound and waxing with a liquid wax.

Maximum distance from

fusebox to motor The sizes shown on this

chart are recommendations

for copper conductors

only. Always follow

local and national

electrical codes

Motor High

Performance

50' 100'

115V Power Line

150' 200'

12 12 10 8

1.1

(4) SPIC AND SPAN®IS A REGISTERED TRADEMARK OF PROCTER & GAMBLE
