HD-1

LIFETIME™ CORNER

WHIRLPOOLS BY AMERICAN STANDARD

HIGH GLOSS ACRYLIC

LIFETIME™ CORNER

Comfortable two person design with dual back

support positions, integral seat and installed grab bar.

❏ Model# 6060L (specify color)

• Acrylic with berglass reinforcement

• 2.1 HP self-draining pump/motor with dry

run seal

• Ten ow adjustable jets including:

Two adjustable Ideal Flow Comfort Jets™

Eight adjustable Comfort Jets™

• Three silent air volume controls

• Side-mounted On/Off control

• Complete factory installed and tested

whirlpool system

• Includes E-Z-Install™ Whirlpool Heater

❏ Model# 6060LC (specify color)

• Same as above with the EverClean™ whirlpool

system. The EverClean™ antimicrobial system

incorporates AlphaSan®, a patented

antimicrobial agent manufactured right into the

circulation system components, which

suppresses the growth of unsightly algae,

fungus, mold and mildew.

Nominal Dimensions:

54-1/2” x 54-1/2” x 21-1/2”

(1384 x 1384 x 546mm)

Installed Size:

76-3/4” x 65-3/8” x 21-1/2”

(1949x 1661 x 546mm)

Compliance Certications -

Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

SEE REVERSE FOR ROUGHING-IN DIMENSIONS

AND PRODUCT SPECIFICATIONS

Components Needed:

❏ Bath Filler*: (specify nish)

❏ Bath Drain: 1583.470 (specify color)

OR 1599.500.020 (white only)

Custom Accessories Available:

❏ Corner Apron: CORNER-APRON (specify color)

❏ Tile Bead Kit: TILE-BEAD

For color/nish availability and other faucet choices, please

see the Product Selector and Pricing Guide.

NOTE: E-Z-Install™ Whirlpool Heater is designed to

maintain water temperature during operation. It will not heat

cold water to desired bathing temperature.

Revised 7/07

* See American Standard Faucet Selector

AlphaSan® is a registered trademark of Milliken & Co.

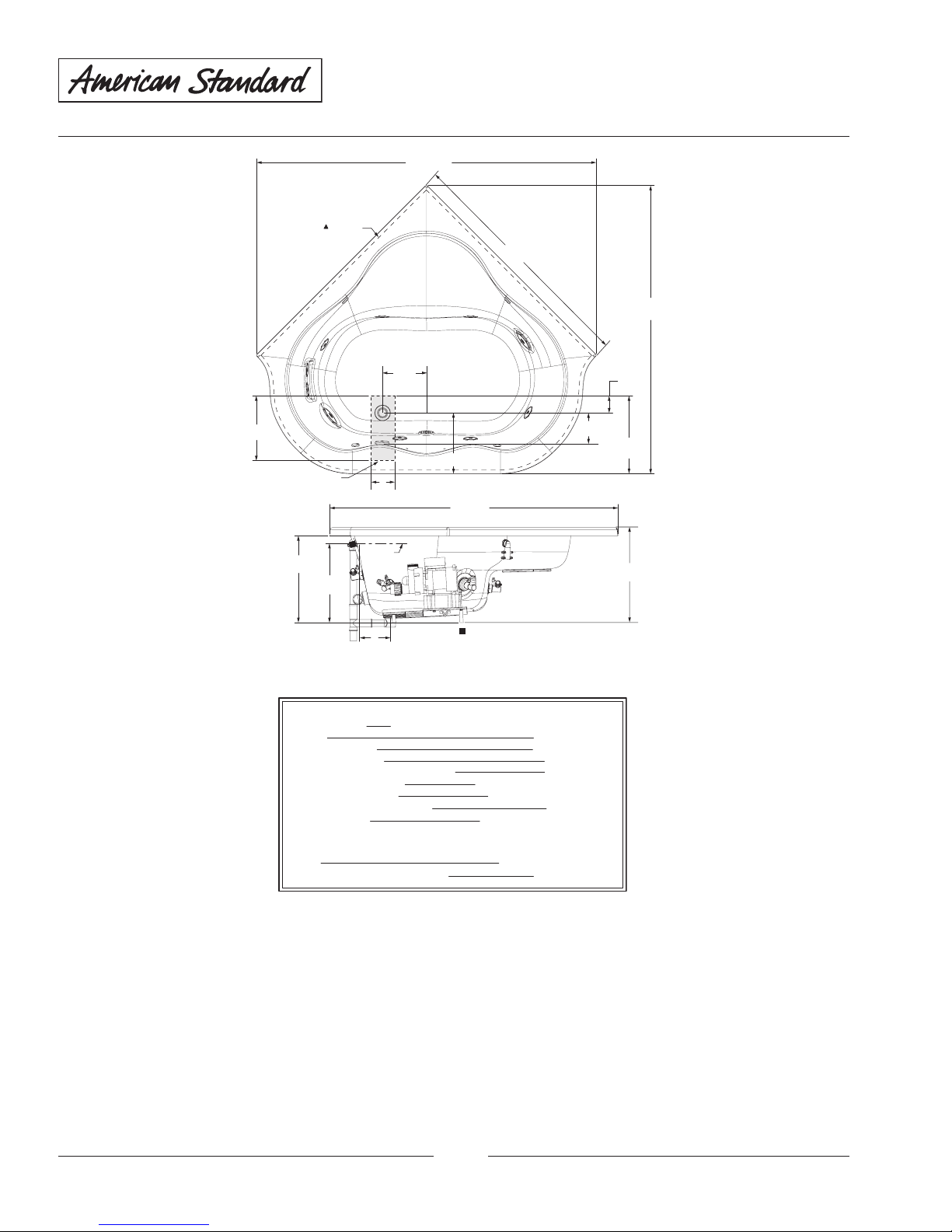

HD-2

LIFETIME™ CORNER

WHIRLPOOLS BY AMERICAN STANDARD

HIGH GLOSS ACRYLIC

Revised 7/07

(178mm)

76-3/4"

(1949mm)

54-1/2"

(1384mm)

65-3/8"

(1661mm)

(76mm)

(178mm)

15"

(381mm)

(203mm)

17-3/4"

(451mm)

19-1/2"(C)

(495mm)

65-3/8"

(1661mm)

18"(A)

(457mm)

10"

(254mm)

13-3/4"

(349mm)

CUT OUT IN FLOOR

FOR DRAIN

21-1/2"(H)

(546mm)

DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE

OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

C/L OF

OVERFLOW

OUTLINE OF

CUTOUT

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

GENERAL SPECIFICATIONS FOR 6060L WHIRLPOOL

WHIRLPOOL ELECTRICAL SPECIFICATIONS

PUMP

76-3/4 x 65-3/8 x 21-1/2 In. (1949 x 1661 x 546mm)

108 Lbs. (49 Kg.)

824 Lbs. (374 Kg.)

86 Gal. (325 L)

71 Gal. (269 L)

48 x 26-1/2 In. (1219 x 673mm)

63 x 50 In. (1600 x 1270mm)

15 In. (381mm)

24 Lbs./Sq.Ft. (116 Kgs./Sq.m)

2.1 HP, 14.4 AMPS,120V.

E-Z INSTALL WHIRLPOOL HEATER 12.0 AMPS,120V.

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND OR PENINSULA TYPE INSTALLATION. SUPPORT OF

BATH BY INTEGRAL FEET. NO ADDITIONAL SUPPORT REQUIRED. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

OPTIONAL 2-WALL TILING BEAD KIT No.TILE-BEAD MUST BE ORDERED SEPARATELY.

▲ CUTOUT TEMPLATE PROVIDED IN SHIPPING BOX. MAY BE REQUESTED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.

FITTINGS NOT INCLUDED, MUST BE ORDERED SEPARATELY.

IF INSTALLING A DECK-MOUNTED FITTING, BEFORE DRILLING ANY HOLES: CHECK FOR INTERFERENCE WITH CIRCULATING SYSTEM

PIPING, DRAIN OVERFLOW, AND APRON INSTALLATION. MOUNTING HOLES DRILLED BY INSTALLER.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.
