American Standard Lifetime 2425L-LHO Manual de usuario

HD-7

LIFETIME™ 5' X 32" IA-LHO/RHO

WHIRLPOOLS BY AMERICAN STANDARD

HIGH GLOSS ACRYLIC

LIFETIME™ 5’ X 32”IA-LHO / RHO

Comfortable bathing design with form-tted backrest

and molded-in armrests

❏ Model# 2425L-LHO Built-In Integral Apron

Left Hand Drain Outlet (specify color)

❏ Model# 2425L-RHO Built-In Integral Apron

Right Hand Drain Outlet (specify color)

• Acrylic with berglass reinforcement

• Lifetime Overow Drain for maximum

water depth

• Integral apron with removable access panel

• Integral three-sided, tiling / water

retention ange

• 1.4 HP self-draining pump/motor with dry

run seal

• Eight ow adjustable jets including:

Two adjustable Ideal Flow Comfort Jets™

Six adjustable Comfort Jets™

• Two silent air volume controls

• Side-mounted On/Off control

• Designed with undermount installation option

• Complete factory installed and tested

whirlpool system

❏ Model# 2425LC-LHO Built-In Integral Apron

Left Hand Drain Outlet (specify color)

❏ Model# 2425LC-RHO Built-In Integral Apron

Right Hand Drain Outlet (specify color)

• Same as above with the EverClean™ whirlpool

system. The EverClean™ antimicrobial system

incorporates AlphaSan®, a patented

antimicrobial agent manufactured right into the

circulation system components, which

suppresses the growth of unsightly algae,

fungus, mold and mildew.

Nominal Dimensions:

60” x 32” x 21-1/2”

(1524 x 813 x 546mm)

Compliance Certications -

Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

SEE REVERSE FOR ROUGHING-IN DIMENSIONS

AND PRODUCT SPECIFICATIONS

Components Required:

❏ Bath Filler*: (specify nish)

❏ Bath Drain: 1599.205.XXX (specify color)

OR 1599.500.020 (white only)

Custom Accessories Available:

❏ E-Z-Install™ Whirlpool Heater - EZHEAT-100

Revised 7/07

For color/nish availability and other faucet choices, please

see the Product Selector and Pricing Guide.

NOTE: E-Z-Install™ Whirlpool Heater is designed to

maintain water temperature during operation. It will not heat

cold water to desired bathing temperature.

* See American Standard Faucet Selector

AlphaSan® is a registered trademark of Milliken & Co.

HD-8

LIFETIME™ 5' X 32" IA-LHO/RHO

WHIRLPOOLS BY AMERICAN STANDARD

HIGH GLOSS ACRYLIC

Revised 7/07

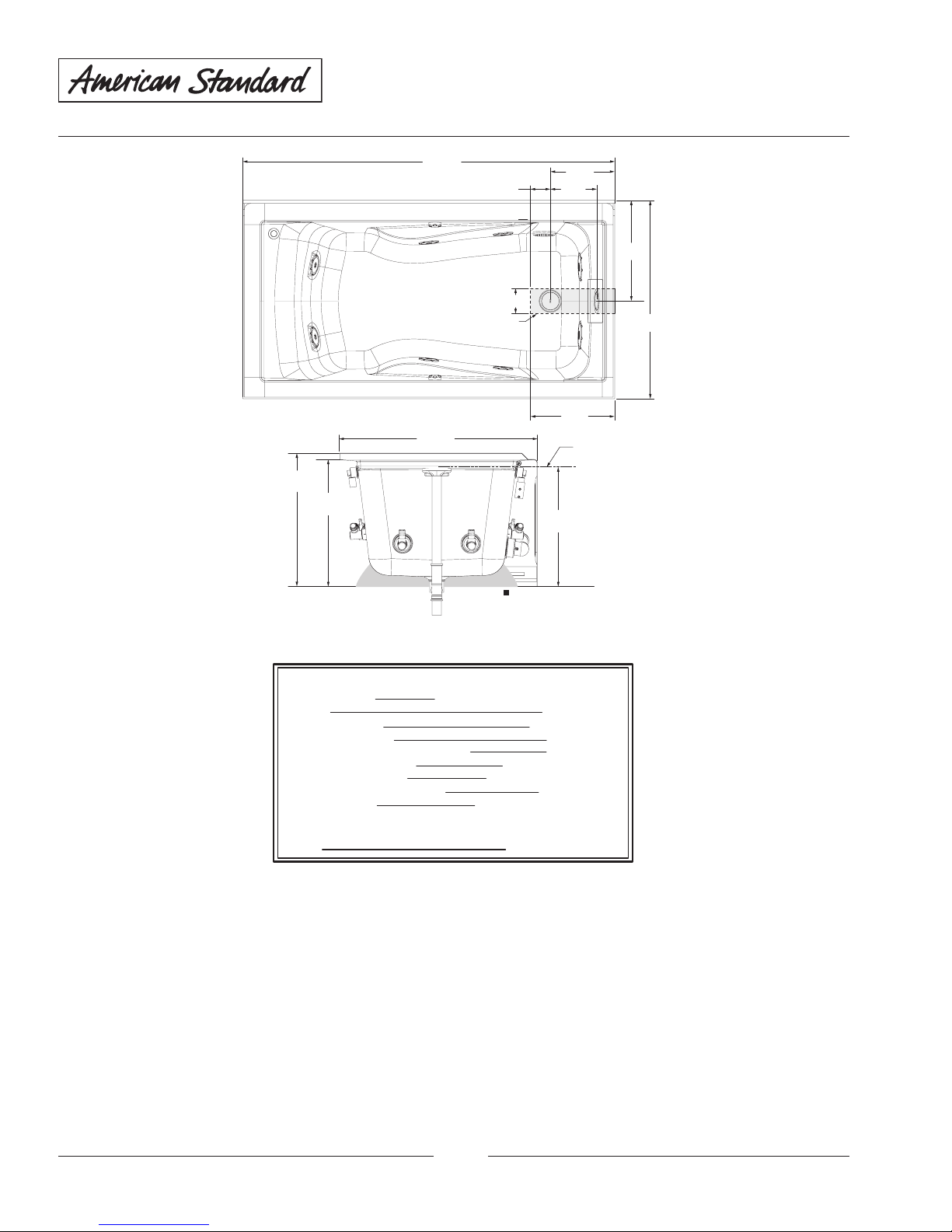

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUPPORT OF

BATH BY SUMP BEDDING. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.

CUT OUT IN FLOOR

FOR DRAIN

60"

(1524mm)

32"

(813mm)

7-1/2"

(191mm)

10-1/2"

(267mm)

(76mm)

(152mm)

13-1/2"

(343mm)

32"

(813mm)

16"

(406mm)

21-1/2"

(546mm)

20-1/2"(H)

(521mm)

19-1/8"(A)

(486mm)

DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE

OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

C/L OF

OVERFLOW

GENERAL SPECIFICATIONS FOR 2425L WHIRLPOOL

WHIRLPOOL ELECTRICAL SPECIFICATIONS

PUMP 1.4 HP, 9.7 AMPS,120V.

60 x 32 x 20-1/2 (1524 x 813 x 521mm)

92 Lbs. (42 Kg.)

675 Lbs. (306 Kg.)

70 Gal. (265 L.)

39 Gal. (148 L.)

42 x 22 (1067 x 559mm)

53 x 25-1/2 (1346 x 648mm)

17-1/2 (445mm)

51 Lbs./Sq.Ft. (247 Kgs./Sq.m)

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

Model 2425L-LHO Shown
