Advantech MIC-75G30 Manual de instalación y operación

MIC-75G30 Startup Manual 1

Before you begin installing your Expansion Module, please

make sure that the following items have been shipped:

• 1x MIC-75G30 i-Module P/N: MIC-75G30-00A1

• 2x 4-pin phoenix connector P/N: 1652003234

• 1x SATA cable (30 cm/11.8 in) 1 P/N: 1700017838

• 1x SATA cable (40 cm/15.7 in) P/N: 1700020978-01

• 1x Mounting bracket (L) P/N: 1960005359T003

• 1x Mounting bracket (R) P/N: 1960094392N001

• 6x Screw for mounting bracket P/N: 1930007259-01

• 2x GPU bracket P/N: 1960094390N000

• 10x Screw for GPU bracket P/N: 1930005673-11

• 5x Shock Proof Rubber P/N: 1990000505T000

• 1x MIC-75G30 Start-up manual P/N: 20415G3000

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

MIC-75G30

Dual GPU Expansion Module for Video AI Edge

Computing with MIC-7 Series

Startup Manual

Expansion Slot

• Slot 1 & 3: Blank

• Slot 2 & 4: PCIe × 16 (signal PCIe × 8) for GPU card

• Slot 5: PCIe × 4

Environment

• Operating Temp.: 0 ~ 40 °C/32 ~ 104 °F (35W CPU w/

industrial SSD)

• Vibration: With SSD: 1 Grms @ 5~500 Hz, random, 1 hr/

axis

• Shock: With SSD: 10G, IEC-68-2-27, half-sine wave,

11ms duration

Mechanical Information

• MIC-75G30 N.W.: 5 kg/11 lb; G.W.: 7 kg/15.4 lb

• Dimension (W×H×D): 280 × 192 × 385 mm (11 x 7.55 x

15.1 in ) (The dimensions provided are the dimensions of

the i-Module assembled in the MIC-77xx Series)

Note: By using MIC-7500 and MIC-7900, width will be

decreased by 4 mm / 0.15 in.

Connectors

No. Item Function

1 DCIN1 24VDC in

2 PPCIE1 PCIe×16 slot

3 PPCIE2 PCIe×16 slot

4 PPCIE3 PCIe×4 slot

5 SATAPWR1 4-pin SATA power connector (5V)

6SATA1 SATA signal connector

7 SYSFAN1 4-pin fan connector

8 SYSFAN2 4-pin fan connector

9 GPUPWR1 6-pin power connector for GPU

card (12V, 17A)

10 GPUPWR2 6-pin power connector for GPU

card (12V, 17A)

11 GPUPWR3 6-pin power connector for GPU

card (12V, 17A)

12 GPUPWR4 6-pin power connector for GPU

card (12V, 17A)

13 DC12VOUT1 4-pin power connector (12V, 5A)

SpecicationsPacking List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website for MIC-770 at:

http://advt.ch/MIC75G30

months extra warranty for free at:

http://www.register.advantech.com

This manual is for the MIC-75G30 Rev. A1.

Part No. 20415G3000 1st Edition

Printed in China August 2020

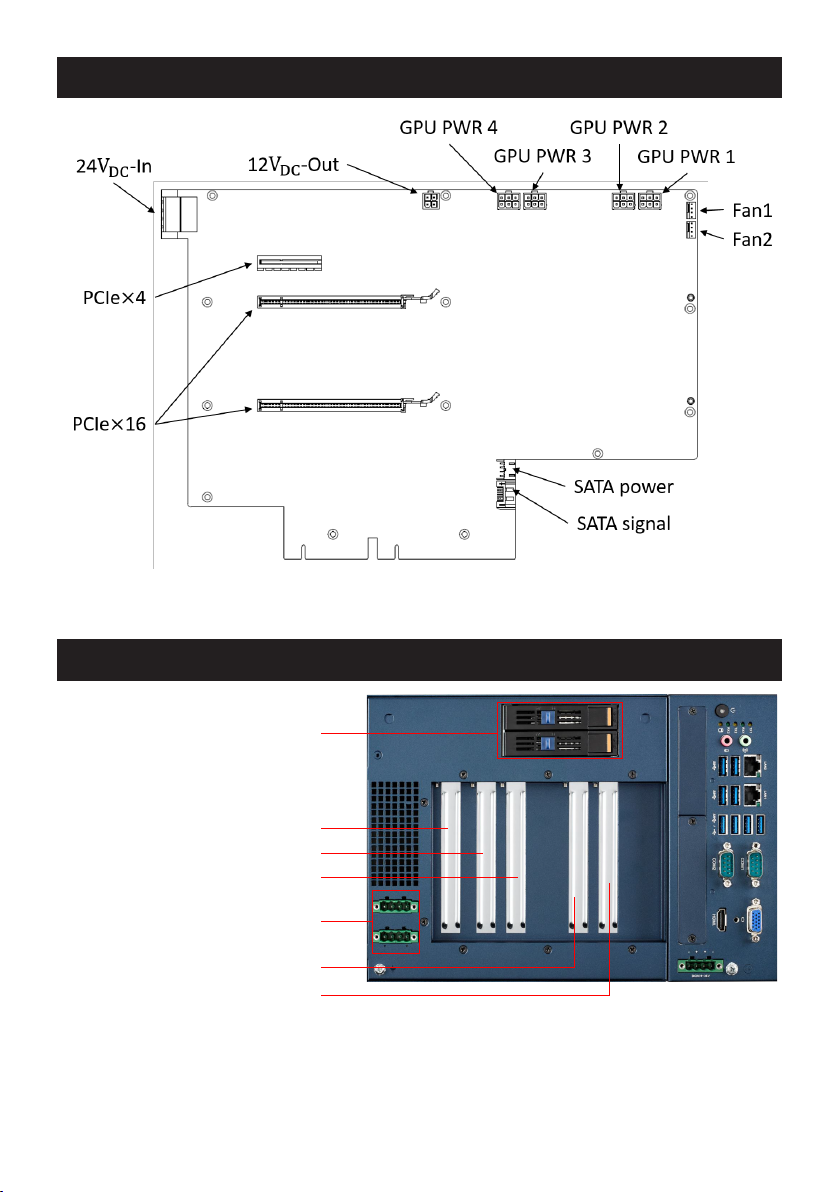

I/O Connectors

2 MIC-75G30 Startup Manual

Slot 5: PCIe×4

Slot 4: PCIe X 16 (signal PCIe X 8) for GPU card)

Slot 3: Blank (space for triple-deck GPU card)

Dual swappable HDD/SSD Storage bay

Dual Independent 24 VDC power for GPU cards,

support up to 1,200W Max. Peak power currency

Slot 2: PCIe X 16 (signal PCIe X 8) for GPU card)

Slot 1: Blank (space for triple-deck GPU card)

I/O Connectors (Cont.)

Front View

MIC-75G30 Startup Manual 3

MIC-75G30 can be assembled with all MIC-7 series IPC

systems.

1. Unscrew MIC-7 series system screws and remove the

bottom cover.

2. Remove 2x dust covers (IMPORTANT!).

3. Unscrew the 6x screws on MIC-75G30 and remove the

side cover.

4. Before aligning the MIC-75G30 and MIC-7 Series,

remove the HDD bracket and adapter bracket by undo-

ing the screws, then secure the MIC-75G30 and MIC-7

Series using the 4x screws.

5. Secure the MIC-75G30’s side cover with 8x screws.

1. Remove the HDD bracket by unscrewing the 4x screws.

2. Remove the adapter bracket to make space for the

GPU card.

3. Secure the GPU bracket to the GPU card with 3x

screws

4. Secure the GPU bracket to the riser card and chassis

with 2x screws respectively.

Note: The installation of the second GPU card works the

same.

Simple Installation Process

GPU Card Bracket Assembly

Simple Installation Process (Cont.)

4 MIC-75G30 Startup Manual

5. After securing the GPU card to the system and before

returning the HDD bracket, install the rubbers(P/N) to

the HDD bracket to secure the GPU card.

Note: The rubbers are adjustable, please adjust the rubber

to contact with the GPU cards and other expansion cards.

GPU Card Bracket Assembly (Cont.)

Mounting Bracket Assembly

Fan Filter Replacement

Werecommendyoureplacethefanlteratregularintervals

to ensure the stability of system cooling.

1. Removethesystemcoverandremovetheoldfanlter.

2. Replacewithanewfanlterandreassemblesystemcover

using screws.

1. Secure the left (1960005359T003) and right (1960094392N001) mounting brackets using 6x screws.

MIC-75G30 Startup Manual 5

System Dimensions

Example: MIC-770 + MIC-75G30

W x H x D: 280 x 192 x 385 mm (11 x 7.55 x 15.1 in )

Note: By using MIC-7500 and MIC-7900, width will be decreased by 4 mm (0.15 in).

Note:Werecomomendreservingatleast25mm(0.98in)ofspaceontherearsideforfanairow.

1. The DC-DC power cord (Recommend P/N: 1700031413-01) should be assembled to 4-pin Phoenix connectors

(1652003234)

Note: please note the VCC “ - + + - “

2. All 4-pin phoenix connectors should be connected to the system, 2 to MIC-75G30 and 1 to MIC-7 Series.

- ++ -

- - - + + +

DC-DC PSU power cord: 1700031413-01

AC-DC PSU power cord (1.83M)

P/N: 1700029720-01 (USA)

1700030520-01 (CN)

Power Supply Cabling Guide

6 MIC-75G30 Startup Manual

3. DC-DC power cord (Recommend P/N: 1700031413-01) should be assembled to the PSU (Recommend P/N: XMIC-

HRPG-1000-24) +V and -V with the corresponding VCC of the othe end.

P/N: 1700029720-01 (USA)

1700030520-01 (CN)

Power Supply Cabling Guide (Cont.)
