Chapter 1 SOM-A2558 series Architecture

1.1 Introduction

Advantech SOM-A2558 module uses a dual-chip design principle.

SOM-A2558 series System On Module integrates both an Intel XScale

PXA255 ultra low power CPU with Advantech's EVA-C210 companion chip.

This offers the advantage of integrated controllers, but with multiple I/Os, such

as CF, PCMCIA, USB Host, USB Client, RS-232/UART, PCI Bus Rev. 2.2,

10/100Base-T Ethernet, PS/2 ports and RS-485.

SOM-A2558 series Design highlight:

l68 mm x 68 mm x 6.8 mm compact size module

lPower management ready support with Normal, Idle, Suspend,

Off mode utilities.

lOS-ready package for Windows CE .NET/Linux Installation

(Windows CE .NET 4.2 BSP ready)

lLocal bus(AMI Bus), comprehensive I/O interfaces as PS/2 port,

Ethernet, USB Host and PCI I/F support

lBoot option by onboard Flash or CFC makes easy maintenance

and cost savings

lProvide a variety of reconfi guration options to fulfi ll specifi c

requirements

lDesign-in Kit package is available for complete design-in support

lOptional RISC CE-Builder assists for customer own image

development

SOM-A200 architecture

SOM-A255x series are based on Advantech SOM-A200 architecture to

design. SOM-A200 is Advantech RISC ultra-low power series SOM

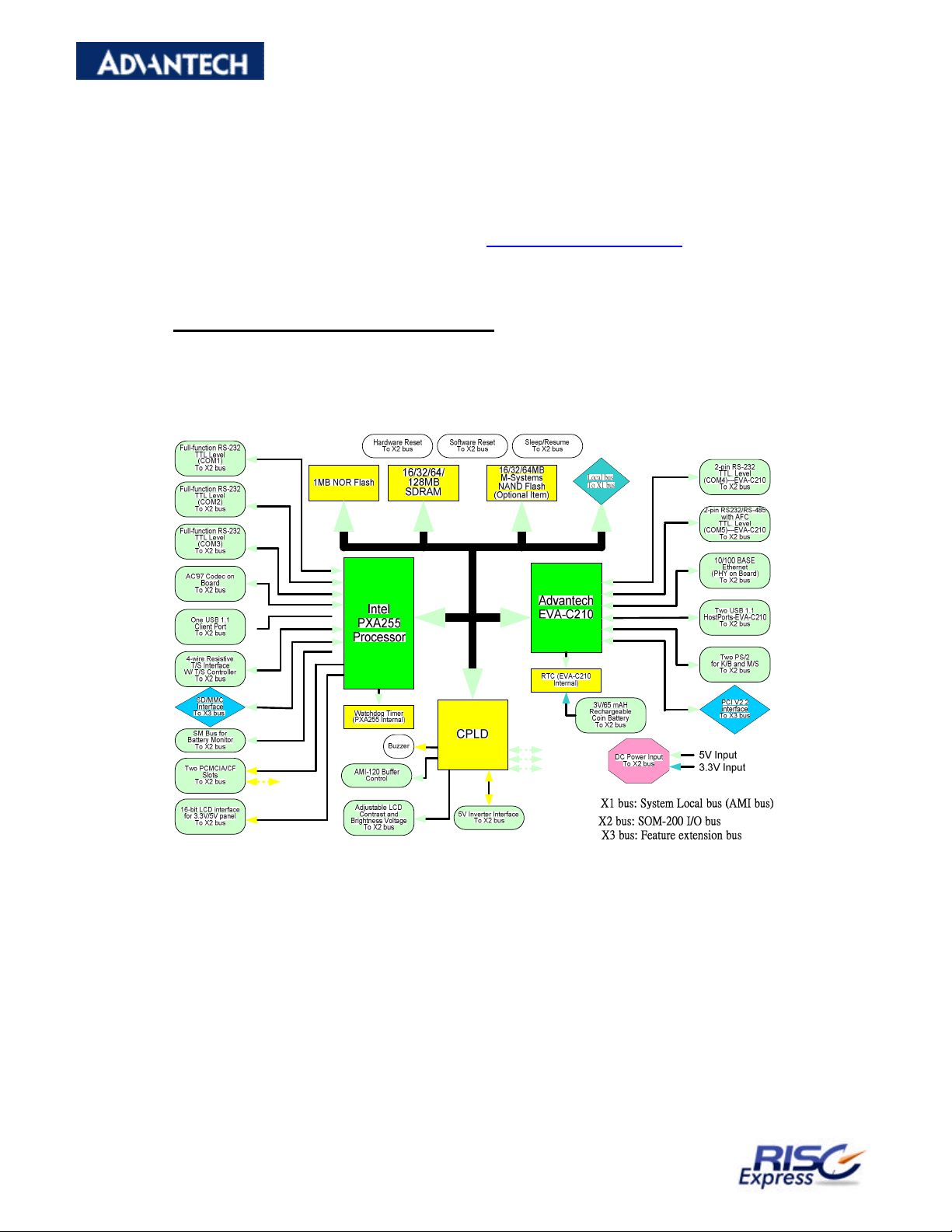

architecture. The following block diagram is the SOM-A200 architecture.

Your ePlatform Partner

User’s Manual for Advantech SOM-A2558 series module V1.00

Based on SOM-A200 architecture to design, SOM-A255x (SOM-A2552,

SOM-A2558 and SOM-A255F) series have two kinds of PCB form factors.

lSOM-A2552& SOM-A2558 series: 68mm x 68mm x 6.8mm

lSOM-A255Fseries: 68mm x 102mm x 6.8mm

SOM-A2558 benefit

The SOM-A2558 series are very compact (68mm x 68mm x 6.8mm) and

highly integrated system module. SOM-A2558 series products have a

standardized form factor and standardized connectors (DDR-SODIMM

Memory Connector and two 100-pin board-to-board connectors) that carry a

specified set of signals. This standardization allows users to create

application-specified User Solution Board (CSB) which can accept a variety of

present and future SOM-A200 series modules.

SOM-A2558 series include popular & common peripheral functions such

as serial ports, LAN, USB, PCI, etc. The CSB designer can optimize exactly

how each of these functions is physically implemented. Connectors can be

placed precisely where they are needed for the application, on a baseboard

designed to optimally fit the system configuration and layout.

A CSB design may be used with a range of SOM-A2558 modules. This

flexibility can be used to differentiate products at various price/ performance

points, or to design “future proof” systems that have a built-in upgrade path.

The modularity of an SOM-A2558 solution also insures against obsolescence

as computer technology continues to evolve. A properly designed SOM-A2558

CSB can be used with several successive generations of SOM-A2558

modules. An SOM-A2558 CSB design thus has many of the advantages of a

custom computer board design, but delivers better obsolescence protection,

greatly reduced engineering effort, and faster time to market.

Based embedded platform integrates both low-level hardware and

software design and is always agreed to require heavy R&D resources, huge

development effort, risk as well as long time to market lead-time. Moreover,

the fast develop RISC SoC technology and short product life that has been

challenging System Integrators how to make a right product development

approach while foreseeing the huge advantage & benefit by adopting

RISC-base solution.

SOM-A2558 series are an innovate platform architecture of

WinCE.NET-ready complete functional system in a low profit module with

SODIMM 200-pin unified I/O ready bus interface that is designed to fit into

application-specified User Solution Board (CSB) with easy, risk-less, robust,

fast implementation approach. Dual expansion interface and Pre-select

Embedded OS also are well integrated on module. OS Board Support

Package (BSP) and advantech own-develop system utility & tools are also

supported for an easy design-in business philosophy.

SOM-A2558 series Application

SOM-A2558 series is designed for Ideal for power critical & I/O intensive

required base Applications

lMobile, battery-powered device platform with multi-I/O I/F

demands

Your ePlatform Partner

User’s Manual for Advantech SOM-A2558 series module V1.00

lCompact diagnostic, monitoring, control equipment or HMI

terminals

lOutdoor, fully enclosured, Intelligent remote I/O controllers

lLCD-based vehicle/telemetric platforms for navigation &

communication.

SOM-A2558 series design-in package

The Design-in Kit package provides developer complete reference

design-in suit for application evaluation/ development and own Customer

Solution Board (CSB) development. It contains the needed information,

documentation and tools for starting their hands-on work as the followings

items:

lTarget SOM (SOM-A2558-440B0): SOM-A2558 standard version

board.

SOM-A255x series Reference Carrier Board (RCB): Sample CSB

for developer reference. The board can be used in SOM-A255x

series board. (SOM-A255x means SOM-A2558, SOM-A2558 and

SOM-A2558)

l64MB compact flash card : the CF card is empty without any file

inside.

lSOM-A255x series support CD : includes

-sample image & boot loader

-manuals & datasheets

-SOM-A255x series CSB design guide

-S/W utility(upgrade utility, testing utility)

-SOM-A255x series WinCE 4.2 BSP & SDK

-Application note

lTesting Set:

It is designed for sample CSB or user own CSB/mass production test.

It includes:

-H/W testing tools: RS232 loop-back testing tool, ADAM-4520

for RS485 testing, null MODEM cable, JTAG cable, USB

ActiveSync cable, Audio cable, RS232 cable and RS485

cable.

-S/W testing Utility: Advantech-developed testing Utility. Testing

process will be implemented by S/W testing Utility and H/W

testing tools.

-Document: “User's manual of SOM-A255x series testing kit”.

User can base on the documents to know how to implement

testing process.

lSoftware Development Tools:

Software tools is the complete package for user developed their

target image to align with their target CSB and applications

-BSP: Binary Board Support Package of target SOM Design-in Kit.

User can integrate their target WinCE platform in components &

Apps & drivers

-SDK: For user target Apps development

-Reference Image: Reference Image for the selected model of

SOM.

-Bootloader: Bootloader for the SOM-A255x series board.

Your ePlatform Partner

User’s Manual for Advantech SOM-A2558 series module V1.00

-Upgrade Utility: User can use Upgrade utility to upgrade boot

logo, image & bootloader.

Except the Design-in package, Advantech also supply many types of LCD

kits for users to reduce their developing effort. The LCD kit include the

following items:

lLCD

lInverter

lCables: includes LCD signals cable, Inverter signals cable.

lDocument: The LCD kit installation guide.

Advantech supply the following LCD kits for user to choose

lLCD-A057-STQ1-0 (Optional item)

5.7” STN QVGA LCD kit. The kit includes 5.7” STN QVGA LCD

(NAN-YA/ LCBFBTB61M23), 4-wires resistive T/S, inverter, cables

and installation guide. SOM-A2552& SOM-A255F series don’t

support 320*240 STN panel in this moment, if user have this kind of

requirement, please contact with [email protected] or

advantech regional sales for further support.

lLCD-A064-TTV1-0 (Optional item)

6.4” TFT VGA LCD kit. The kit includes 6.4” TFT VGA LCD

kit(PRIMEVIEW PD064VT2), 4-wires resistive T/S, inverter, cables

and installation guide. All SOM-A255x series support this LCD kit in

reference image.

lLCD-A104-TTS1-0(Optional item)

10.4” TFT SVGA LCD kit. The kit includes 10.4” TFT SVGA LCD

(AUO/ G104SN03v2), 4-wires resistive T/S, inverter, cables and

installation guide. Only SOM-A255F& SOM-A2552series can

support this LCD-out mode.

lLCD-A150-TTX2-0 (Optional item)

15” TFT XGA LCD kit. The kit includes 15” TFT XGA LCD (AUO/

M150XN07), 4-wires resistive T/S, inverter, cables and installation

guide. Only SOM-A255F & SOM-A2552series can support this

LCD-out mode.

SOM-A2558 series design-in kit(SOM-ADK2558-B00) is not included

any LCD kit. If user needs LCD kit to evaluate, please order your suitable

size LCD kit.

Risc CE-Builder

SOM-A255x series all support the Advantech optional RISC CE-Builder by

which developers can manage the BSP for their own platform development

thru a friendly users interface over the web.

RISC CE-Builder Solution is constituted by two parts: Web Image Builder

and CE-TUner.

Web Image Builder offers developers an online image building

mechanism through a friendly user interface to remotely conduct low-level

software and platform customization / integration for their target application

without knowing / using Microsoft Platform Builder. The image building

machine links to Advantech’s Board Support Package (BSP) library so

developers can leverage Advantech’s low-level software solution database.

Your ePlatform Partner

User’s Manual for Advantech SOM-A2558 series module V1.00

CE-TUner is a powerful value-added system utility / tool suit for

developers easily and simply develop, validate and upgrade their own SW

platform solution. CE-Tuner helps users fine-tune their target SW image for

optimized performance, verify settings, and platform tests before the

production image is certified.

RISC CE-Builder is not included in Design-in kit. If you need more

information about it, please contact with [email protected] or

advantech regional sales for further support.

1.12 SOM-A2558 Block diagram

SOM-A2558 series bases on Dual-Chips design concept, SoC Intel

XScale PXA255 & I/O enhancement chip Advantech EVA-C210. The Block

diagram is as following:

Your ePlatform Partner

User’s Manual for Advantech SOM-A2558 series module V1.00

SoC Intel XScale PXA255 introduction

Intel XScale PXA255 processor is continuing the advance in handheld

multimedia functionality.

PXA255 is Low power, high performance 32-bit Intel XScale® core-based

CPU (200, 300 and 400 MHz). The SoC is ARM Architecture v.5TE compliant.

0.18µ process for high core speeds at low power.

Intel® Media Processing Technology including 40-bit accumulator and 16-bit

SIMD to enhance audio/video decode performance.

In power field, Low Power and Turbo modes enables enhanced optimal

battery life. 32 KB data and 32 KB instruction caches, 2 KB Mini data cache for

streaming data.

About PXA255 I/O expansion function, Integrated Memory and

PCMCIA/Compact Flash Controller with 100 MHz Memory Bus, 16-bit or 32-bit

ROM/Flash/SRAM (six banks), 16-bit or 32-bit SDRAM, SMROM (four banks),

as well as PCMCIA and Compact Flash for added functionality and

expandability. System Control Module includes 17 dedicated general-purpose

interruptible I/O ports, real-time clock, watchdog and interval timers, power

management controller, interrupt controller, reset controller, and two on-chip

oscillators.

Peripheral Control Module offers 16 channel configurable DMA controller,

integrated LCD controller with unique DMA for fast color screen support,

Bluetooth** I/F, serial ports including IrDA, I2C, I2S, AC97, three UARTs(1 Full

H/W flow control), SPI and enhanced SSP, USB end point interface, and

MMC/SD Card Support for expandable memory and I/O functionality.

About Intel PXA255 SoC detail information, user could visit Intel web site

for more.

Enhance I/O chip Advantech EVA-C210 introduction

The Advantech EVA-C210 Companion Chip is a companion chip to

the Intel® PXA255 processor based on XScaleTM technology. It provides a

variety of functions suitable for use in a high performance computer system.

The integrated on-chip functions include:

-Companion to Intel® PXA255 processor

-System Bus Interface (SBI) to AHB Wrapper

-Shared Memory Controller supports SDRAM

-Two PS/2 ports are provided for use with keyboards and mice

-Real Time Clock (RTC) with calendar function

-I2C Controller

-UART Controller with auto-flow-control function for RS485

-16550-compatible UART

-Provide up to 32 bits of General Purpose I/O (GPIO)

-Two independent 16-bit Timers

-Two ports USB Host Controllers with PHY which are compliant with

Your ePlatform Partner

User’s Manual for Advantech SOM-A2558 series module V1.00

USB Spec. Rev. 1.1

-PCI Bus Controller (FPCI) which is compliant with PCI Spec. Rev. 2.2

-One port Ethernet 10/100 MAC Controller

-Interrupt Controller

-Power Management Unit with Normal, Sleep, Deep Sleep mode and

Power-off mode.

-3.3V power supply with 3V/5V tolerant

-256 BGA package

System Memory

SOM-A2558 SDRAM can be configured as 4/8/16/32/64/128/256MB.

Users can base on their requirement to reconfigure the SDRAM size.

There are two functions Flash on SOM-A2558 series. One is Boot Flash,

the other is Storage Flash.

Boot Flash is 1MB NOR flash. In standard SOM-A2558 series product,

Advantech will pre-install the WinCE bootloader in it.

Storage Flash is used to save image & user APs. Storage Flash size is

also reconfigurable. The Storage Flash is M-system Flash. Storage Flash size

could be 0/16/32/64 MB. SOM-A2558 series have Multiple boot options

through the on-board Flash or Compact Flash Card (CFC) for easy maintain

and cost saving. If Storage Flash is 0MB that means user should put the image

in Compact Flash Card.

CPLD

SOM-A2558 series have one CPLD on board. The CPLD take charges of

the following function:

lSystem memory assignments

lI/O control

lRTC control

Base on Advantech policy, Advantech won’t release the CPLD code to

user. In fact, when user designs their own target carrier board, they don’t need

to know the CPLD code. Advantech will release memory map of available

memory block and available GPIOs. These are fully enough to users to

develop their own carrier board.

Tabla de contenidos

Otros manuales de Unidad de control de Advantech

Advantech

Advantech ASMB-BMC Manual de instalación y operación

Advantech

Advantech VEGA-330 Manual de instalación y operación

Advantech

Advantech PCM-3810I Manual de instalación y operación

Advantech

Advantech IPMI-1000 Manual de instalación y operación

Advantech

Advantech RISC Module SOM-A2552 Manual de usuario

Advantech

Advantech MIC-3376 Manual de usuario

Advantech

Advantech ADAM-2510Z Manual de usuario

Advantech

Advantech PCM-23C1CF Manual de usuario

Advantech

Advantech PCM-3347 Series Manual de usuario

Advantech

Advantech PCM-2610B Manual de instalación y operación

Advantech

Advantech APAX-5202P Manual de usuario

Advantech

Advantech EPD-130 Manual de usuario

Advantech

Advantech SOM-5962 Manual de usuario

Advantech

Advantech AIW-357 DK-G2U Manual de usuario

Advantech

Advantech MIO-6255 Manual de instalación y operación

Advantech

Advantech PCM-233A Manual de instalación y operación

Advantech

Advantech PCM-3612I Manual de instalación y operación

Advantech

Advantech SOM-7569 Manual de usuario

Advantech

Advantech PCM-24BXWF Manual de instalación y operación

Advantech

Advantech B+B SmartWorx iMcV-Giga-MediaLinX TX/SFP Manual de usuario

Advantech

Advantech MOS-2110Z-1201E Manual de usuario

Advantech

Advantech MIC-75M40 Manual de instalación y operación

Advantech

Advantech MIO-6250 MIO/160 Manual de instalación y operación

Advantech

Advantech SOM 144 Guía

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
